Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

30 part groups · 7 illustrations

Illustrations

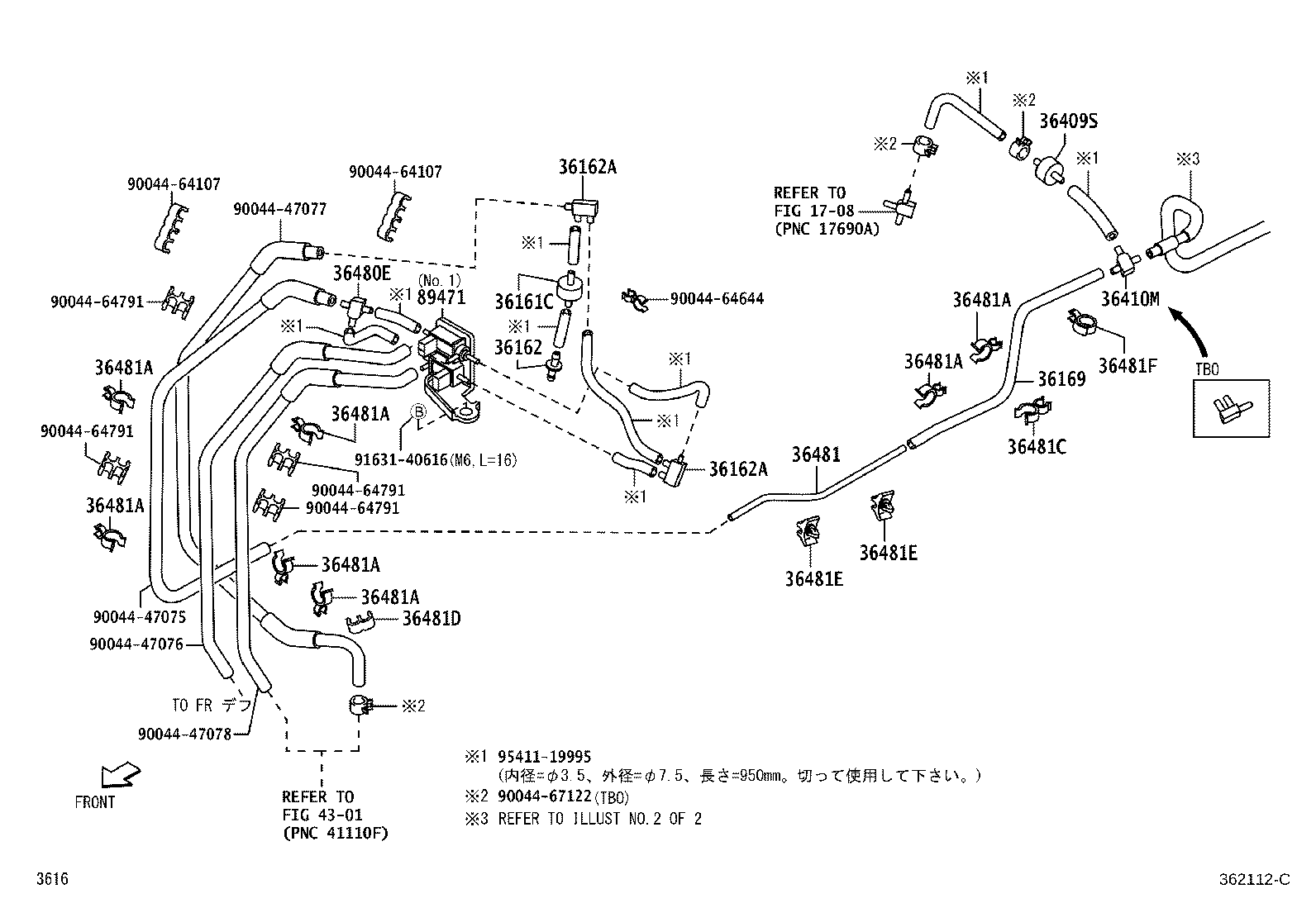

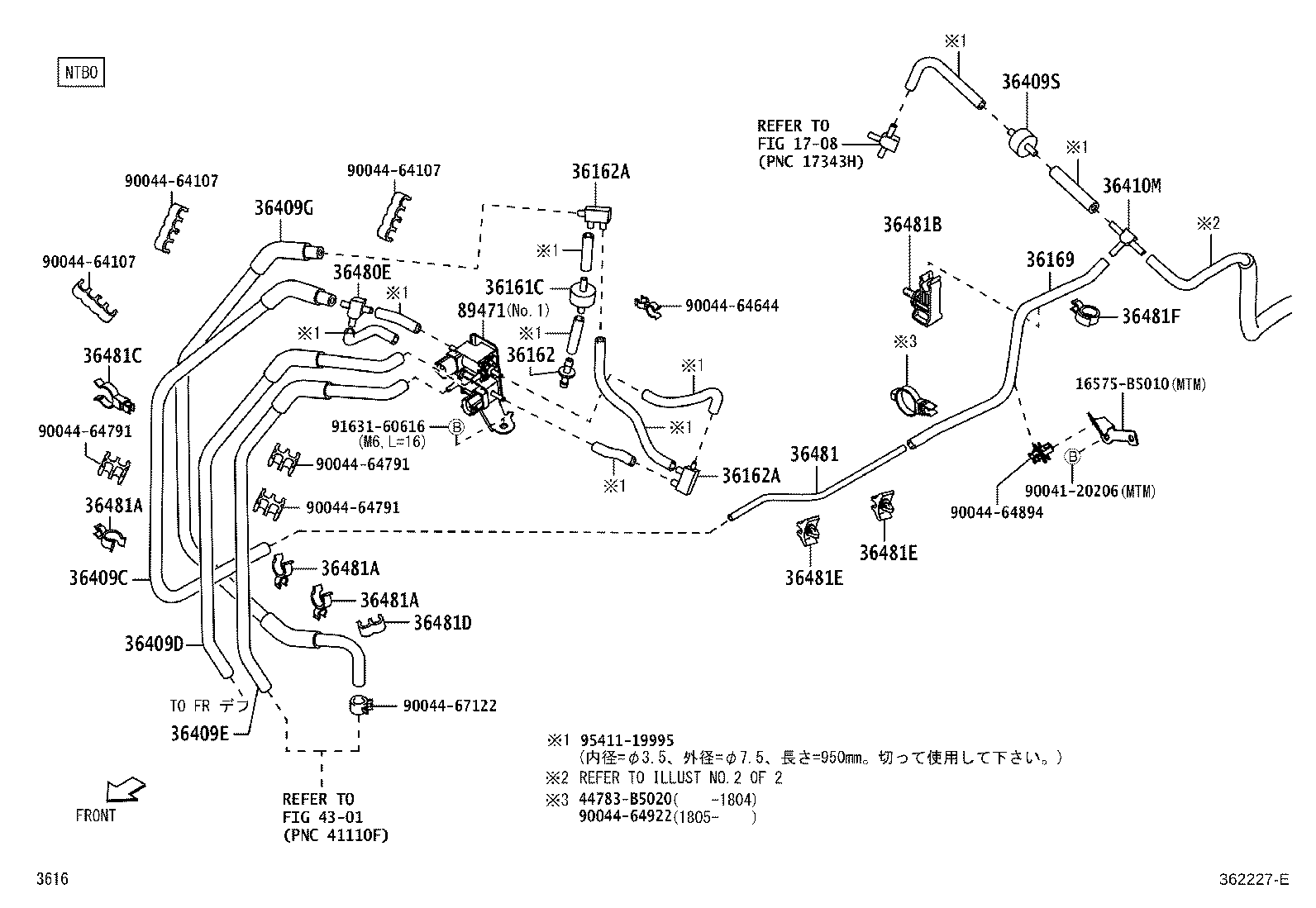

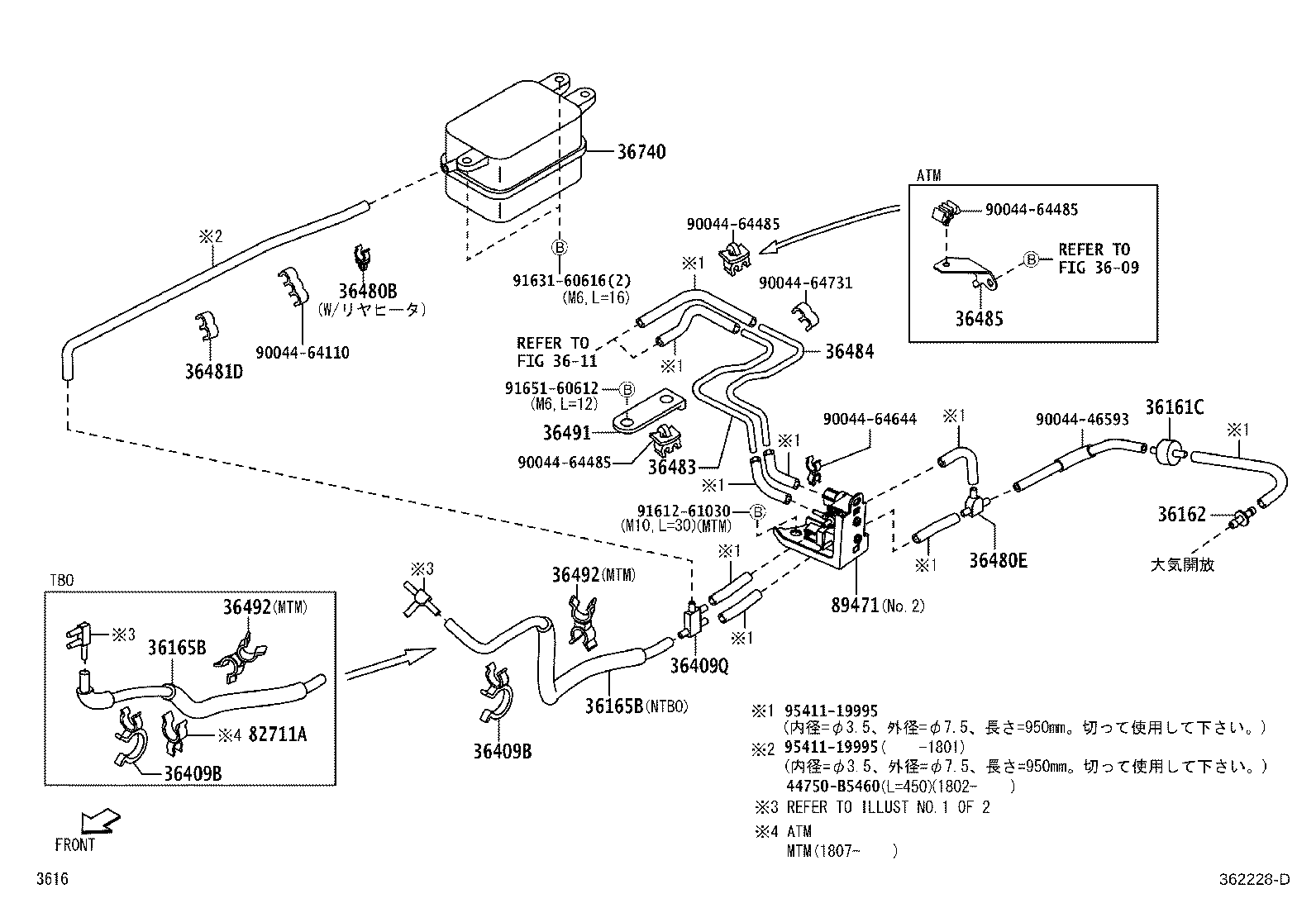

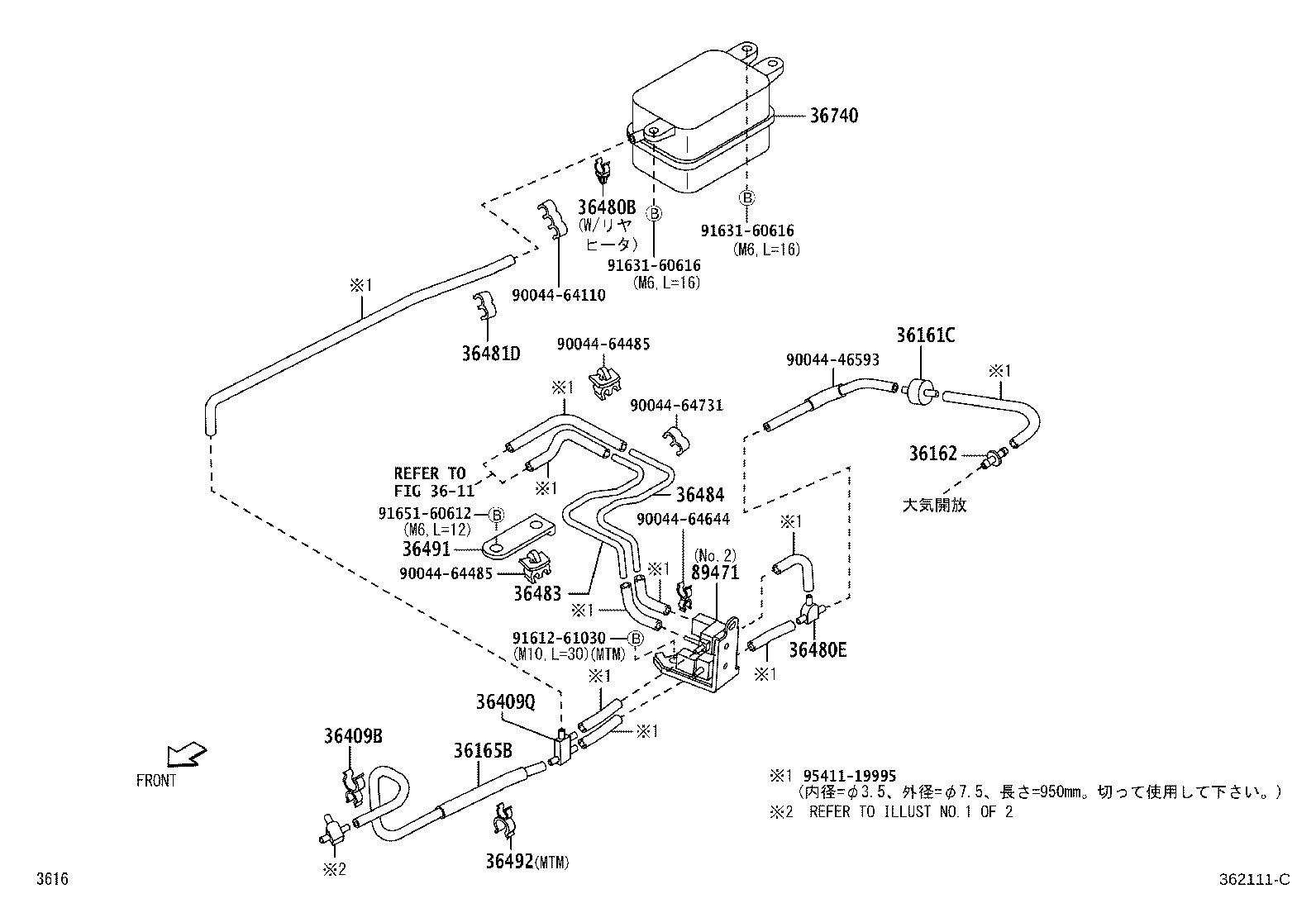

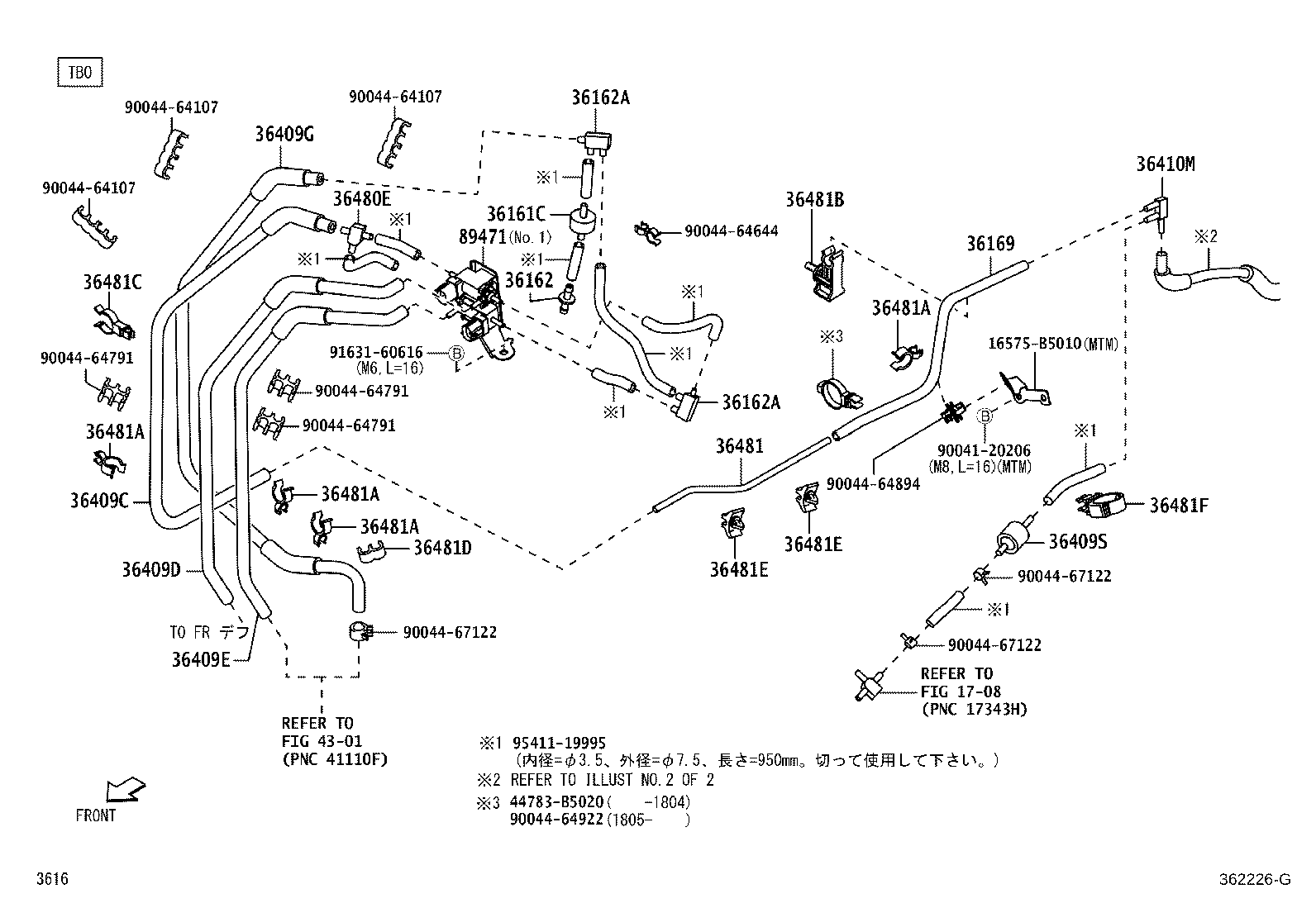

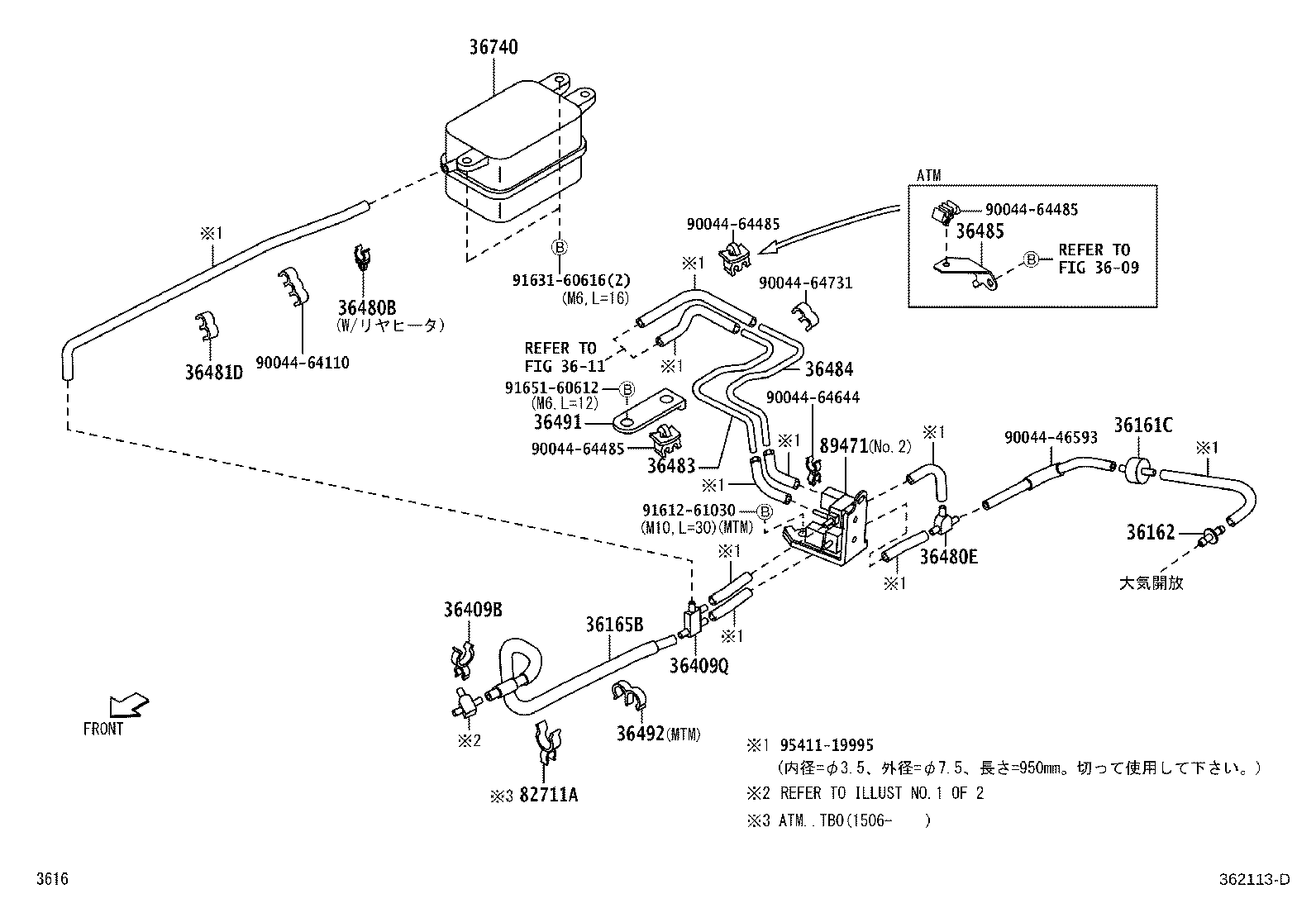

Figure 362110C 362110C 2011-12 → 2015-04 Figure 362111C 362111C 2011-12 → 2015-04 Figure 362112C 362112C 2015-04 → 2017-11 Figure 362113D 362113D 2015-04 → 2017-11 Figure 362226G 362226G 2017-11 → — Figure 362227E 362227E 2017-11 → — Figure 362228D 362228D 2017-11 → —

Part groups

PNCDescription
36161C Filter Assy, Air(FOR 2WAY)
36162 Way, 2(FOR FRONT CHECK VALVE)
36162A Way,3(FOR VACUUM HOSE)
36165B Hose(CHECK VALVE, NO.2)
36169 Hose
36409B Clamp, Vacuum Tube
36409C Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
36409D Hose, Vacuum, NO.2 (FOR FRONT DRIVE SHIFT)
36409E Hose, Vacuum, NO.3 (FOR FRONT DRIVE SHIFT)
36409G Hose, Vacuum, NO.4 (FOR FRONT DRIVE SHIFT)
36409Q Way, 4 (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36410M Way, 3 (FOR TRANSFER VACUUM)
36480B Clamp (FOR VACUUM CHECK VALVE)
36480E Way, 3 (FOR TRANSFER VACUUM TUBE)
36481 Tube, Front Drive Vacuum, NO.1
36481A Clamp (FOR FRONT DRIVE VACUUM TUBE)
36481B Clamp, Front Drive Vacuum Tube, NO.1
36481C Clamp, Front Drive Vacuum Tube, NO.2
36481D Clamp, NO.1 (FOR TRANSFER VACUUM)
36481E Clamp, NO.2 (FOR TRANSFER VACUUM)
36481F Clamp, NO.3(FOR TRANSFER VACUUM)
36483 Tube, Front Drive Vacuum, NO.3
36484 Tube, Front Drive Vacuum, NO.4
36485 Bracket, Front Drive Vacuum Tube, NO.1
36491 Clamp, Transfer Vacuum Tube, N0.1
36492 Clamp, Transfer Vacum Tube, NO.2
36740 Tank Assy, Transfer Vacuum
82711A Clamp(FOR TRANSFER VACUUM TUBE)
89471 Valve Assy, Vacuum Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
