Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

13 part groups · 2 illustrations

Illustrations

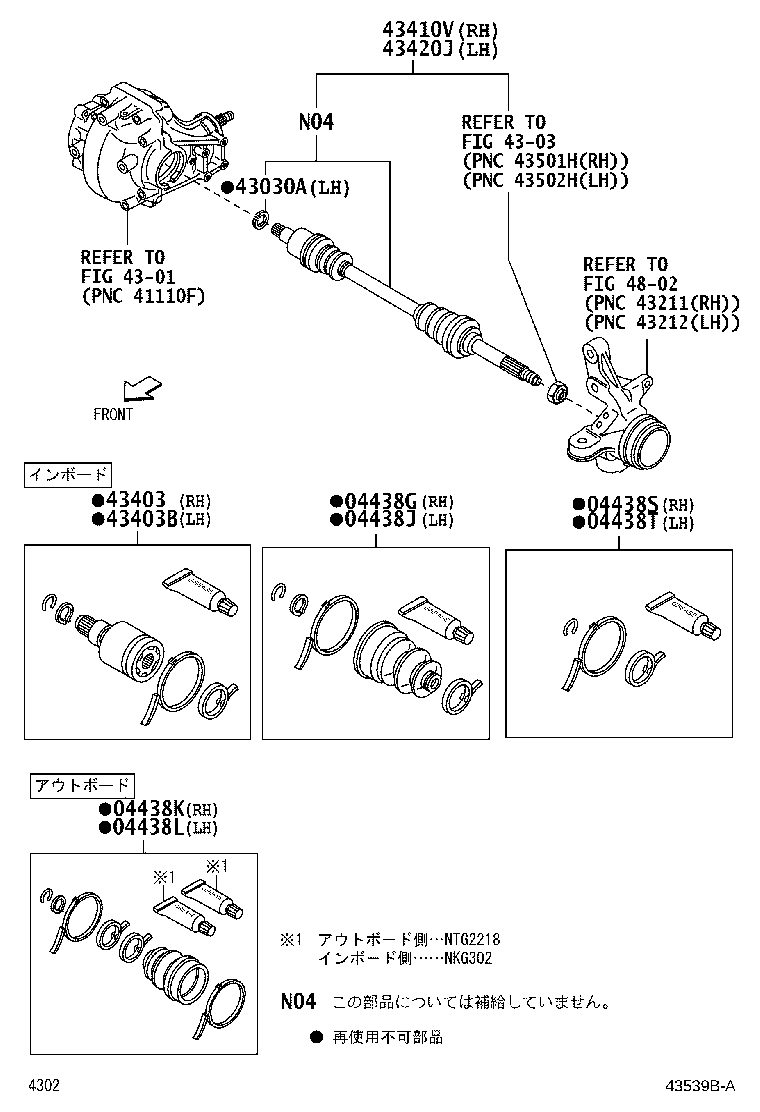

Figure 43539AA 43539AA 2011-12 → 2017-11 Figure 43539BA 43539BA 2017-11 → —

Part groups

PNCDescription
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
04438K Boot Kit, Front Drive Shaft Outboard Joint, RH
04438L Boot Kit, Front Drive Shaft Outboard Joint, LH
04438S Clamp Kit, Front Drive Shaft, RH
04438T Clamp Kit, Front Drive Shaft, LH
43030A Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT)
43403 Joint Set, Front Axle Inboard, RH
43403B Joint Set, Front Axle Inboard, LH
43410 Shaft Assy, Front Drive, RH
43410V Shaft Set, Front Drive, RH
43420 Shaft Assy, Front Drive, LH
43420J Shaft Set, Front Drive, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
