Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

13 part groups · 2 illustrations

Illustrations

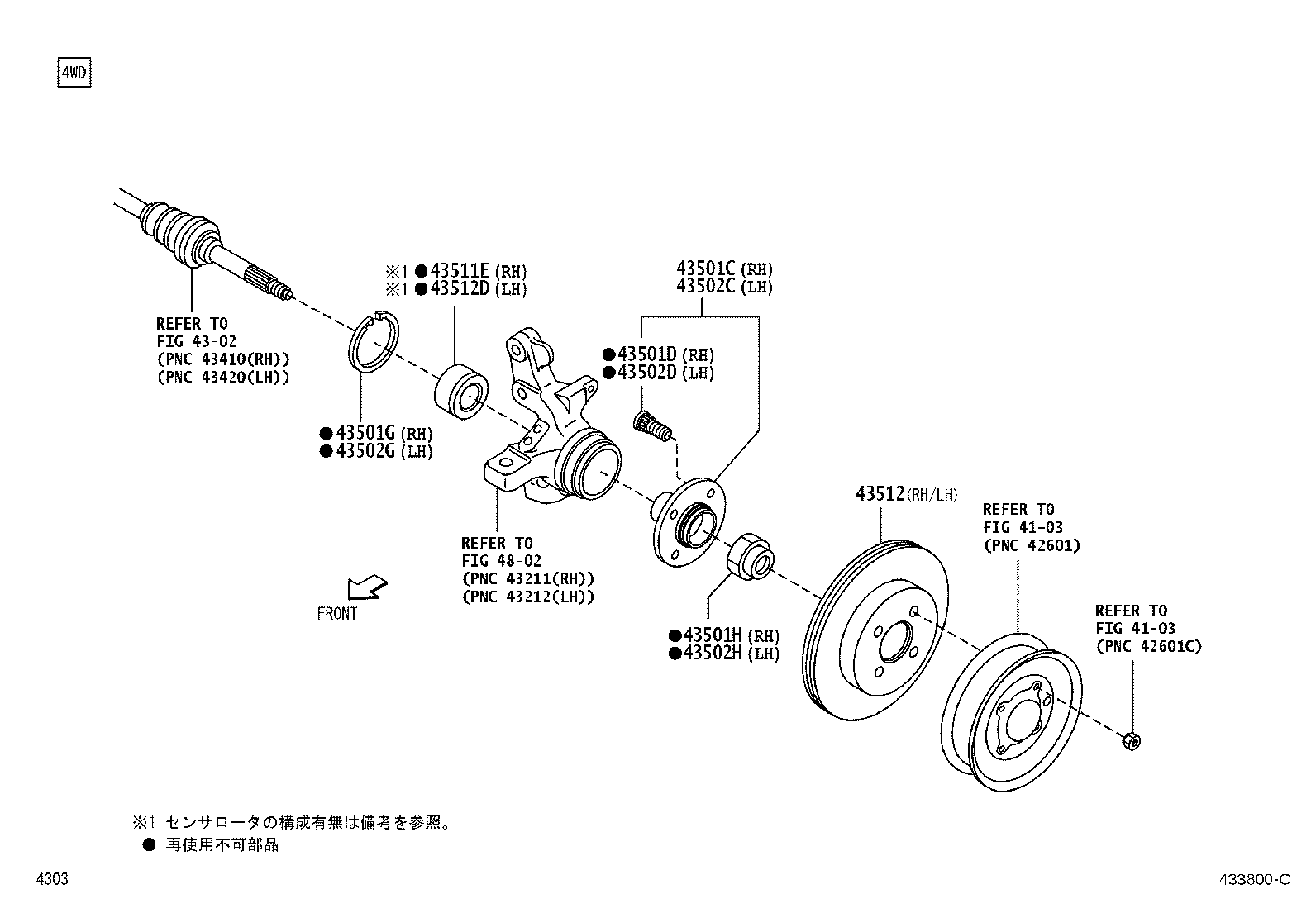

Figure 433799E 433799E 2011-12 → — Figure 433800C 433800C 2011-12 → —

Part groups

PNCDescription
43401E Spindle Sub-assy, Steering
43501C Hub Sub-assy, Front Axle, RH
43501D Bolt, Hub (FOR FRONT AXLE RH)
43501G Ring, Hole Snap (FOR FRONT AXLE HUB RH)
43501H Nut (FOR FRONT AXLE SHAFT RH)
43502C Hub Sub-assy, Front Axle, LH
43502D Bolt, Hub (FOR FRONT AXLE LH)
43502G Ring, Hole Snap (FOR FRONT AXLE HUB LH)
43502H Nut (FOR FRONT AXLE SHAFT LH)
43511E Bearing (FOR FRONT AXLE HUB RH)
43512 Disc, Front
43512D Bearing (FOR FRONT AXLE HUB LH)
43514 Cap, Front Hub Grease
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
