Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

8 part groups · 2 illustrations

Illustrations

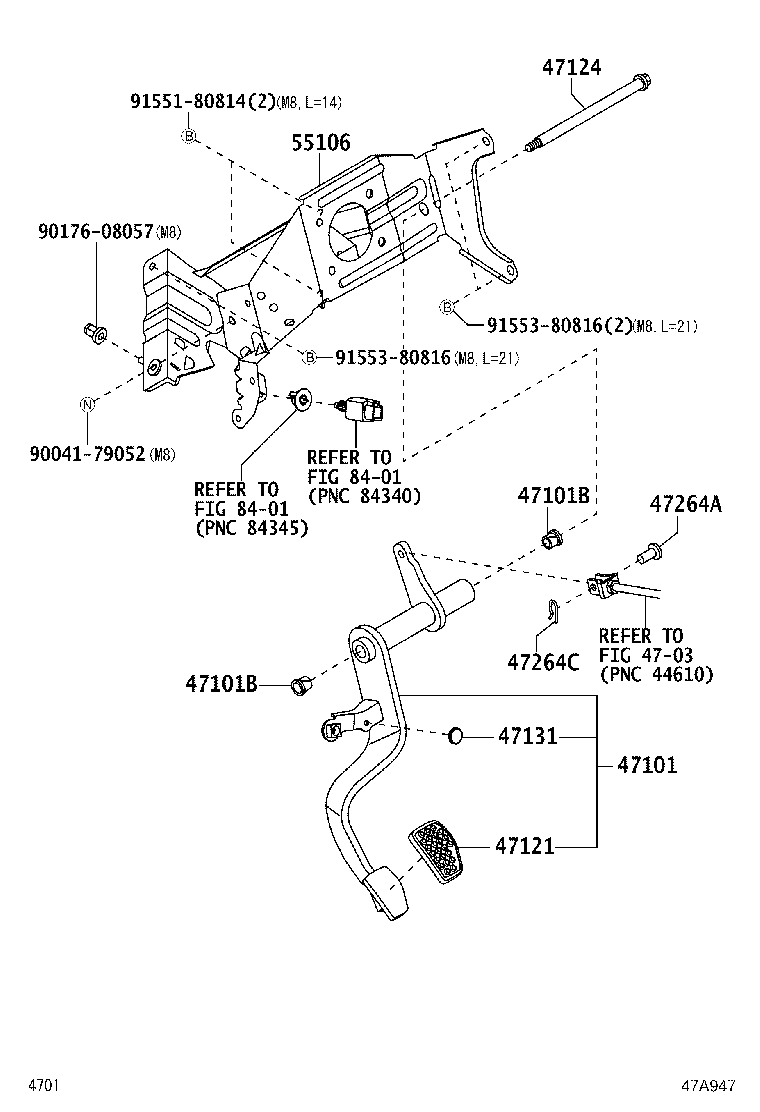

Figure 47A370B 47A370B 2011-12 → 2017-11 Figure 47A947 47A947 2017-11 → —

Part groups

PNCDescription
47101 Pedal Sub-assy, Brake
47101B Bush(FOR BRAKE PEDAL)
47121 Pad, Brake Pedal
47124 Shaft, Brake Pedal
47131 Cushion(FOR STOP LAMP SWITCH)
47264A Pin(FOR PUSH ROD)
47264C Clip(FOR PUSH ROD CLEVIS PIN)
55106 Support Sub-assy, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
