Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

14 part groups · 4 illustrations

Illustrations

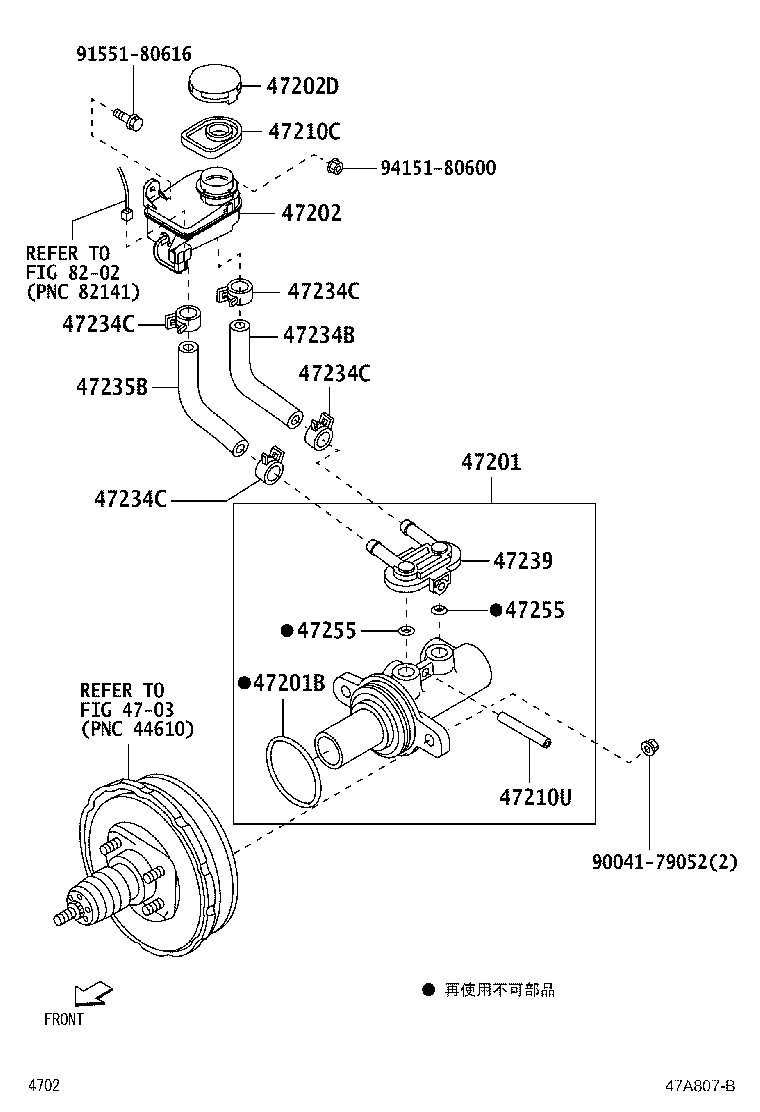

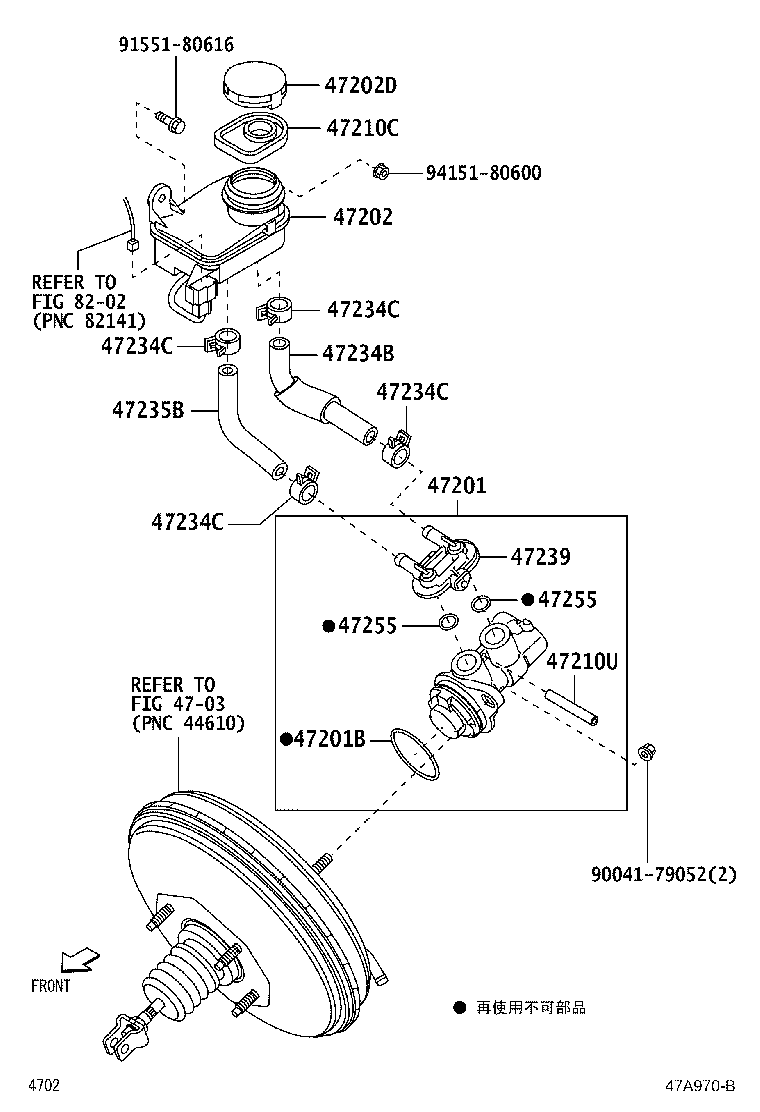

Figure 47A806A 47A806A 2011-12 → 2012-12 Figure 47A807B 47A807B 2011-12 → 2017-11 Figure 47A807B 47A807B 2012-12 → 2017-11 Figure 47A970B 47A970B 2017-11 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47202D Cap, Reservoir(FOR MASTER CYLINDER RESERVOIR SET)
47202E Union(FOR MASTER CYLINDER RESERVOIR SET)
47210C Plate(FOR BRAKE MASTER CYLINDER PISTON STOP)
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47234 Retainer, Reservoir Gasket
47234B Tube, Reservoir, NO.1
47234C Clip(FOR RESERVOIR TUBE NO.1)
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47239 Connector, Brake Master Cylinder Reservoir
47255 Grommet, Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
