Toyota Pixis Van
2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan
Supported model
Data version 2020-09
Rear Drum Brake Wheel Cylinder & Backing Plate

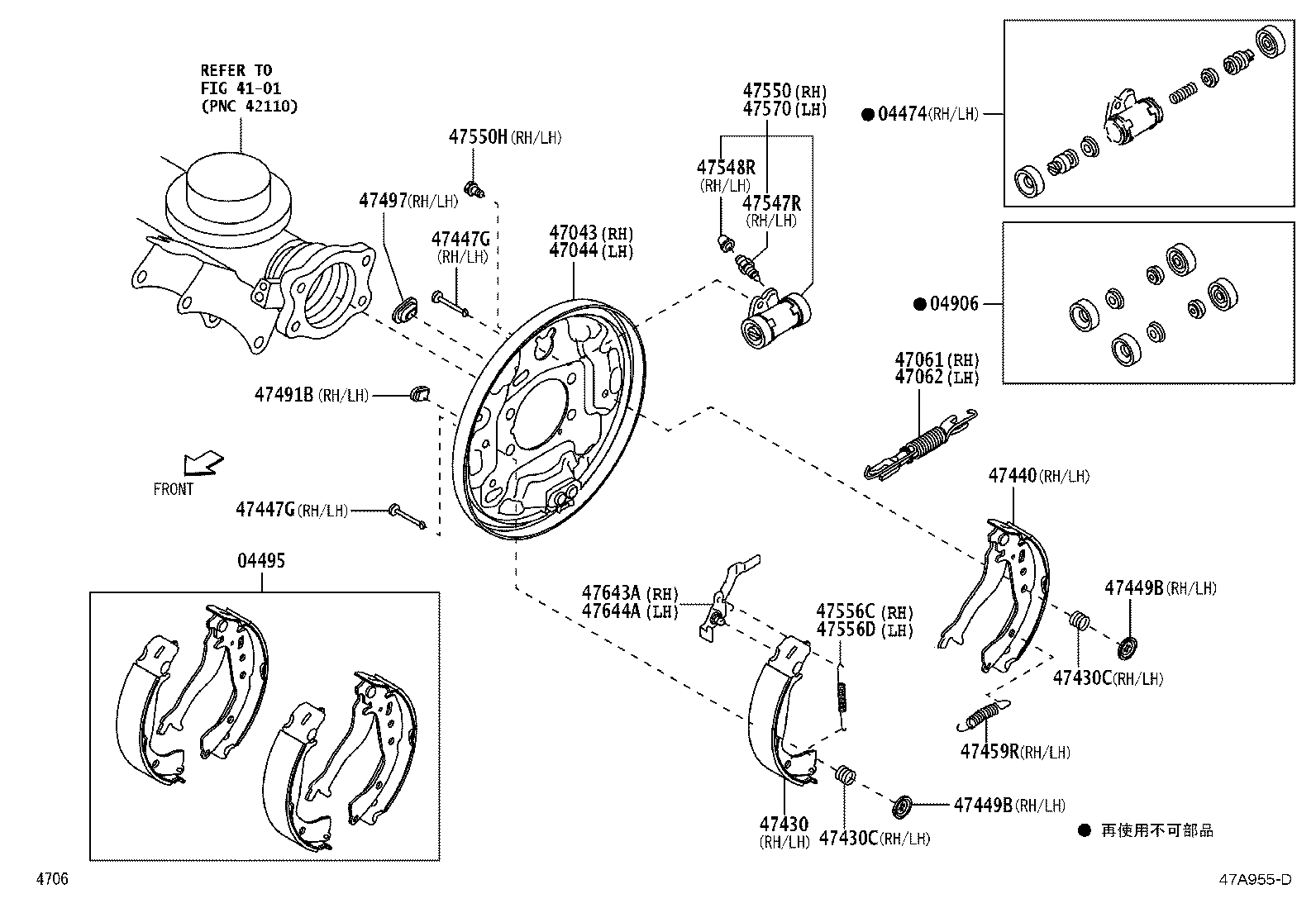

36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04474 | Cylinder Kit, Rear Wheel |
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47061 | Strut Set, Parking Brake Shoe, RH |
| 47062 | Strut Set, Parking Brake Shoe, LH |
| 47430 | Shoe Assy, Rear Brake(FOR FRONT OR UPPER SIDE) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430G | Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) |
| 47430H | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47440 | Shoe Assy, Rear Brake(FOR REAR OR LOWER SIDE) |
| 47447G | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47449B | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47459R | Spring, Shoe Return(FOR REAR BRAKE) |
| 47491B | Plug, Hole(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47497 | Plug, Hole NO.2(FOR REAR BRAKE) |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550H | Bolt(FOR REAR WHEEL CYLINDER) |
| 47556C | Spring, Adjuster Lock, RH(FOR REAR BRAKE) |
| 47556D | Spring, Adjuster Lock, LH(FOR REAR BRAKE) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47601 | Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47602 | Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) |
| 47626C | Washer, Wave |
| 47643A | Lever, Rear Brake Automatic Adjust, RH |
| 47644A | Lever, Rear Brake Automatic Adjust, LH |
| 47645 | Pin, Automatic Adjust Lever(FOR REAR BRAKE) |
| 47646B | Latch, Automatic Adjust, RH(FOR REAR BRAKE) |
| 47647A | Latch, Automatic Adjust, LH(FOR REAR BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
