Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

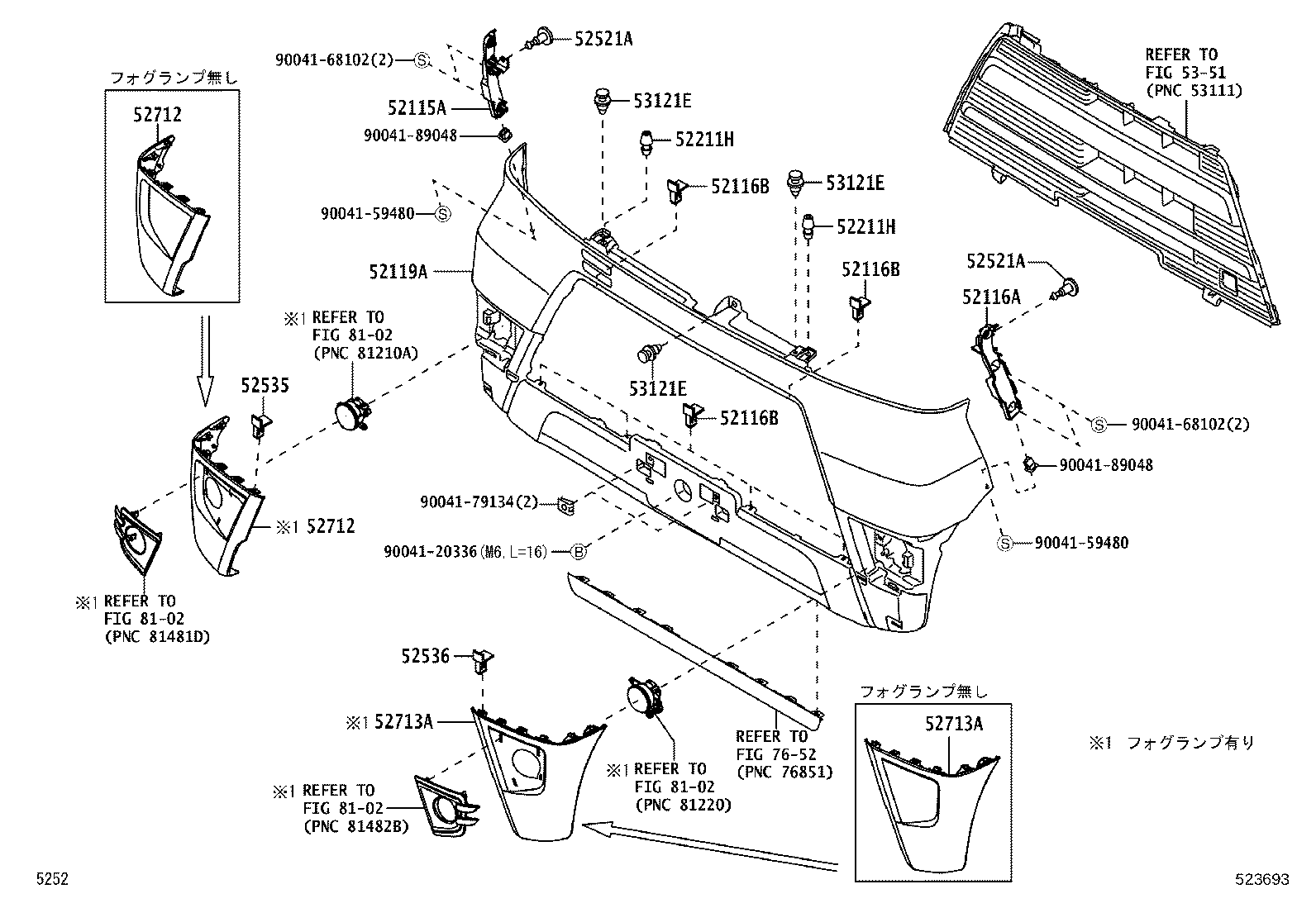

Figure 522540E 522540E 2011-12 → 2017-11 Figure 523693 523693 2017-11 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52147G Guide, Front Bumper Locating
52211H Cushion(FOR FRONT BUMPER ARM)
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53121E Clip(FOR FRONT BUMPER), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
