Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

13 part groups · 6 illustrations

Illustrations

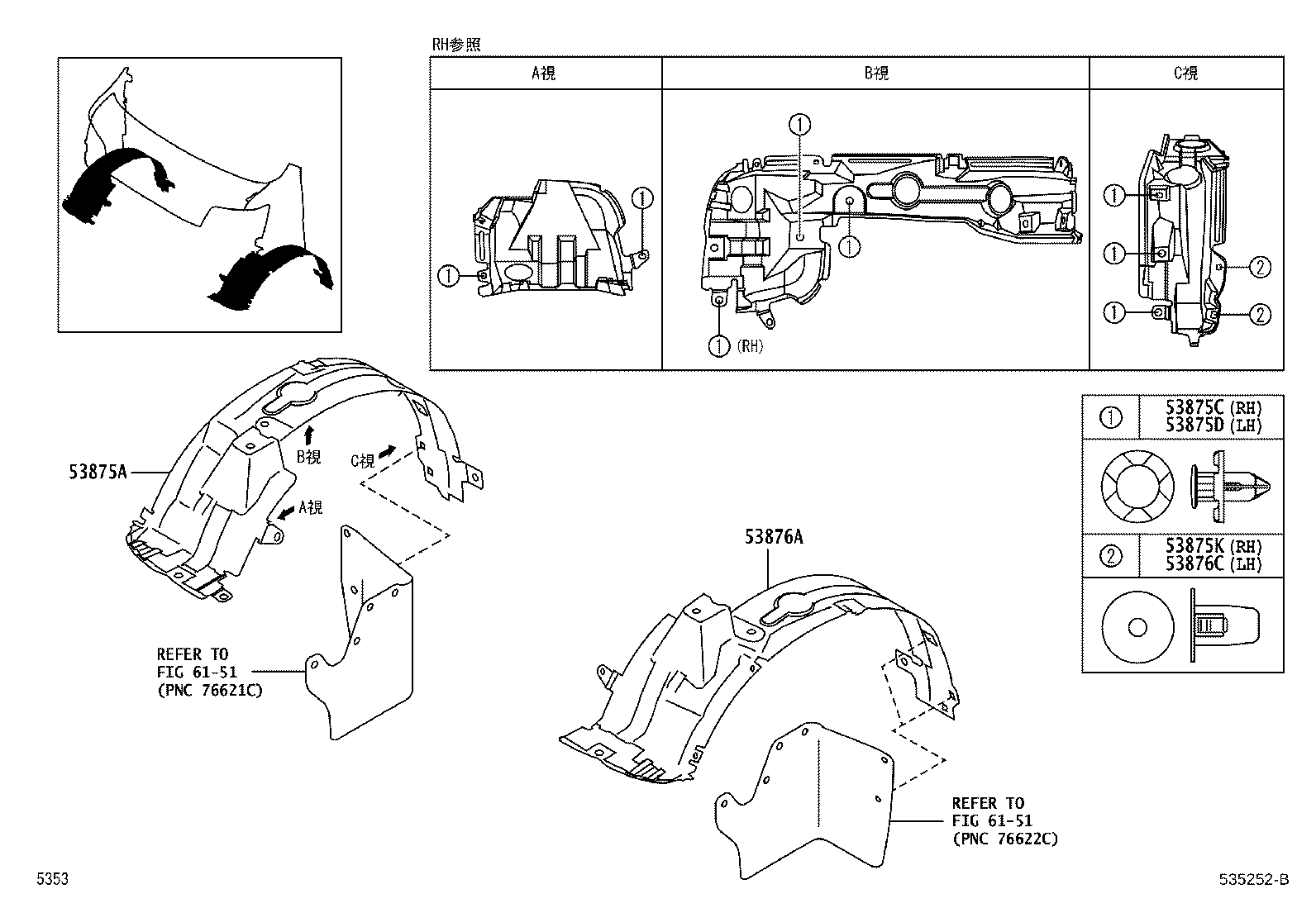

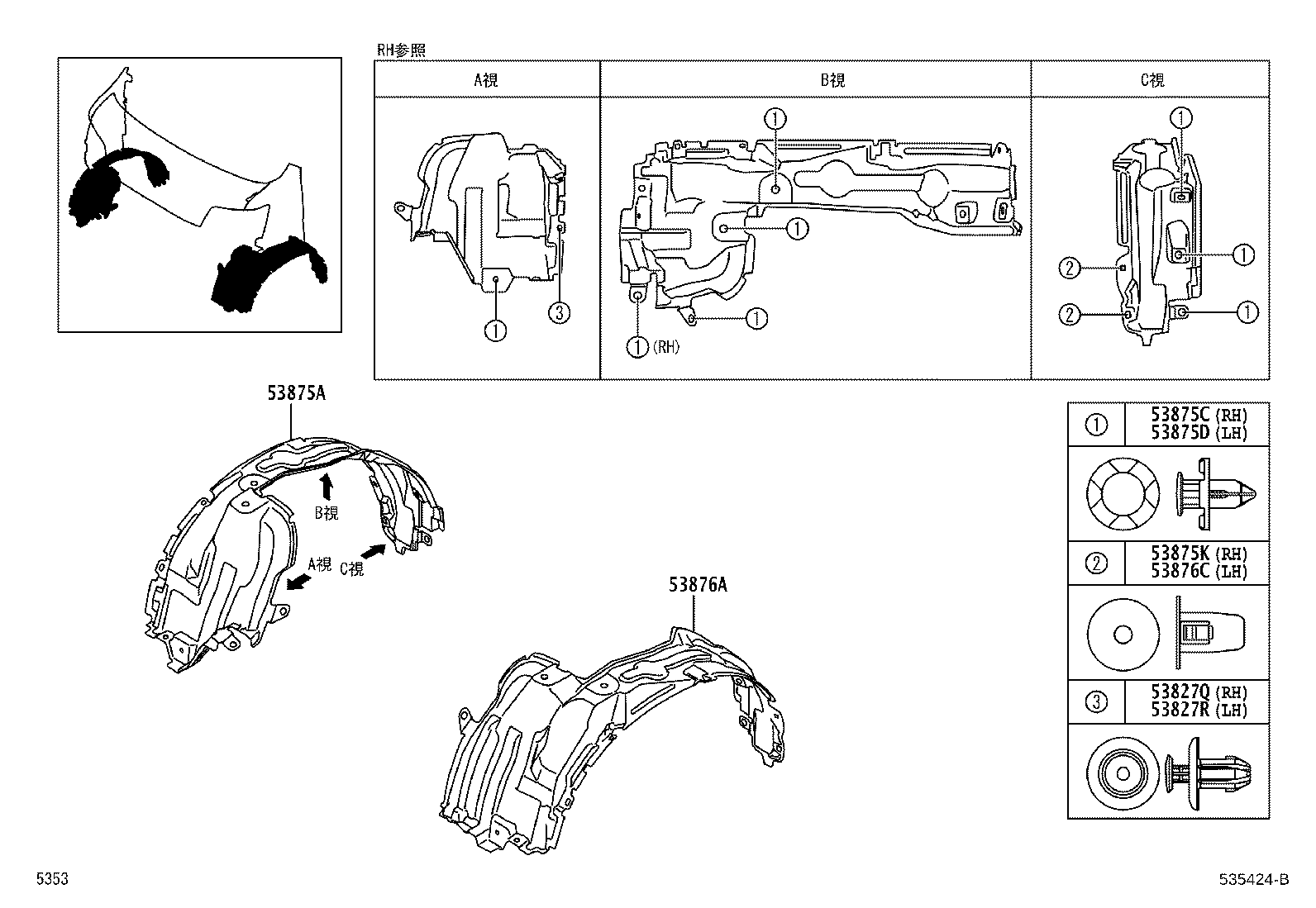

Figure 533590E 533590E 2011-12 → 2017-11 Figure 535252B 535252B 2011-12 → 2017-11 Figure 535264B 535264B 2011-12 → 2017-11 Figure 535422 535422 2017-11 → — Figure 535424B 535424B 2017-11 → — Figure 535425A 535425A 2017-11 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827Q Clip, Front Fender Side Panel Protector, NO.1
53827R Clip, Front Fender Side Panel Protector, NO.2
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53876C Grommet, Screw
76183 Protector, Hood Bulge, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
