Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

66 part groups · 10 illustrations

Illustrations

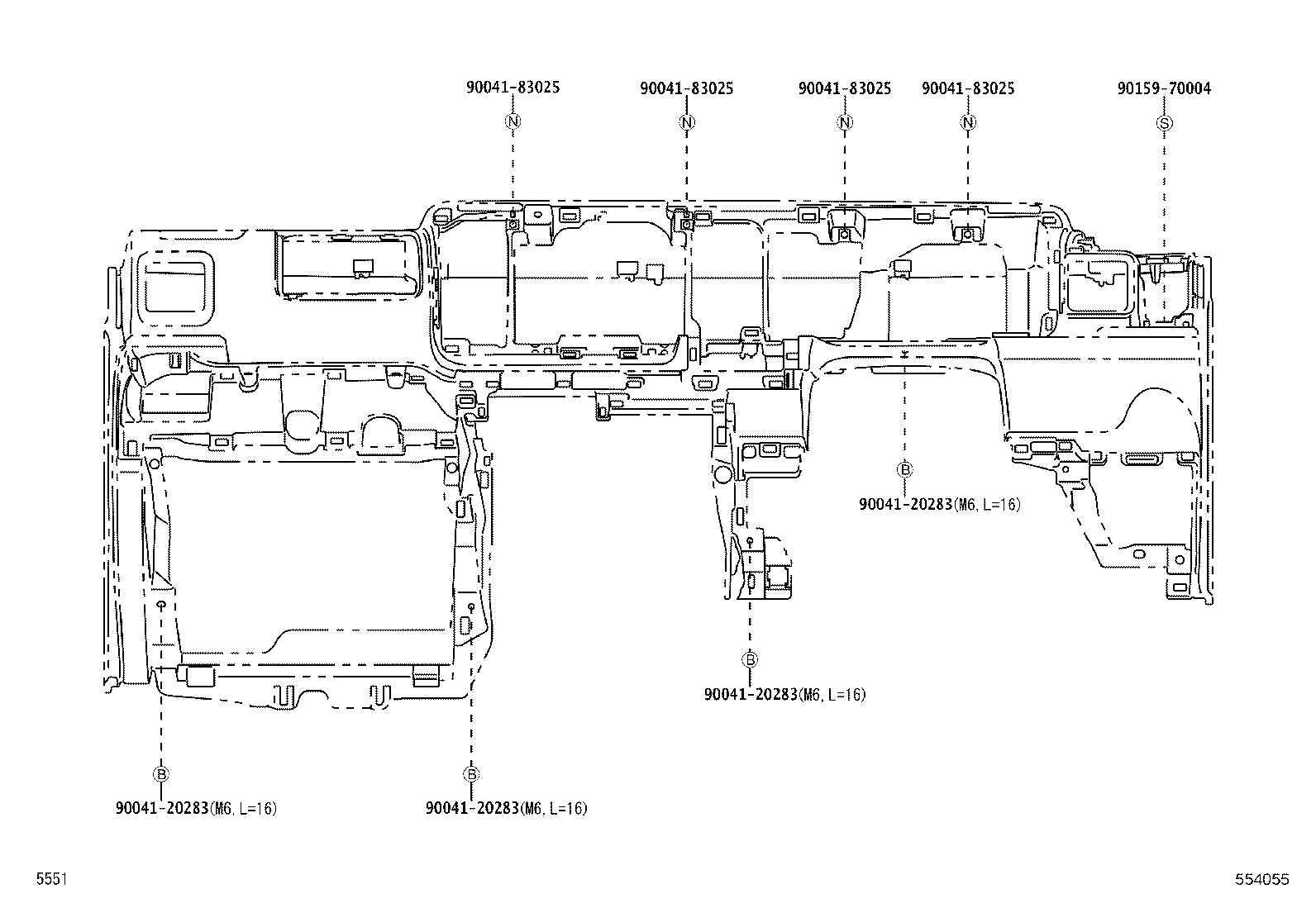

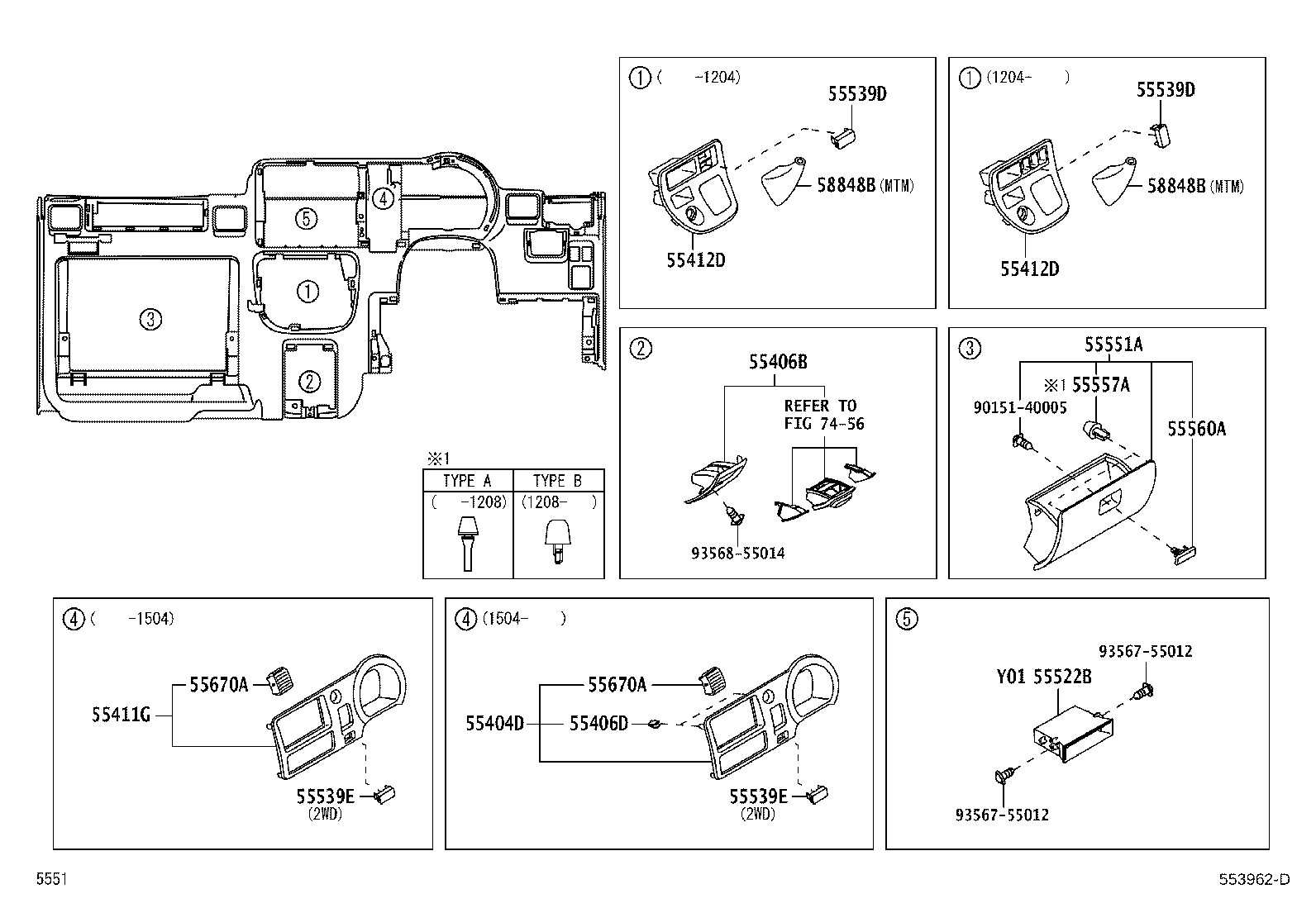

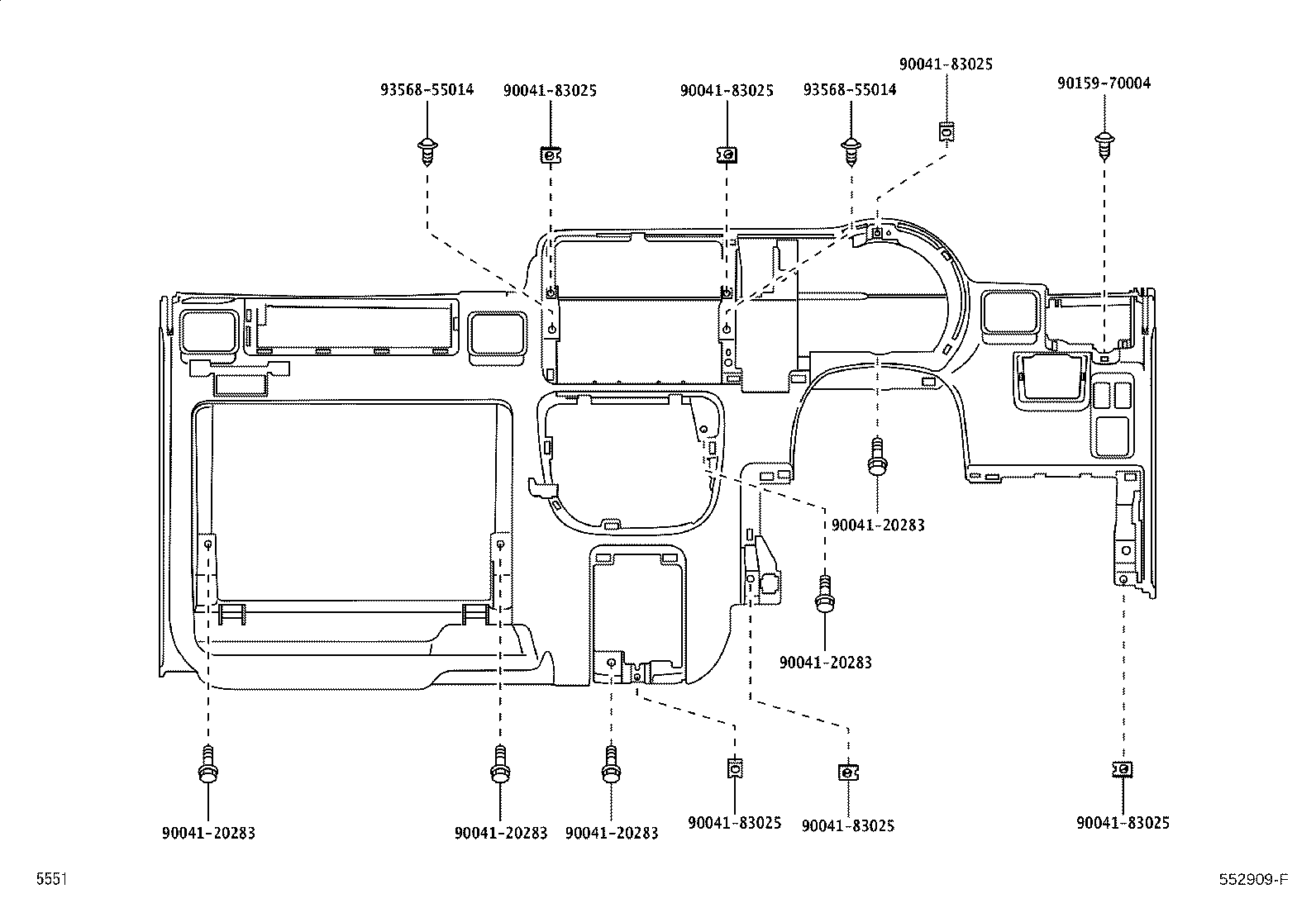

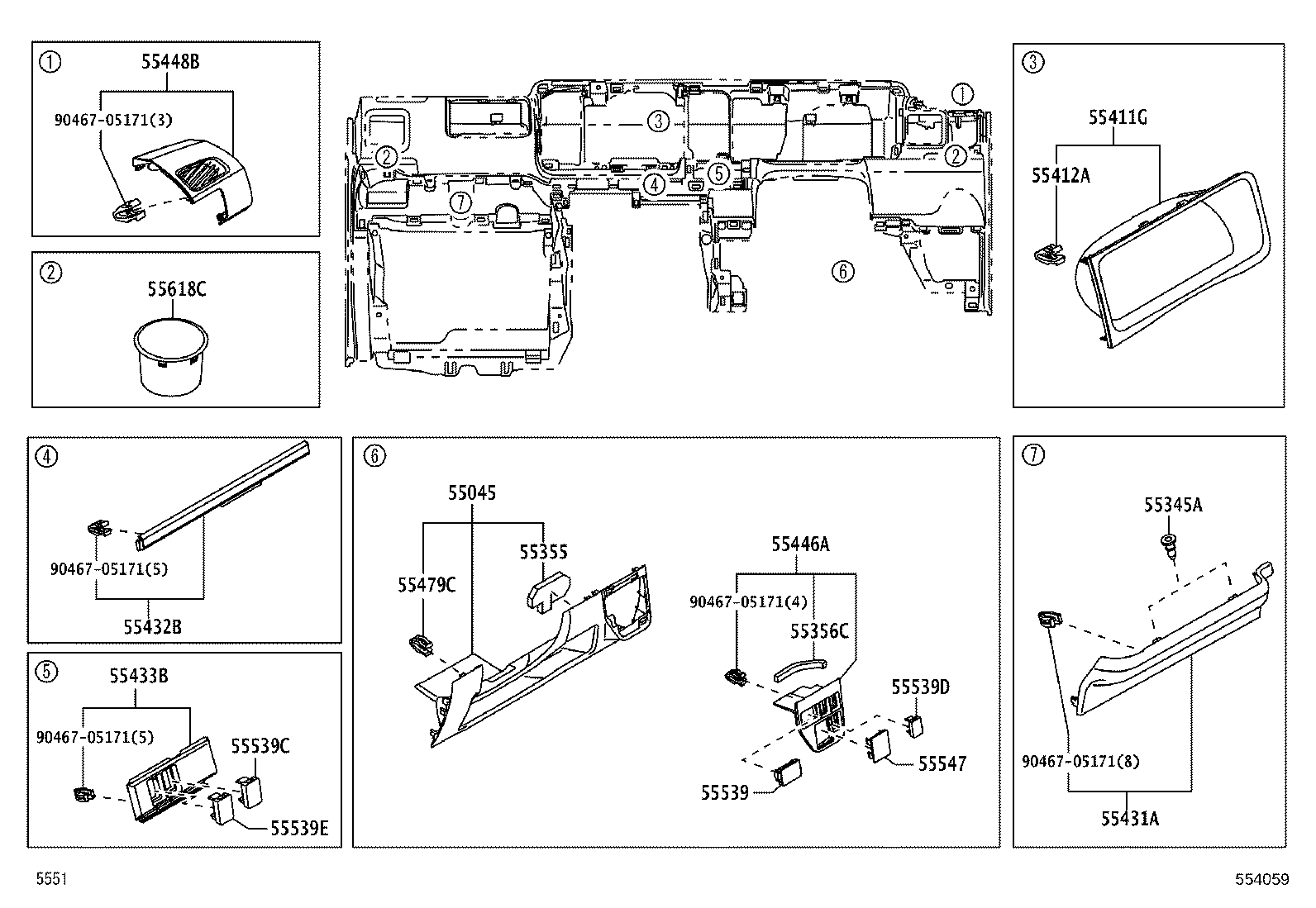

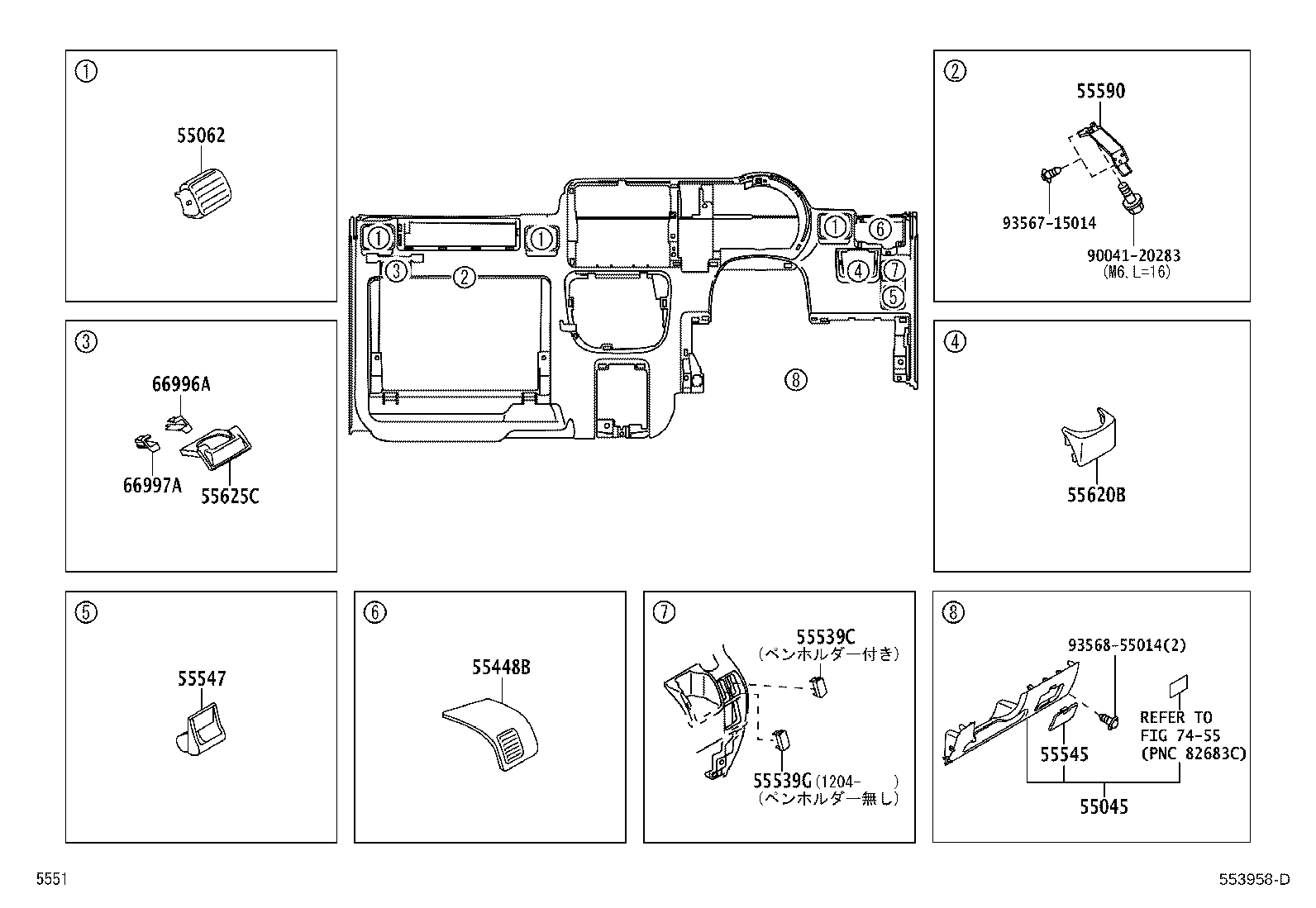

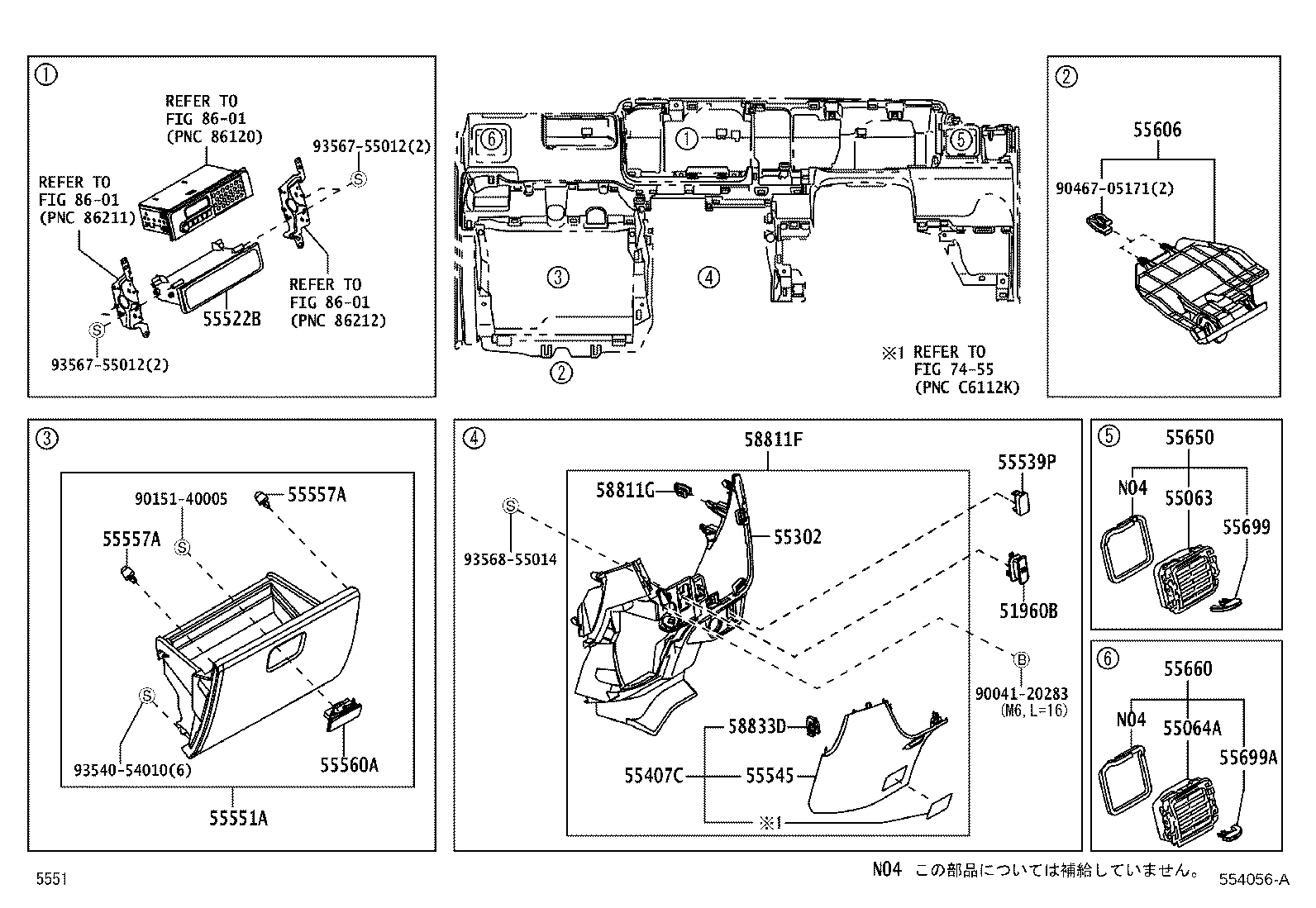

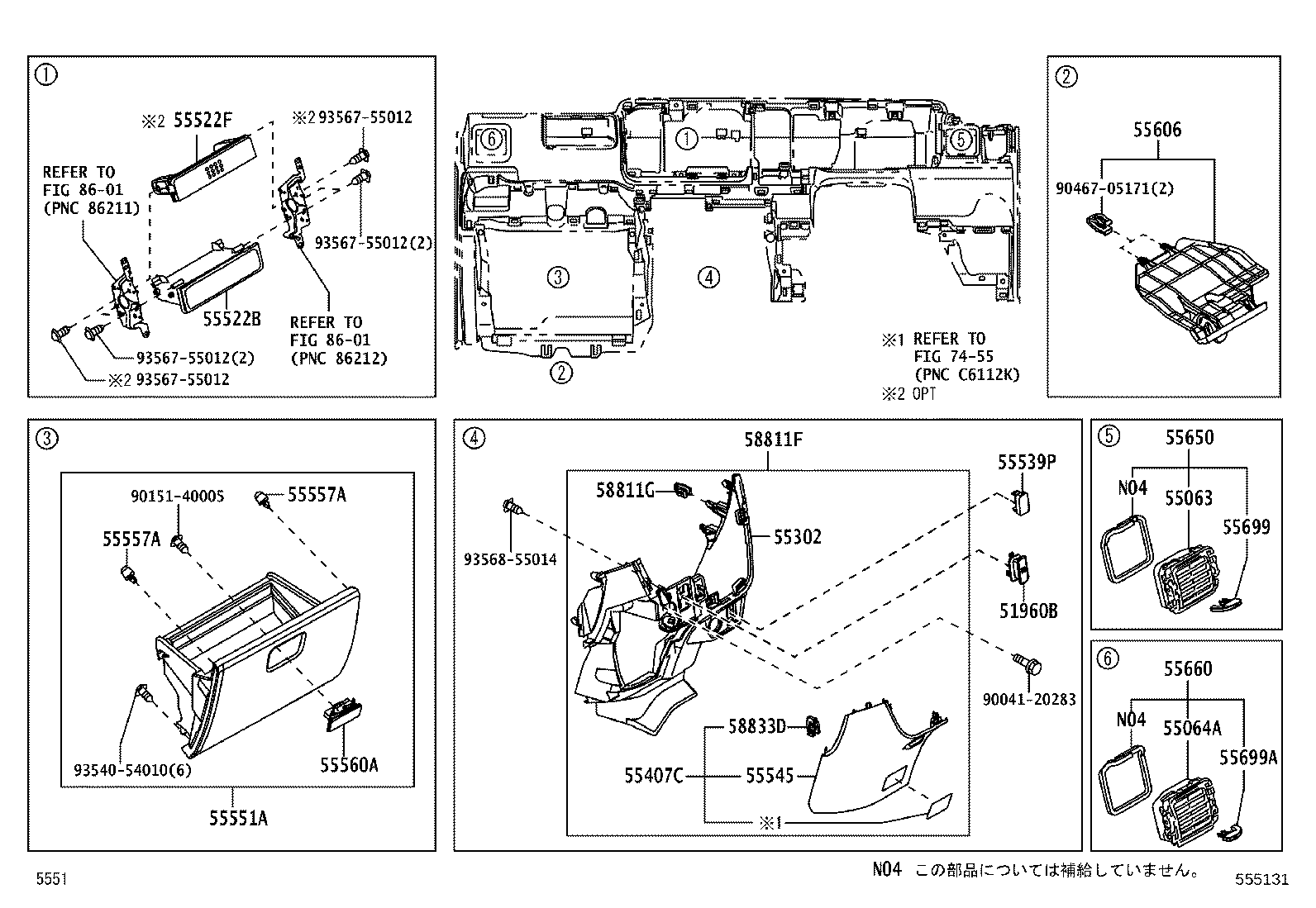

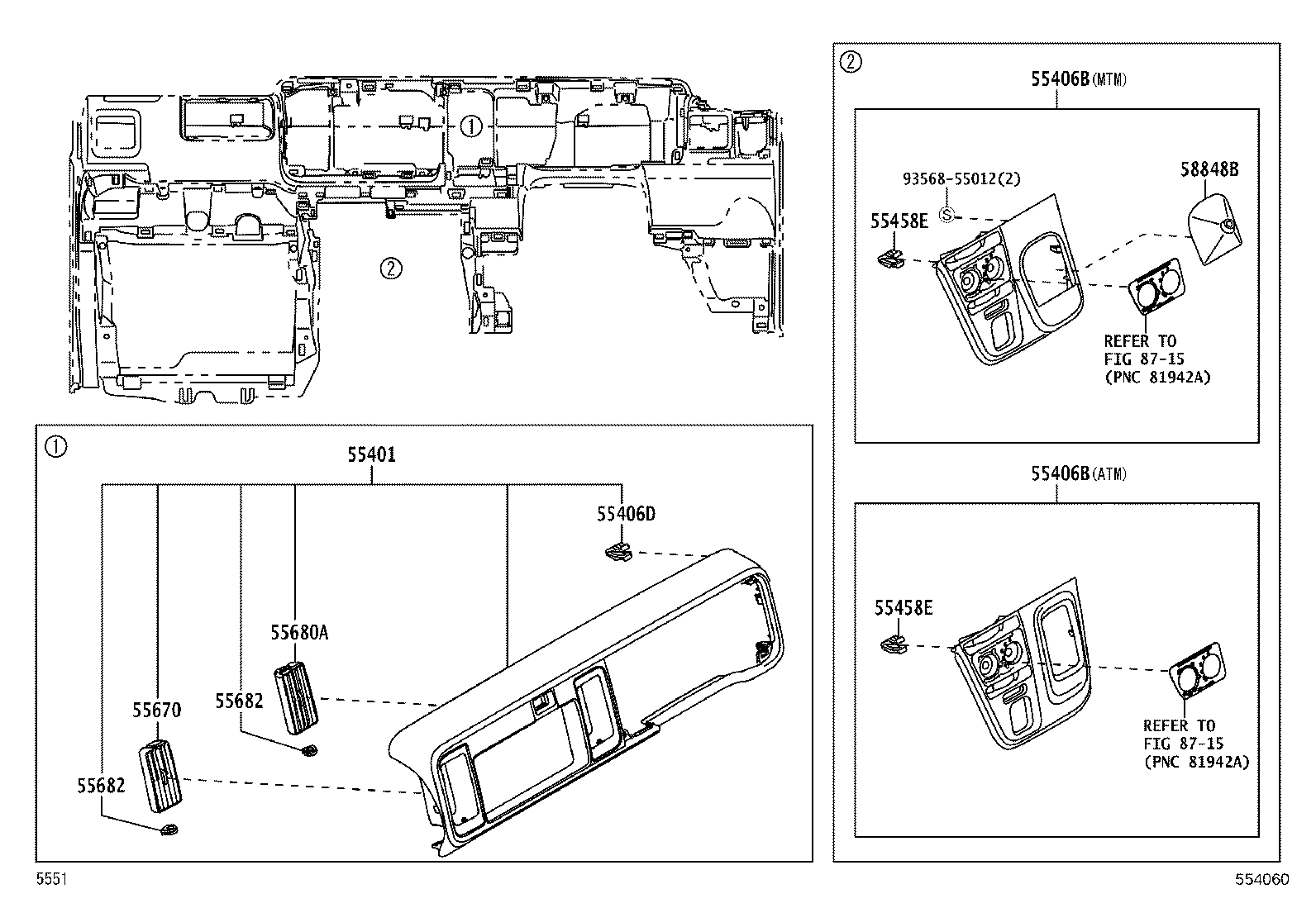

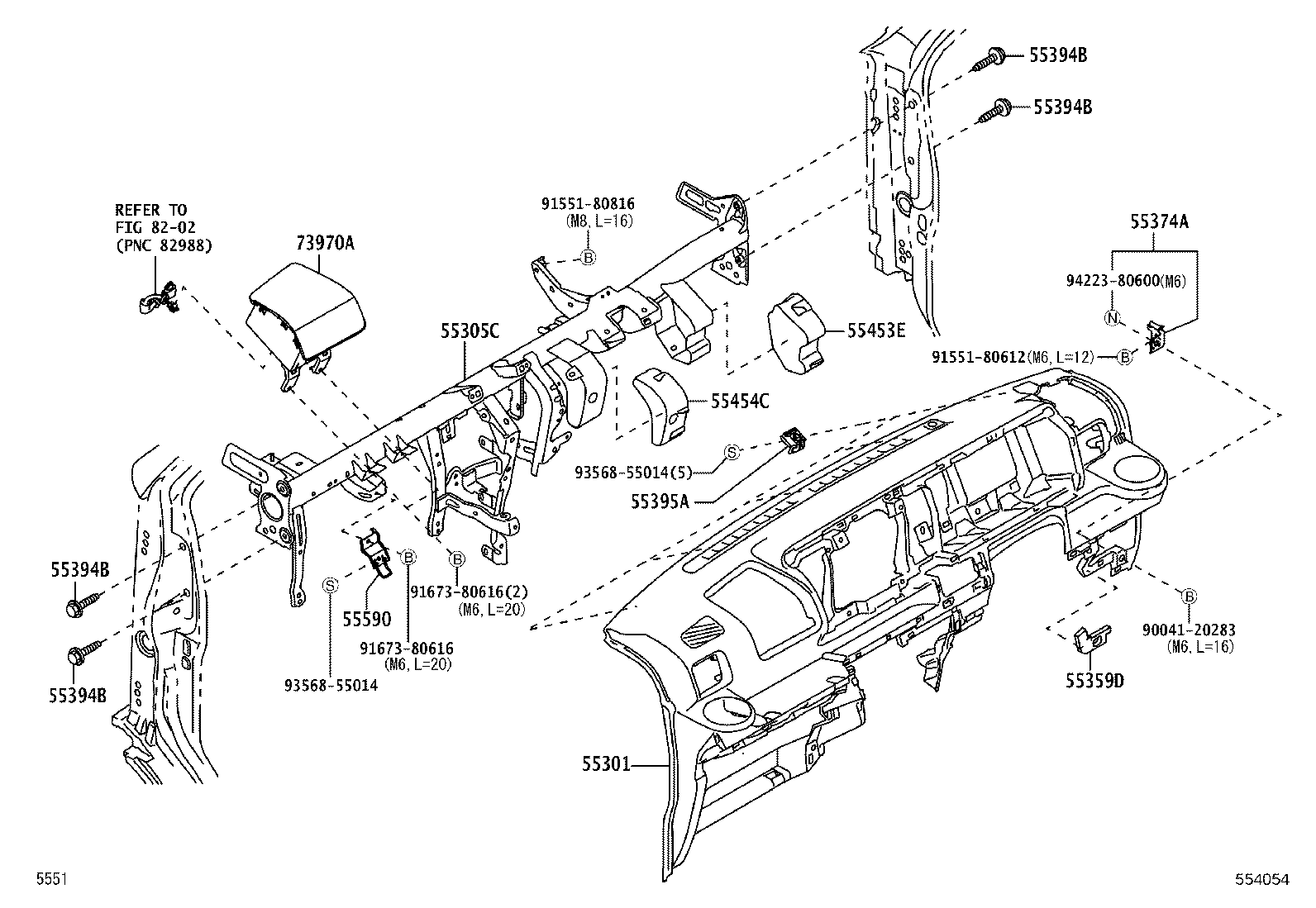

Figure 552149N 552149N 2011-12 → 2017-11 Figure 552909F 552909F 2011-12 → 2017-11 Figure 553958D 553958D 2011-12 → 2017-11 Figure 553962D 553962D 2011-12 → 2017-11 Figure 554054 554054 2017-11 → — Figure 554055 554055 2017-11 → — Figure 554056A 554056A 2017-11 → 2021-06 Figure 555131 555131 2021-07 → — Figure 554059 554059 2017-11 → — Figure 554060 554060 2017-11 → —

Part groups

PNCDescription
51960B Hook Assy, Front
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55062 Register Sub-assy, Instrument Panel, N0.2
55063 Register Sub-assy, Instrument, NO.3
55064A Register Sub-assy, Instrument, NO.4
55217B Retainer, Dash Panel Silencer
55301 Panel Sub-assy, Instrument
55302 Panel Sub-assy, Center Control
55305C Reinforcement Sub-assy, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55359D Cushion, Instrument Panel, NO.5
55374A Bracket, Instrument Panel Lower Mounting, RH
55394B Bolt, Instrument Panel
55395A Retainer, Instrument Panel Clamp
55401 Panel Sub-assy, Instrument Cluster Finish
55404D Panel Sub-assy, Instrument Cluster Finish
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55407C Cover Sub-assy, Instrument, Lower
55411G Panel, Instrument Cluster Finish, NO.1
55412A Clip, Panel, Instrument Cluster Finish, End
55412D Panel, Instrument Cluster Finish, Center
55431A Panel, Instrument Panel Finish
55432B Panel, Instrument Panel Finish, Lower
55433B Panel, Instrument Panel Finish, Lower NO.2
55446A Base, Switch Hole, NO.1
55448B Cover, Oil Reservoir Tank, RH
55453E Pad, Instrument, Lower RH
55454C Pad, Instrument, Lower LH
55458E Clip(FOR INSTRUMENT LOWER COVER)
55479C Clip(FOR INSTRUMENT LOWER COVER)
55522B Cover, Radio Tuner Opening
55522F Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55539G Cover, Spare Switch Hole
55539P Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55547 Cover, Remote Control Mirror Hole
55551A Door, Glove Compartment, Outer
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55590 Plate Assy, Grove Compartment Door Lock Striker
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55618C Holder, Instrument Panel Cup
55620B Holder, Instrument Panel Cup
55625C Tray, Instrument Panel Cup Holder
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55670A Register Assy, Instrument Panel, Center
55680A Register Assy, Instrument Panel, NO.4
55682 Spring, Instrument Panel Register Support
55699 Knob, Instrument Panel Register Control
55699A Knob, Instrument Panel Register Control NO.2
58811F Box, Consol
58811G Clip(CONSOL BOX)
58833D Clip(FOR CONSOLE COVER)
58848B Cover, Shift Lever Hole
66996A Bracket, Cup Holder, NO.1
66997A Bracket, Cup Holder, NO.2
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
