Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

6 part groups · 4 illustrations

Illustrations

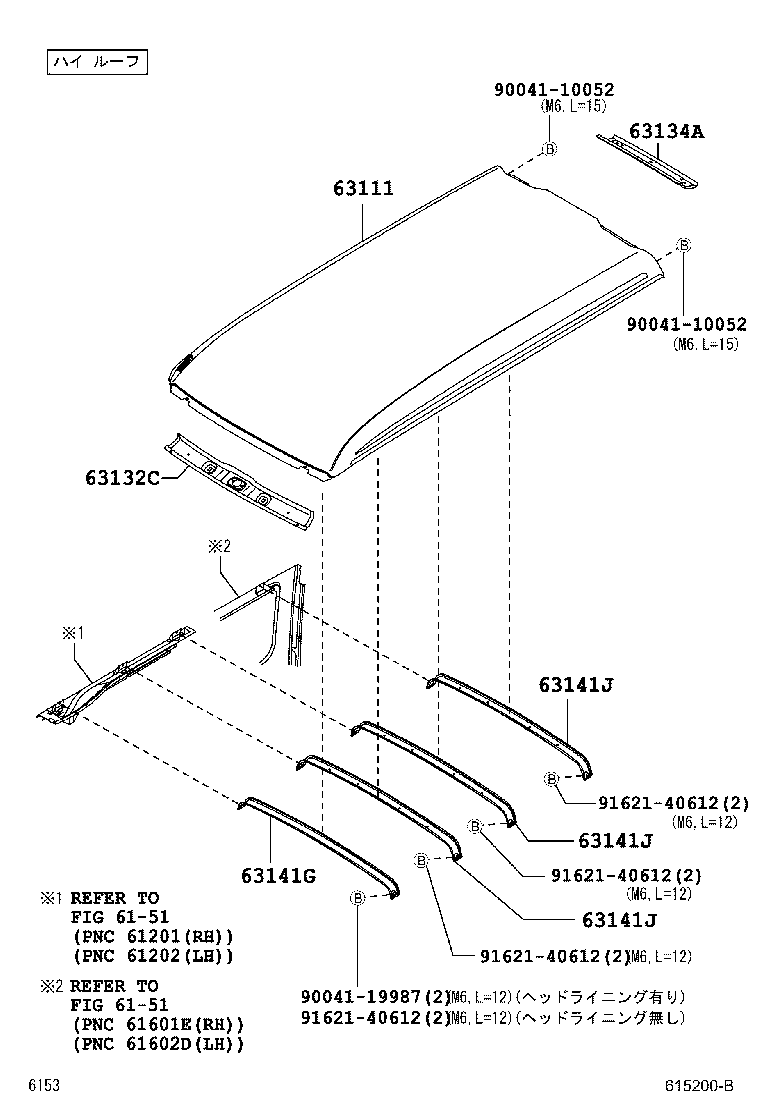

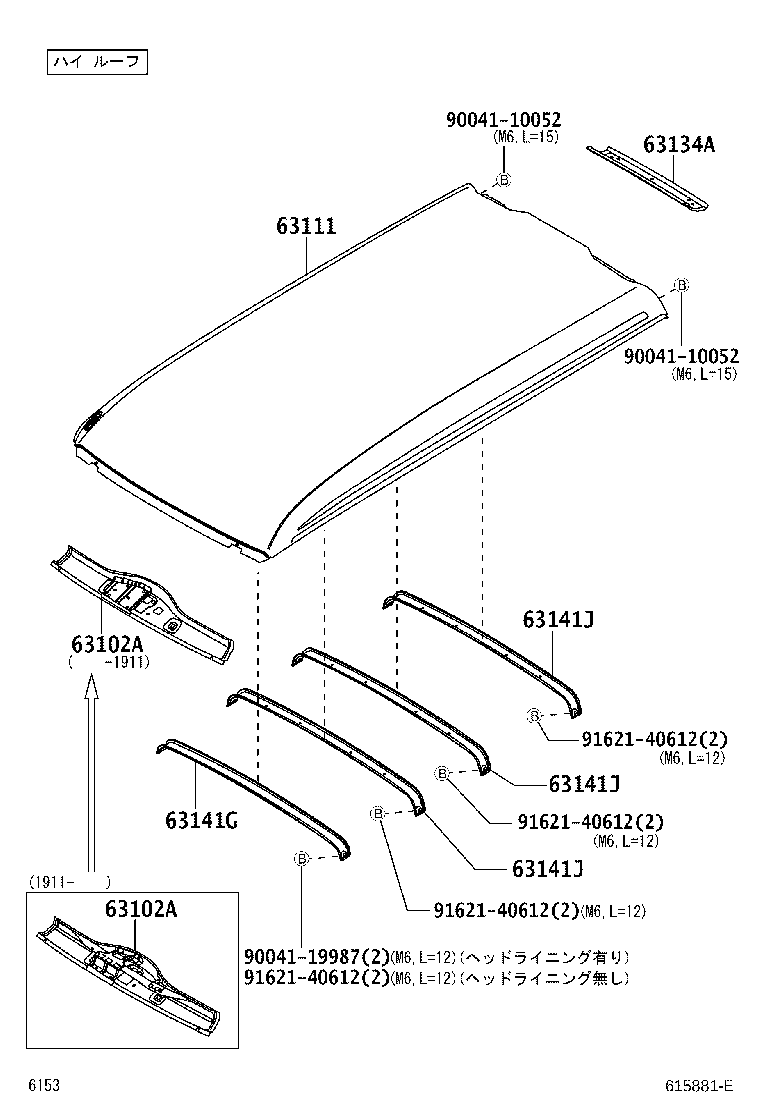

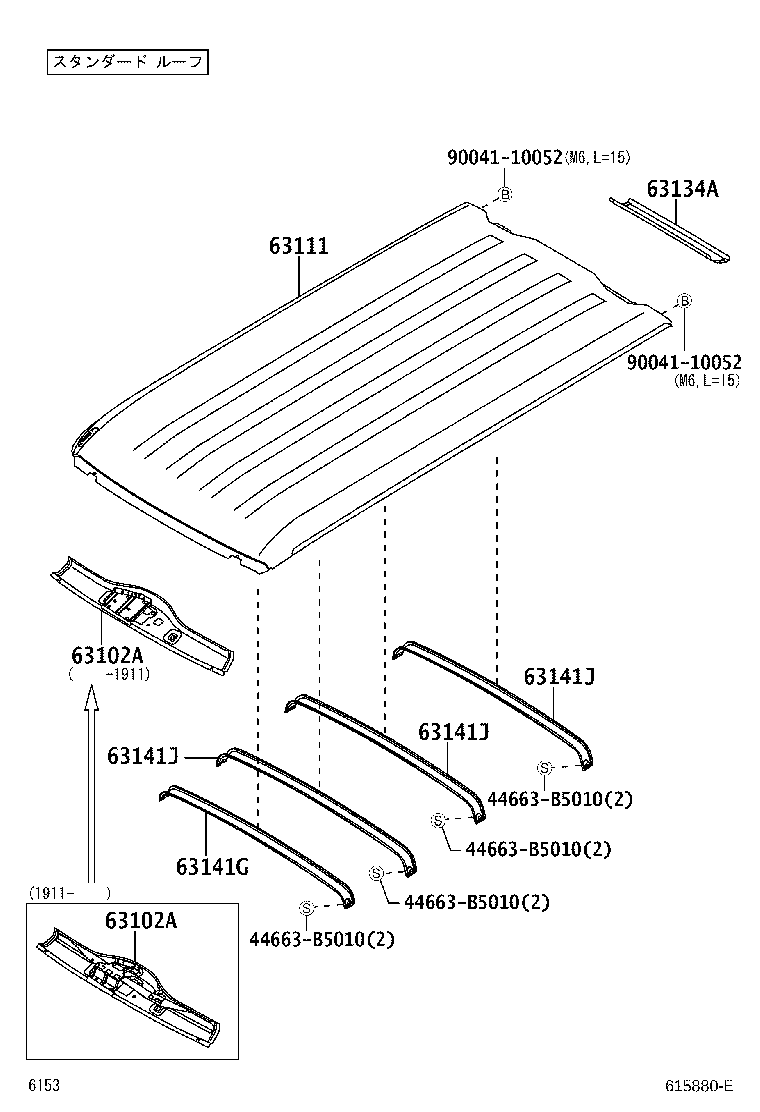

Figure 614055F 614055F 2011-12 → 2017-11 Figure 615880E 615880E 2017-11 → — Figure 615200B 615200B 2011-12 → 2017-11 Figure 615881E 615881E 2017-11 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63111 Panel, Roof
63132C Panel, Windshield Header, Inner
63134A Frame, Back Door Opening, Upper
63141G Reinforcement, Roof Panel, NO.1
63141J Reinforcement, Roof Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
