Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 3 illustrations

Illustrations

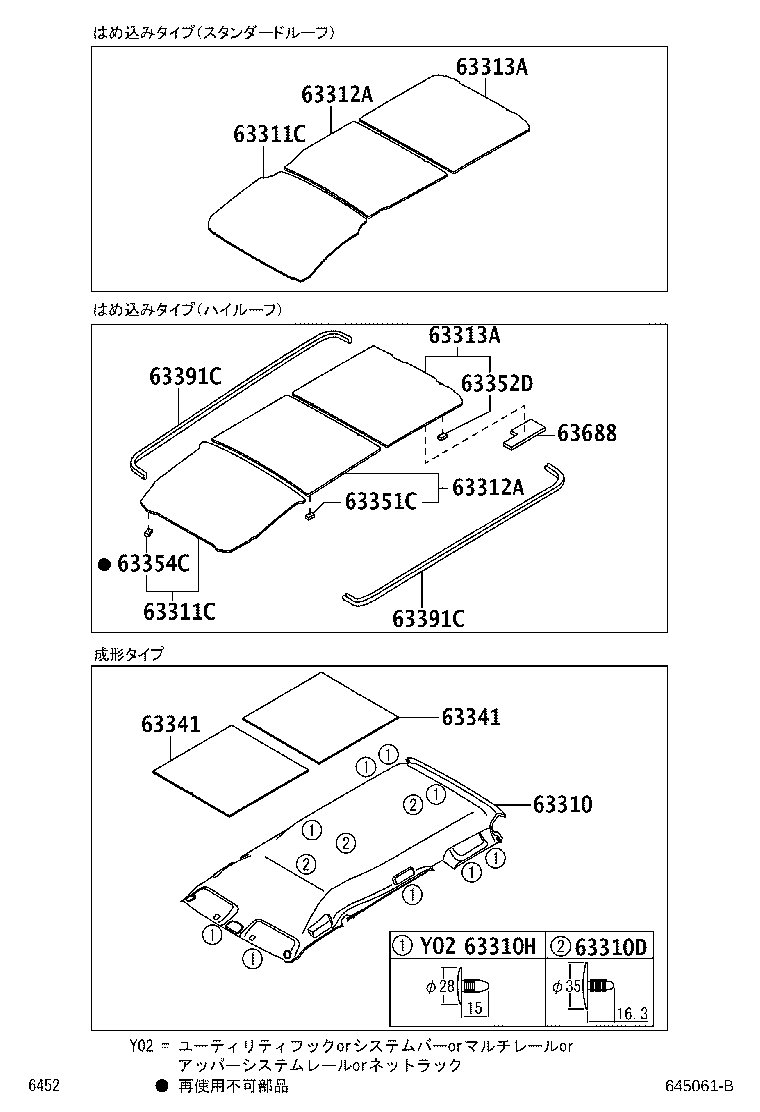

Figure 643798B 643798B 2011-12 → 2021-02 Figure 645061B 645061B 2021-02 → — Figure 642964A 642964A 2011-12 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310A Plug, Hole(FOR ROOF HEADLINING ASSY)
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63312A Headlining, Roof, NO.2
63313A Headlining, Roof, NO.3
63341 Pad, Roof Silencer, NO.1
63351B Pad, Roof Headlining
63351C Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
63391C Trim, Roof Headlining, NO.1
63688 Cushion, Roof Side Reinforcement
74651B Shelf Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
