Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Slide Roller & Rail

29 part groups · 2 illustrations

Illustrations

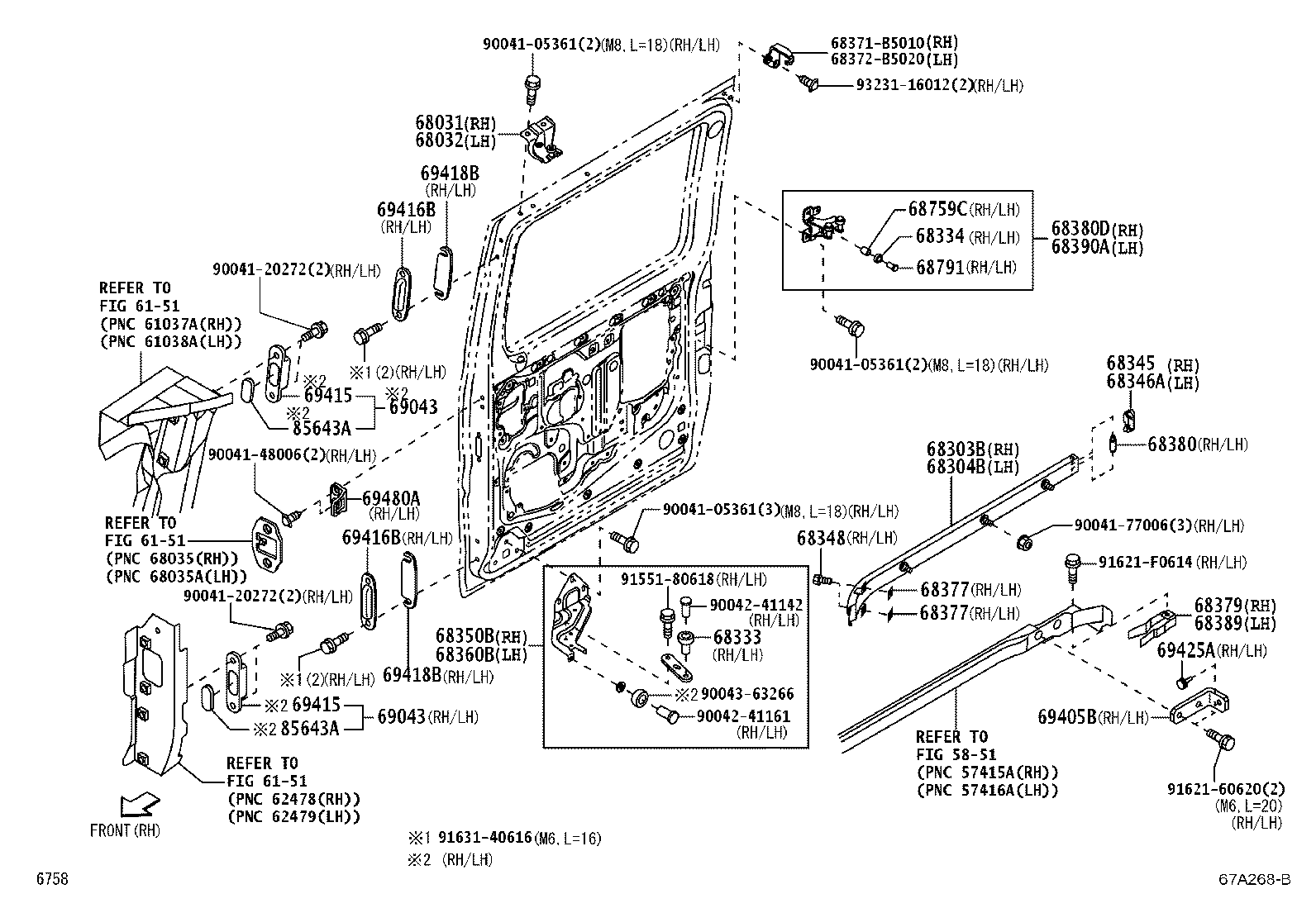

Figure 67B206A 67B206A 2011-12 → 2019-07 Figure 67A268B 67A268B 2019-07 → —

Part groups

PNCDescription
68031 Arm Sub-assy, Slide Door Upper Roller, RH
68032 Arm Sub-assy, Slide Door Upper Roller, LH
68303B Rail Sub-assy, Slide Door, Center RH
68304B Rail Sub-assy, Slide Door, Center LH
68331C Roller, Slide Door, RH
68331D Roller, Slide Door, LH
68333 Roller, Slide Door Center, NO.1
68334 Roller, Slide Door Center, NO.2
68345 Cover, Slide Door Center Rail
68346A Cover, Slide Door Center Rail, LH
68348 Bolt, Slide Door Center Rail
68350B Roller Assy, Slide Door, Lower RH
68360B Roller Assy, Slide Door, Lower LH
68377 Pad, Slide Door Center Rail, Front
68379 Spring, Slide Door Catch, RH
68380 Cushion Assy, Slide Door
68380D Hinge Assy, Slide Door, Center RH
68389 Spring, Slide Door Catch, LH
68390A Hinge Assy, Slide Door, Center LH
68759C Spacer, Center Door Hinge
68791 Pin, Door Hinge, NO.1
69043 Stopper Sub-assy, Slide Door Down Female
69405B Stop Sub-assy, Slide Door Open
69415 Stopper, Slide Door Down Female
69416B Stopper, Slide Door Down Male
69418B Shim, Slide Door Down Stop Male
69425A Cushion, Slide Door Stop
69480A Hook Assy, Slide Door Front Lock
85643A Cushion, Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
