Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

17 part groups · 2 illustrations

Illustrations

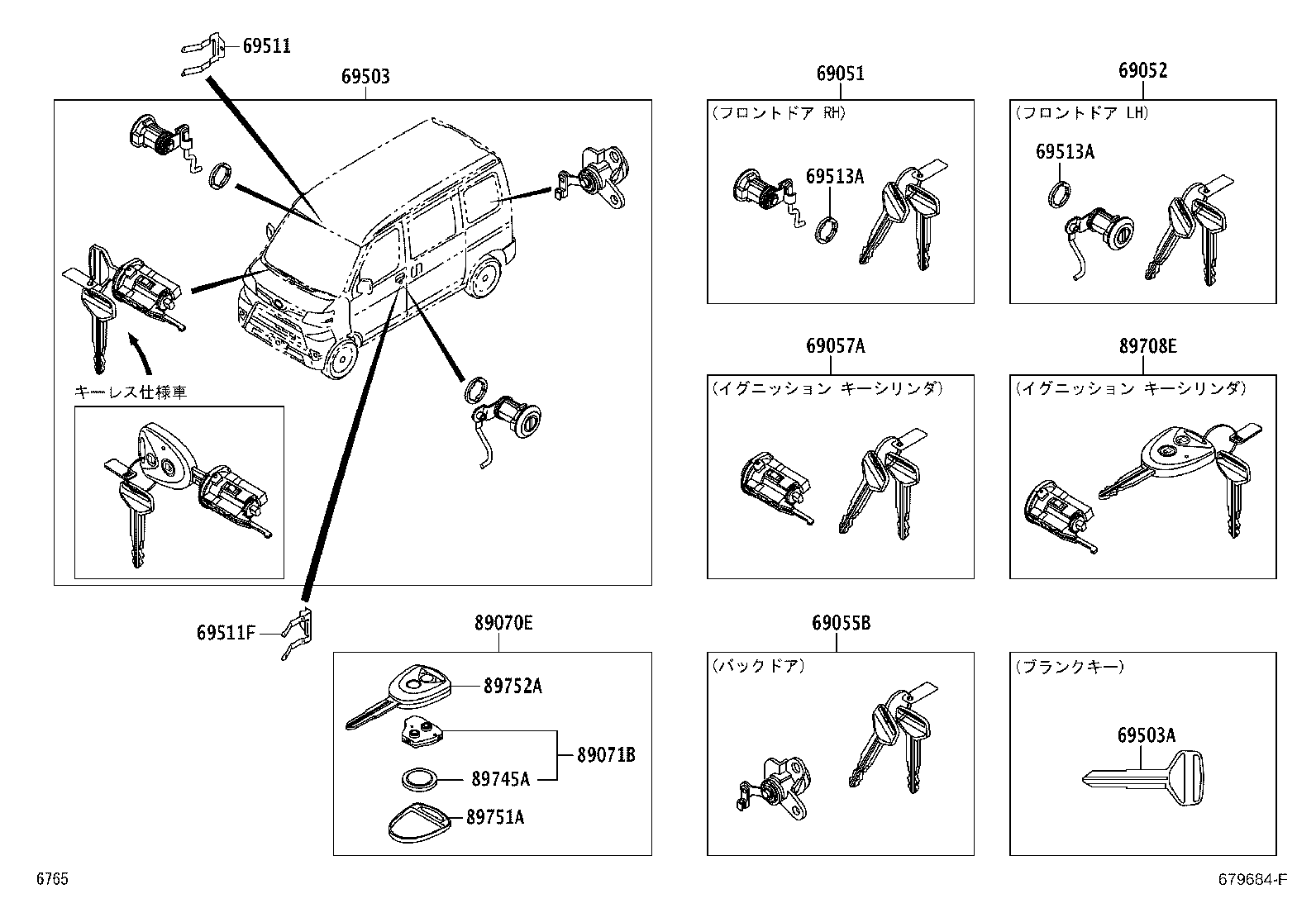

Figure 677147H 677147H 2011-12 → 2017-11 Figure 679684F 679684F 2017-11 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69511F Retainer, Front Door Lock Cylinder
69513A Pad, Door Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89708E Cylinder Set, Lock W/Transmitter
89742A Transmitter, Door Control
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
