Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 4 illustrations

Illustrations

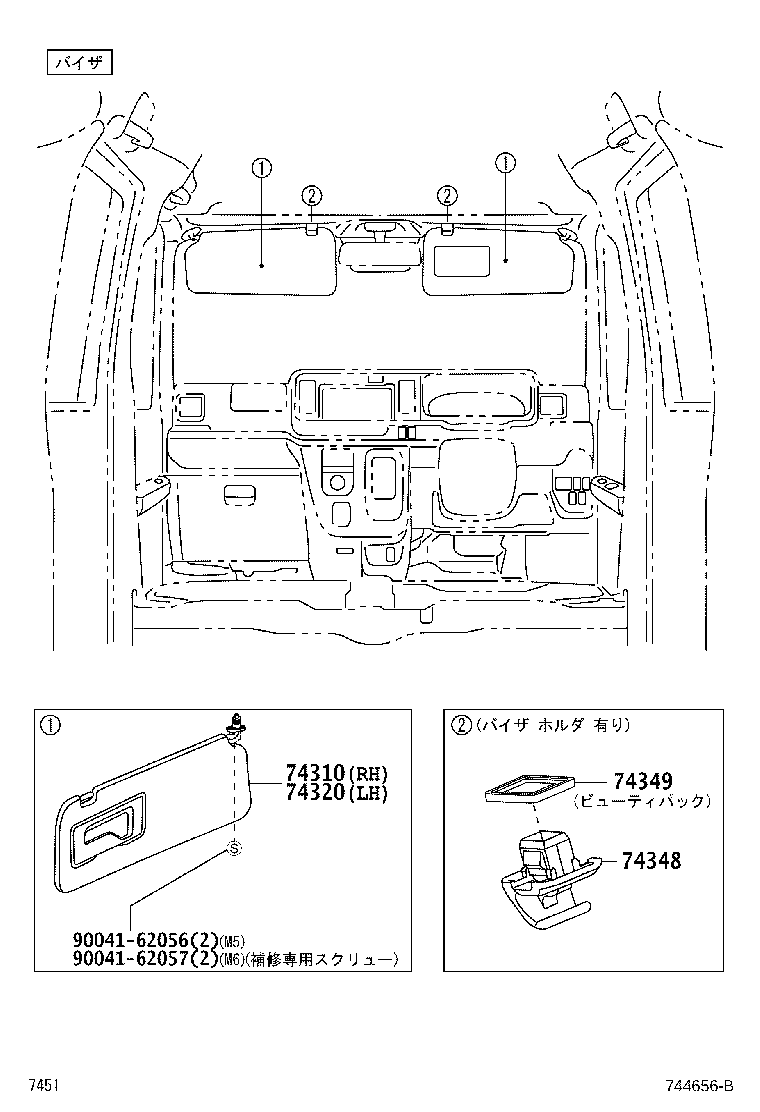

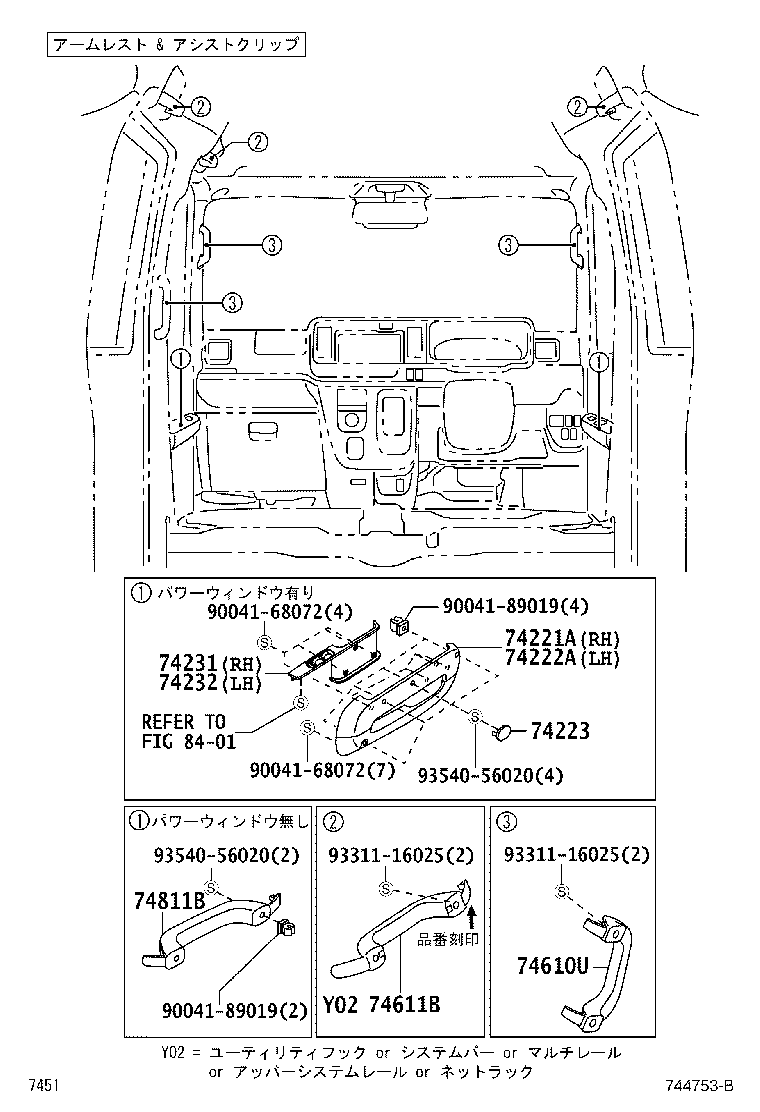

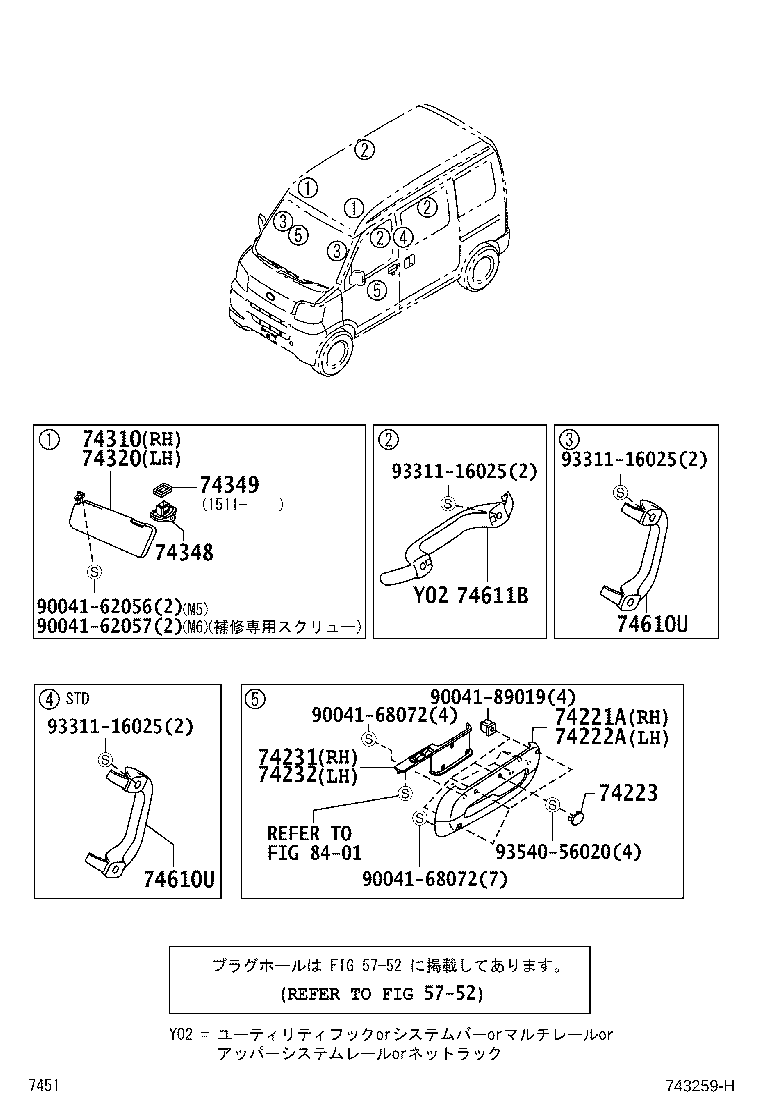

Figure 743258G 743258G 2011-12 → 2017-11 Figure 743259H 743259H 2011-12 → 2017-11 Figure 744753B 744753B 2017-11 → — Figure 744656B 744656B 2017-11 → —

Part groups

PNCDescription
74221A Cover, Front Door Armrest, RH
74222A Cover, Front Door Armrest, LH
74223 Cap, Door Armrest, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74349 Spacer, Visor Holder
74610U Grip Assy, Assist
74611B Grip, Assist
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
