Battery Carrier

5 part groups · 3 illustrations

Illustrations

Figure 744330A

744330A 2011-12 → 2017-11

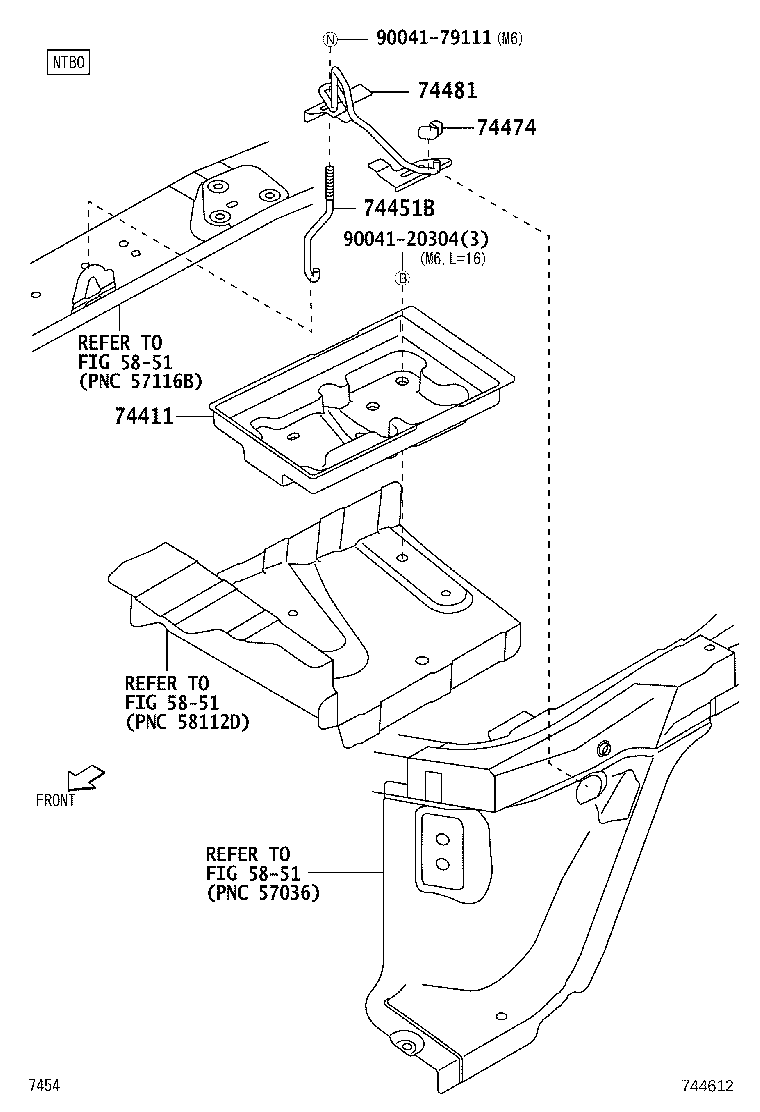

744612 2017-11 → —

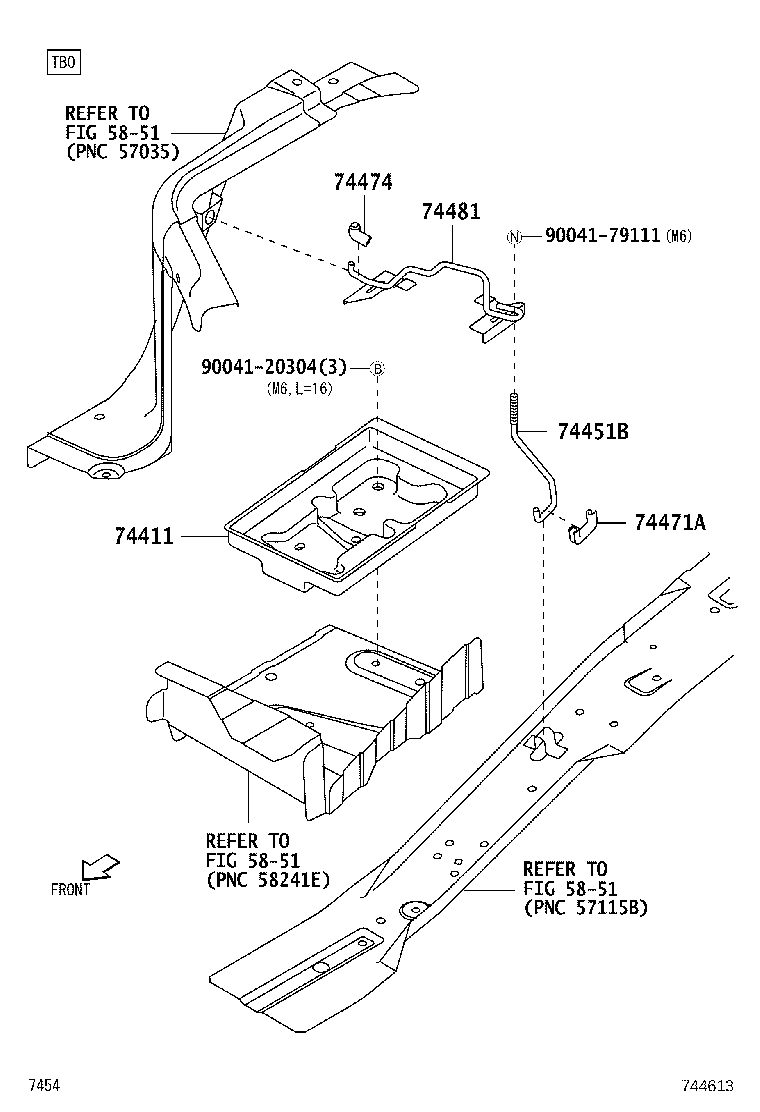

744613 2017-11 → —

Part groups

PNC	Description
74411	Carrier, Battery
74451B	Bolt, Battery Clamp
74471A	Pad, Battery Clamp
74474	Pad, Battery
74481	Clamp, Battery Hold Down

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
