Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

60 part groups · 10 illustrations

Illustrations

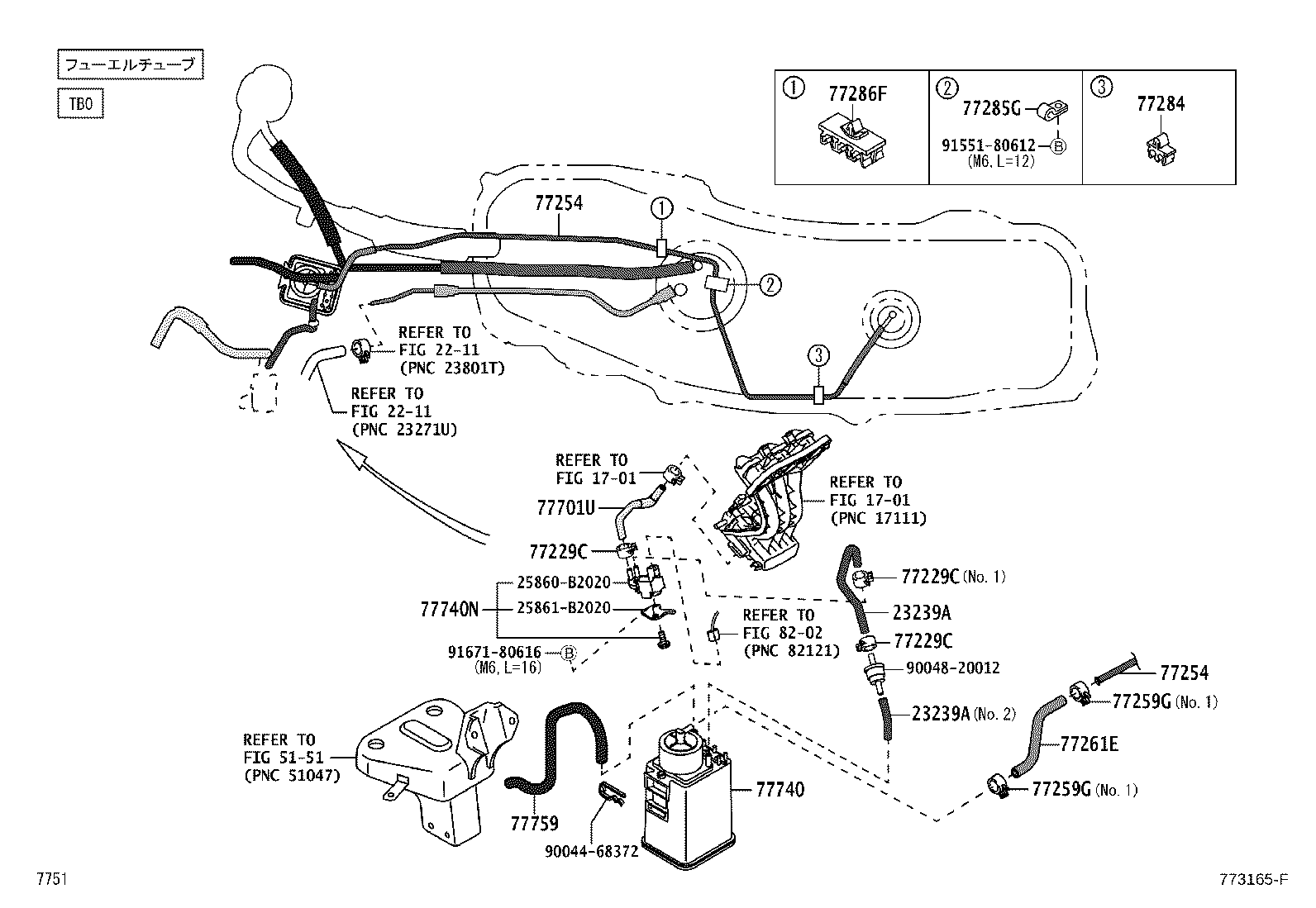

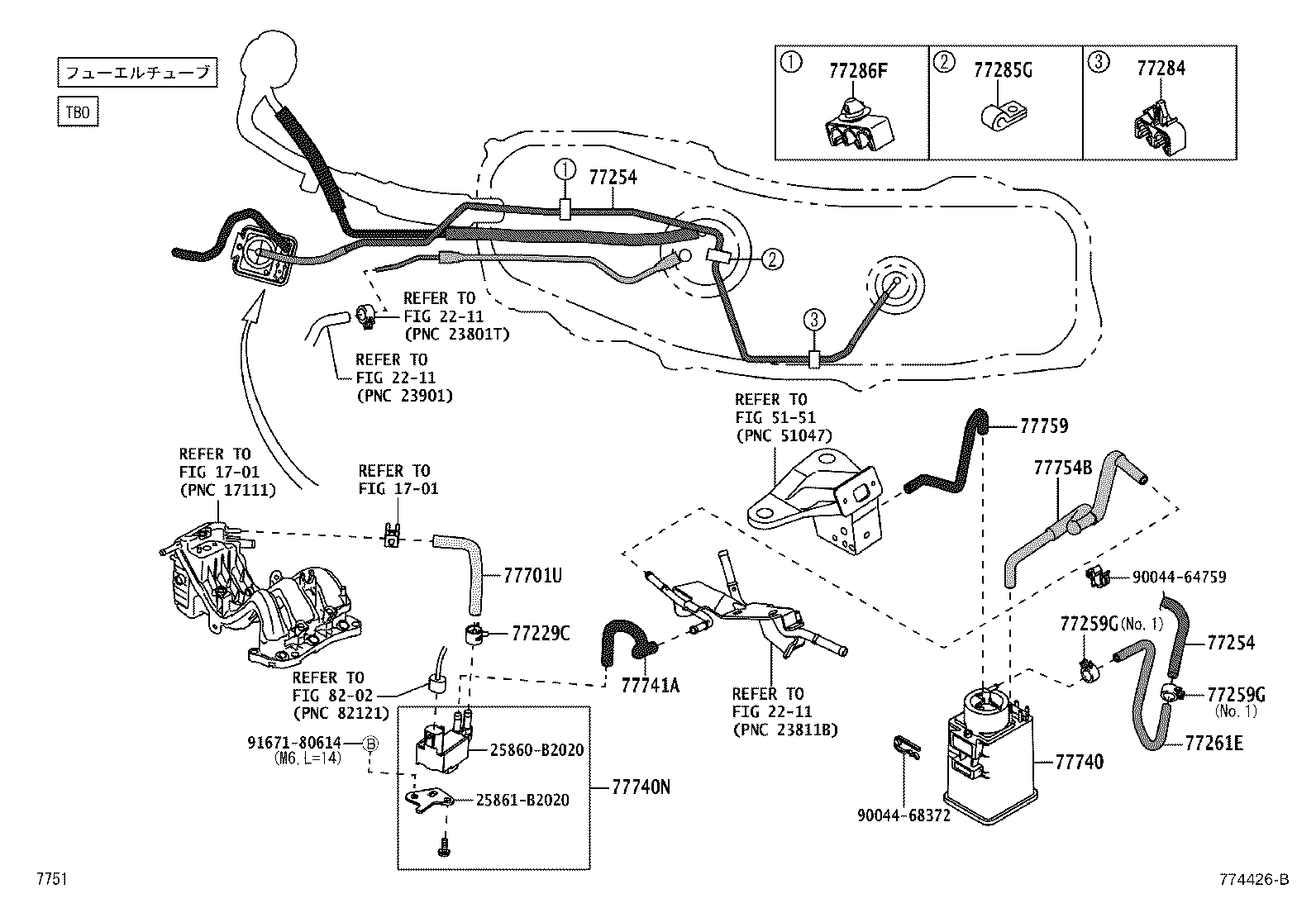

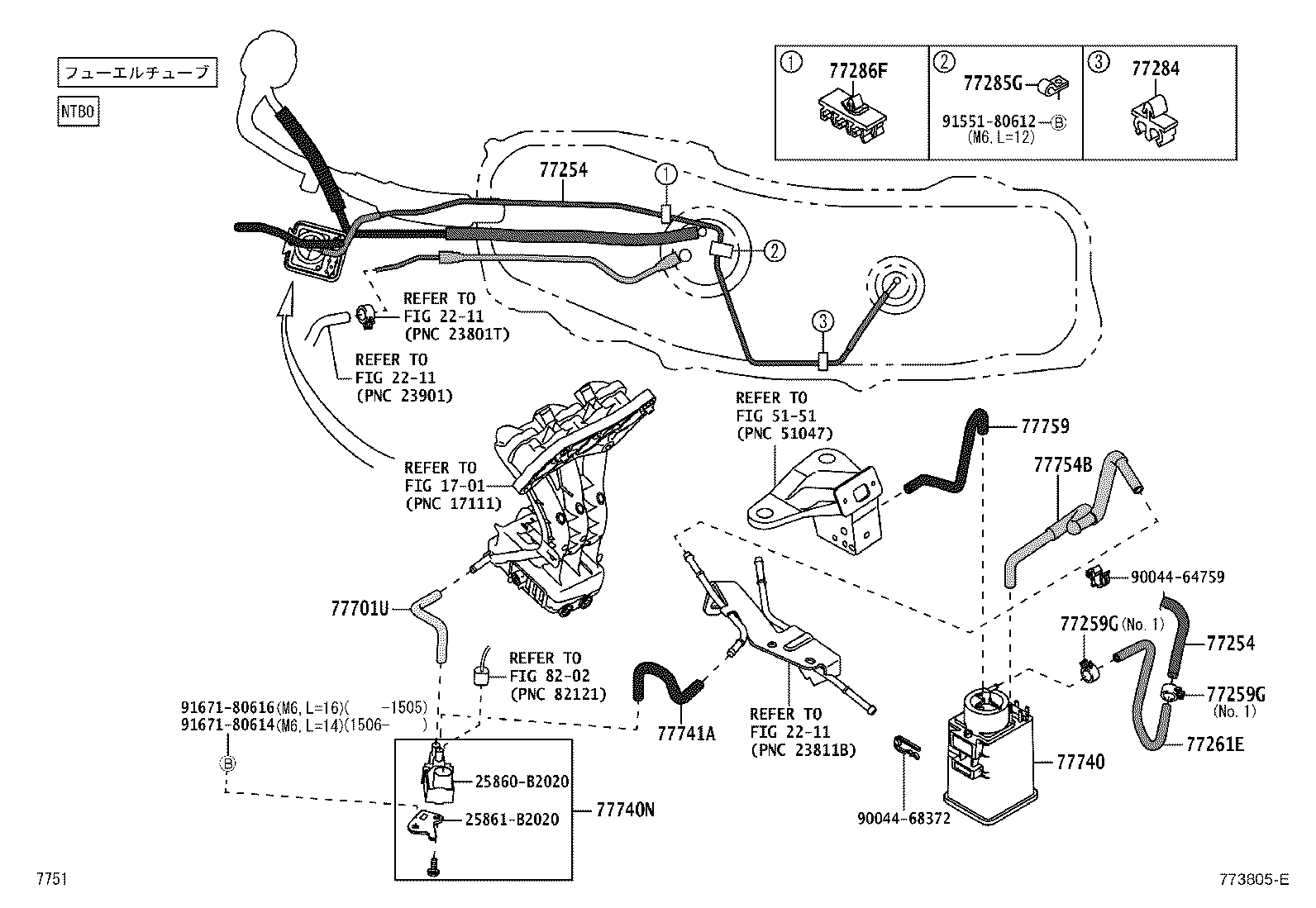

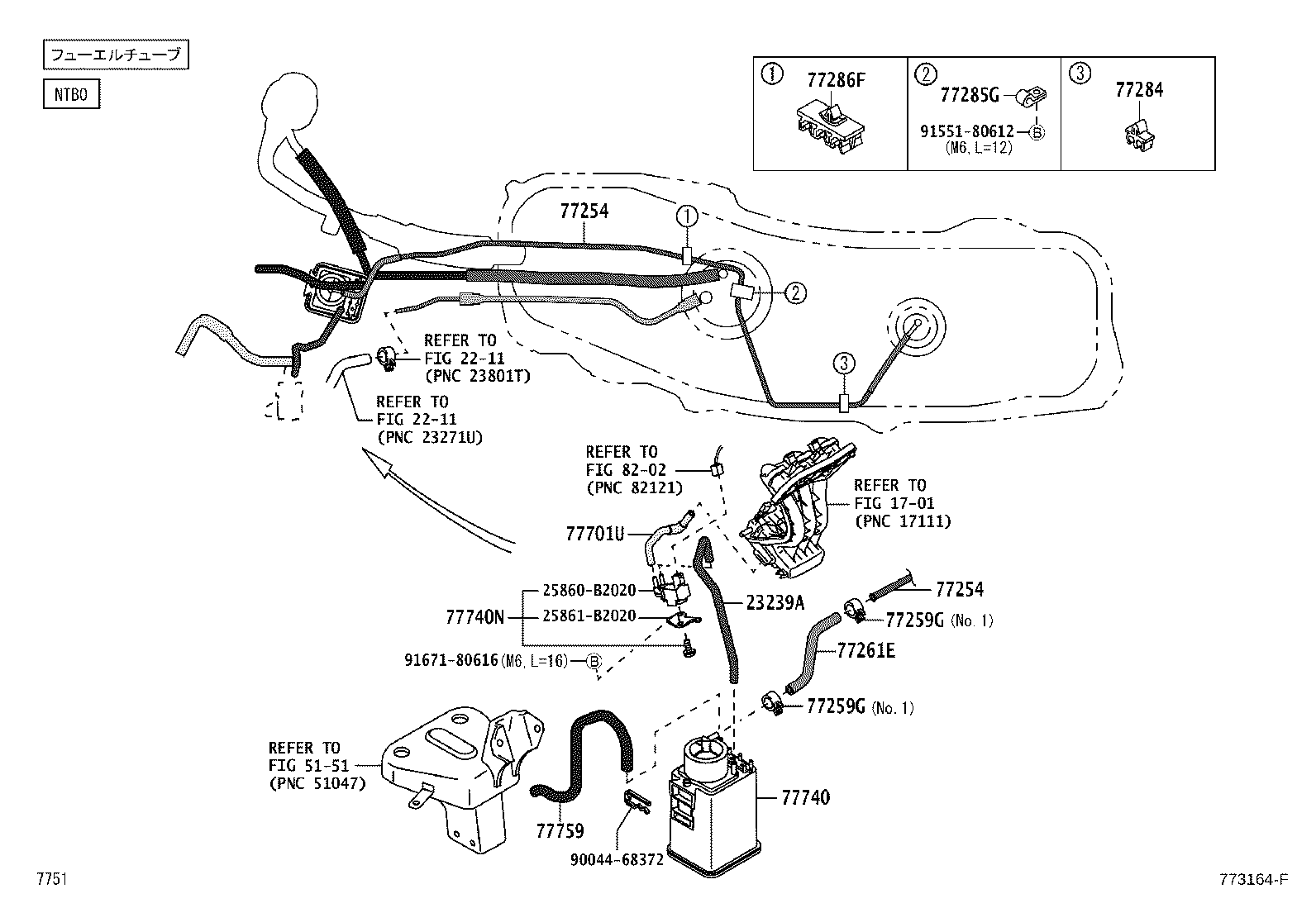

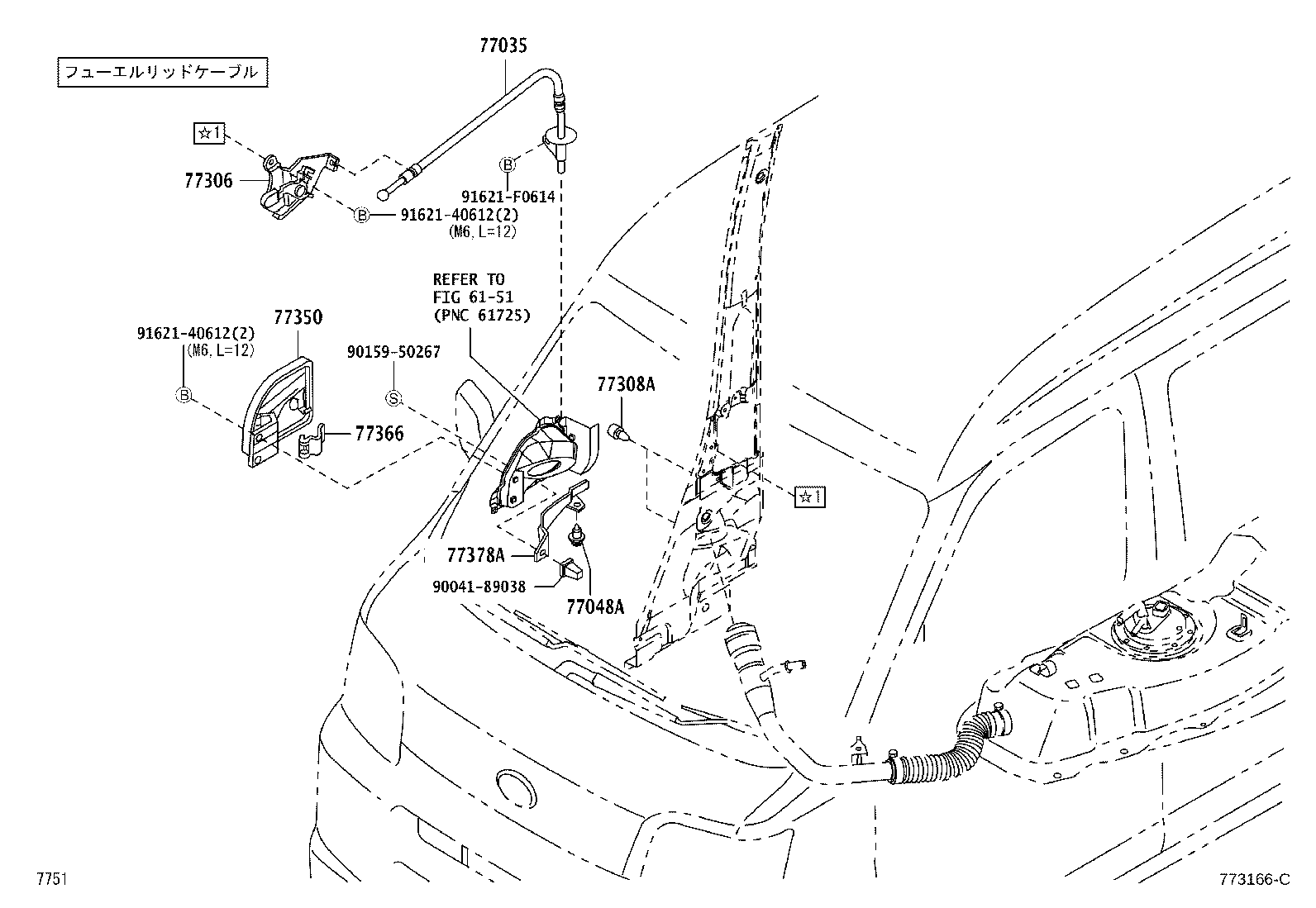

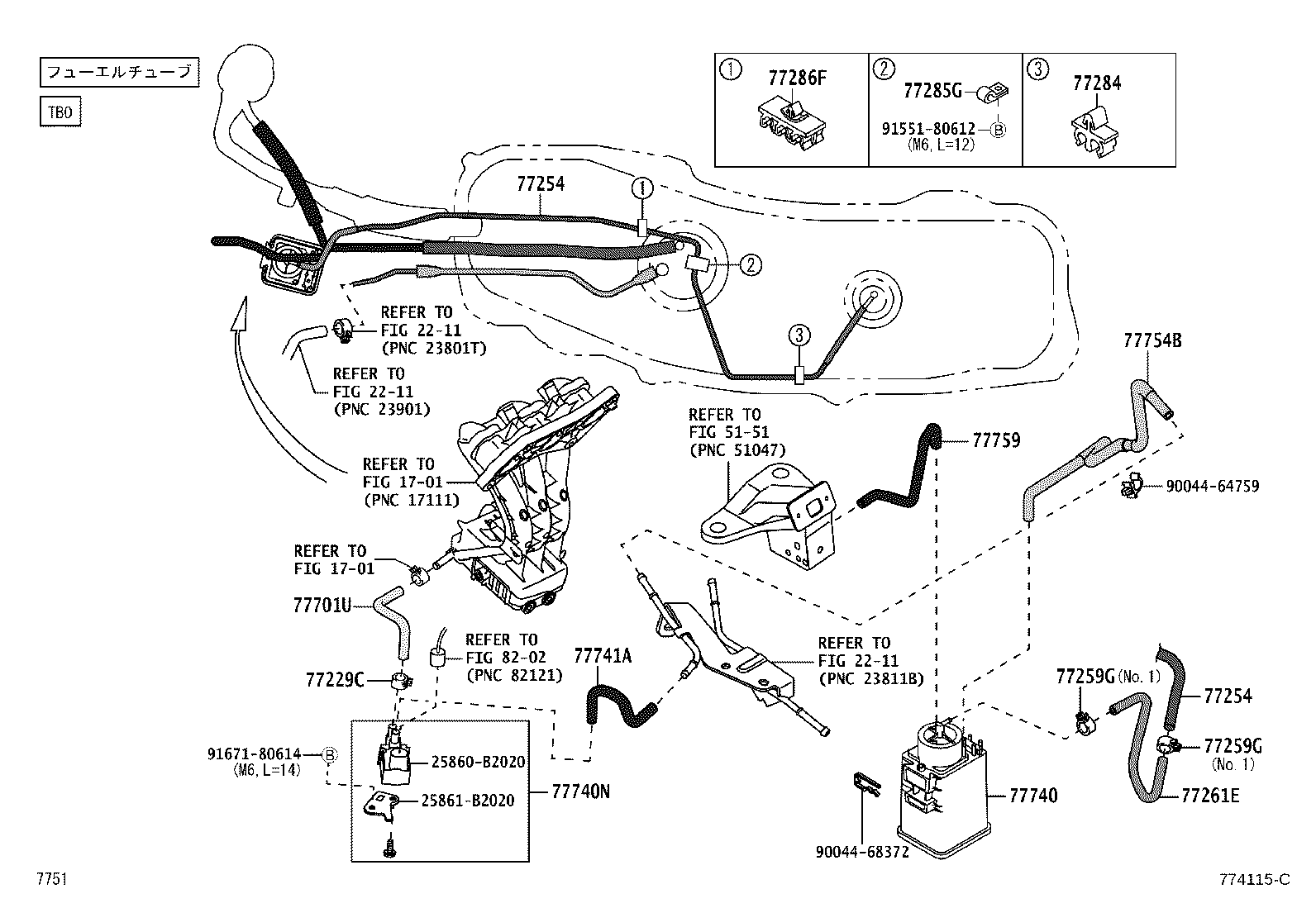

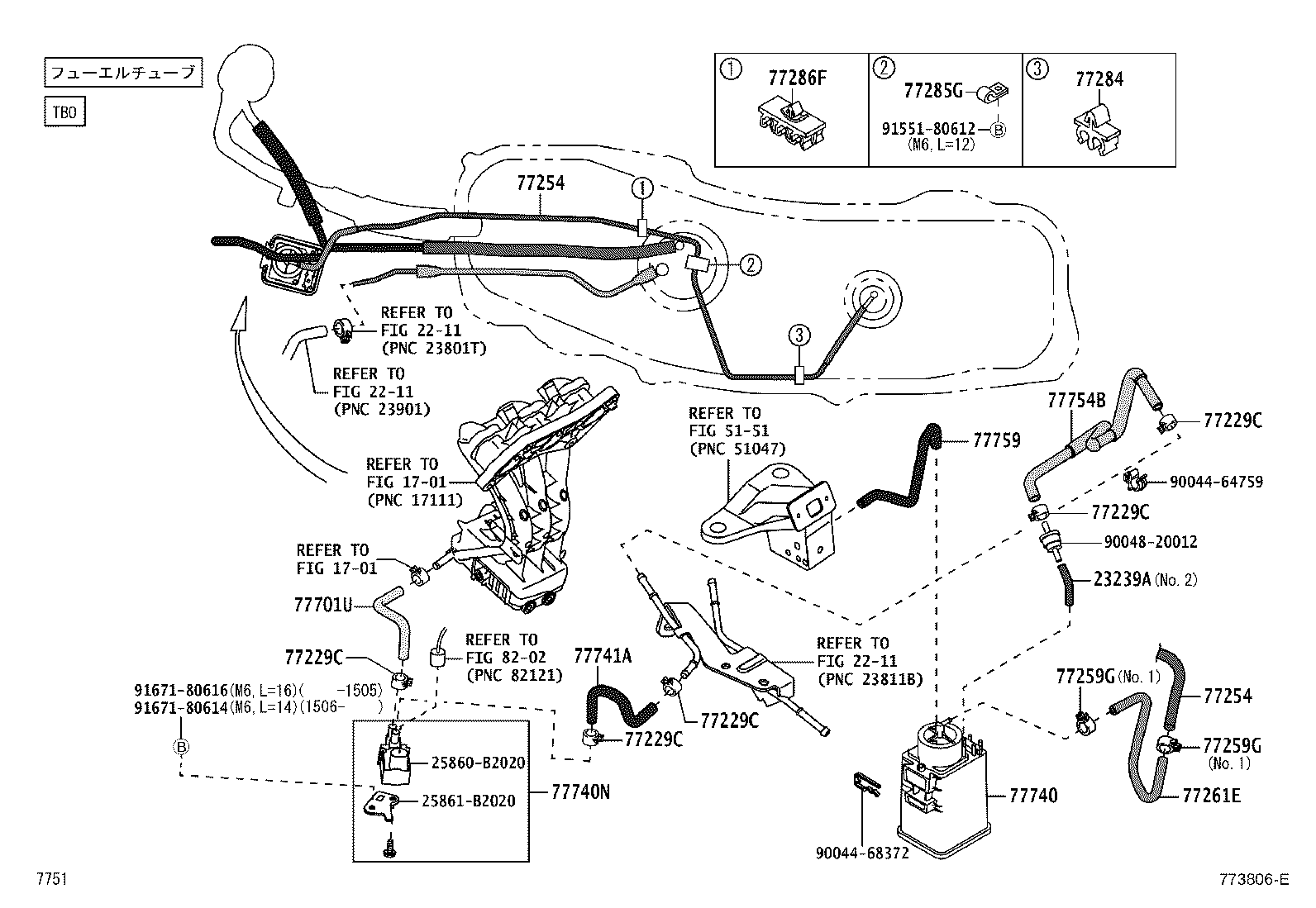

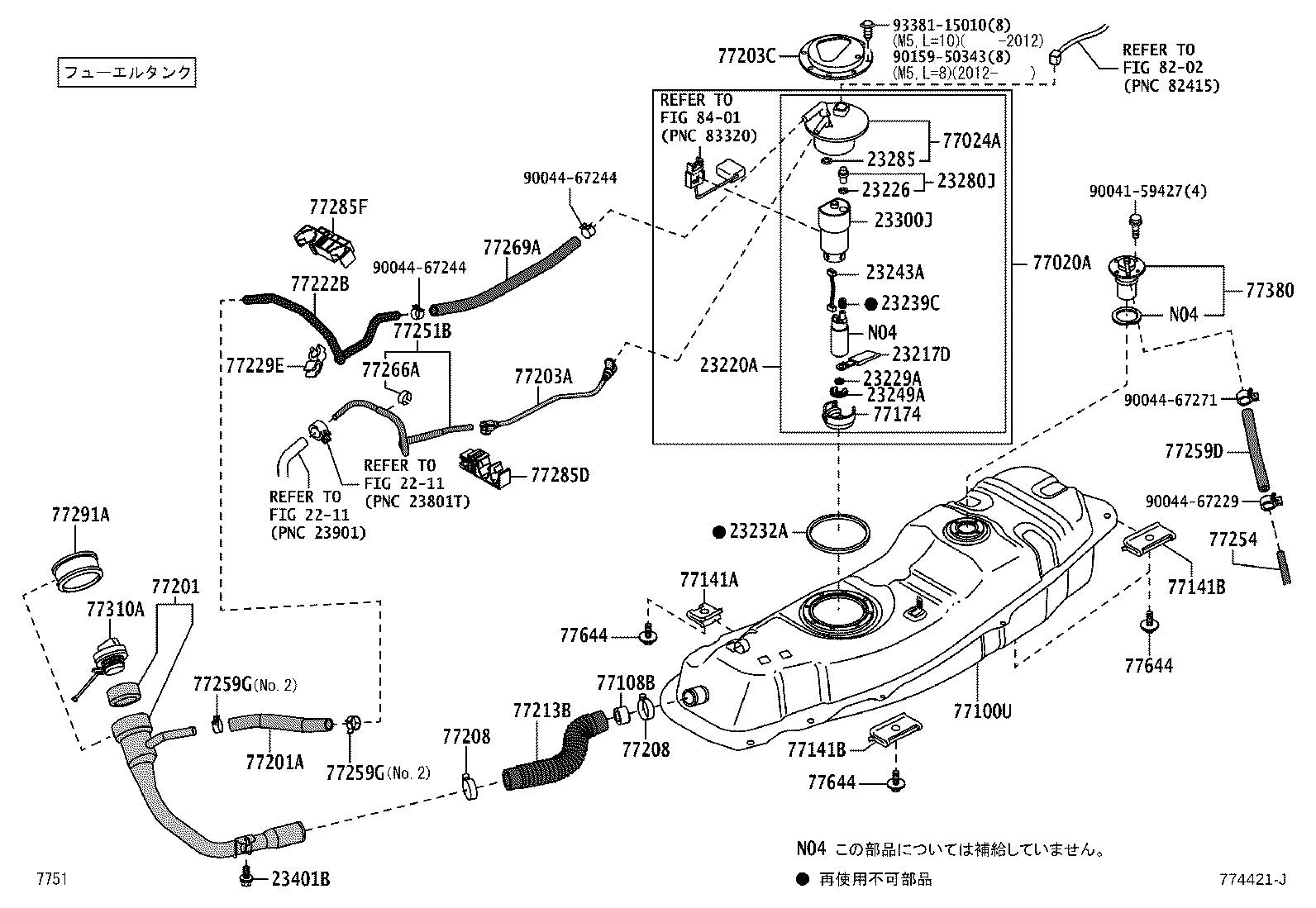

Figure 773163T 773163T 2011-12 → 2017-11 Figure 774421J 774421J 2017-11 → — Figure 773164F 773164F 2011-12 → 2015-04 Figure 773805E 773805E 2015-04 → 2017-11 Figure 774423B 774423B 2017-11 → — Figure 773165F 773165F 2011-12 → 2015-04 Figure 773806E 773806E 2015-04 → 2016-07 Figure 774115C 774115C 2016-07 → 2017-11 Figure 774426B 774426B 2017-11 → — Figure 773166C 773166C 2011-12 → —

Part groups

PNCDescription
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23226 Ring, O(FOR FUEL PUMP)
23229A Clip(FOR FUEL PUMP FILTER)
23232A Gasket, Fuel Pump
23239A Hose
23239C Seal, Fuel Pump Filter
23243A Wire, Fuel Pump Motor
23249A Rubber, Cushion(FOR FUEL PUMP)
23280J Regulator Assy, Fuel Pressure
23285 Ring, O
23300J Filter Assy, Fuel
23401B Bolt
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77035 Cable Sub-assy, Fuel Lid Lock Control
77048A Clip (FOR FUEL INLET PIPE SEAL)
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100U Tank Sub-assy, Fuel
77108B Valve Sub-assy, Fuel Tank Filler Check
77141A Reinforcement, Fuel Tank Flange
77141B Reinforcement, Fuel Tank Flange, NO.1
77174 Support, Fuel Suction, NO.1
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77203A Tube Sub-assy, Fuel Suction
77203C Bracket, Fuel Pump
77208 Clamp Sub-assy, Fuel Hose
77213B Hose, Fuel Tank TO Filler Pipe
77222B Tube, Fuel Tank Breather, NO.2
77229C Clamp, Breather Tube
77229E Clamp, Breather Tube
77251B Tube, Fuel Main
77254 Tube, Fuel Emission, NO.1
77259D Hose, Fuel, NO.1
77259G Clip, Fuel Hose
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A Protector, Fuel Tube, NO.1
77269A Hose, Fuel Tank Breather
77284 Clamp, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77291A Shield, Fuel Tank Filler Pipe
77306 Lever Sub-assy, Fuel Lid Lock Open
77308A Cushion(FOR FUEL INLET BOX COVER)
77310A Cap Assy, Fuel Tank
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77378A Cover, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77644 Bolt, Fuel Tank
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740N Valve, Vacuum Switching(FOR CHARCOAL CANISTER)
77741A Hose, Fuel, (FOR VAPOR FEED)
77754B Hose, Charcoal Canister Outlet
77759 Hose, Charcoal Canister
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
