Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

6 part groups · 2 illustrations

Illustrations

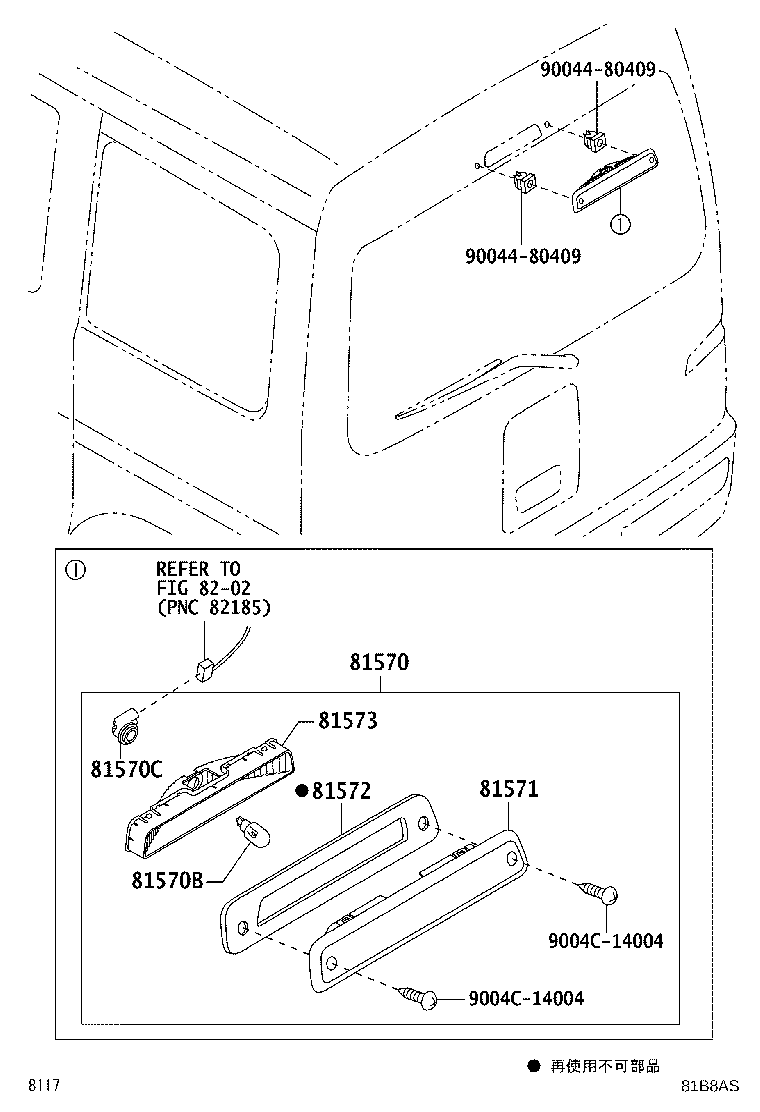

Figure 81B8AR 81B8AR 2011-12 → 2017-11 Figure 81B8AS 81B8AS 2017-11 → —

Part groups

PNCDescription
81570 Lamp Assy, Center Stop
81570B Bulb (FOR CENTER STOP LAMP)
81570C Socket, Center Stop Lamp
81571 Lens, Center Stop Lamp
81572 Gasket, Center Stop Lamp
81573 Body, Stop Center Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
