Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

9 part groups · 2 illustrations

Illustrations

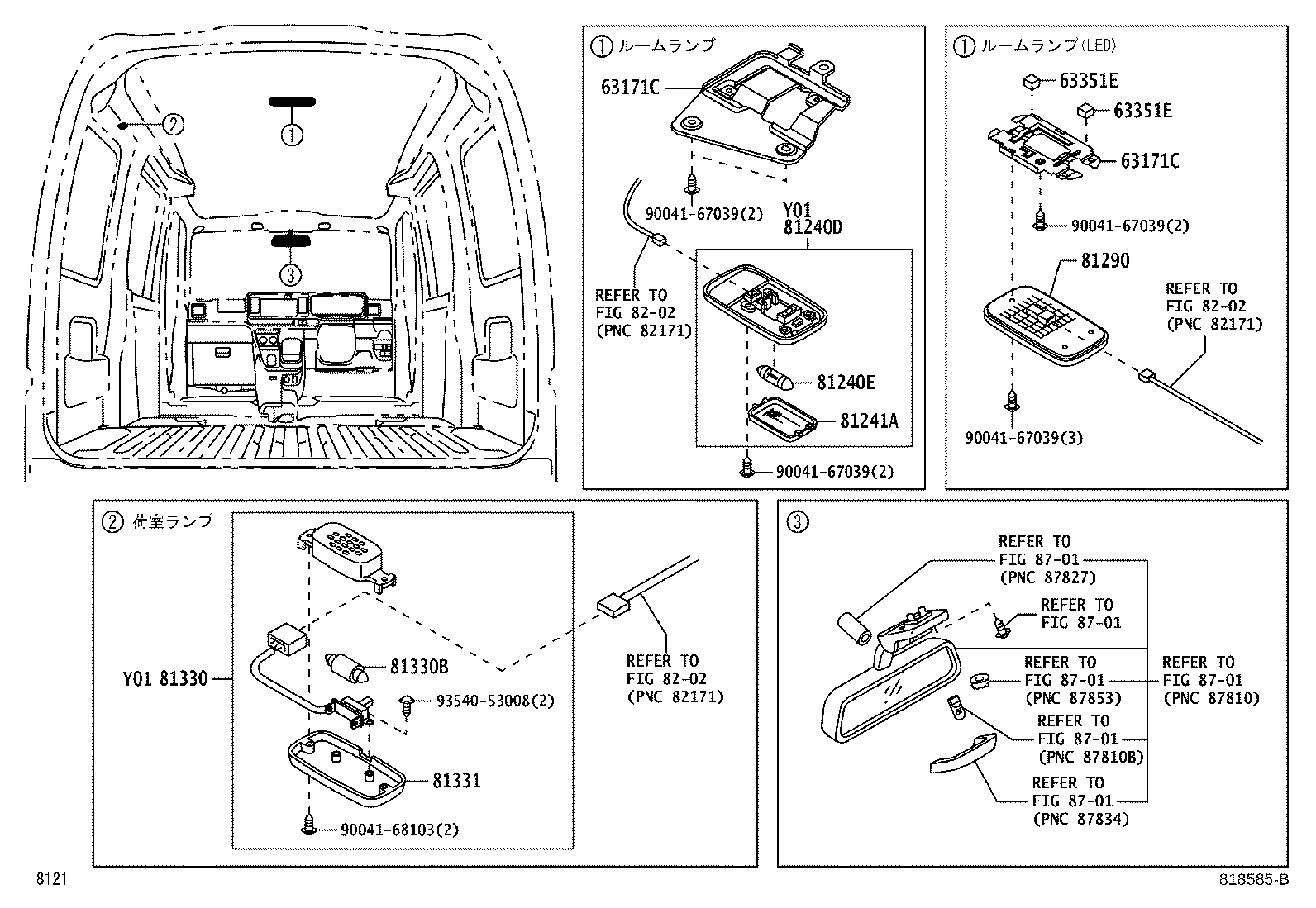

Figure 817488C 817488C 2011-12 → 2017-11 Figure 818585B 818585B 2017-11 → —

Part groups

PNCDescription
63171C Bracket, Room Lamp
63351E Pad, Roof Headlining
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241A Lens, Room Lamp, NO.2
81290 Lamp Assy, Room, NO.3
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81331 Lens, Luggage Compartment Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
