Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 20 illustrations

Illustrations

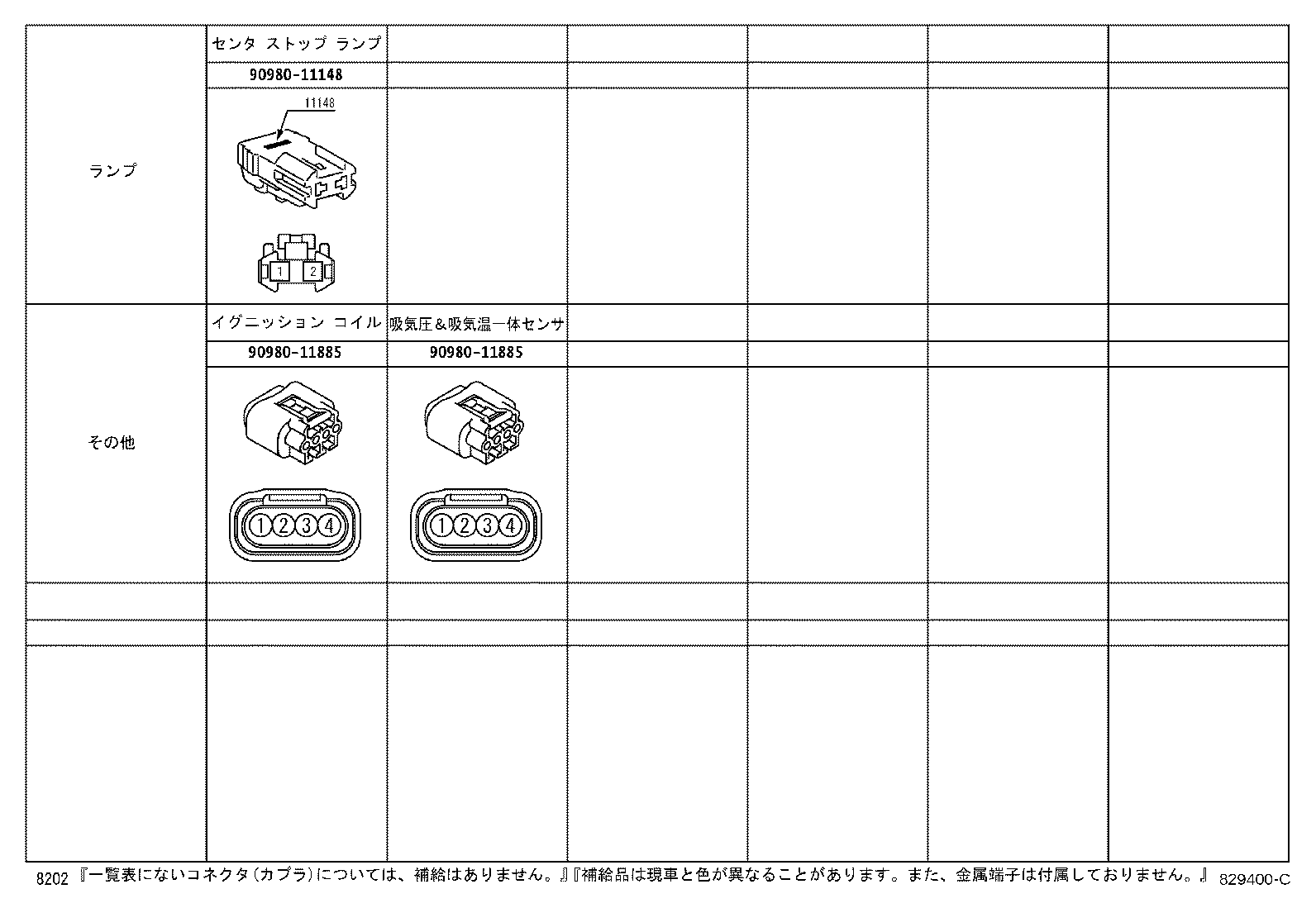

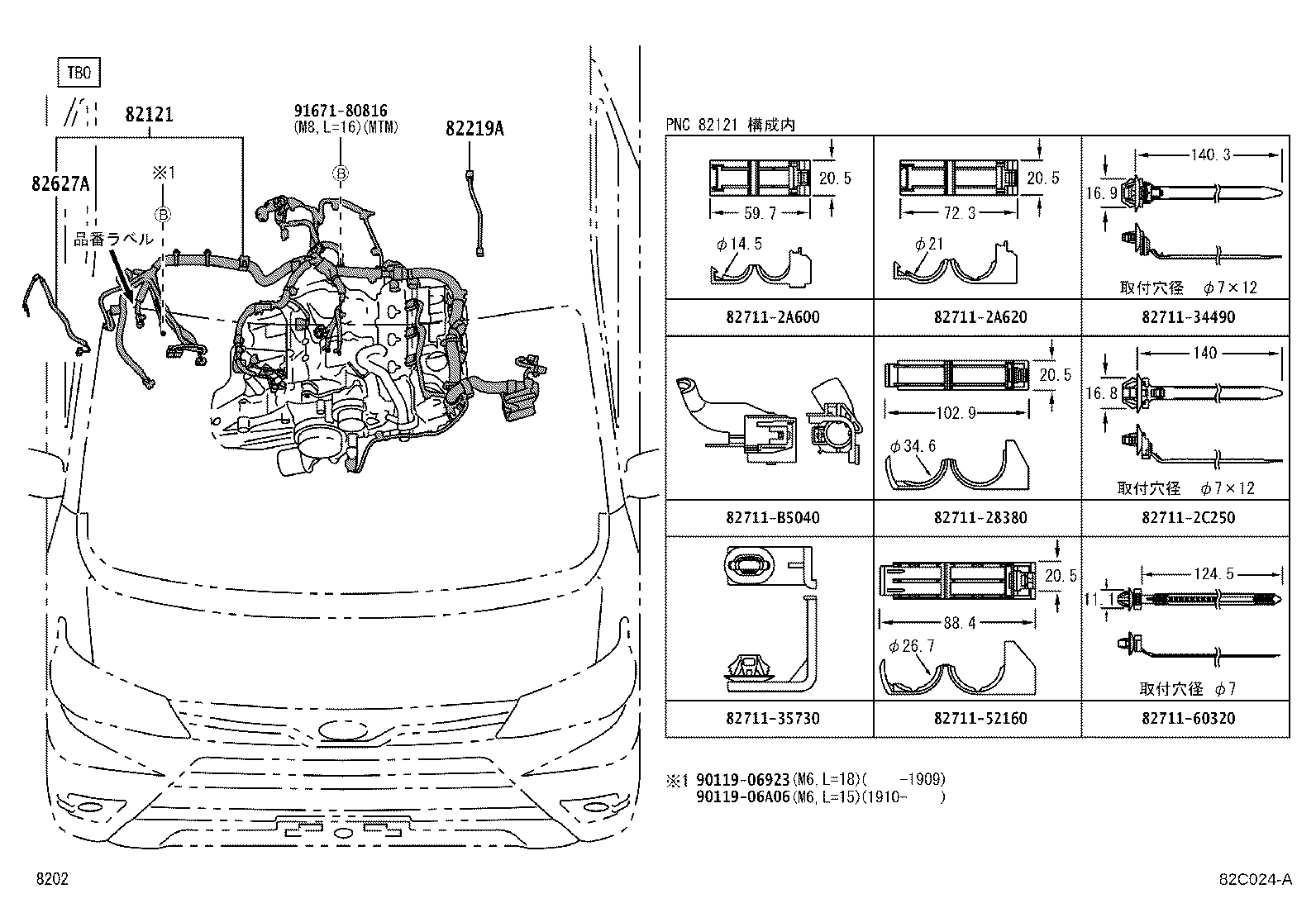

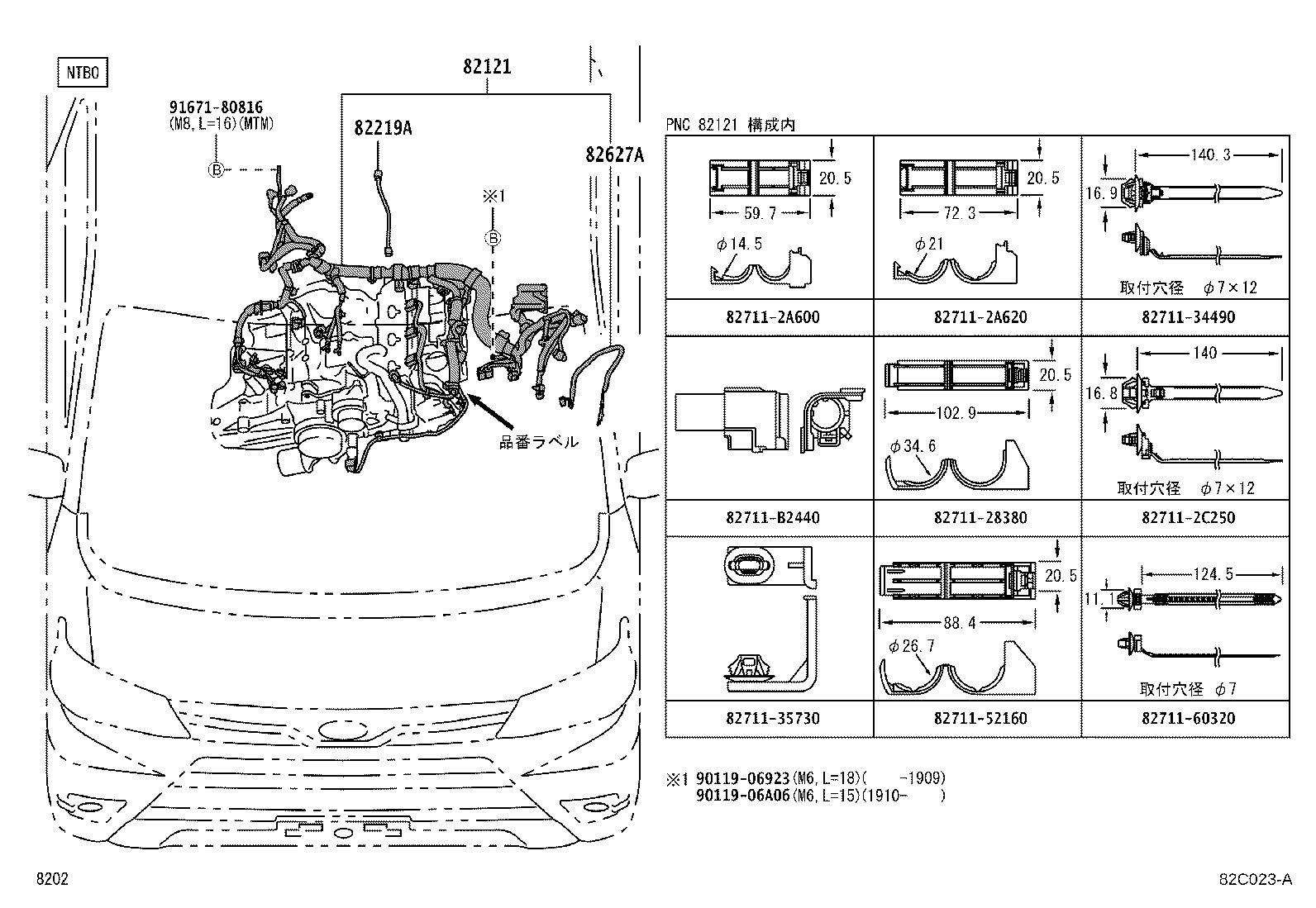

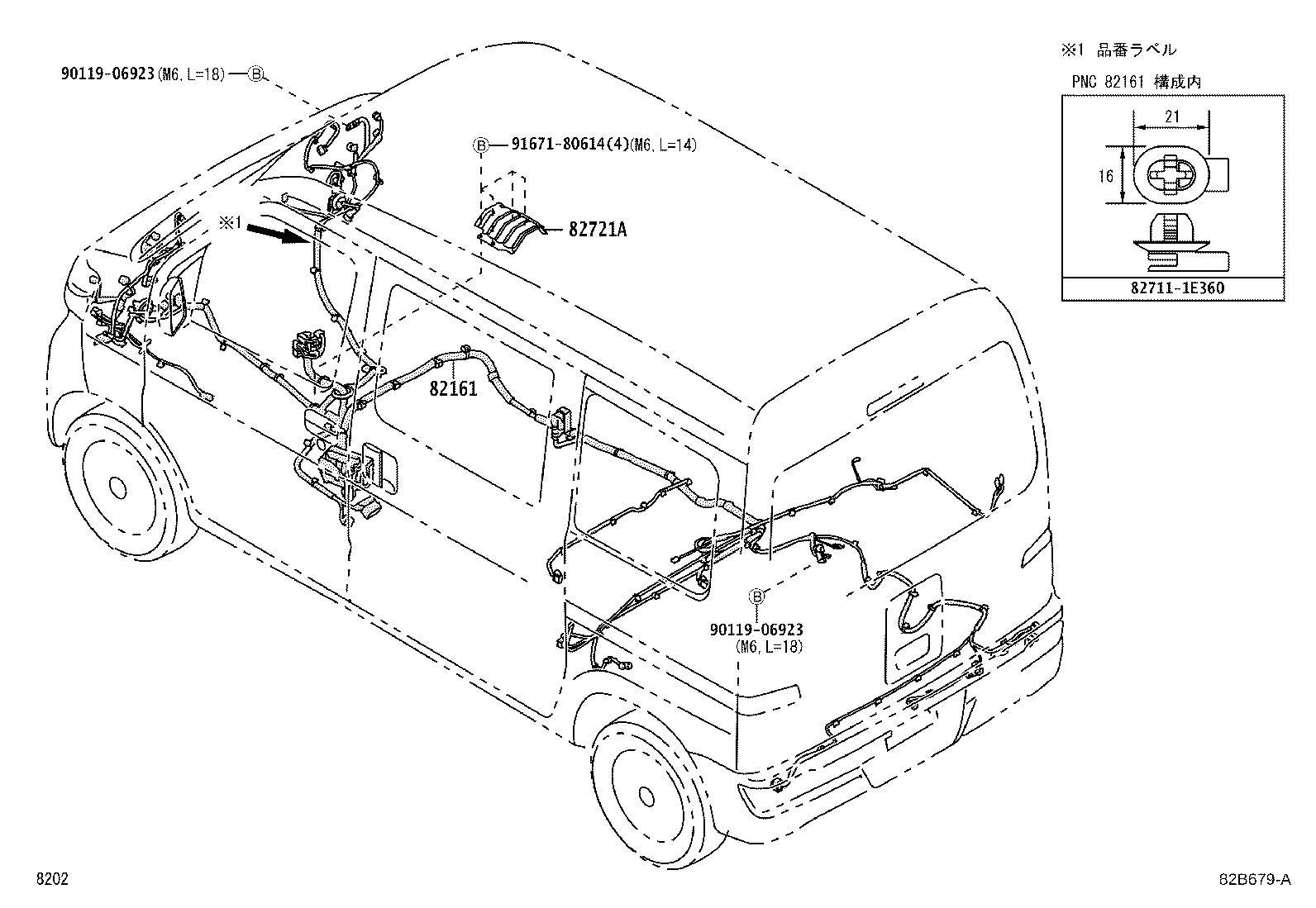

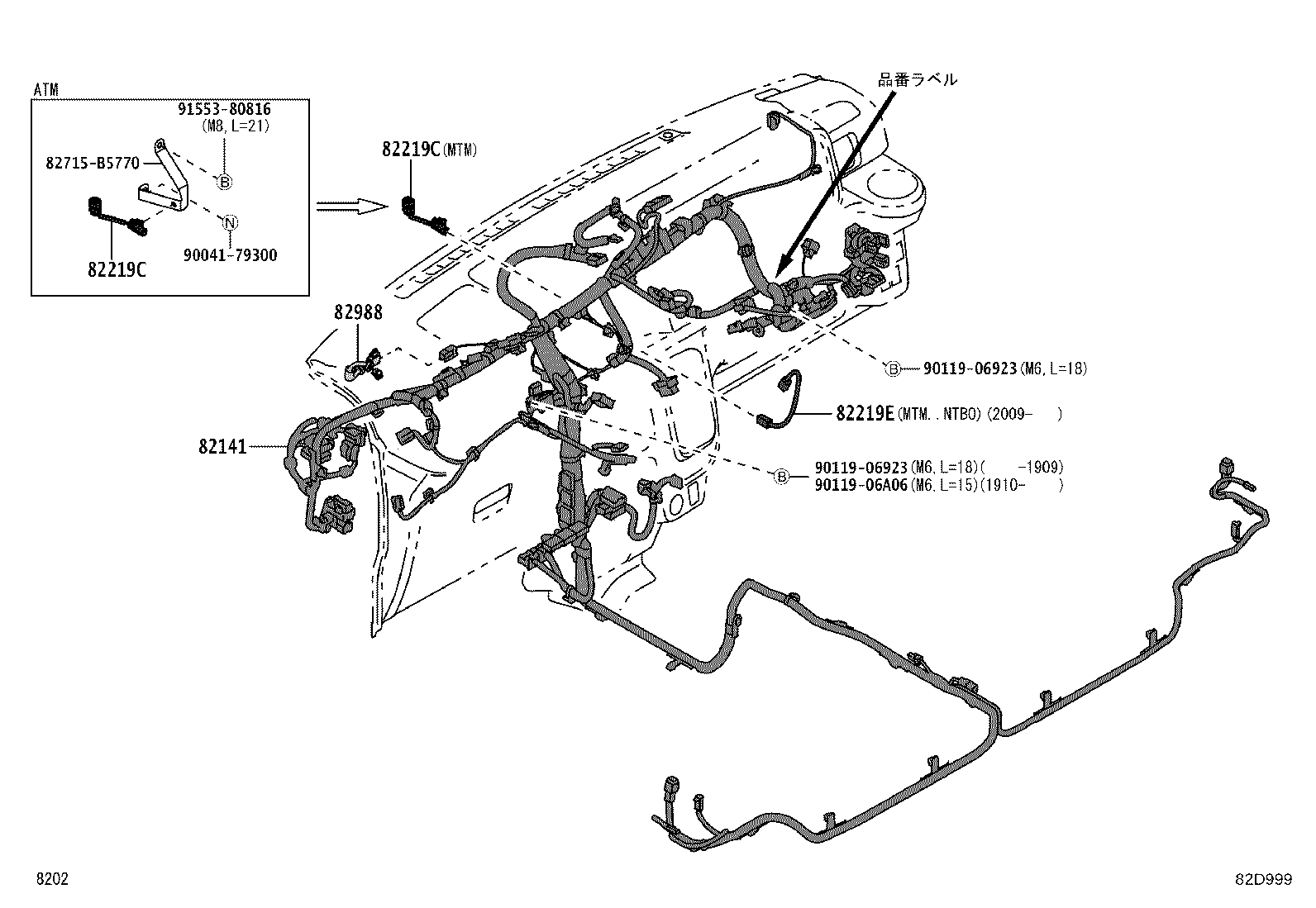

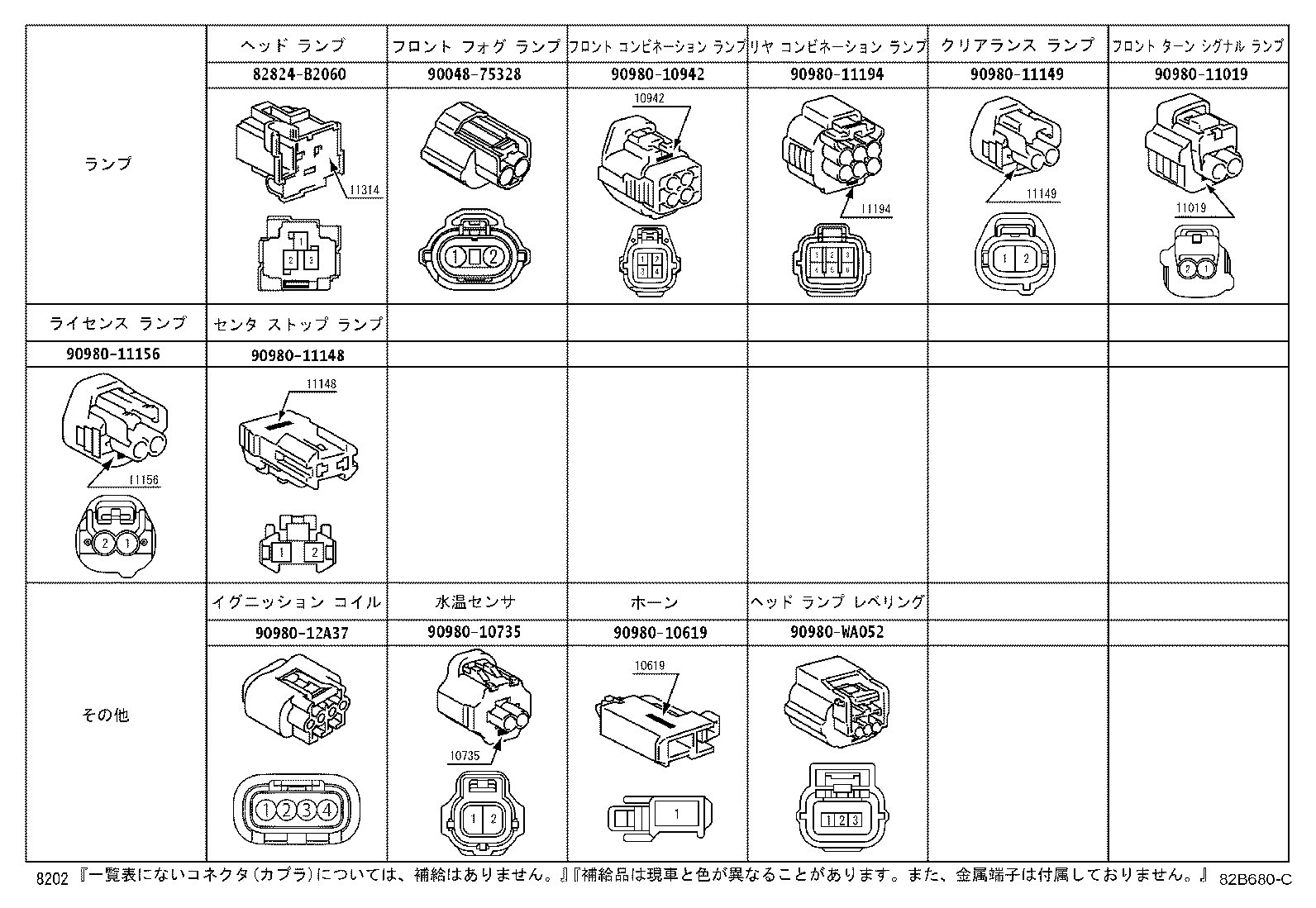

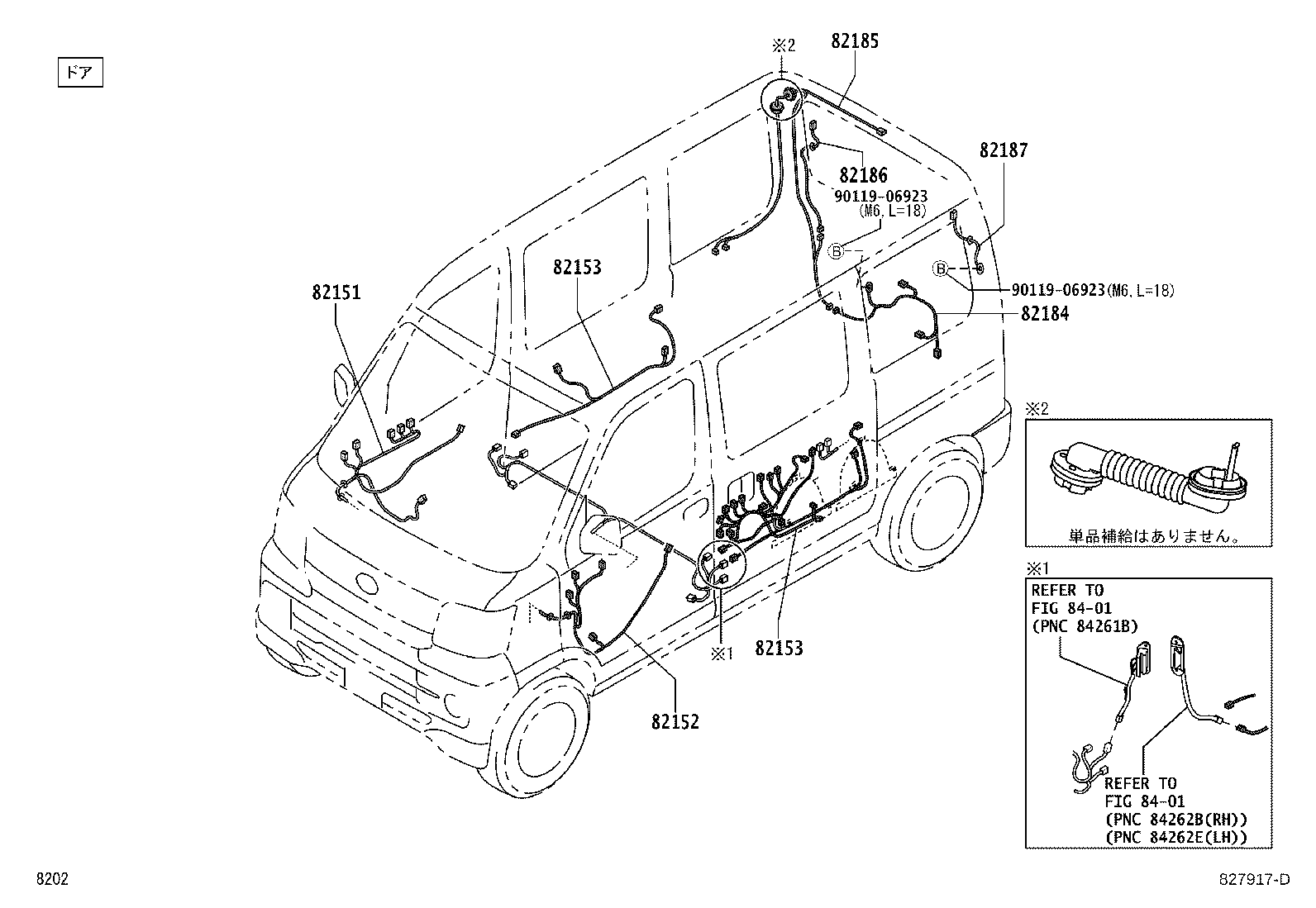

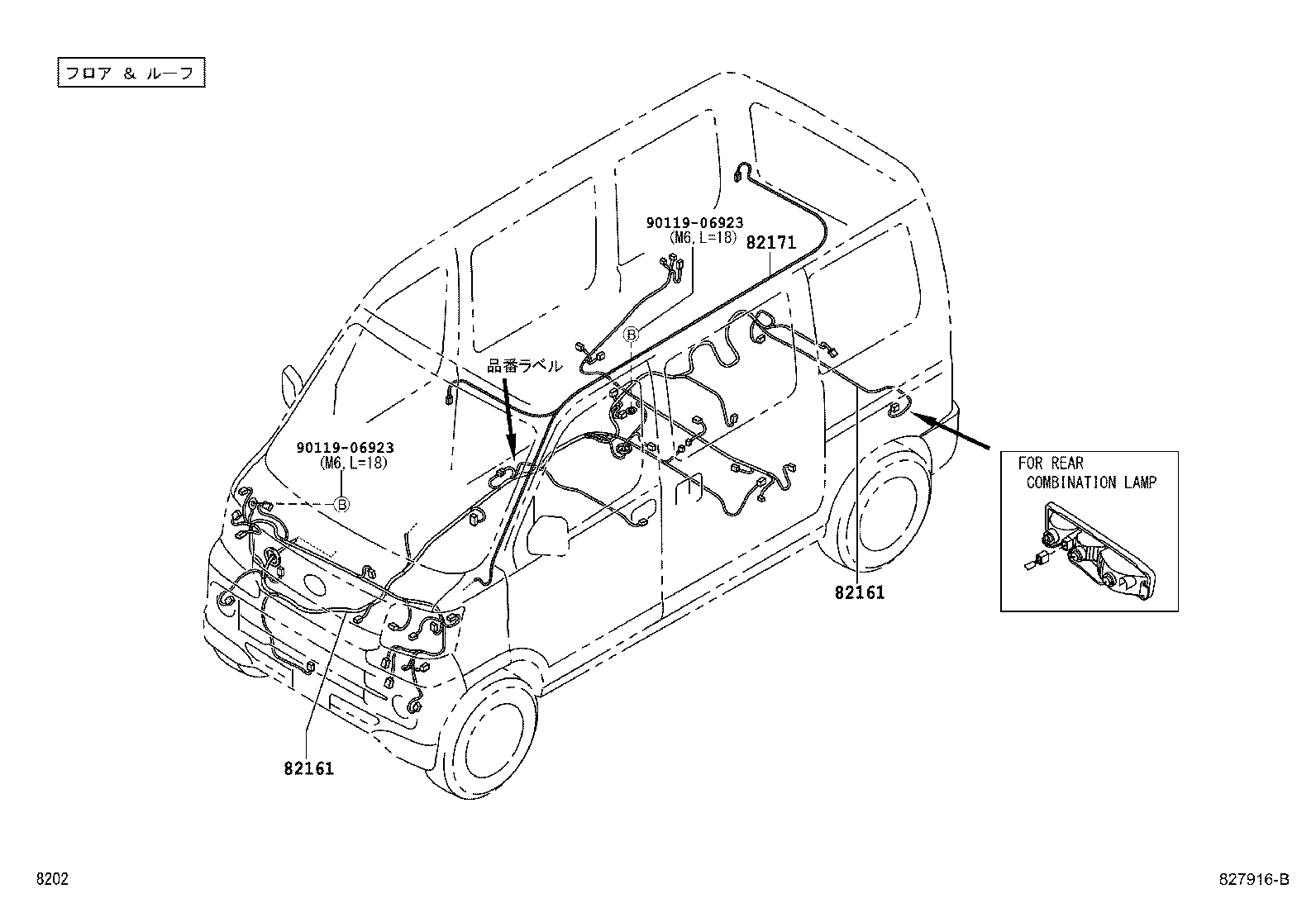

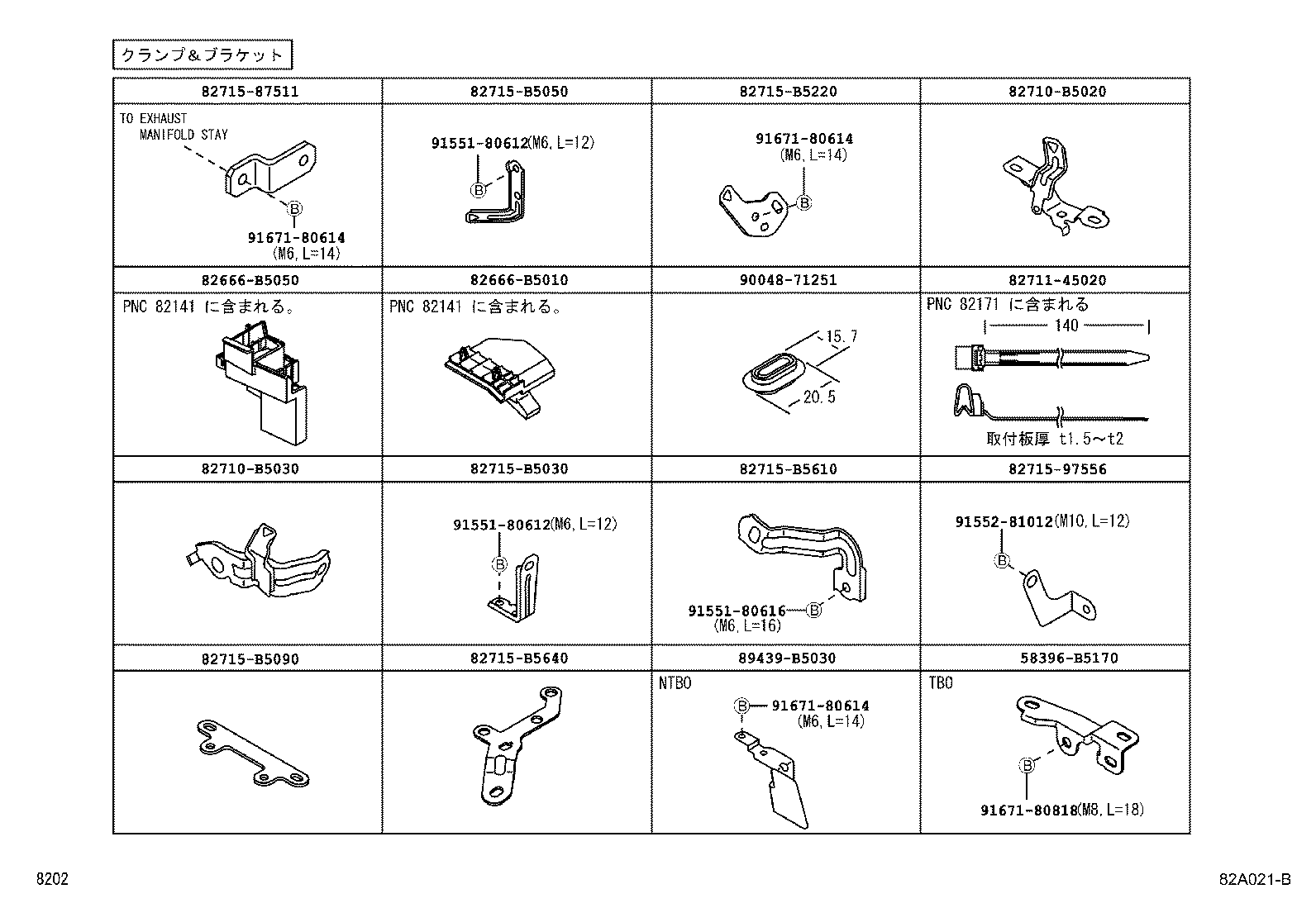

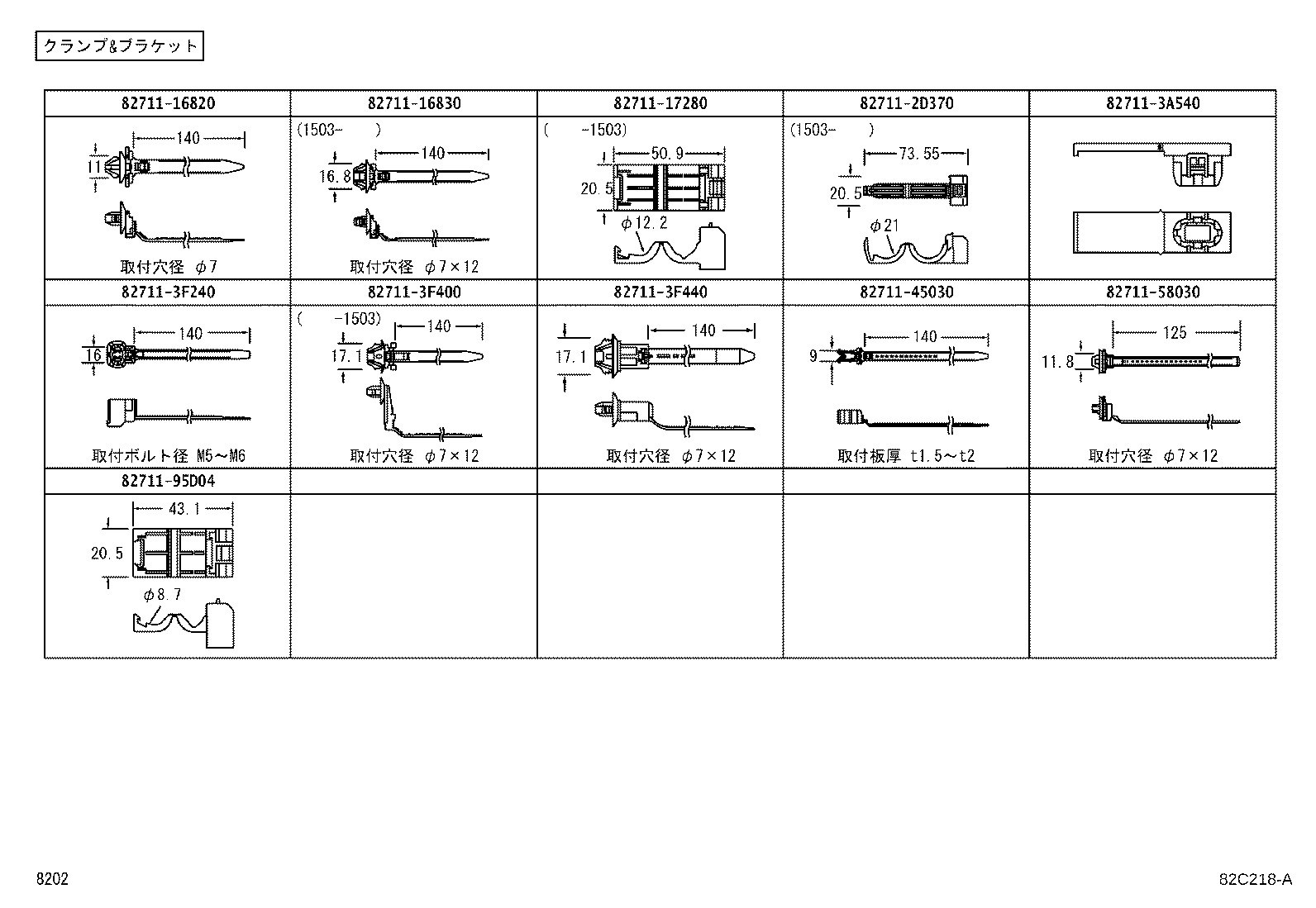

Figure 828900E 828900E 2011-12 → — Figure 827914A 827914A 2011-12 → 2015-04 Figure 82A020B 82A020B 2015-04 → 2017-11 Figure 827915B 827915B 2011-12 → 2017-11 Figure 827916B 827916B 2011-12 → 2017-11 Figure 827917D 827917D 2011-12 → 2017-11 Figure 827918A 827918A 2011-12 → 2017-11 Figure 827919B 827919B 2011-12 → 2015-04 Figure 82A021B 82A021B 2015-04 → 2017-11 Figure 82C218A 82C218A 2011-12 → 2017-11 Figure 829400C 829400C 2011-12 → 2017-11 Figure 82B670 82B670 2017-11 → 2018-04 Figure 82C023A 82C023A 2018-04 → — Figure 82B671 82B671 2017-11 → 2018-04 Figure 82C024A 82C024A 2018-04 → — Figure 82D999 82D999 2017-11 → — Figure 82B673B 82B673B 2017-11 → — Figure 82B679A 82B679A 2017-11 → — Figure 82B675 82B675 2017-11 → — Figure 82B680C 82B680C 2017-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1

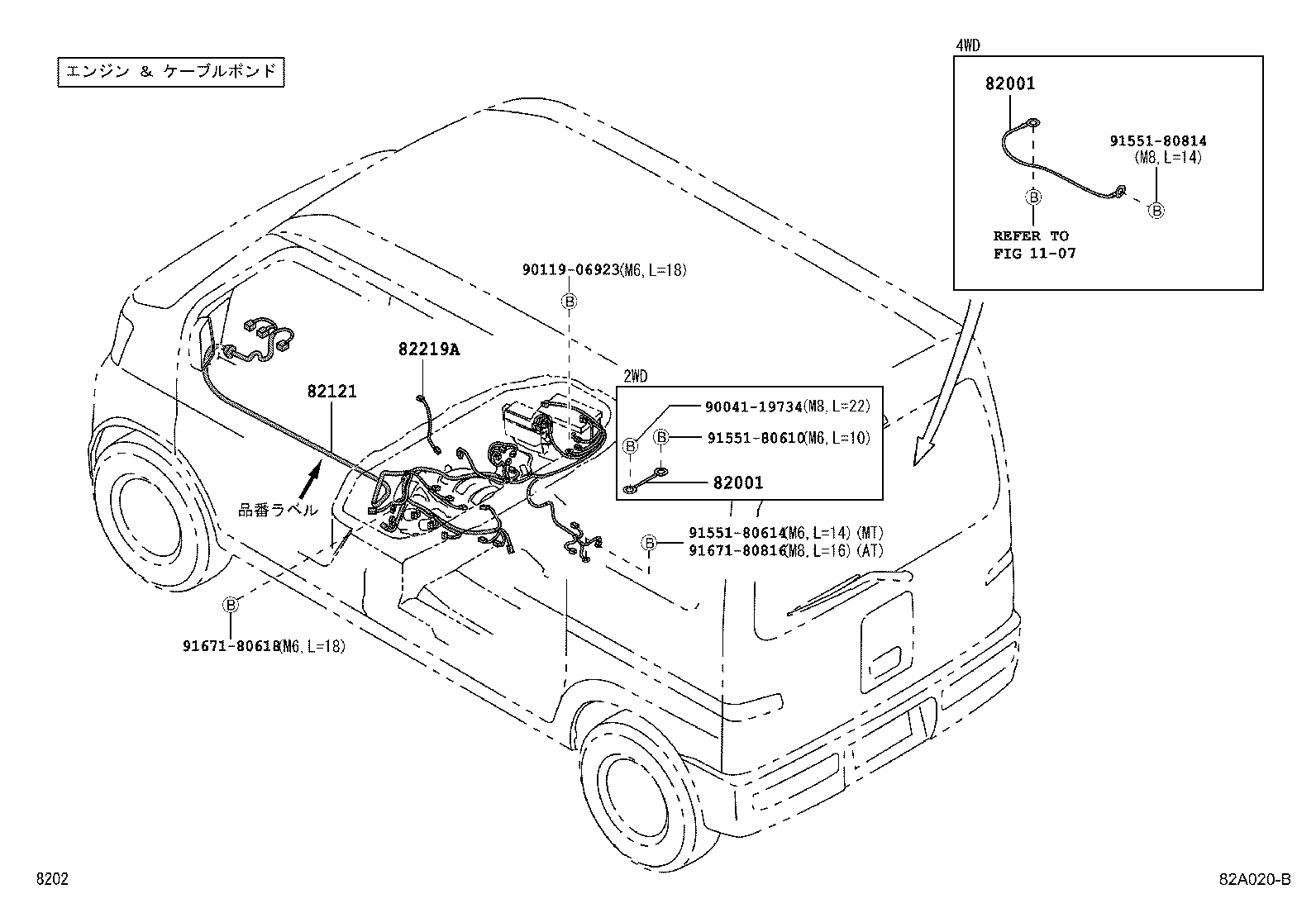

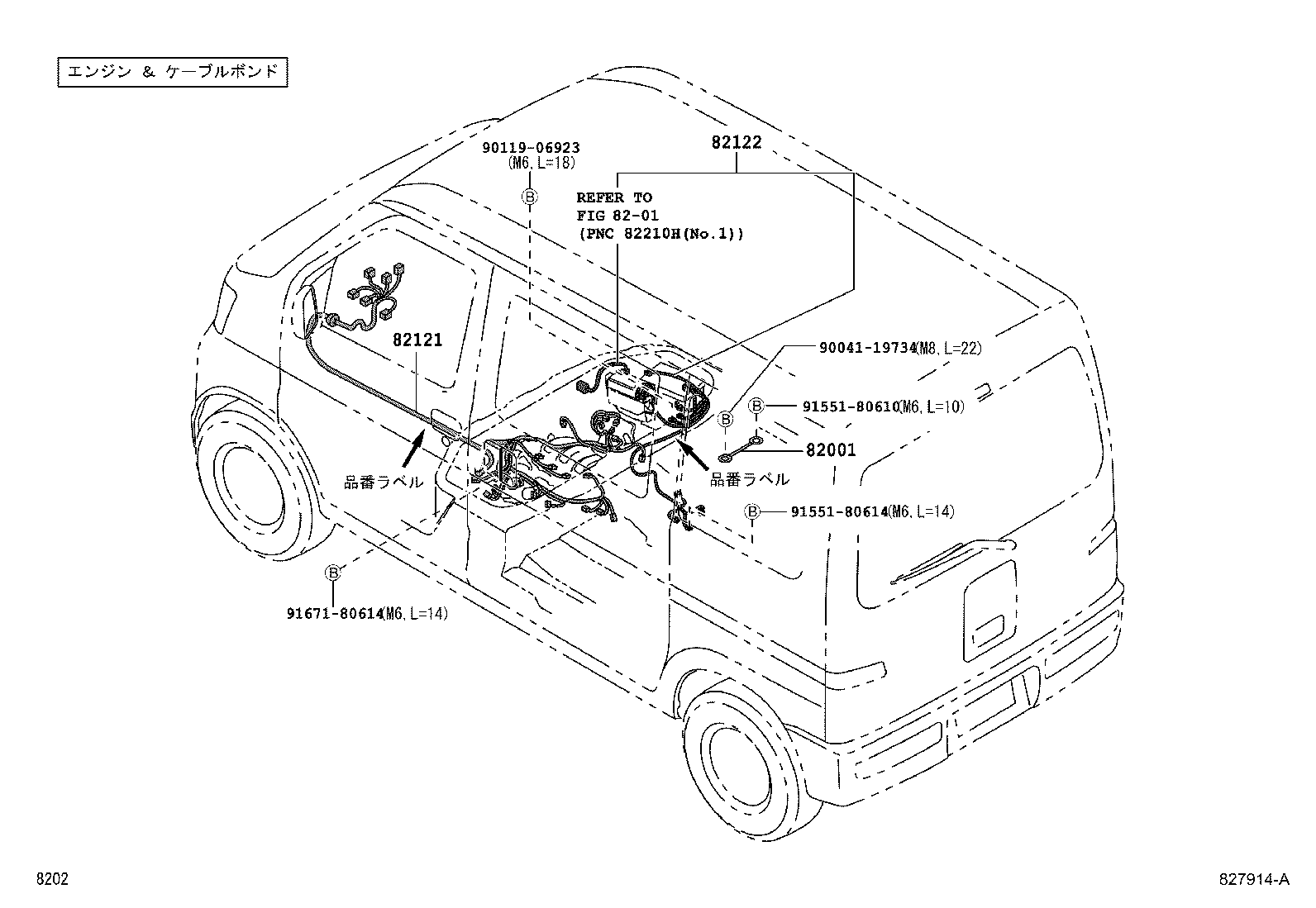

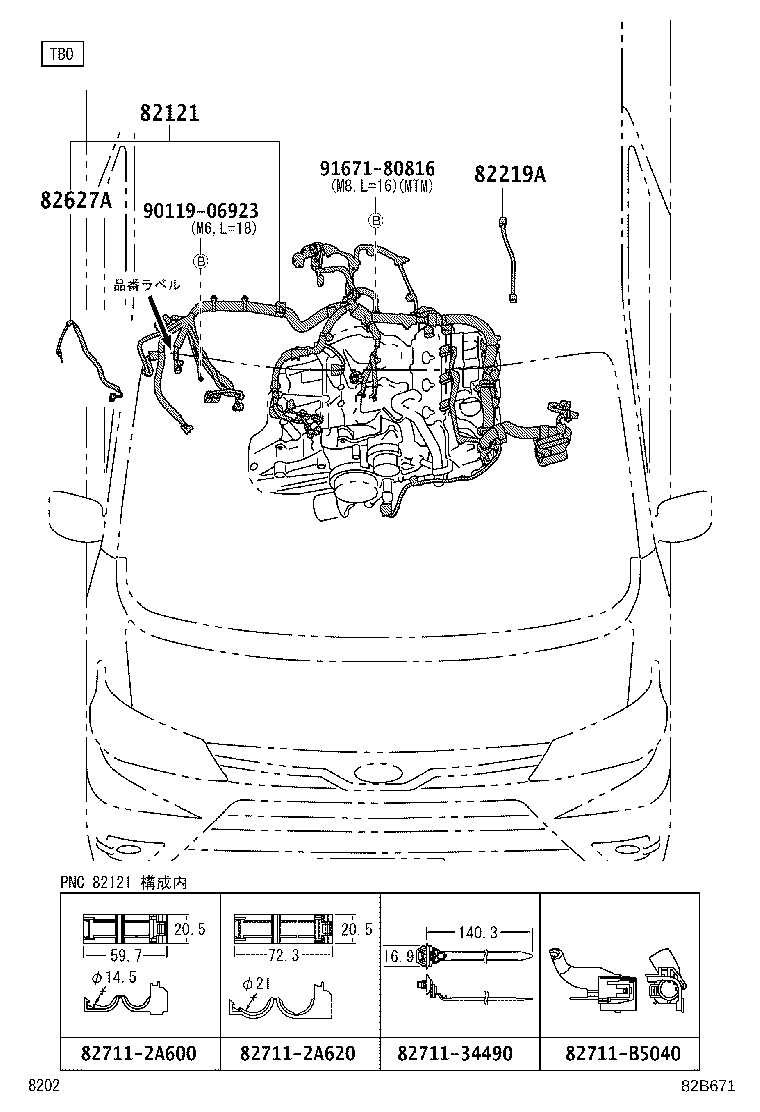

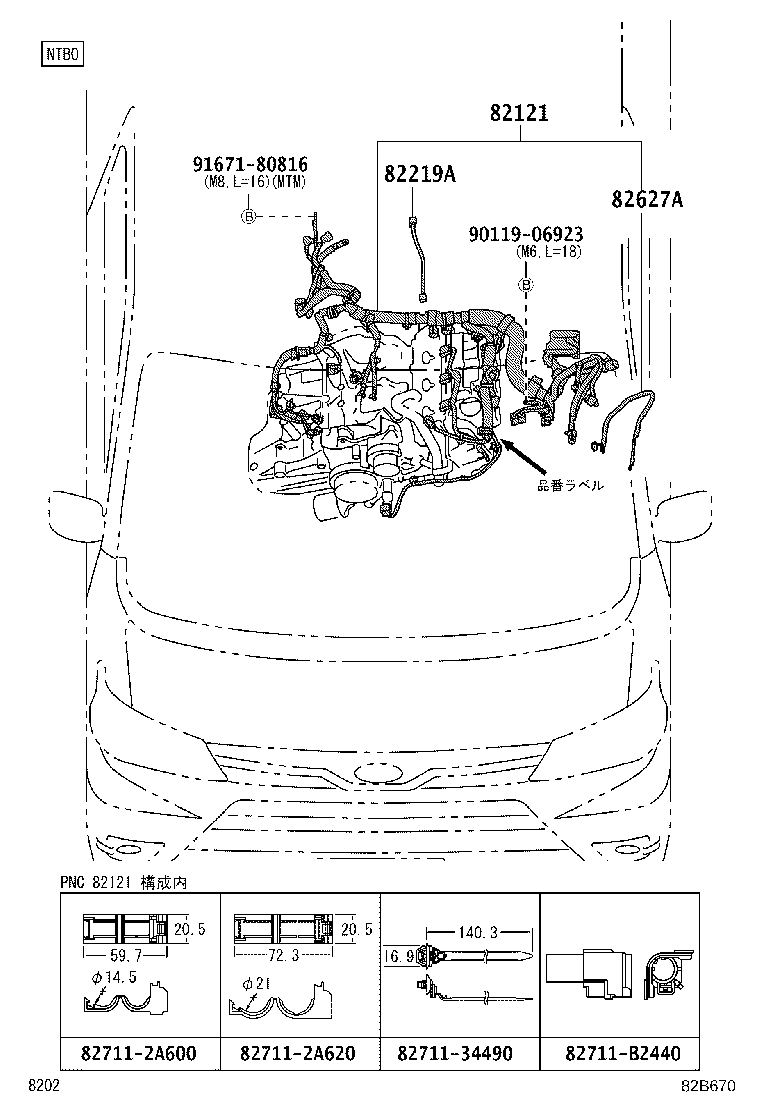

82121 Wire, Engine
82122 Wire, Engine, NO.2

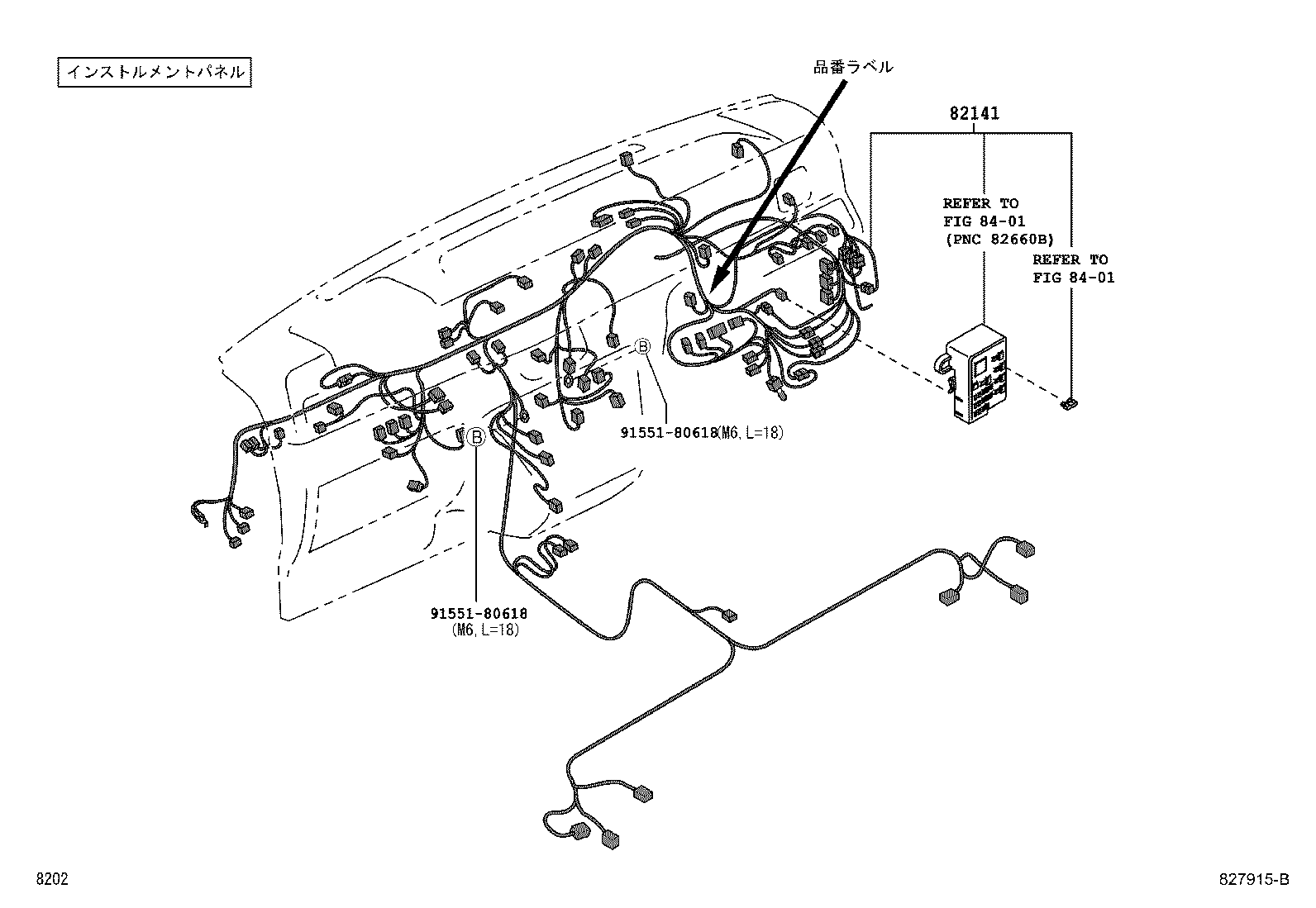

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82171 Wire, Roof, NO.1

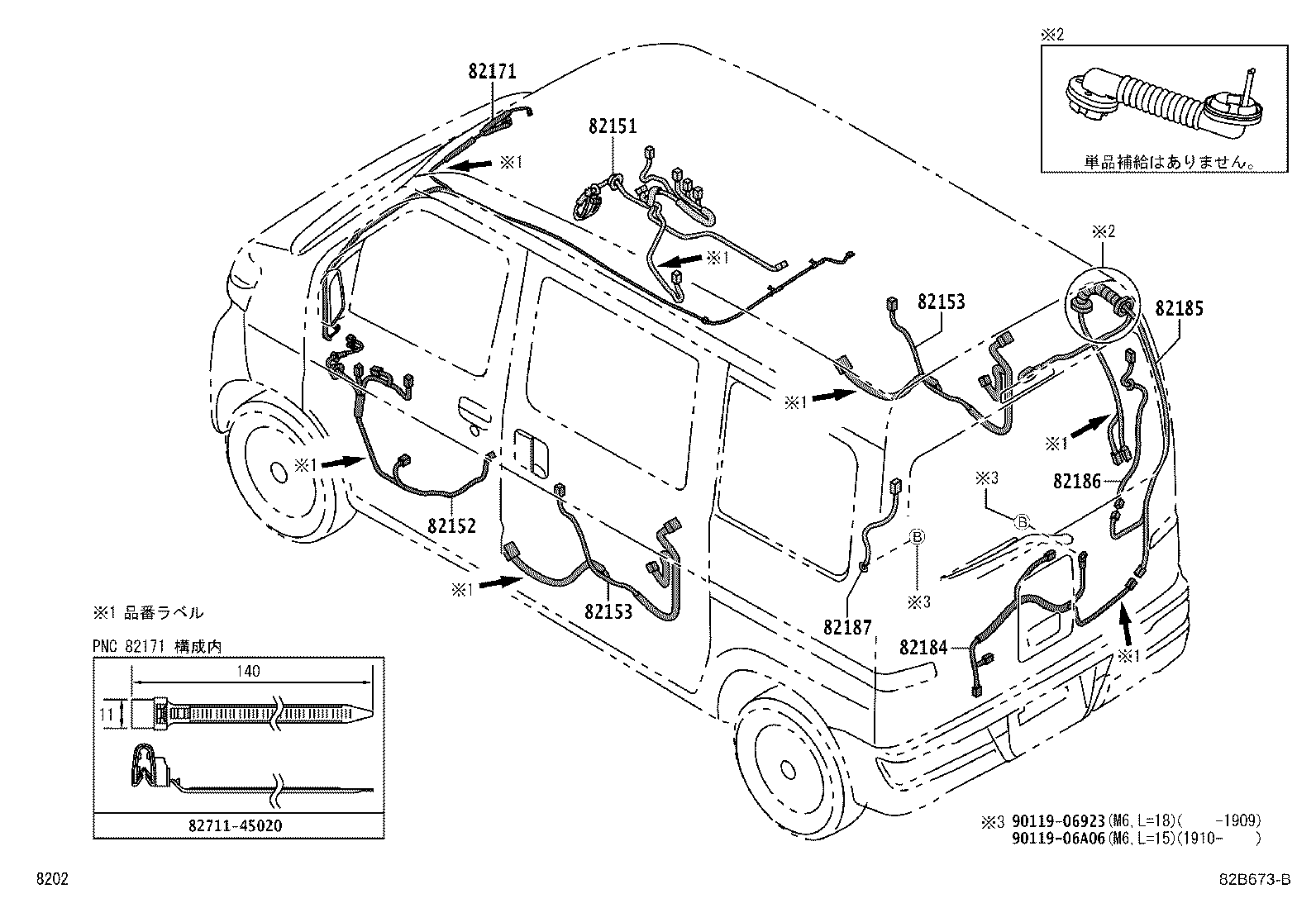

82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
82415 Wire, Fuel Pump
82627A Wire, Fusible Link

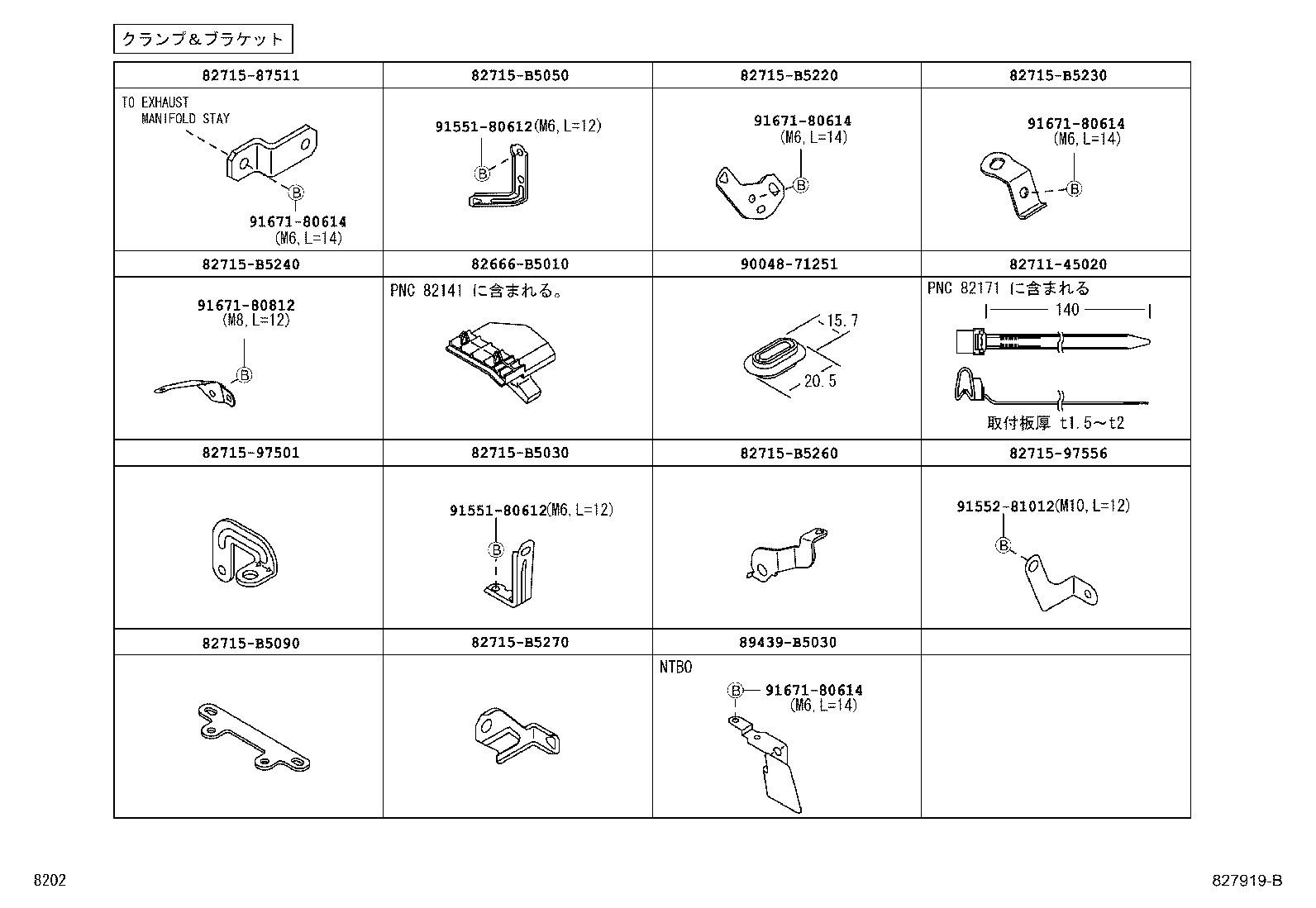

82721A Bracket, Wiring Harness, NO.2
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
