Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

79 part groups · 17 illustrations

Illustrations

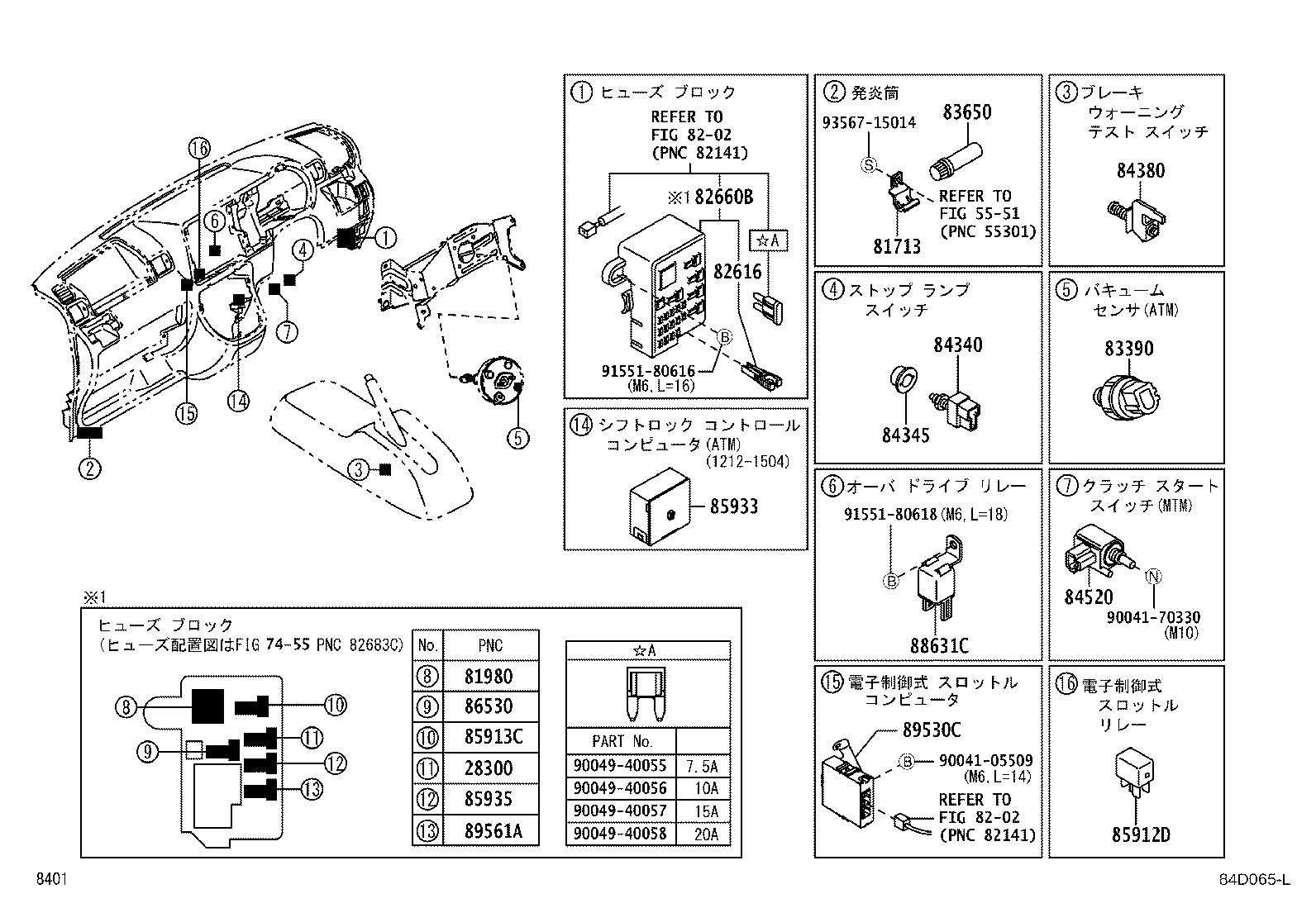

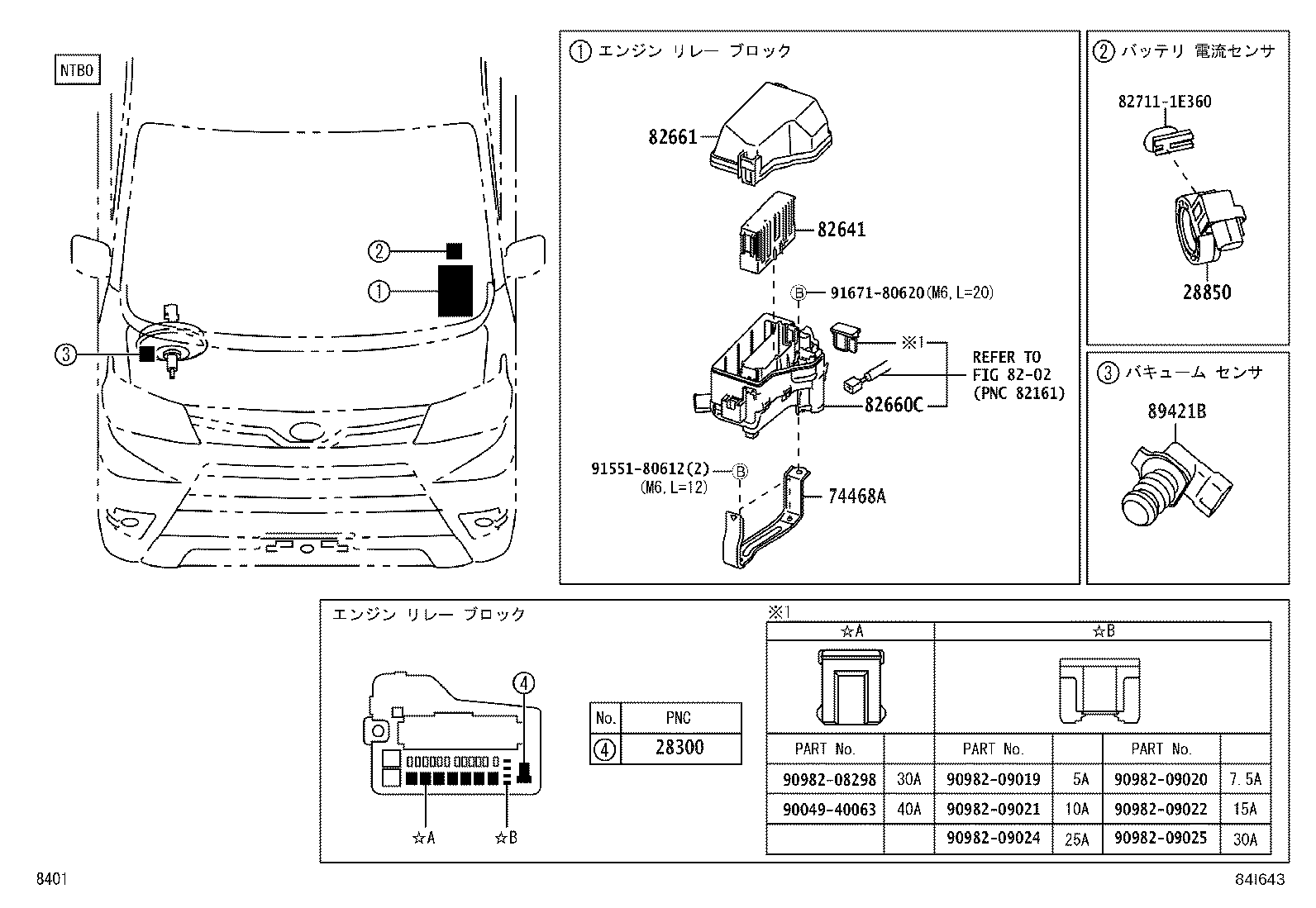

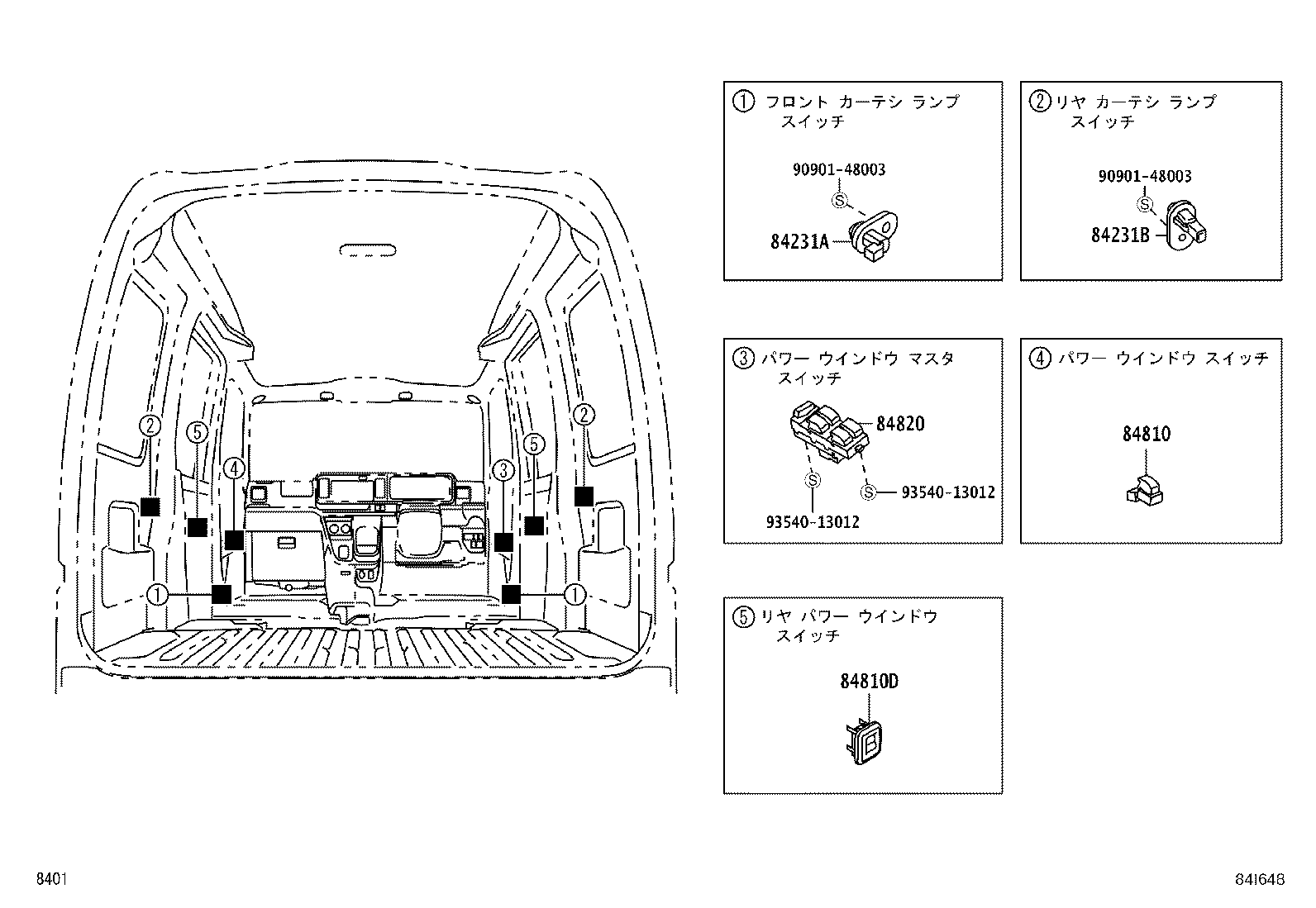

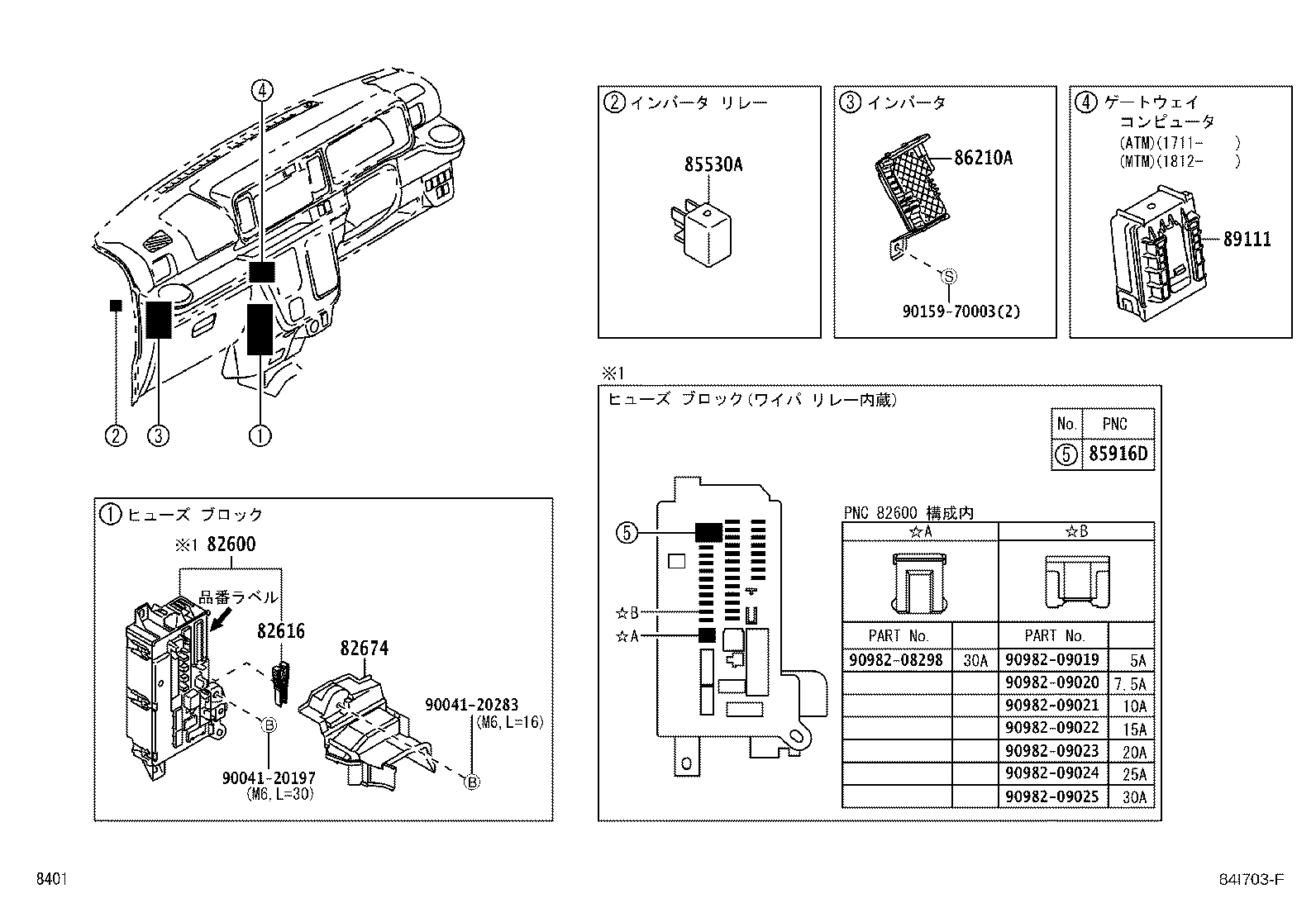

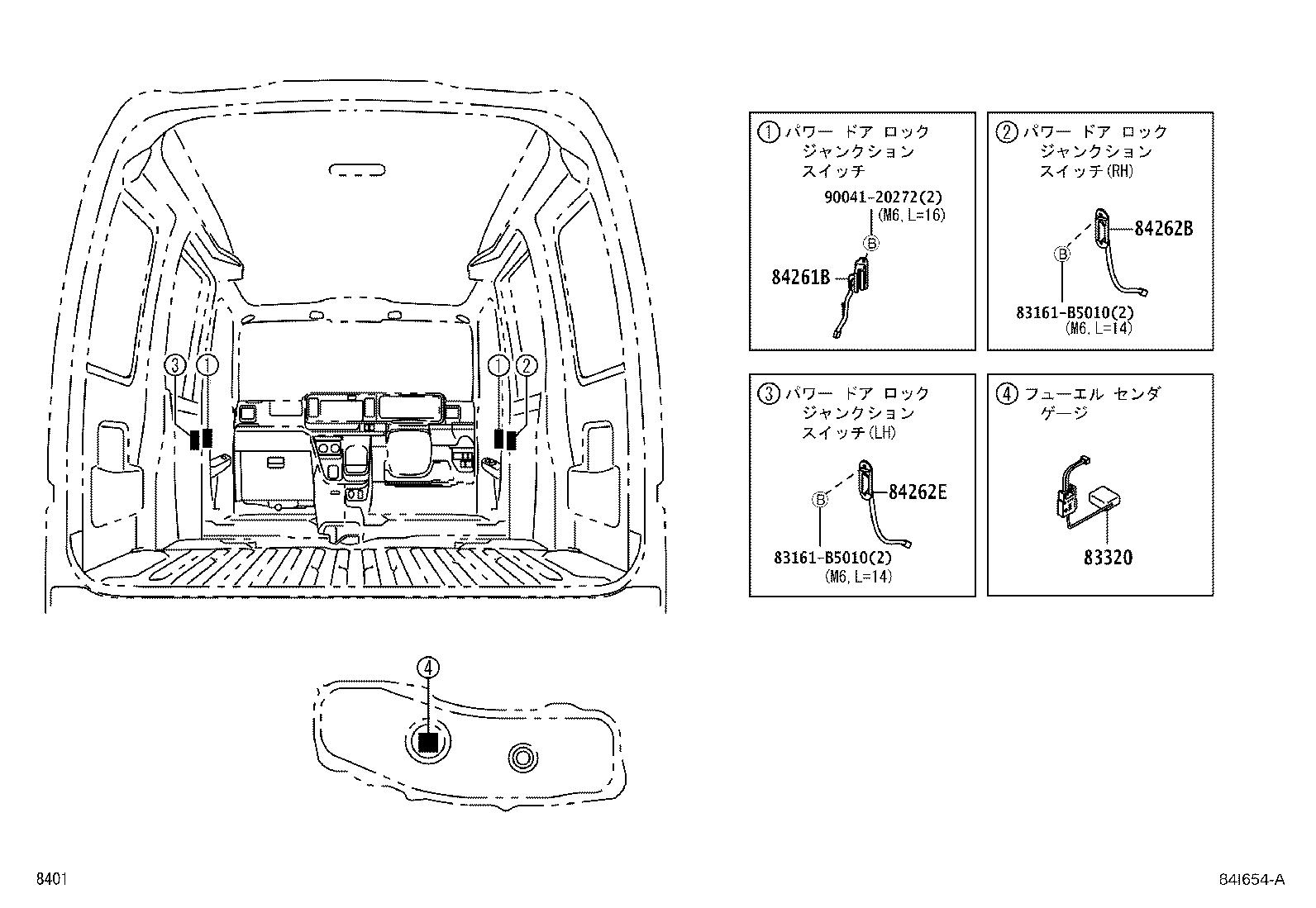

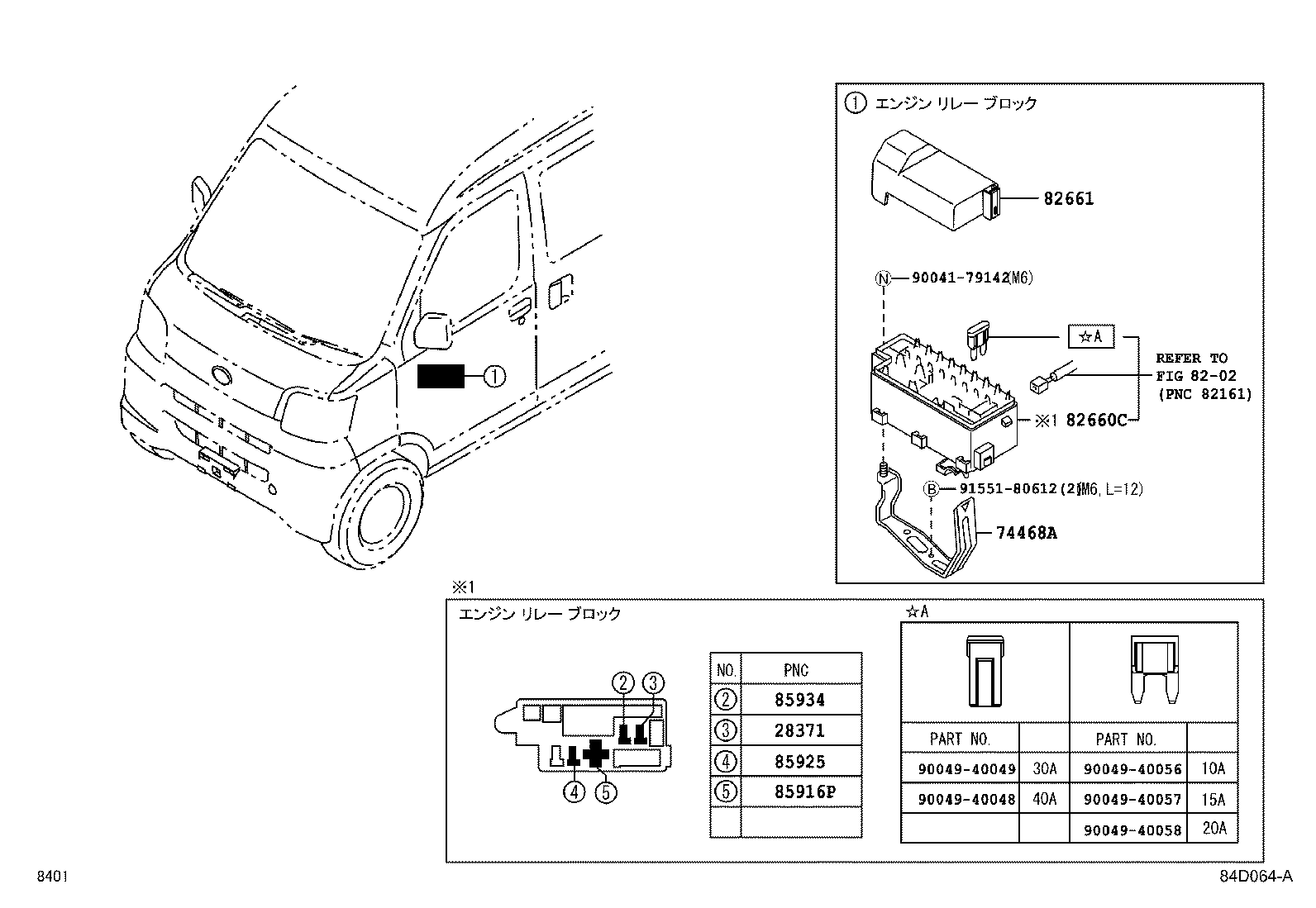

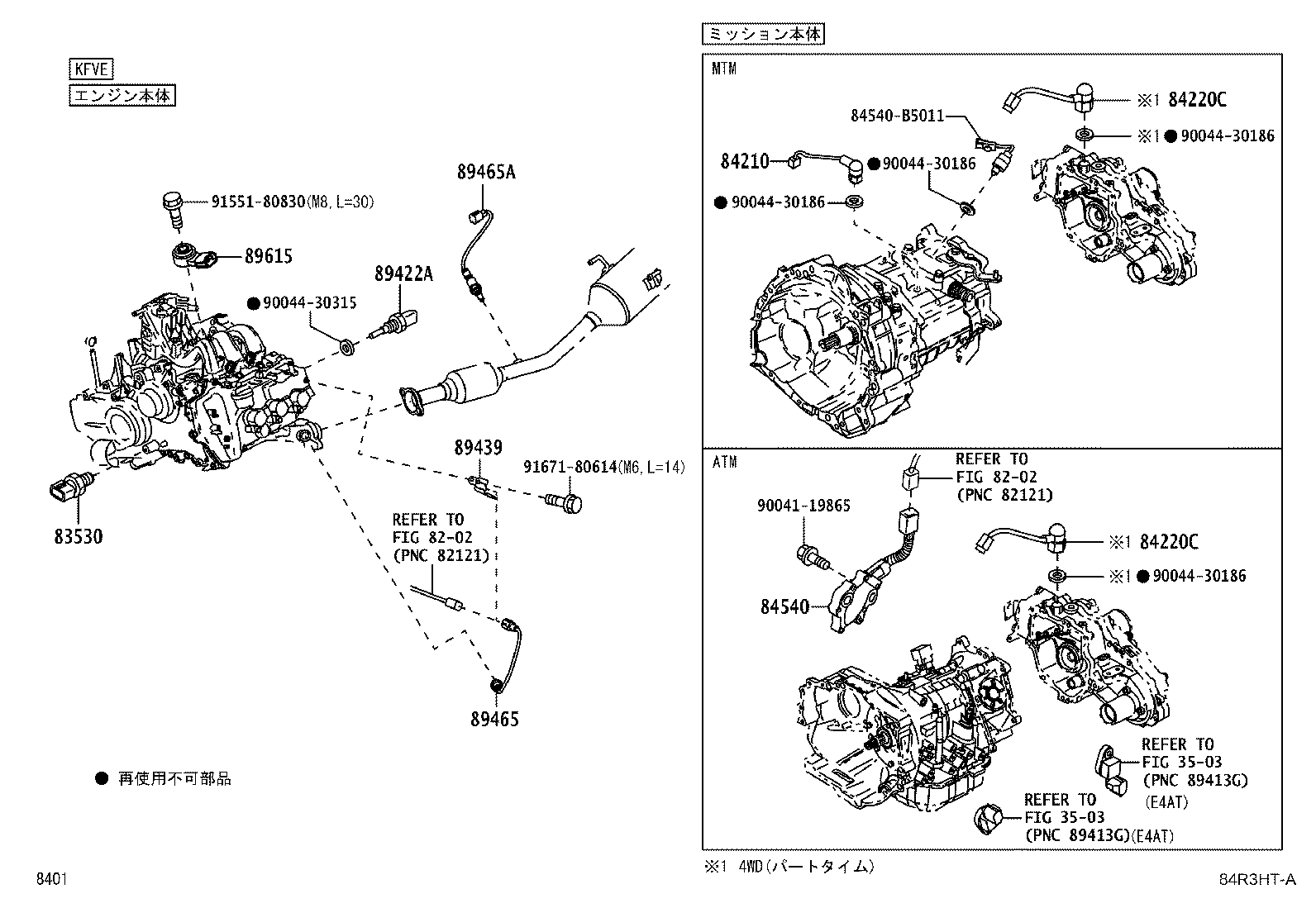

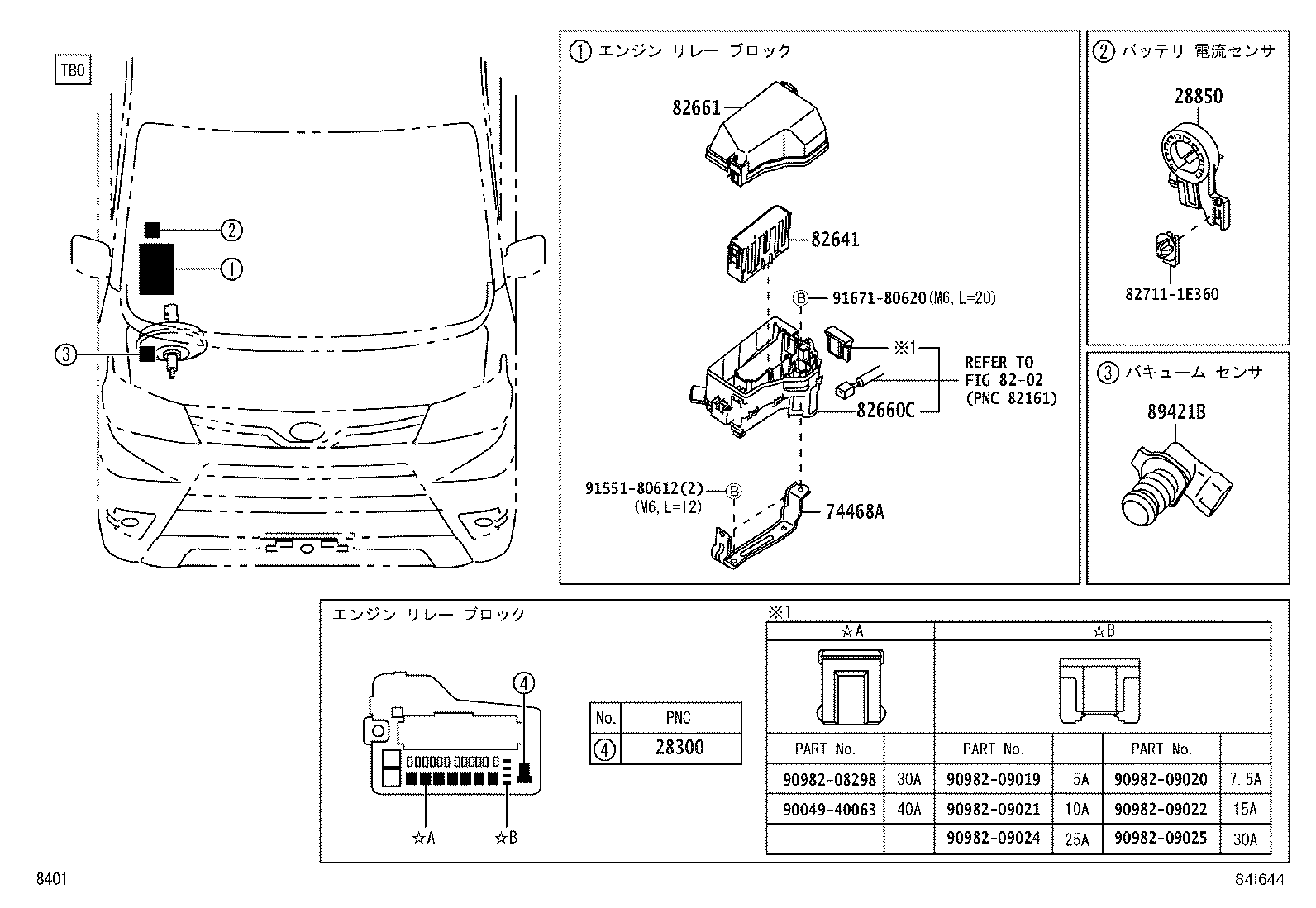

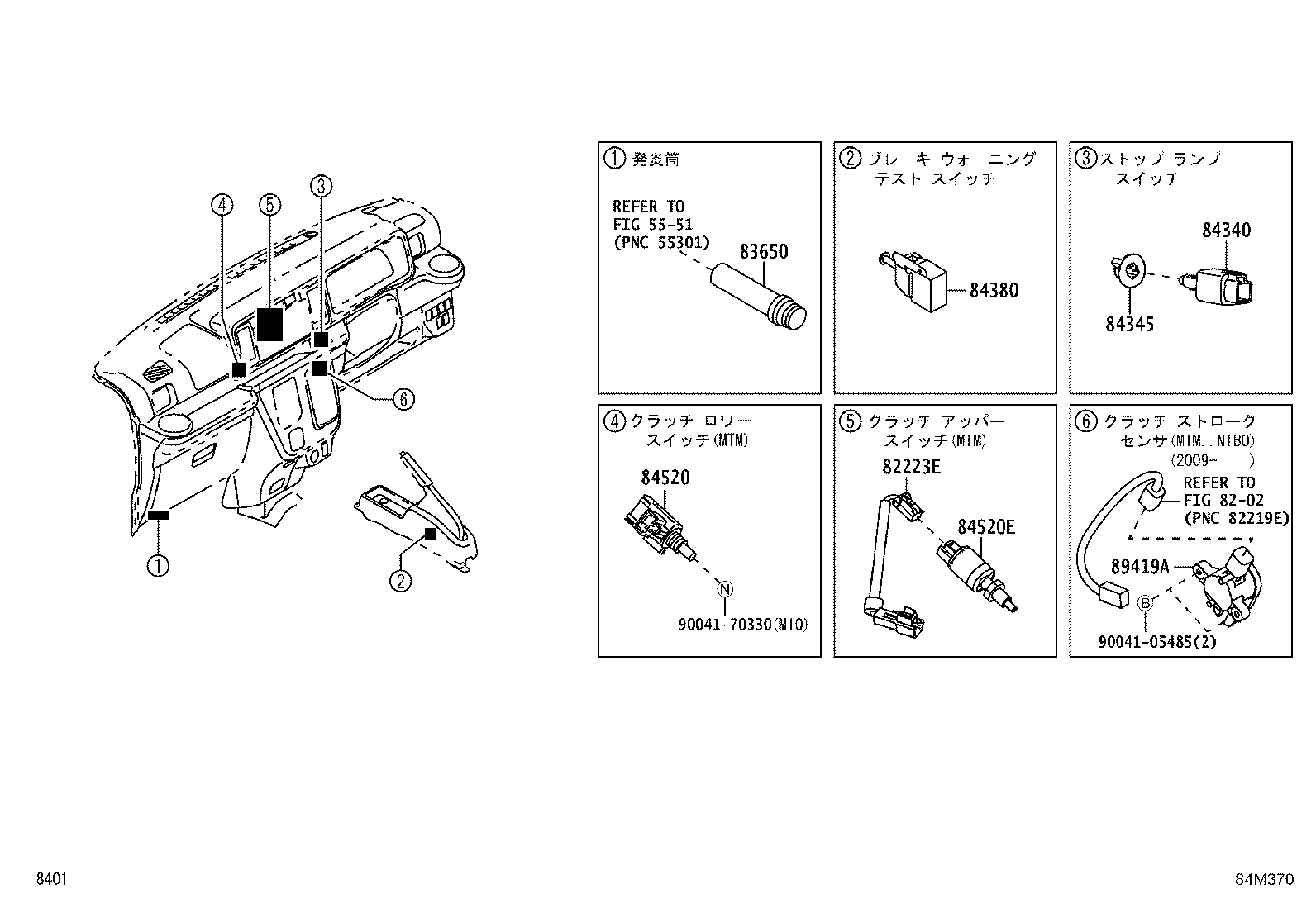

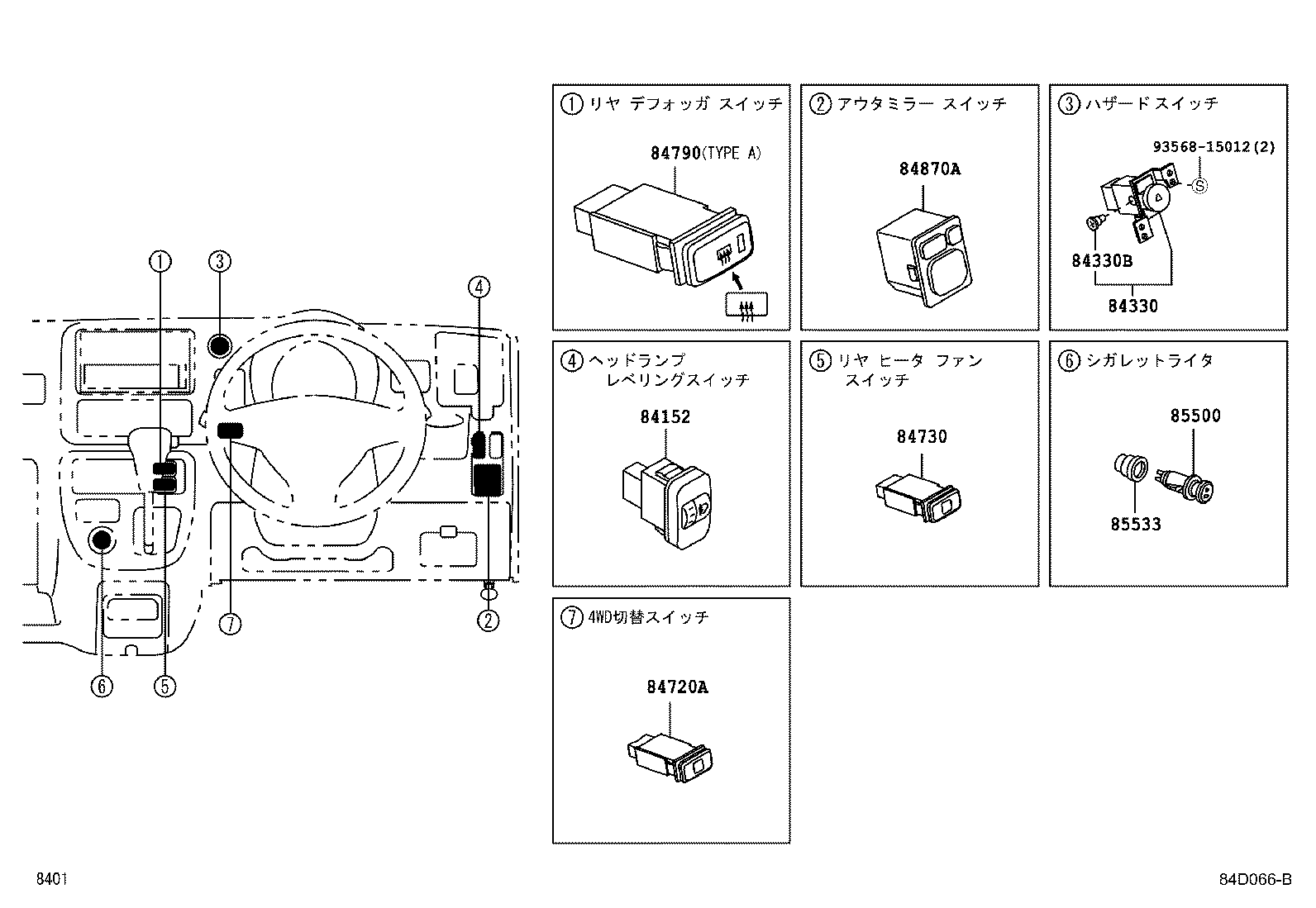

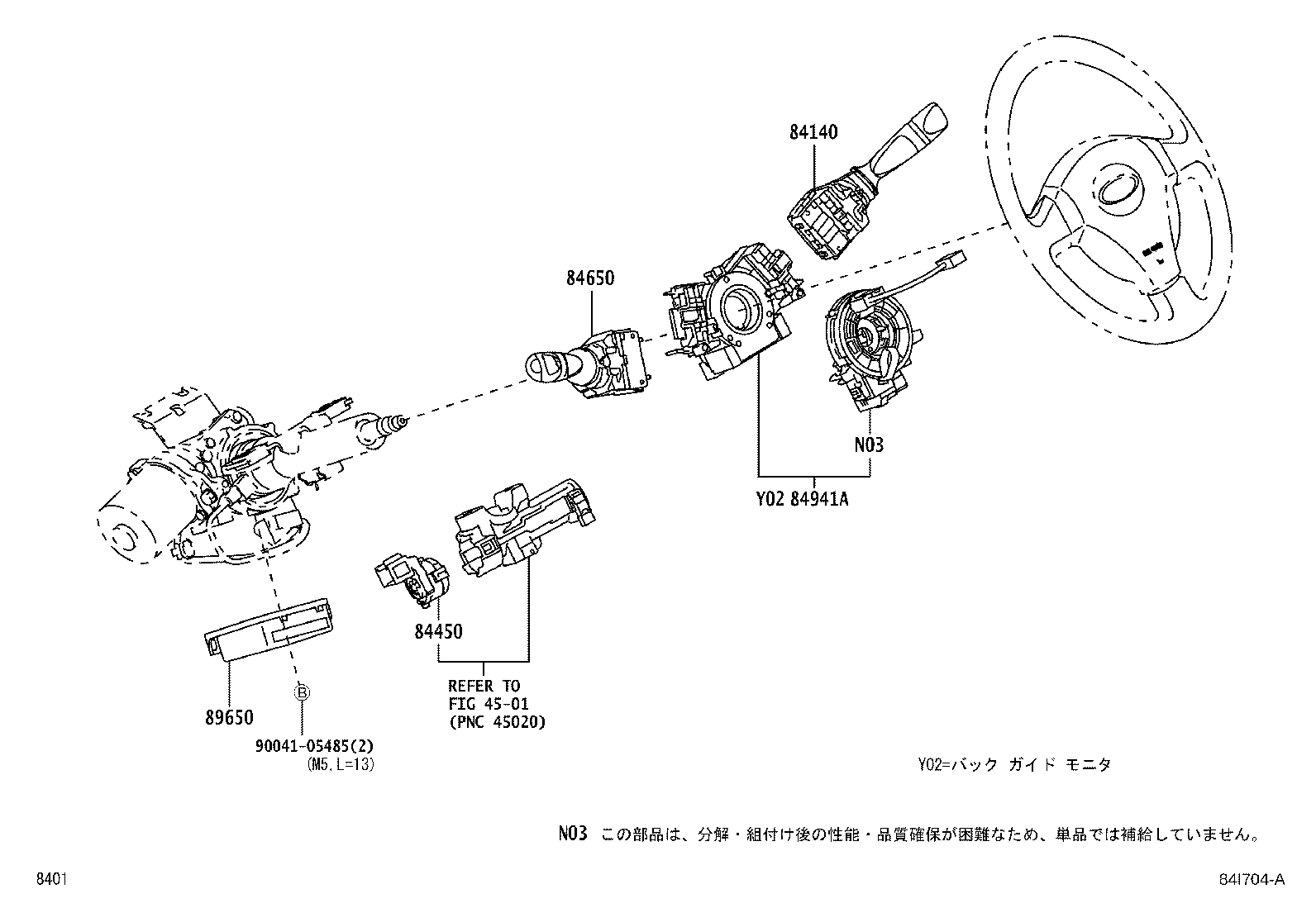

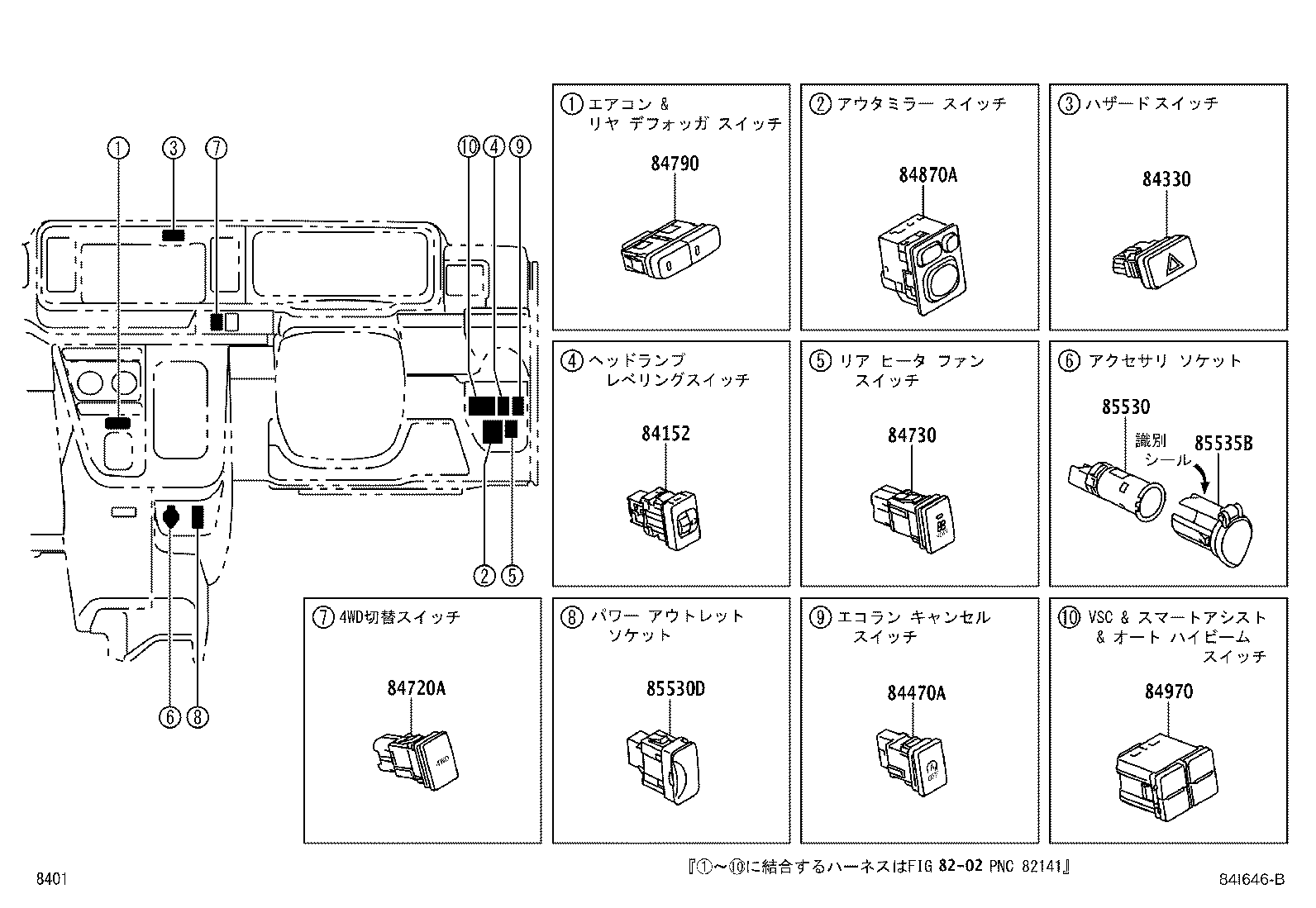

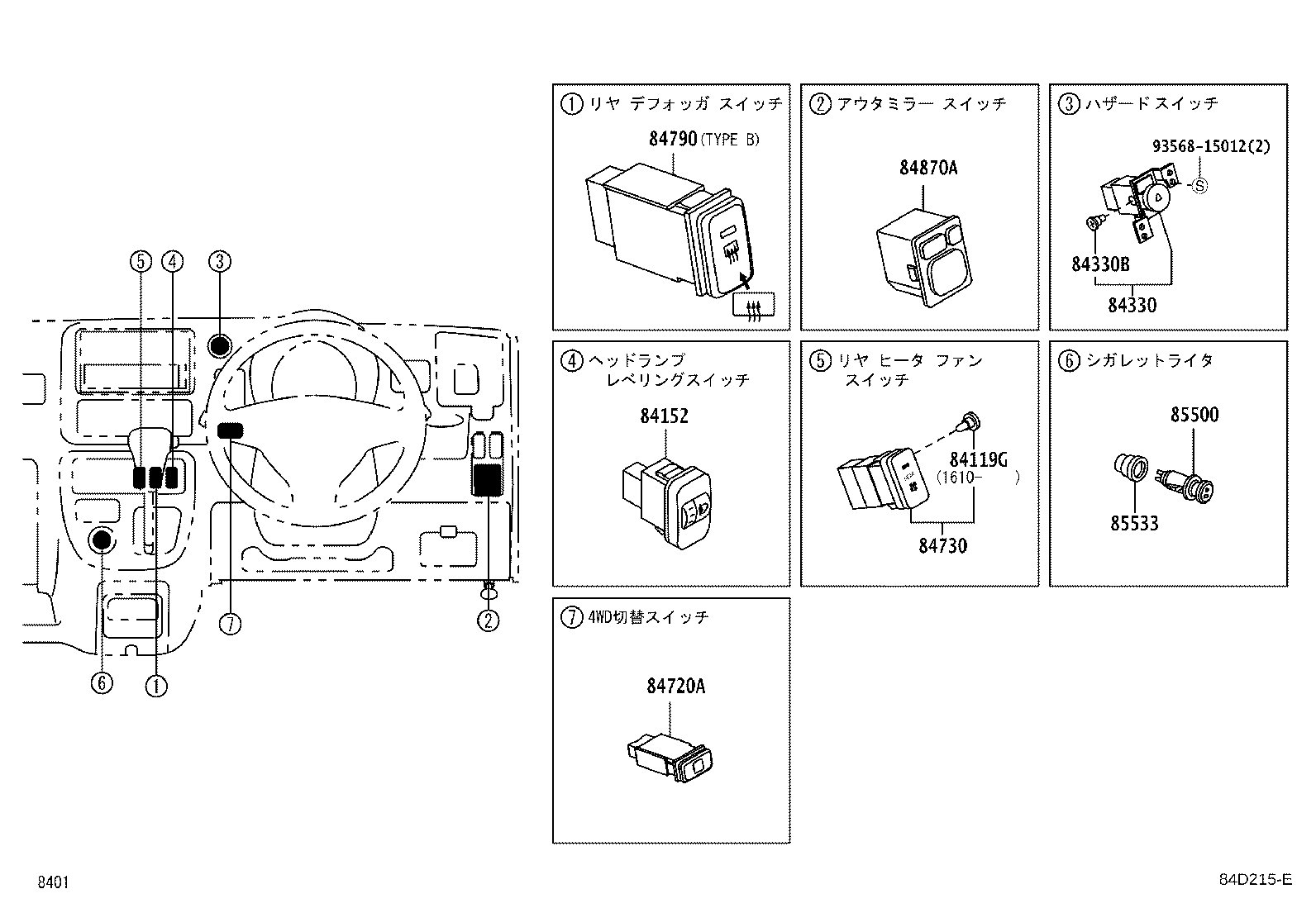

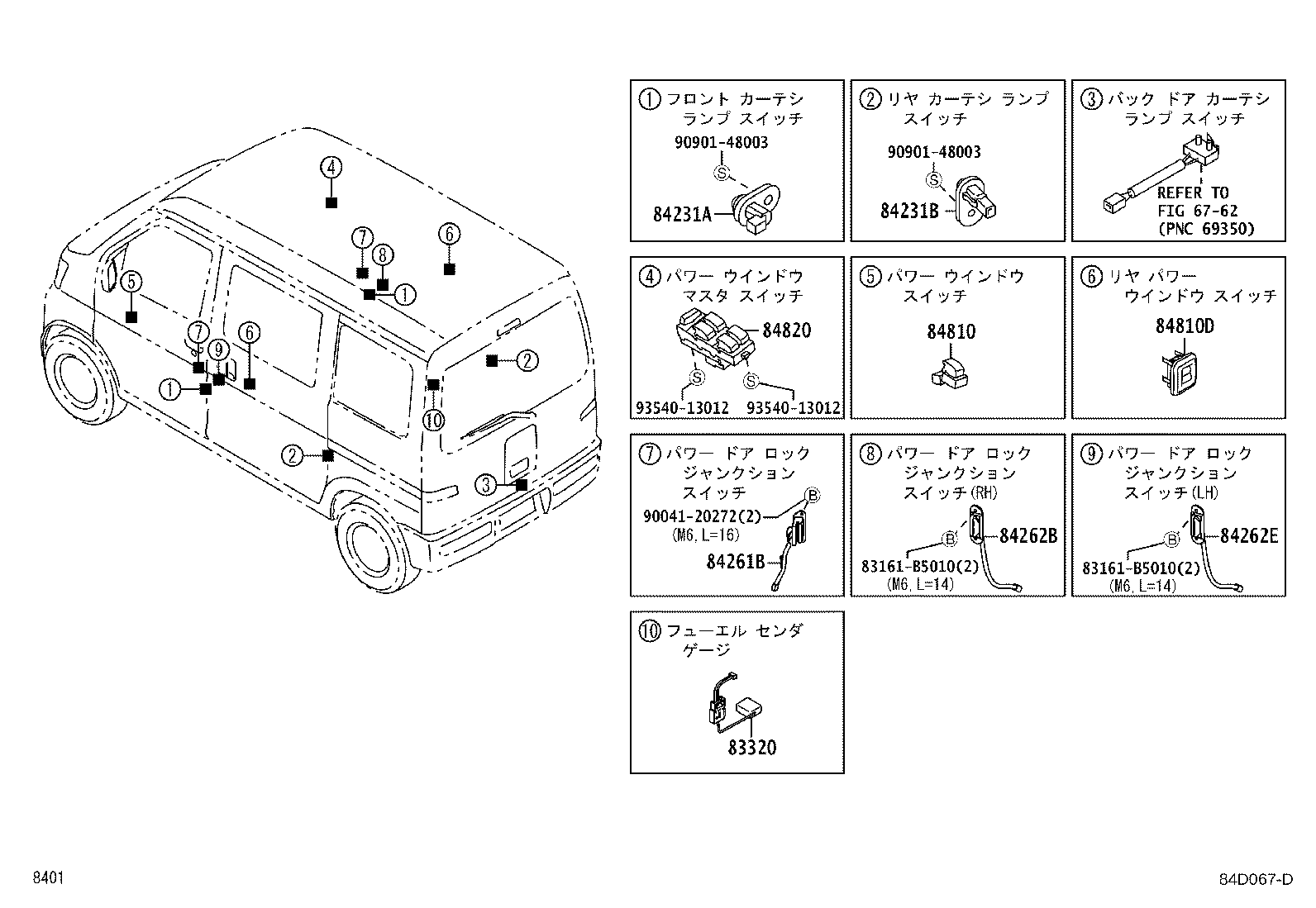

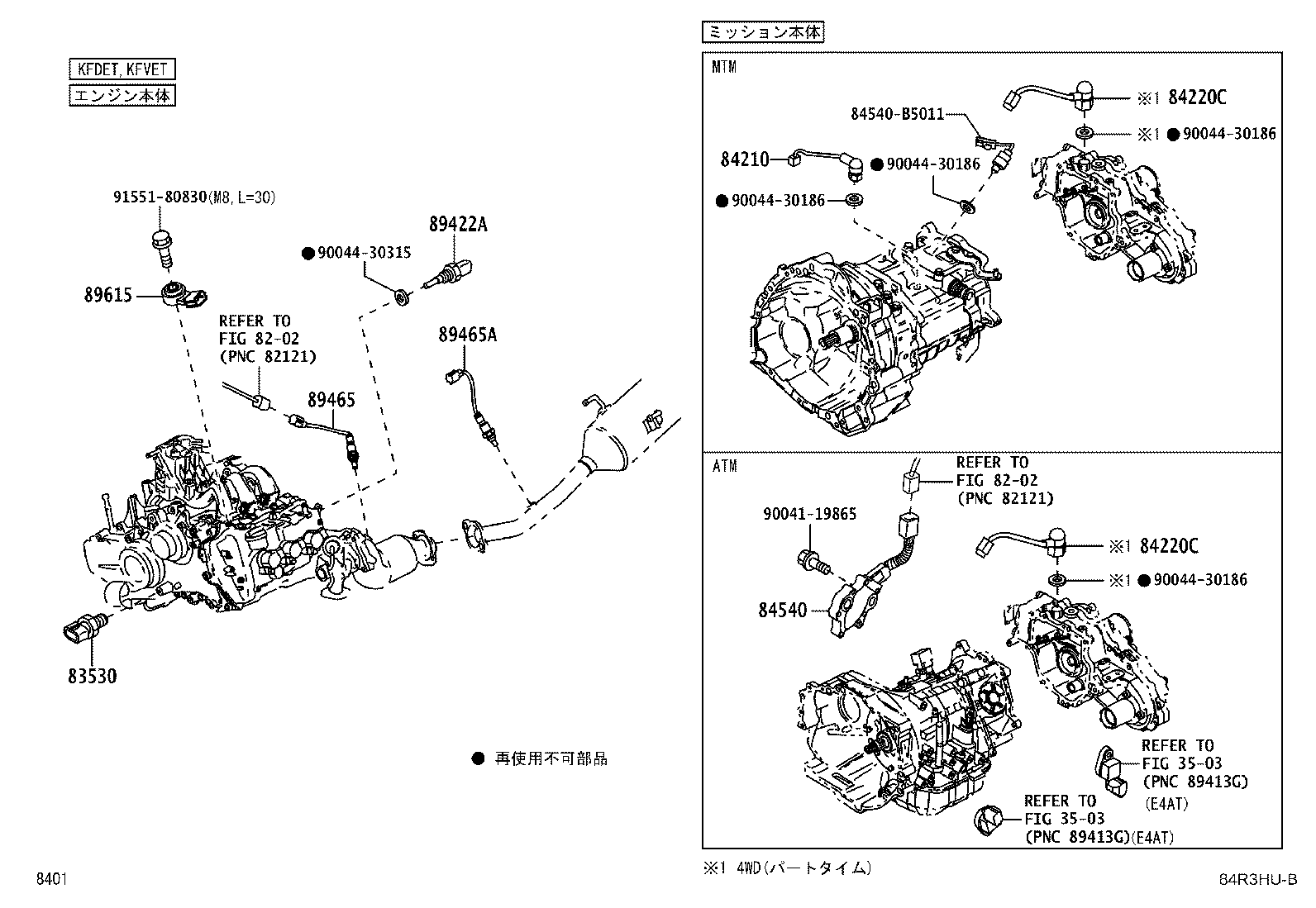

Figure 84R3HSA 84R3HSA 2011-12 → 2017-11 Figure 84D064A 84D064A 2011-12 → 2017-11 Figure 84D065L 84D065L 2011-12 → 2017-11 Figure 84D066B 84D066B 2011-12 → 2012-04 Figure 84D215E 84D215E 2012-04 → 2017-11 Figure 84H249C 84H249C 2011-12 → 2017-11 Figure 84D067D 84D067D 2011-12 → 2017-11 Figure 84R3HTA 84R3HTA 2017-11 → — Figure 84R3HUB 84R3HUB 2017-11 → — Figure 84I643 84I643 2017-11 → — Figure 84I644 84I644 2017-11 → — Figure 84I703F 84I703F 2017-11 → — Figure 84M370 84M370 2017-11 → — Figure 84I646B 84I646B 2017-11 → — Figure 84I648 84I648 2017-11 → — Figure 84I654A 84I654A 2017-11 → — Figure 84I704A 84I704A 2017-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
81713 Holder, Fusee
81980 Flasher Assy, Turn Signal
82223E Wire, Clutch Start Switch
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82674 Cover, Junction Block Lower
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84119G Blub
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84262E Junction, Slide Door Control Female, NO.2
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720A Switch Assy, Pattern Select, NO.1
84730 Switch Assy, Heater Blower
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84970 Switch Assy, Combination
85500 Lighter Assy, Cigarette
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85530D Socket Assy, Power Outlet, NO.2
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85912D Relay
85913C Relay, Heater, NO.1
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85925 Relay, Radiator Fan
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85935 Relay, Fuel Pump
86210A Inverter Assy, Voltage
86530 Relay Assy, Horn
88631C Relay, Overdrive
89111 Computer, Network Gateway
89419A Sensor, Clutch Stroke
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89530C Computer Assy, Transmission Control
89561A Relay, Efi
89615 Sensor, Knock Control
89637C Sensor, Oil Pressure
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
