Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

4 part groups · 2 illustrations

Illustrations

Figure 849525J

849525J 2011-12 → 2017-11

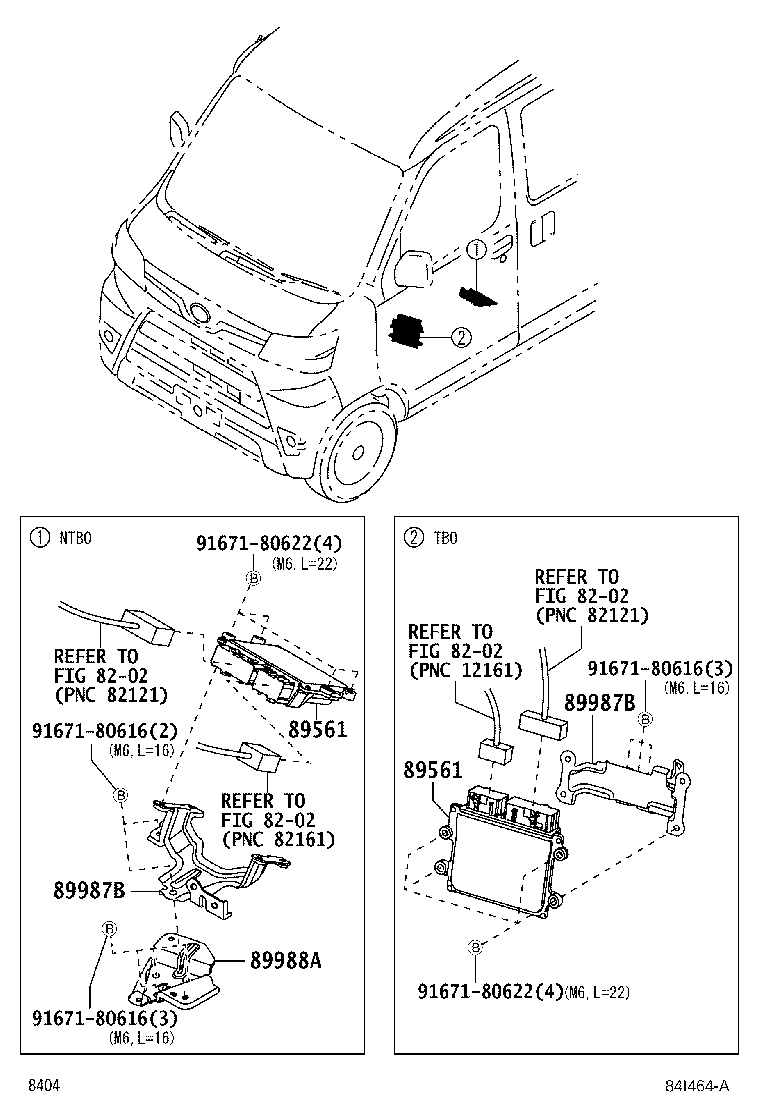

Figure 84I464A

84I464A 2017-11 → —

Part groups

PNC	Description
89539D	Bracket, Computer
89561	Computer, Fuel Injection
89987B	Bracket, Computer, NO.1
89988A	Bracket, Computer, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
