Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

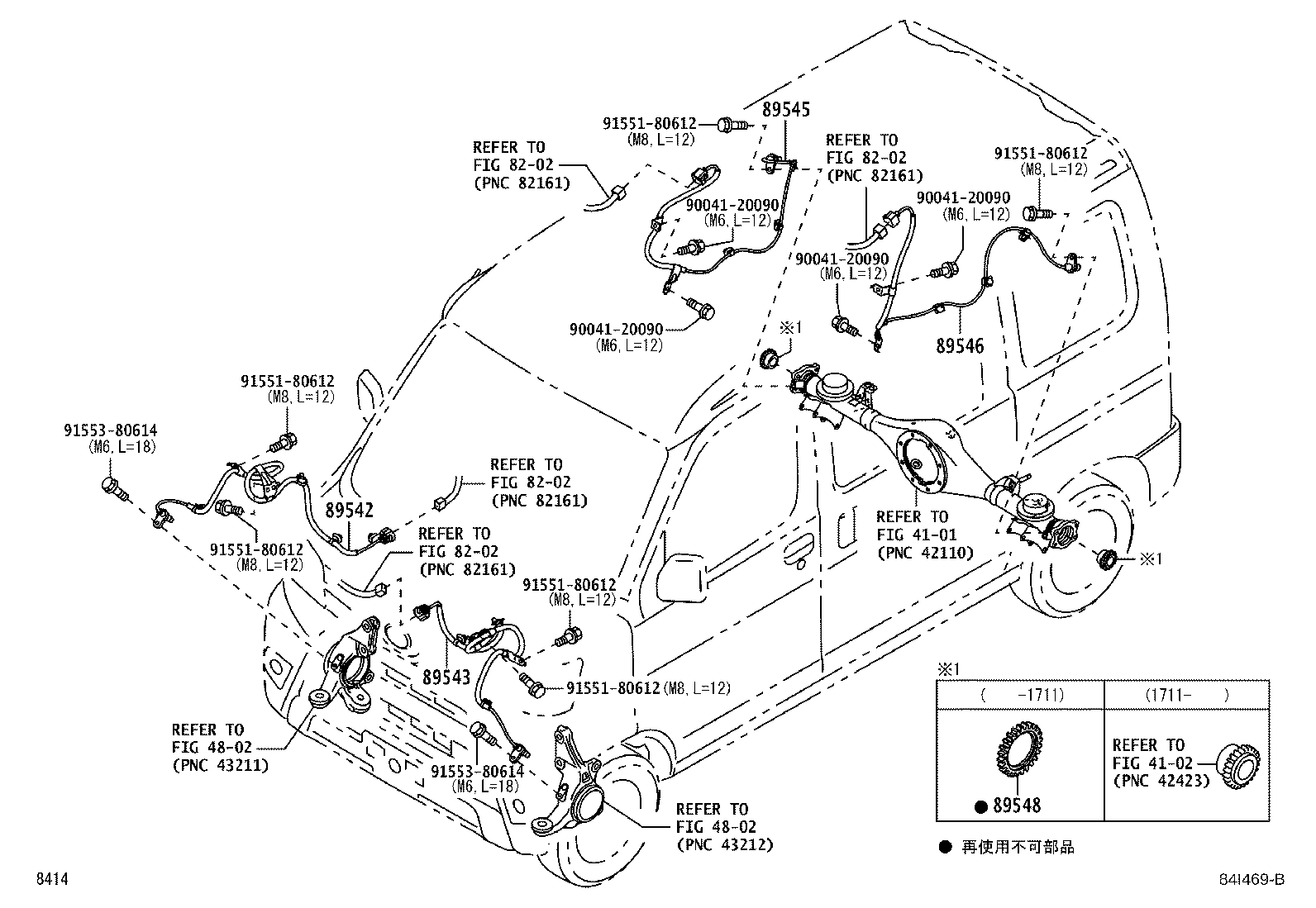

Figure 84R3HV 84R3HV 2011-12 → 2017-11 Figure 84I469B 84I469B 2017-11 → —

Part groups

PNCDescription
89411A Ring, O (FOR SPEED SENSOR)
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89548 Rotor, Skid Control Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
