Factory parts data · Europe

Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

6 part groups · 2 illustrations

Illustrations

Figure 849072I

849072I 2011-12 → 2017-11

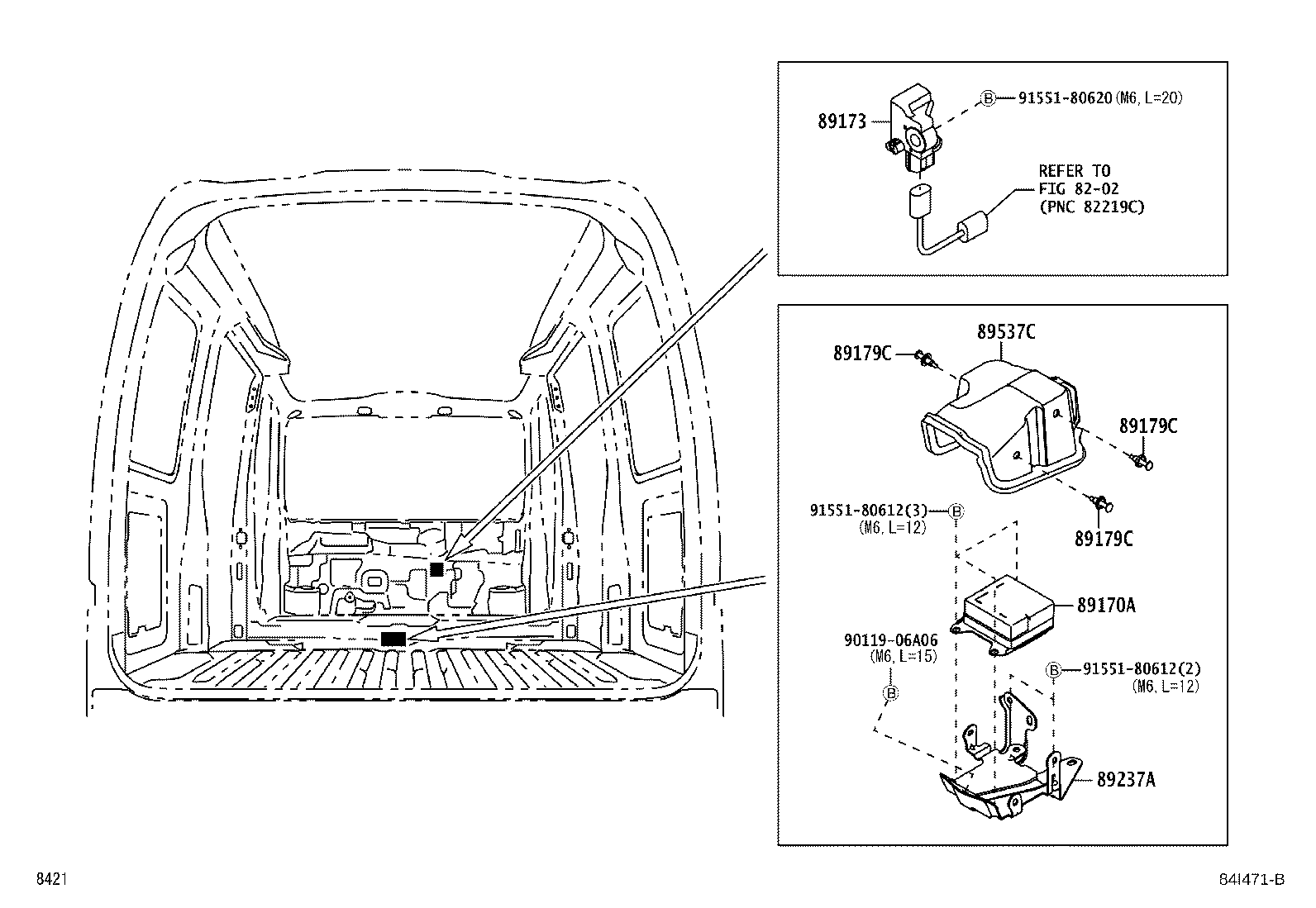

Figure 84I471B

84I471B 2017-11 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173	Sensor, Airbag, Front
89179A	Cover, Airbag Sensor
89179C	Clip
89237A	Bracket, Computer Unit
89537C	Cover, Computer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
