Toyota Pixis Van
2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan
Supported model
Data version 2020-09

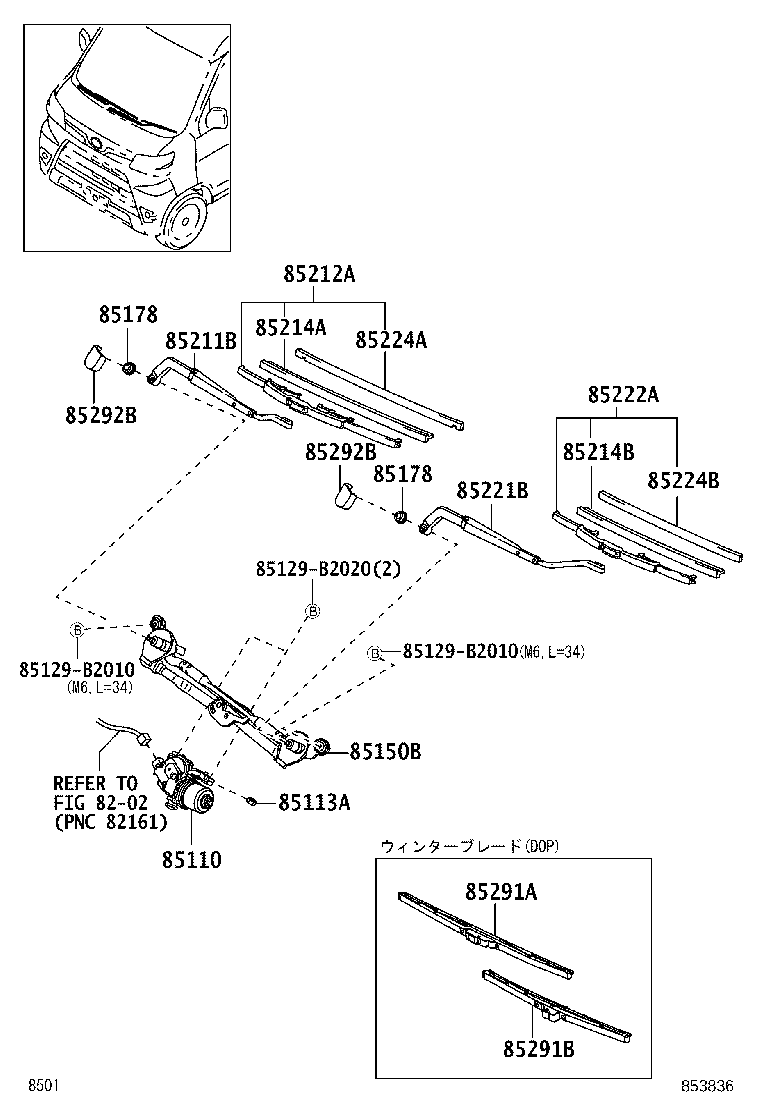

Windshield Wiper
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85113A | Nut, FR Wiper |
| 85150B | Link Assy, Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85224A | Plate, Wiper Rubber Backing, NO.1 |
| 85224B | Plate, Wiper Rubber Backing, NO.2 |
| 85291A | Blade, Front Wiper, Winter, RH |
| 85291B | Blade, Front Wiper, Winter, LH |
| 85292B | Cap, Front Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
