Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

17 part groups · 2 illustrations

Illustrations

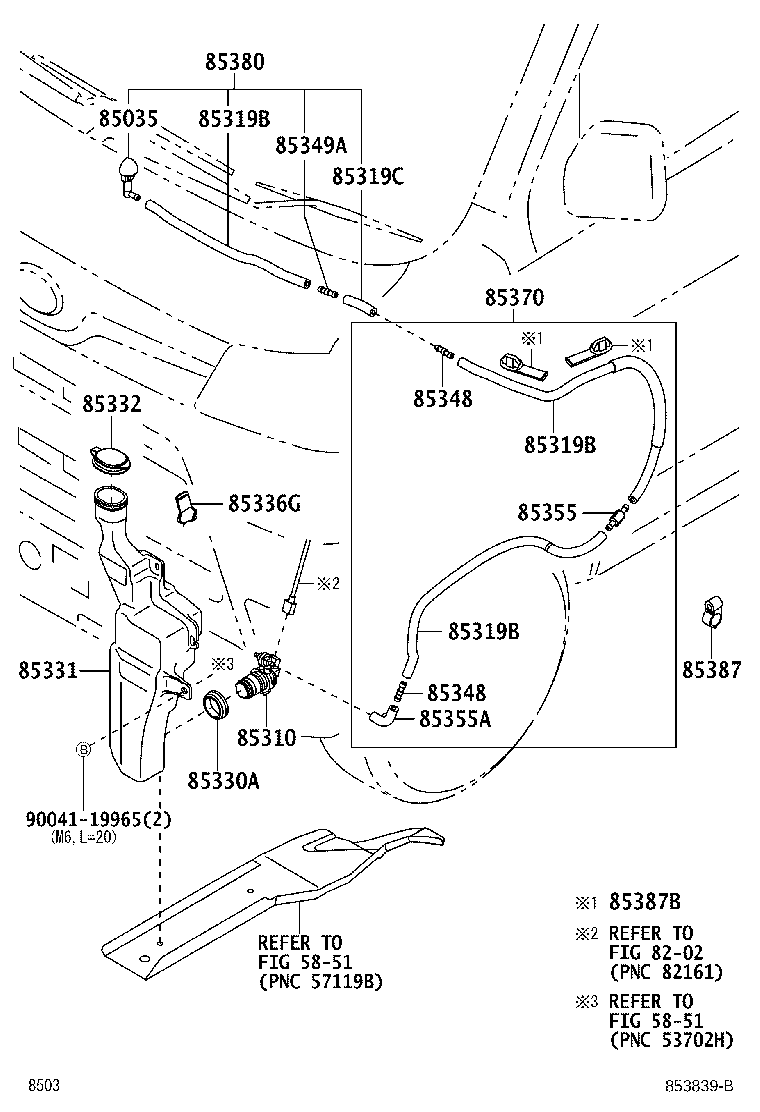

Figure 853572G 853572G 2011-12 → 2017-11 Figure 853839B 853839B 2017-11 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319B Hose, Window Washer
85319C Hose, Washer
85330A Bush, Windshield Washer Jar
85331 Jar Sub-assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85336G Gage, Water Level
85348 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85355 Valve, Windshield Washer Hose
85355A Joint, Windshield Washer Elbow
85370 Hose Assy, Windshield Washer
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85380 Nozzle & Hose Assy, FR Washer
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
85387B Clamp, Washer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
