Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

4 part groups · 2 illustrations

Illustrations

Figure 864714C

864714C 2011-12 → 2017-11

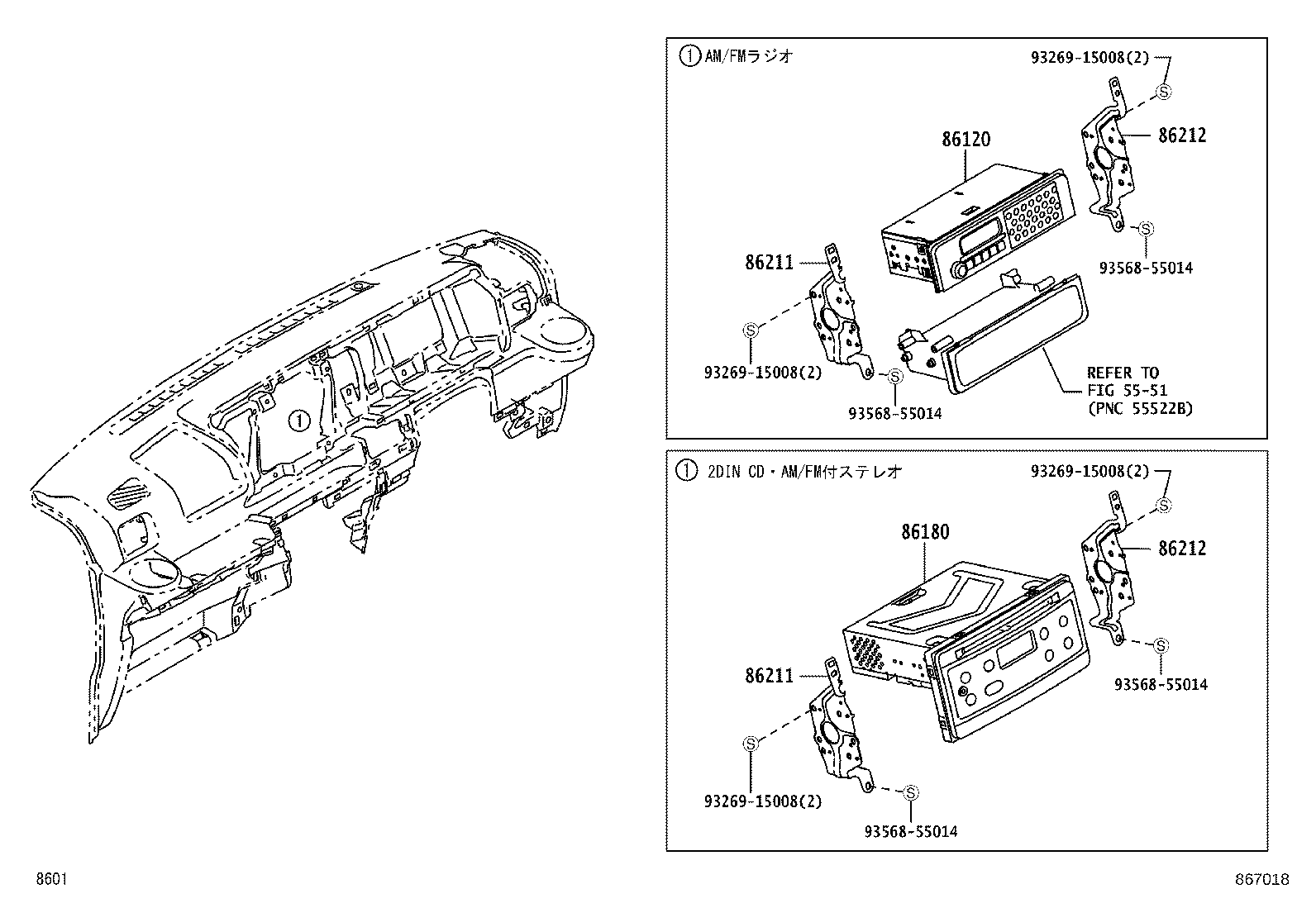

867018 2017-11 → —

Part groups

PNC	Description
86120	Receiver Assy, Radio
86180	Tuner Assy, Stereo Component
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
