Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

11 part groups · 2 illustrations

Illustrations

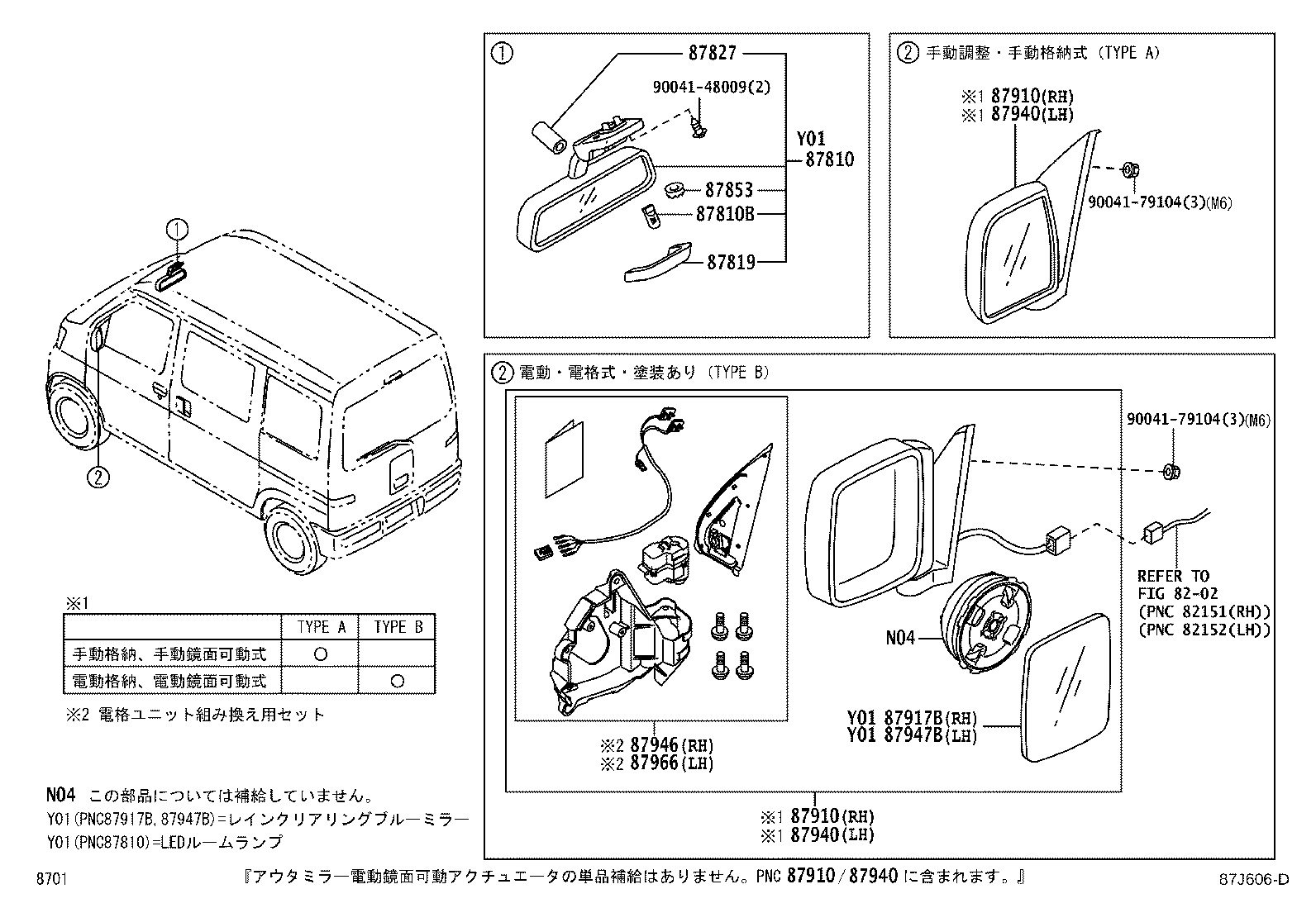

Figure 87C498Q 87C498Q 2011-12 → 2017-11 Figure 87J606D 87J606D 2017-11 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87819 Lens, Inner RR View Mirror Room Lamp
87827 Absorber, Inner Rear View Mirror
87853 Base, Inner Rear View Mirror
87910 Mirror Assy, Outer Rear View, RH
87917B Mirror, Outer Rear View, RH
87940 Mirror Assy, Outer Rear View, LH
87946 Retractor, Outer Mirror, RH
87947B Mirror, Outer Rear View, LH
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
