Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

35 part groups · 5 illustrations

Illustrations

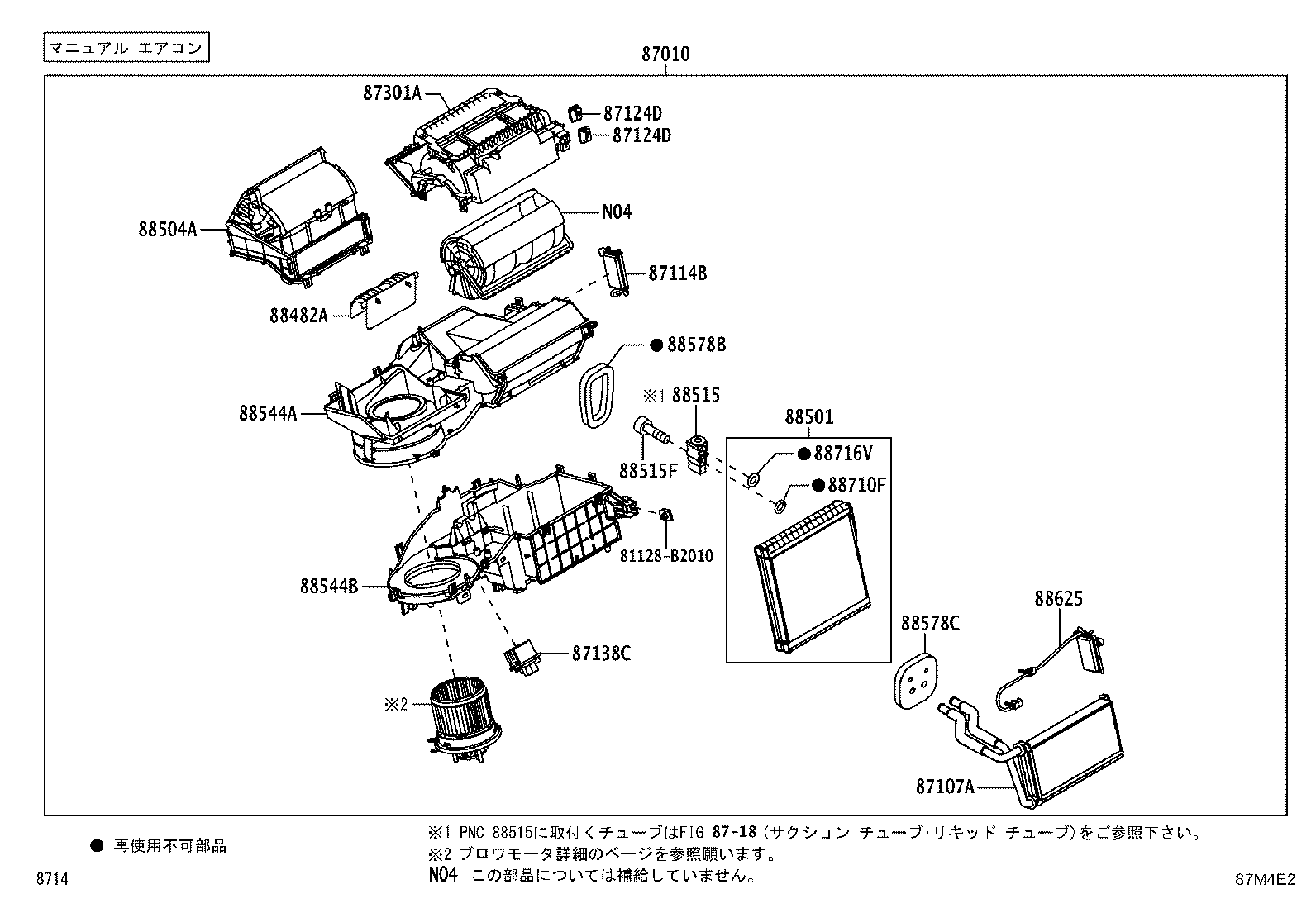

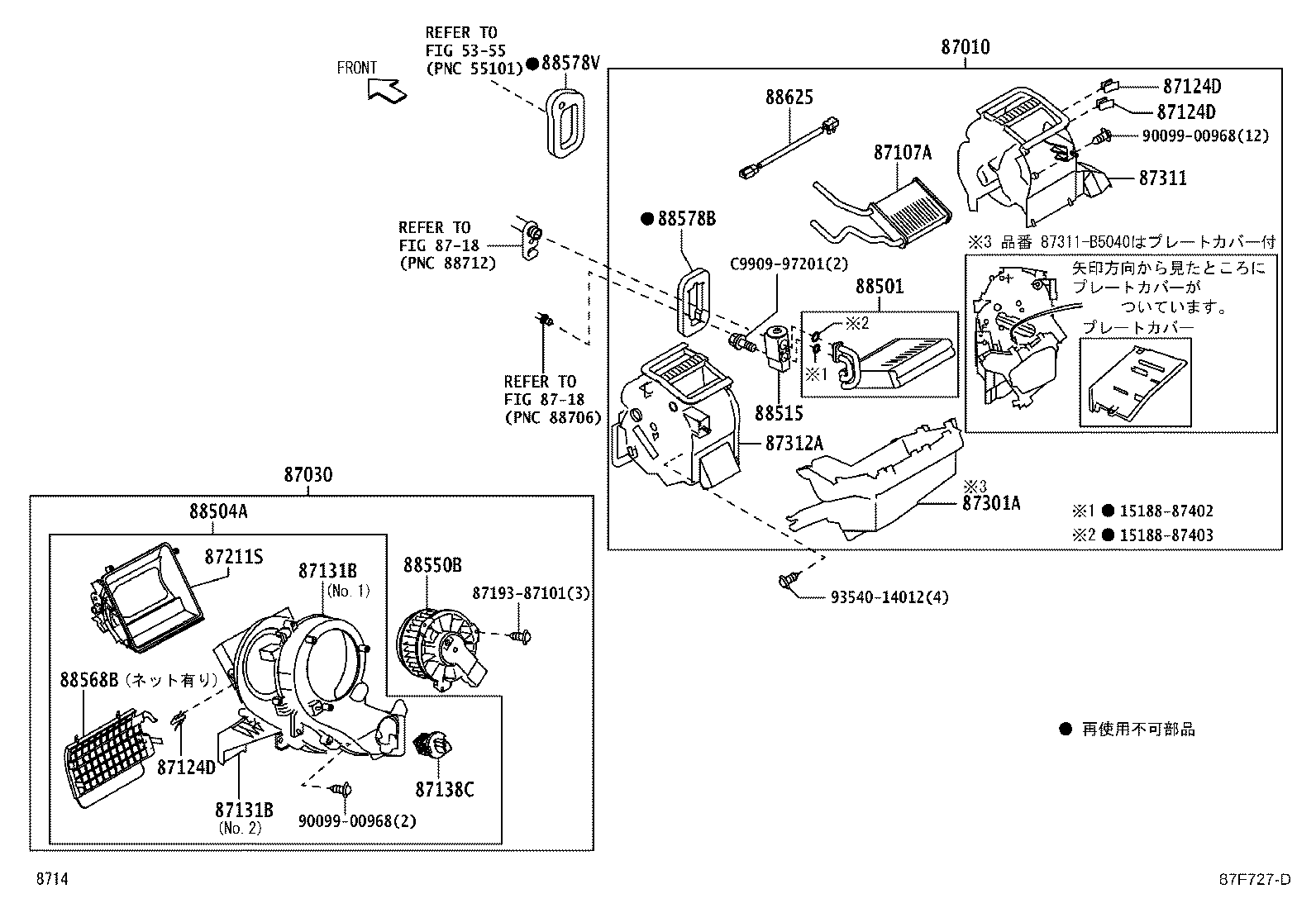

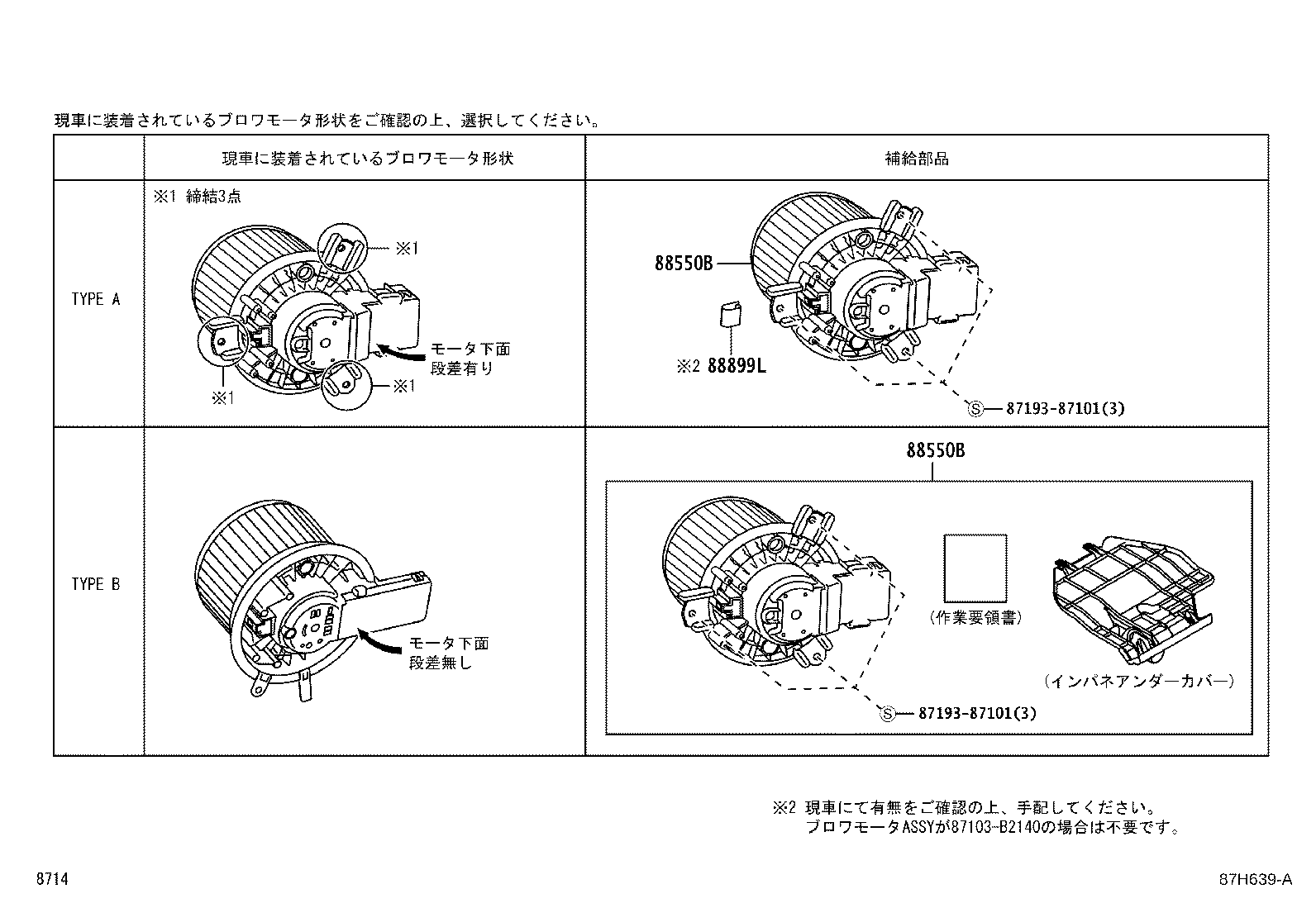

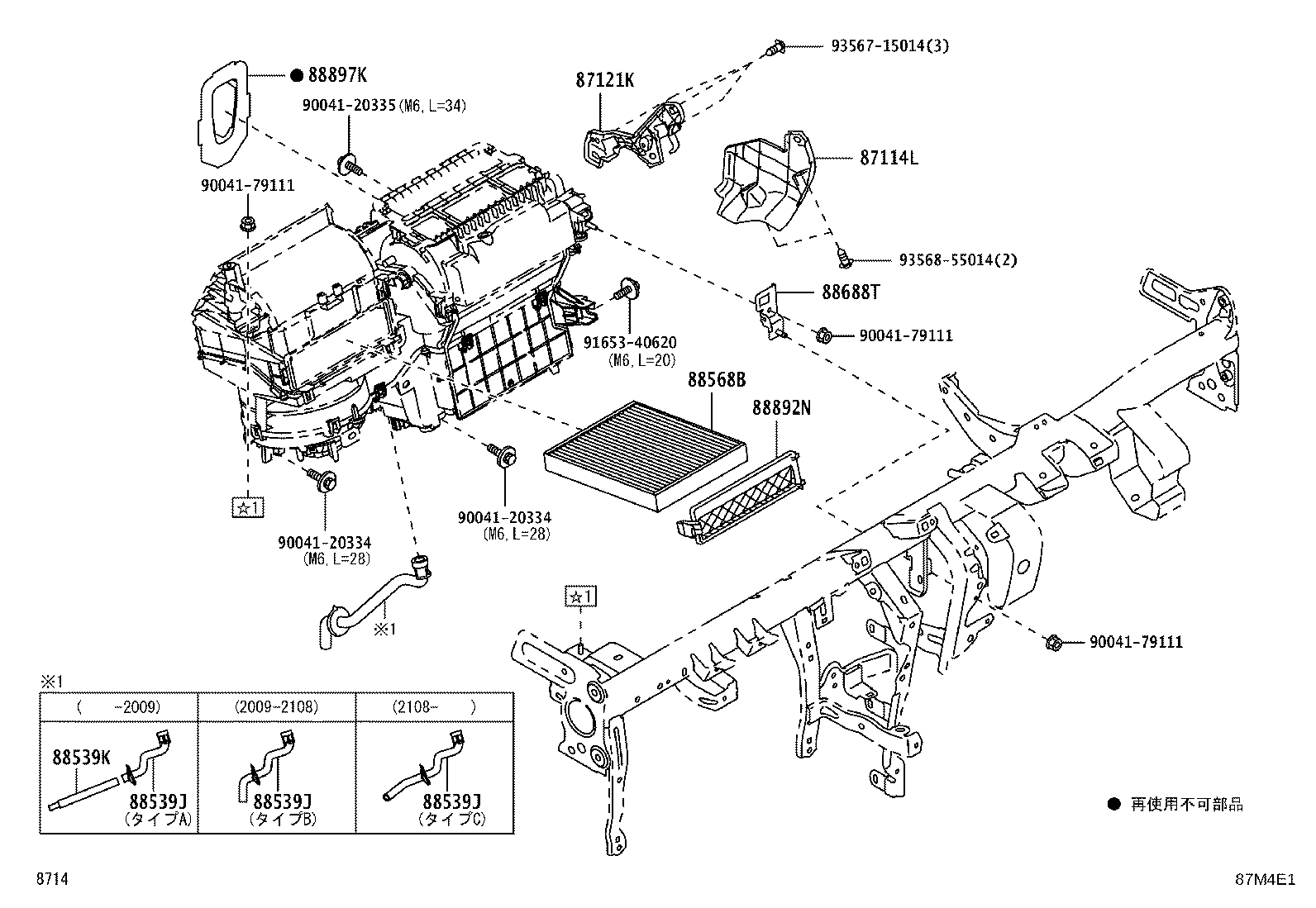

Figure 87F726B 87F726B 2011-12 → 2017-11 Figure 87F727D 87F727D 2011-12 → 2017-11 Figure 87M4E1 87M4E1 2017-11 → — Figure 87M4E2 87M4E2 2017-11 → — Figure 87H639A 87H639A 2017-11 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87030 Blower Assy, Air Conditioner
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87114L Cover, Heater, NO.2
87121K Bracket, Heater
87124D Clamp, Heater, NO.3
87131B Case, Heater Blower
87138C Resistor, Blower
87211S Duct, Air
87301A Case Sub-assy, Heater
87311 Case, Heater, NO.1
87312A Case, Heater,NO.2
88482A Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88504A Case Sub-assy, Blower
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88544A Case, Cooler Blower, Upper
88544B Case, Cooler Blower, Lower
88550B Motor Assy, Blower
88568B Filter, Air
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88625 Thermistor, Cooler, NO.1
88688T Bracket (FOR COOL BOX)
88710F Ring, O
88716V Ring, O(FOR COOLER UNIT)
88892N Cover, Cooler, NO.2
88897K Grommet, (FOR COOLER PIPE)
88897L Grommet (FOR DRAIN HOSE)
88899L Parts, Cooling Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
