Toyota Pixis Van

2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 6 illustrations

Illustrations

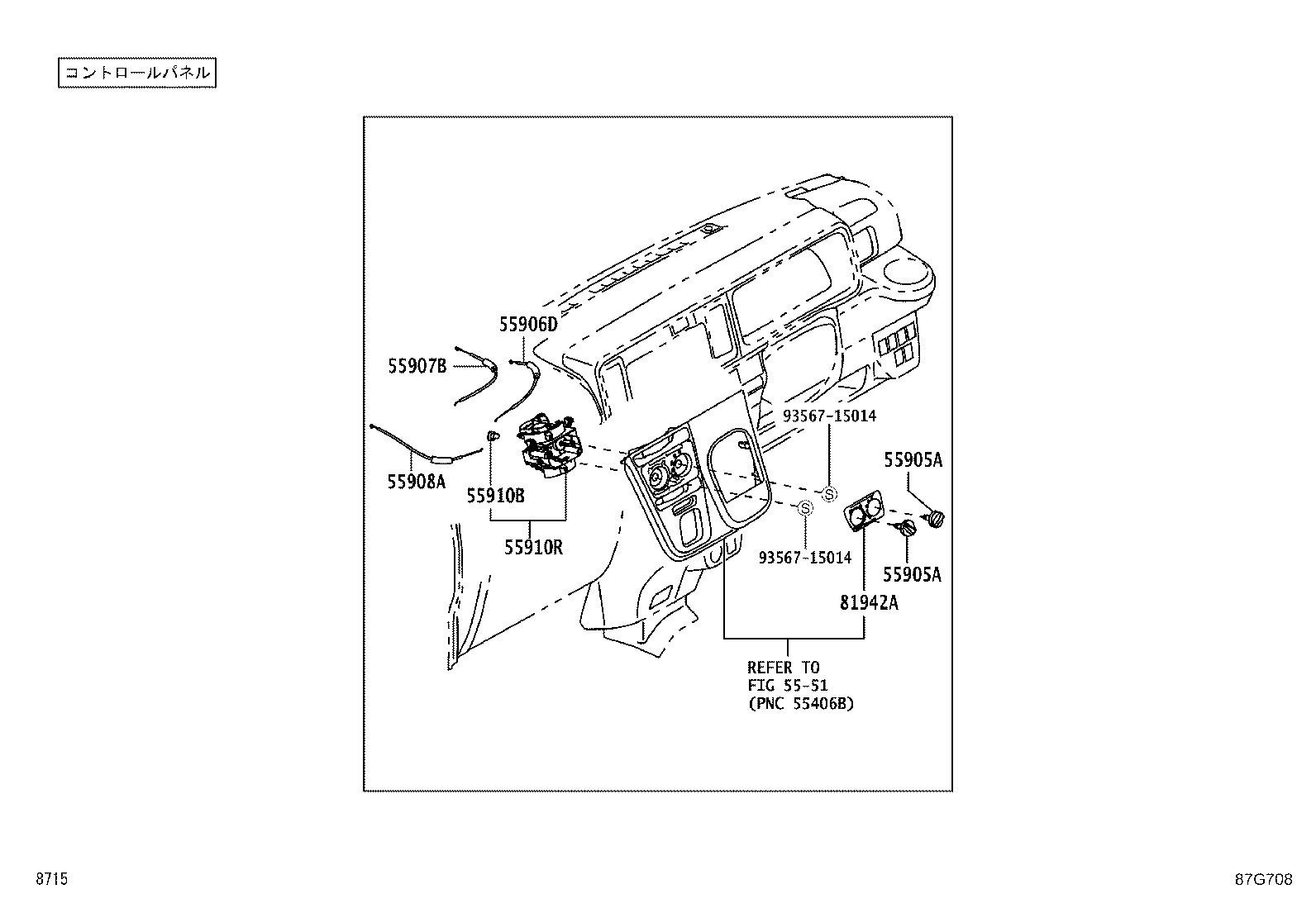

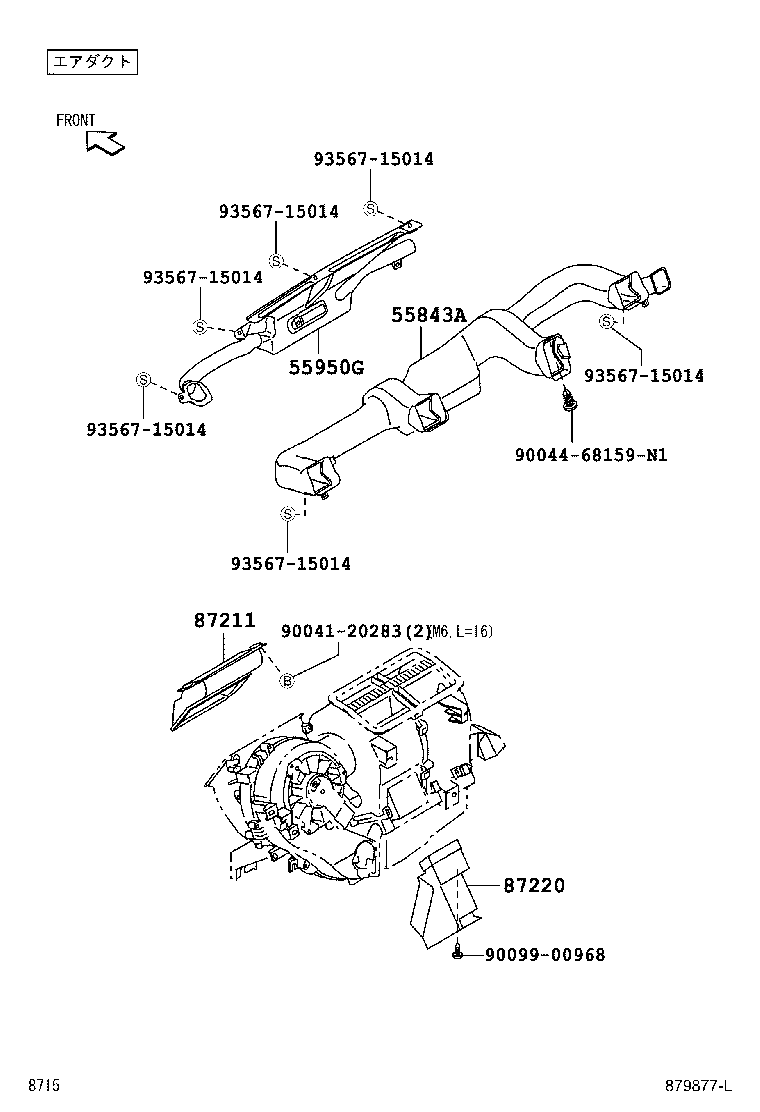

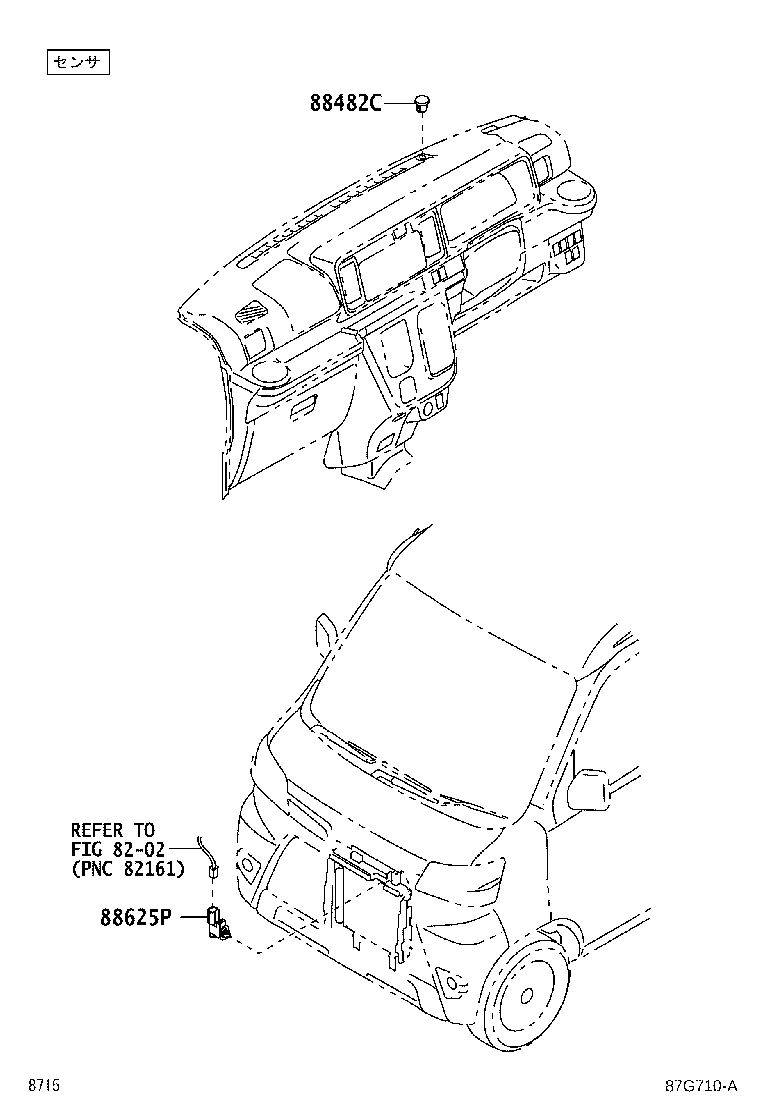

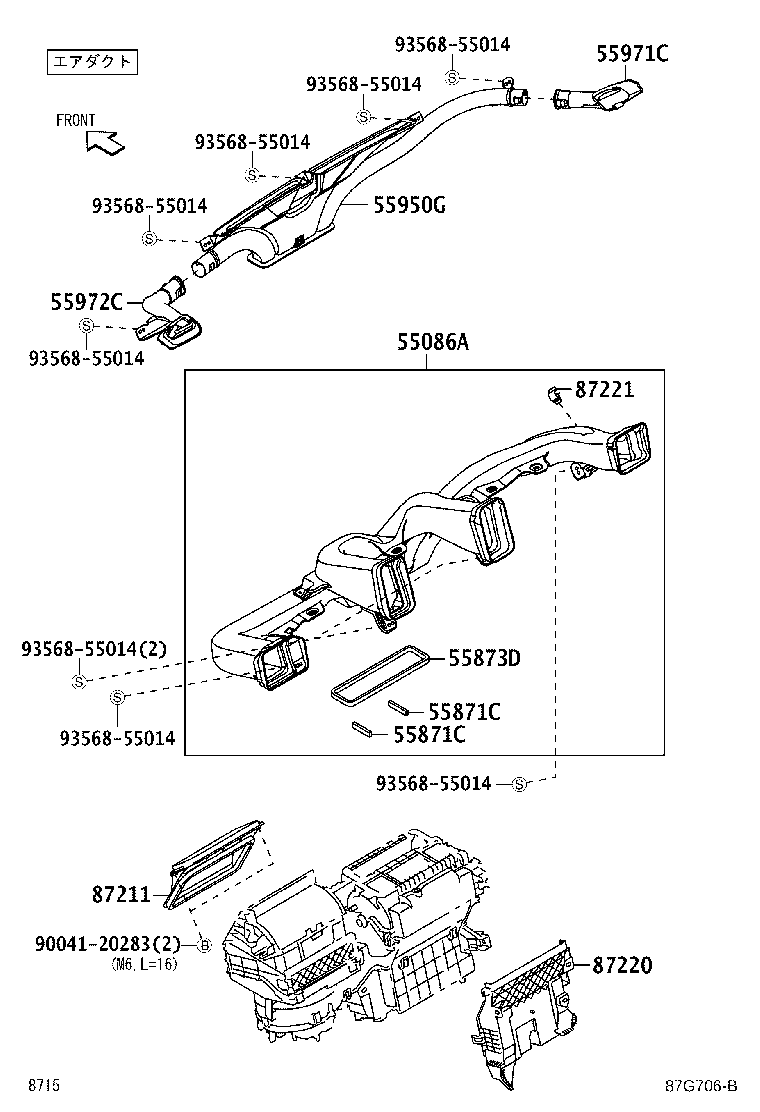

Figure 87G431 87G431 2011-12 → 2017-11 Figure 879877L 879877L 2011-12 → 2017-11 Figure 87E918C 87E918C 2015-04 → 2017-11 Figure 87G708 87G708 2017-11 → — Figure 87G706B 87G706B 2017-11 → — Figure 87G710A 87G710A 2017-11 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55871C Seal, Air Duct
55873D Seal, Air Duct, Center
55905A Knob, Heater Control
55906D Cable Sub-assy, Heater Control, NO.2
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55937 Knob, Heater Control Lever
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
81942A Sheet, Heater Control Name, NO.1
84660H Switch Assy, Cooler Control
87211 Duct, Air, NO.1
87220 Duct Assy, Air
87221 Clamp, Heater Air Duct
88482C Cap, Cooler
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
