Toyota Pixis Van
2011-12 → present · chassis S321M,S331M · catalogue 894110 · Japan
Supported model
Data version 2020-09

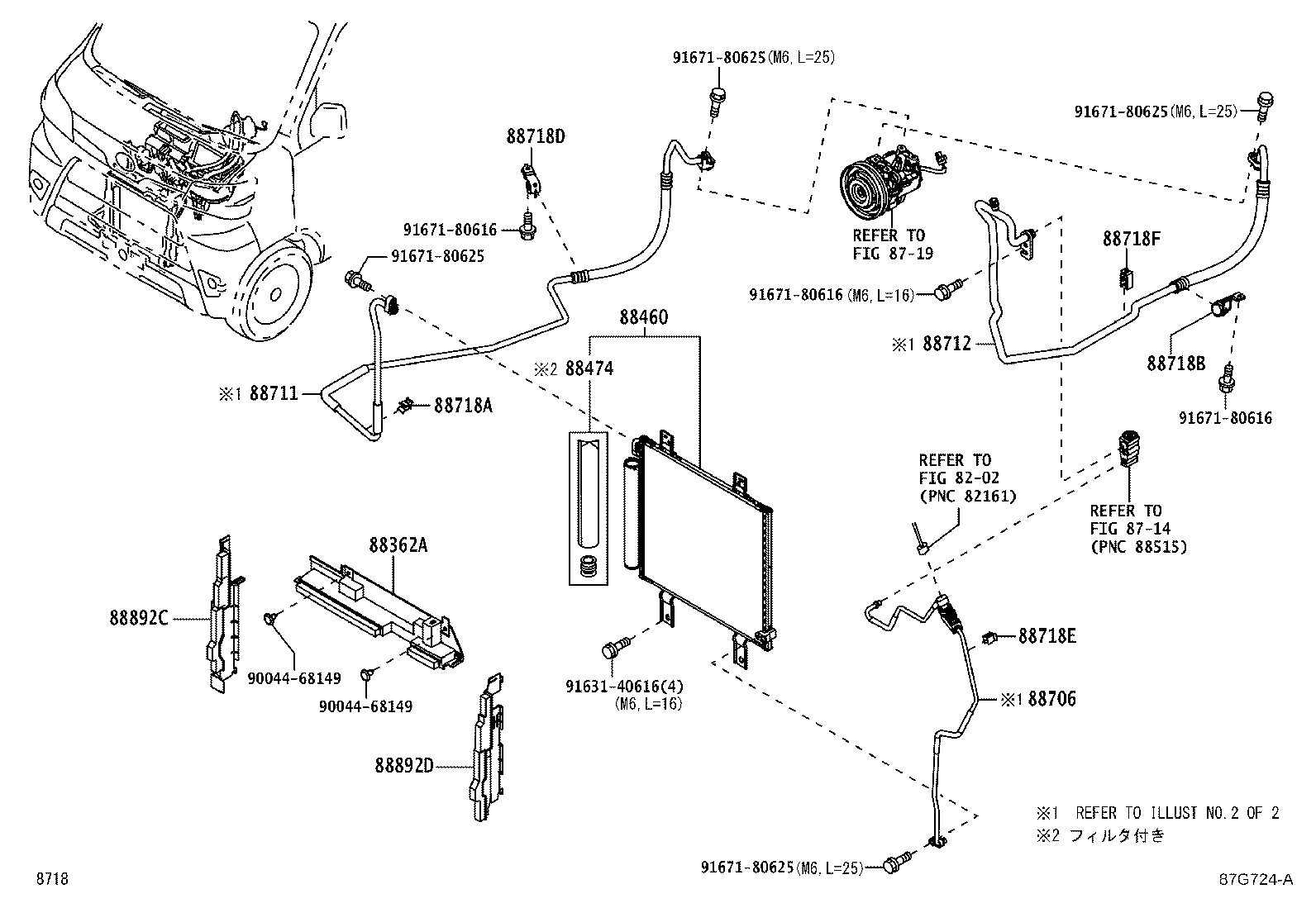

Heating & Air Conditioning - Cooler Piping
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88362A | Plate,Seal |
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88645H | Switch, Pressure NO.1 |
| 88706 | Pipe Sub-assy, Liquid |
| 88706G | Ring, O(FOR LIQUID TUBE) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711B | Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712A | Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE) |
| 88716U | Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE) |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718B | Clamp, NO.2(FOR COOLER REFRIGERANT PIPE) |
| 88718D | Clamp, NO.4(FOR COOLER REFRIGERANT PIPE) |
| 88718E | Clamp, NO.5(FOR COOLER REFRIGERANT PIPE) |
| 88718F | Clamp, NO.1(FOR COOLER REFRIGERANT HOSE) |
| 88719A | Sensor, Air Conditioner Pressure |
| 88892C | Plate, Condenser, NO.1 |
| 88892D | Plate, Condenser, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
