Toyota Pixis Van
2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan
Supported model
Data version 2024-11
Mounting

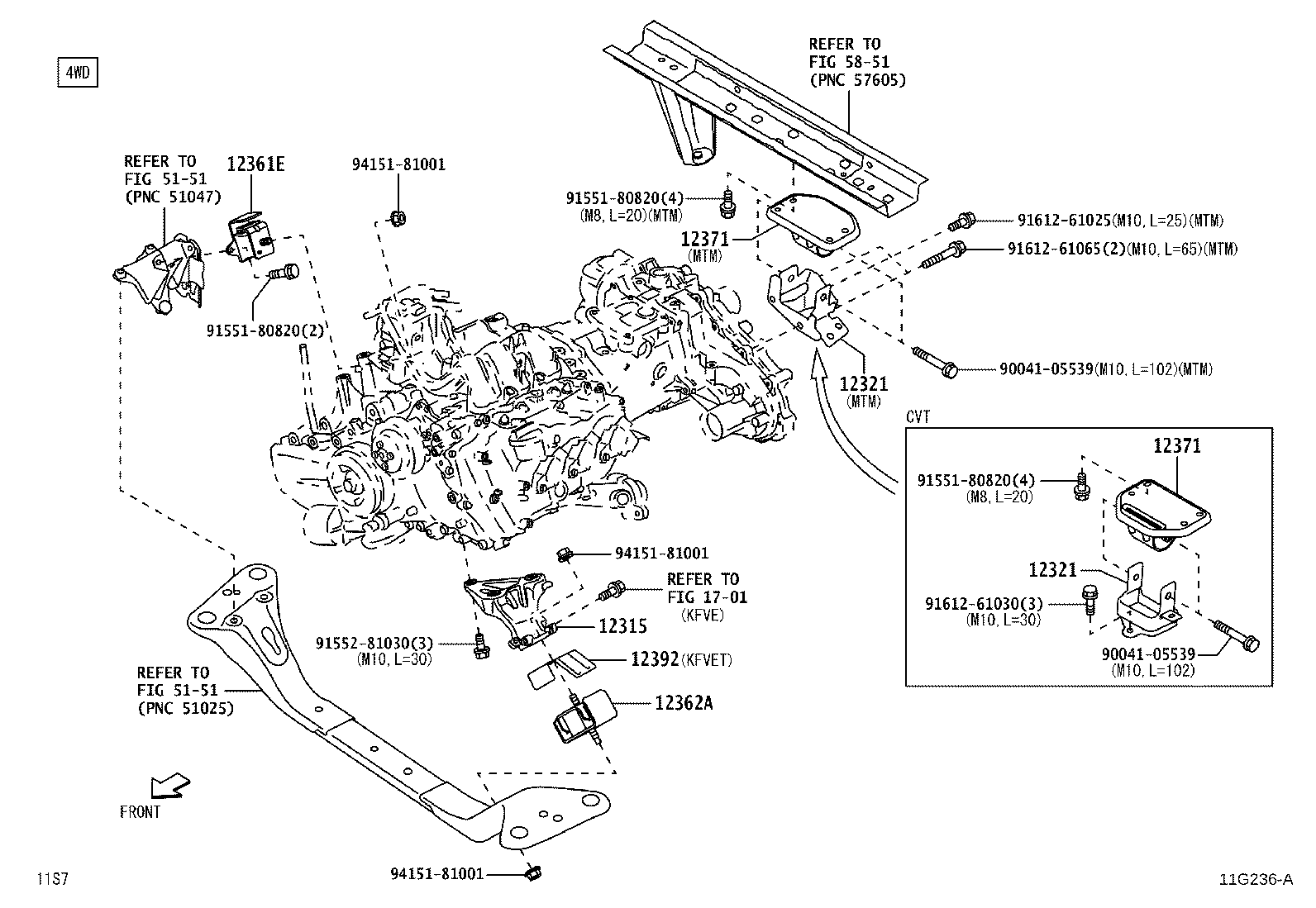

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12321 | Bracket, Engine Mounting, Rear, NO.1 |
| 12361E | Insulator, Engine Mounting, Front RH |
| 12362A | Insulator, Engine Mounting, Front LH |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12392 | Insulator, Engine Mounting Heat, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
