Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

36 part groups · 3 illustrations

Illustrations

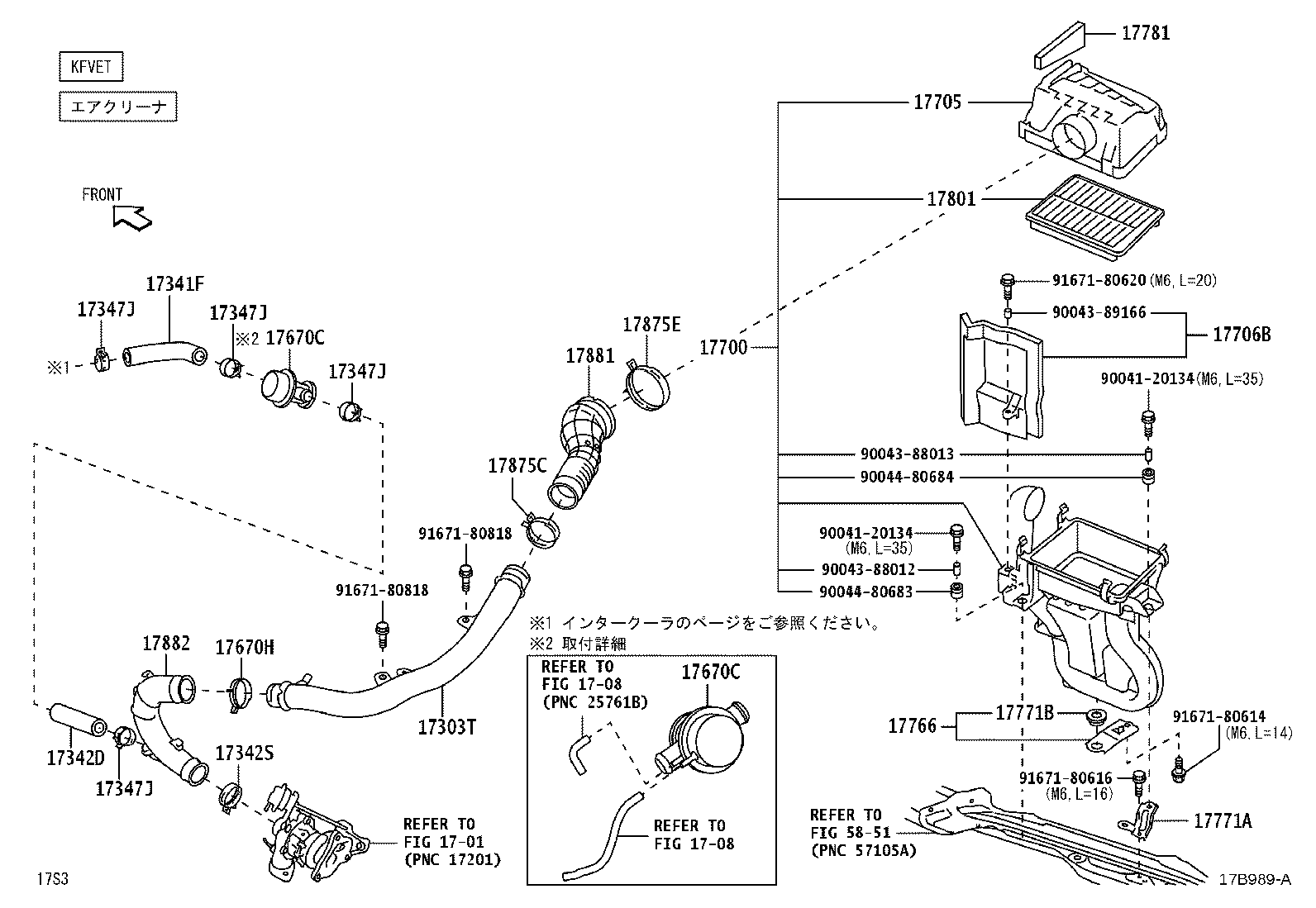

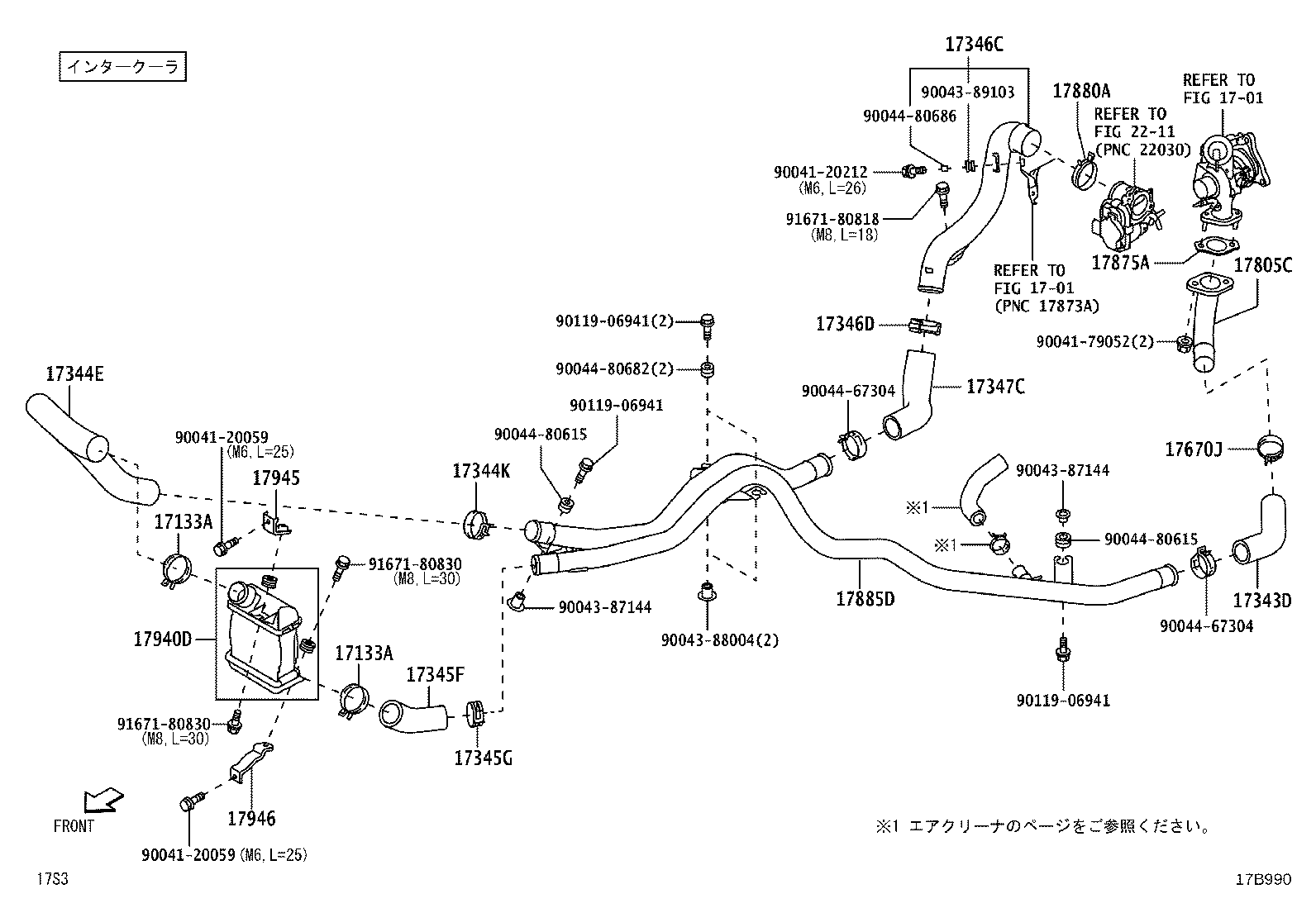

Figure 17B988A 17B988A 2021-12 → — Figure 17B989A 17B989A 2021-12 → — Figure 17B990 17B990 2021-12 → —

Part groups

PNCDescription
17133A Clip(FOR INTER COOLER HOSE)
17303T Pipe Sub-assy, Air
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342S Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17344K Clip(FOR AIR HOSE, NO.4)
17345F Hose, Air, NO.5
17345G Clamp OR Clip(FOR AIR HOSE, NO.5)
17346C Hose, NO.6
17346D Clamp OR Clip(FOR AIR HOSE NO.6)
17347C Hose, Air, NO.7
17347J Clip, Air Hose
17670C Valve Assy, Air By-pass
17670H Clip(FOR AIR HOSE NO.2)
17670J Clip(FOR AIR HOSE NO.3)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17706B Retainer, Air Cleaner Inlet Pipe
17766 Stay, Air Cleaner, NO.2
17771A Bracket, Air Cleaner
17771B Grommet(FOR AIR CLEANER BRACKET)
17781 Seal, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17805C Pipe Sub-assy, Air Cleaner, NO.1
17875A Gasket, Intake Pipe
17875C Clip(FOR HOSE, NO.1)
17875E Clip(FOR HOSE, NO.2)
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17882 Hose, Air Cleaner, NO.2
17885D Pipe, Air Cleaner, NO.2
17940D Intercooler Assy
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
