Toyota Pixis Van
2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan
Supported model
Data version 2024-11

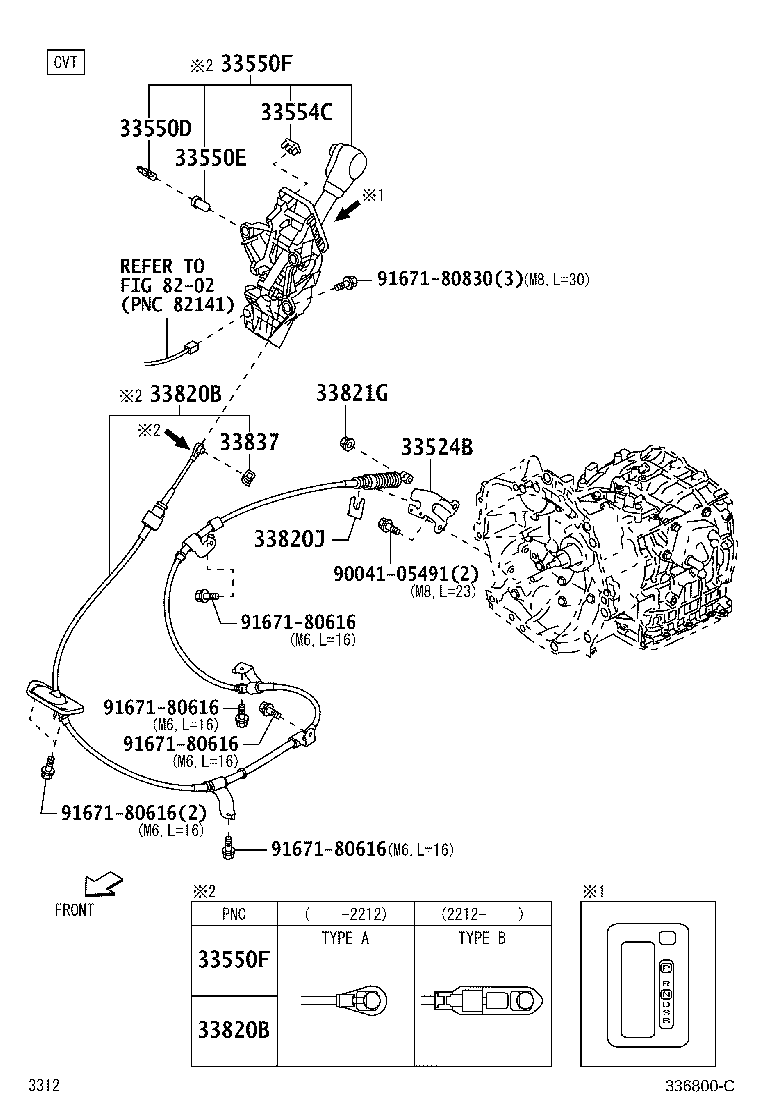

Shift Lever & Retainer
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33521Q | Housing, Shift Lever (FOR FLOOR SHIFT) |
| 33523B | Pin, Shift Lever (FOR FLOOR SHIFT) |
| 33524B | Bracket, Control Cable |
| 33527 | Lever, Control Shift (FOR FLOOR SHIFT) |
| 33530C | Bush (FOR SHIFT LEVER) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33550F | Shift Assy, Transmission Instrument Panel |
| 33554C | Cover, Shift Lock Release Button |
| 33752F | Support, Control Link (FOR FLOOR SHIFT) |
| 33820B | Cable Assy, Transmission Control |
| 33820J | Clip(FOR TRANSMISSION CONTROL CABLE) |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33837 | Clip, Transmission Control Cable Adjust |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
