Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(CVT)

28 part groups · 7 illustrations

Illustrations

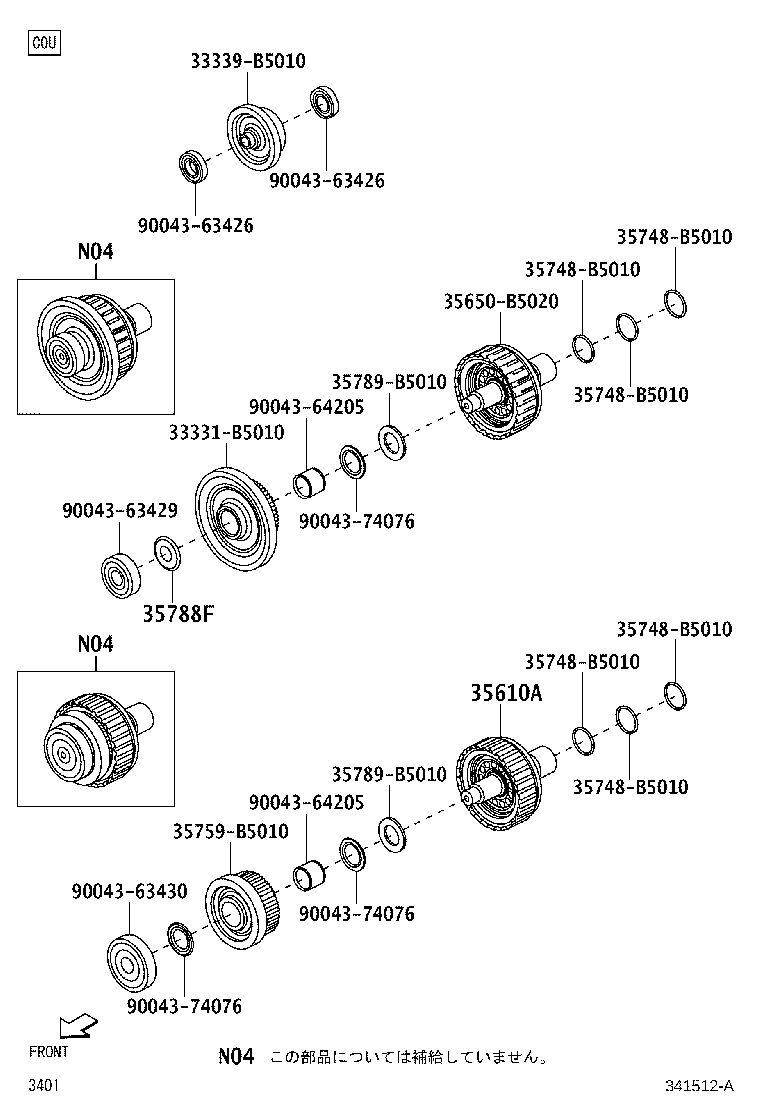

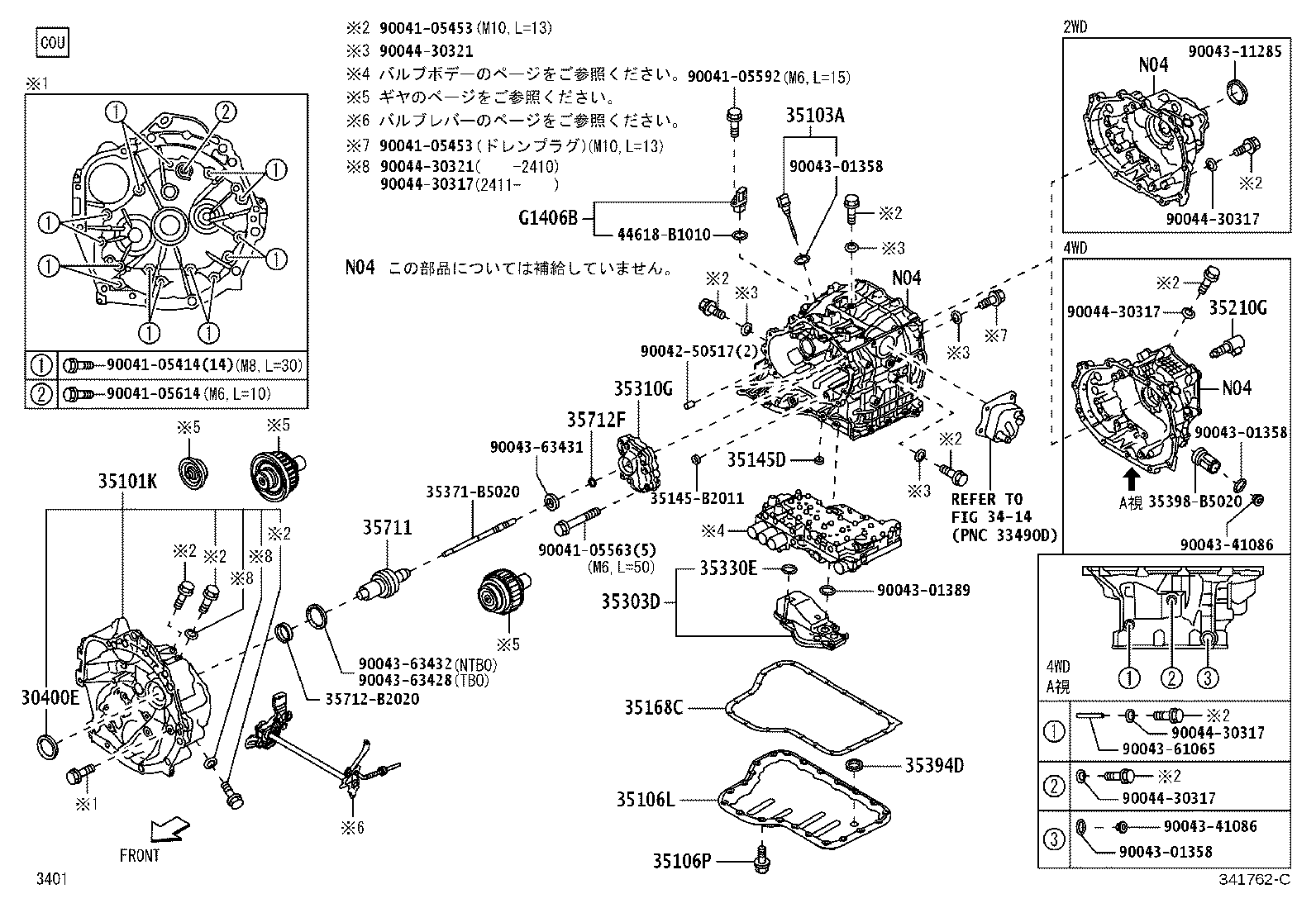

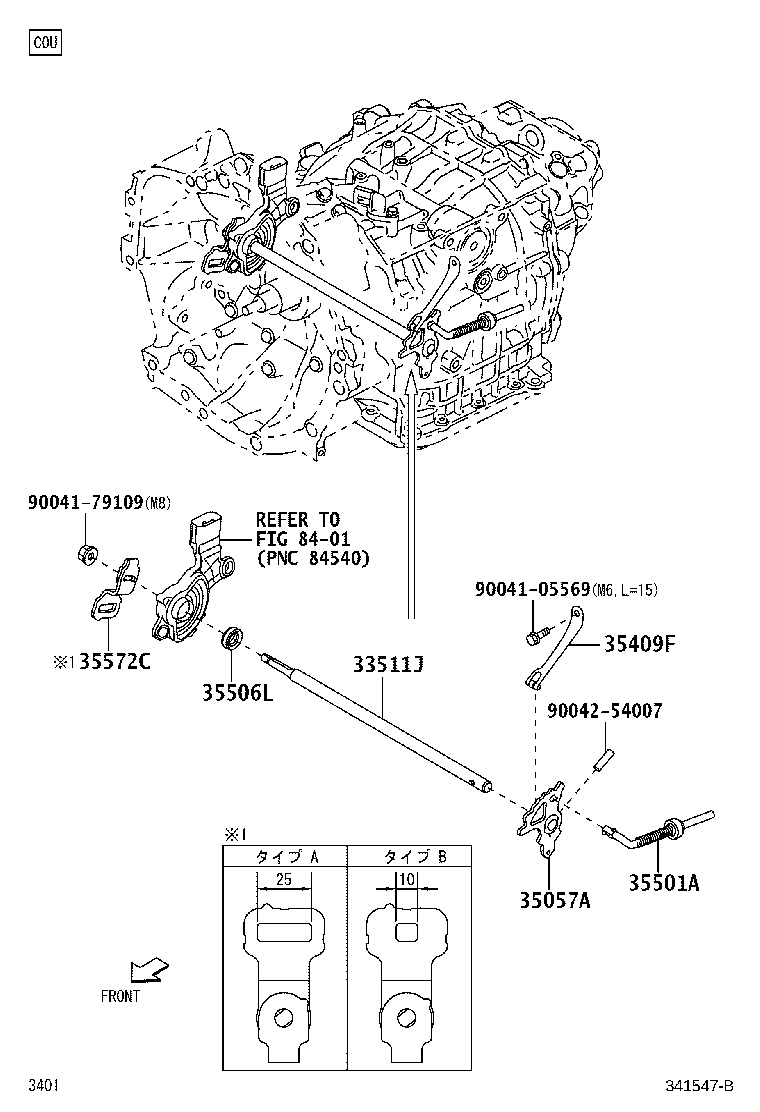

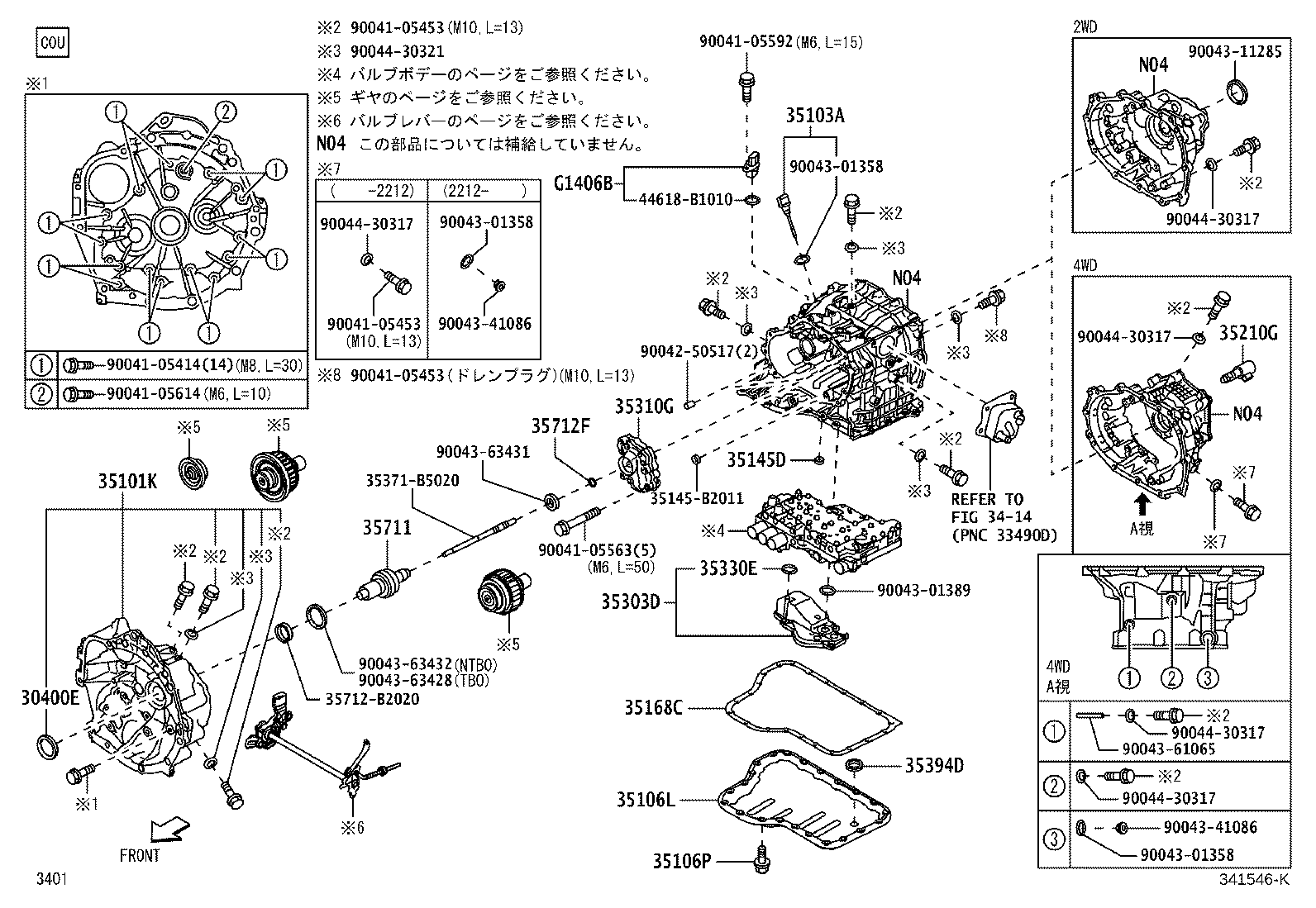

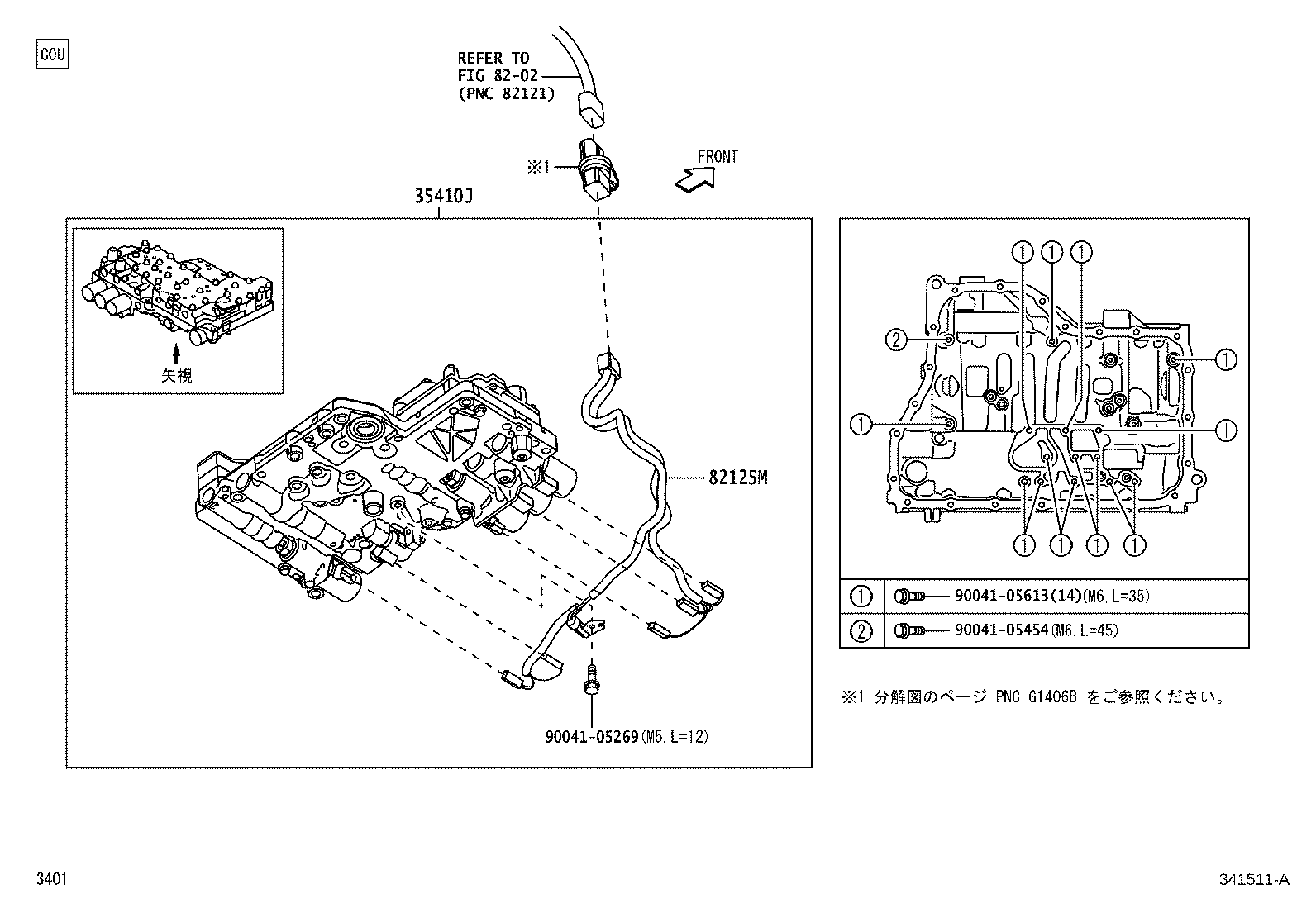

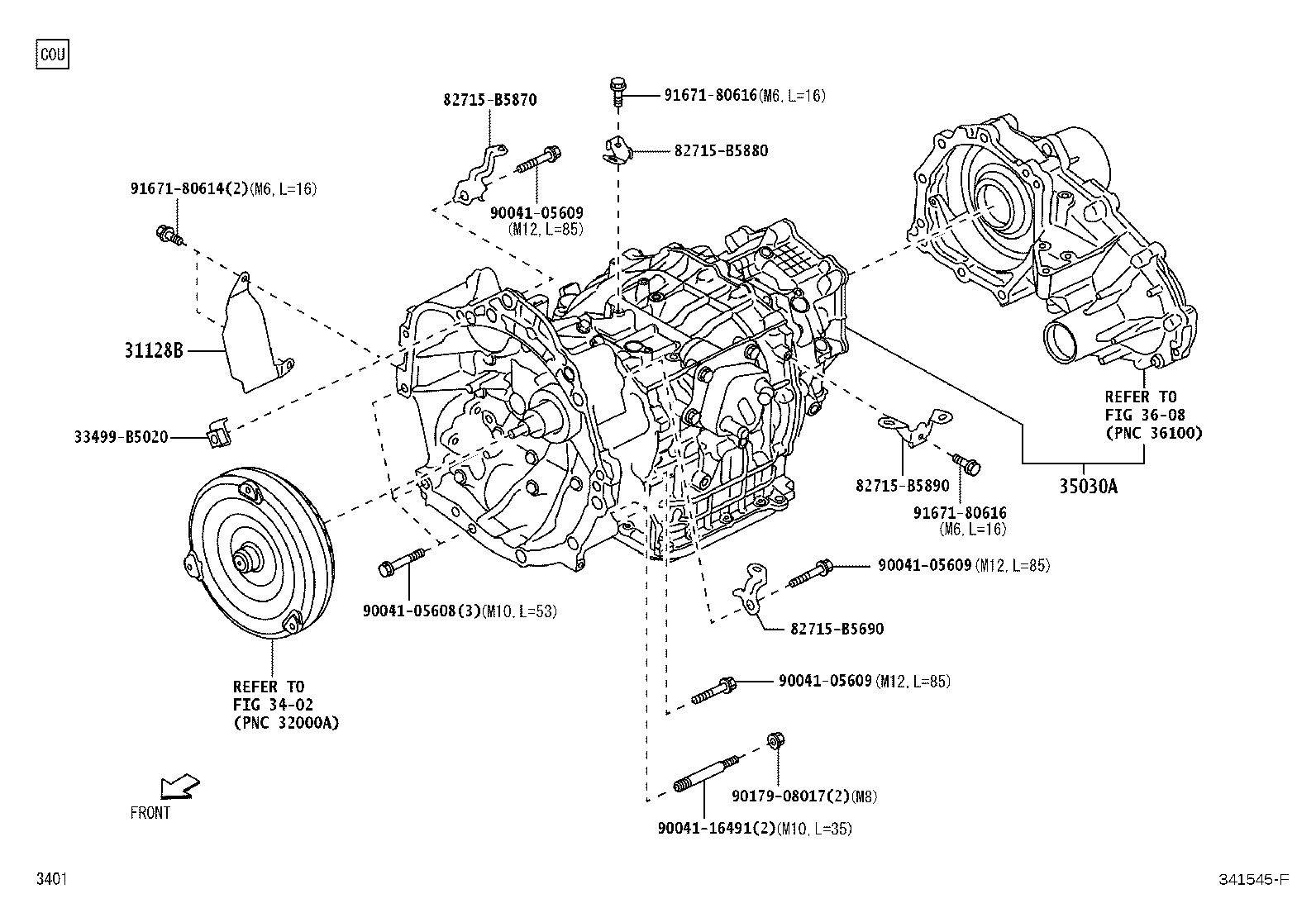

Figure 341544E 341544E 2021-12 → — Figure 341545F 341545F 2021-12 → — Figure 341546K 341546K 2021-12 → 2023-06 Figure 341762C 341762C 2023-06 → — Figure 341511A 341511A 2021-12 → — Figure 341512A 341512A 2021-12 → — Figure 341547B 341547B 2021-12 → —

Part groups

PNCDescription
30400 Transaxle Assy, Continuously Variable
30400E Seal, Type T Oil(FOR CVT OIL PUMP)
31128B Cover, Clutch Housing Under
33511J Shaft, Control
35030A Transmission Assy, CV W/Transfer
35057A Lever Sub-assy,Parking Lock
35101K Case Sub-assy, Torque Converter
35103A Gage Sub-assy, Transmission Oil Level
35106L Pan Sub-assy, Transaxle Oil(CVT)
35106P Bolt(FOR TRANSAXLE OIL PAN)
35145D Gasket, Transaxle Case
35168C Gasket, Transaxle Oil Pan(CVT)
35210G Solenoid Assy, Clutch Control, NO.1 (SL1)
35303D Strainer Sub-assy, Oil
35310G Pump Assy, Front Oil
35330E Ring, O (FOR OIL STRAINER)
35394D Magnet, Oil Cleaner(CVT)
35409F Spring Sub-assy, Manual Detent
35410J Body Assy, Transmission Valve
35501A Rod Sub-assy, Parking Lock
35506L Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
35572C Lever, Transmission Control Shaft
35610A Clutch Assy, Forward Multiple Disc
35711 Shaft, Input
35712F Ring, Input Shaft Oil Seal
35788F Race, Thrust Bearing
82125M Wire, Transmission
G1406B Connector Sub-assy, Trans Solenoid
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
