Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

8 part groups · 2 illustrations

Illustrations

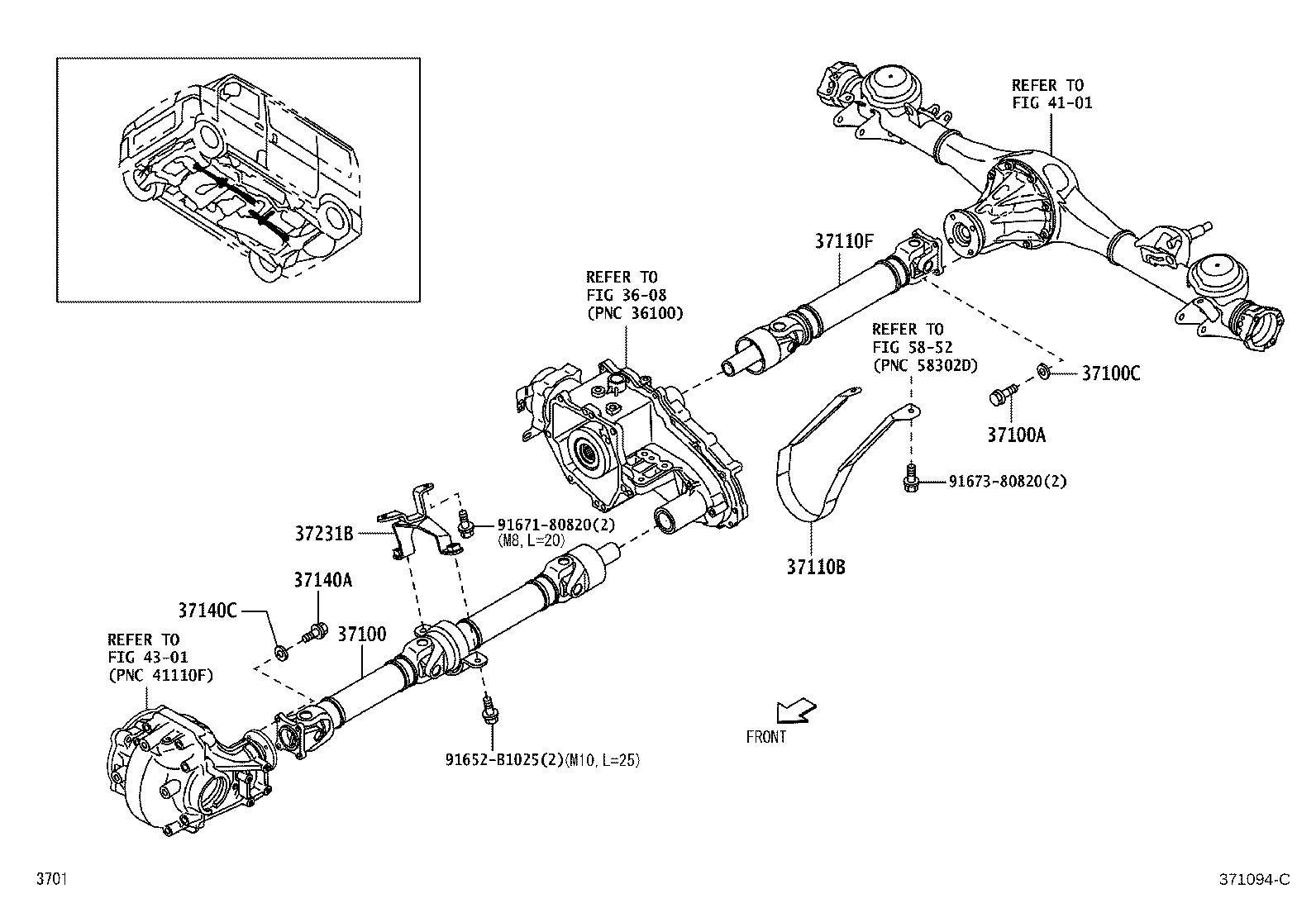

Figure 371093B 371093B 2021-12 → — Figure 371094C 371094C 2021-12 → —

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110B Guard, Propeller Shaft
37110F Shaft Assy, Propeller, Rear
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
37231B Housing, Center Support Bearing, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
