Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

13 part groups · 2 illustrations

Illustrations

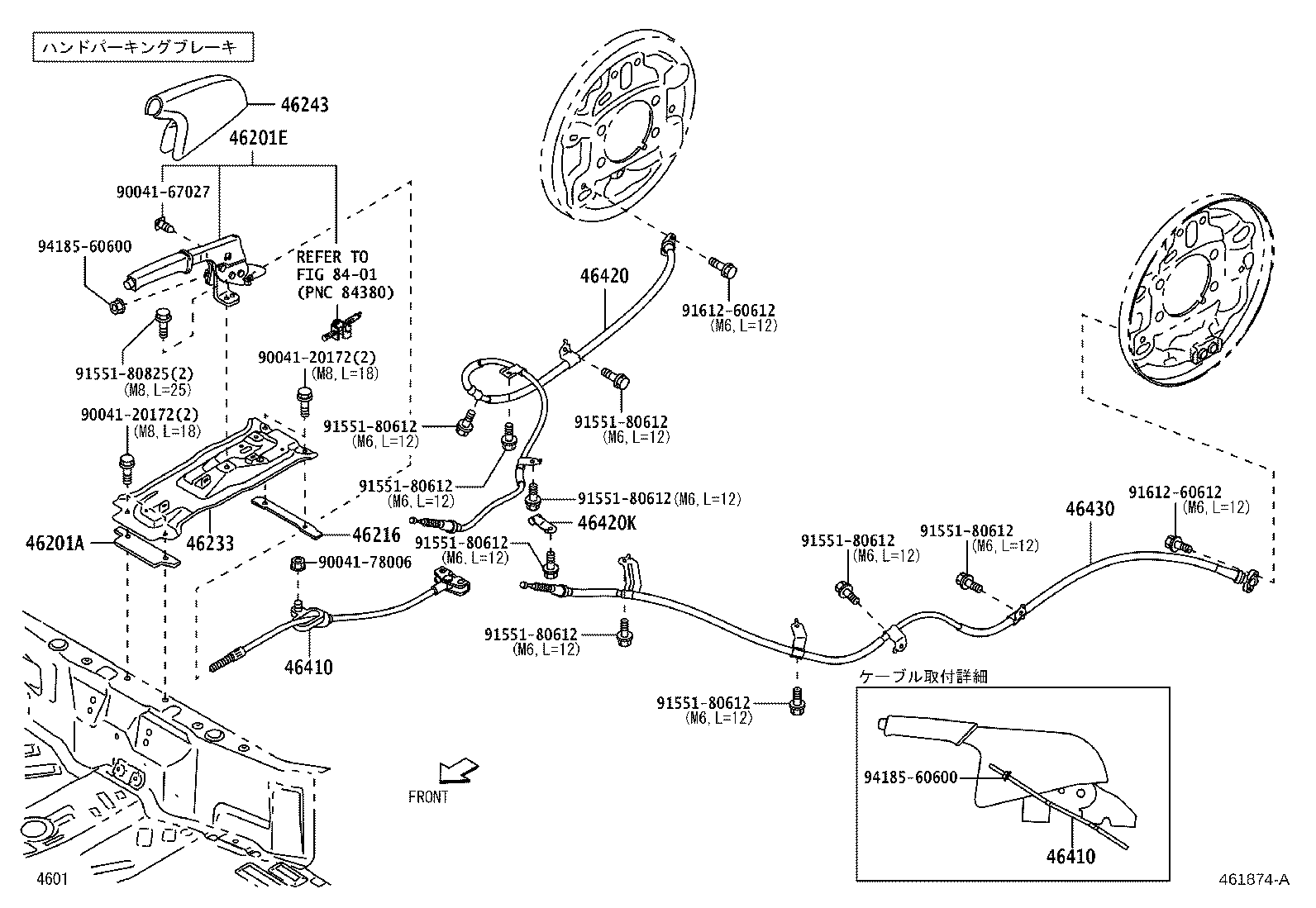

Figure 461873B 461873B 2021-12 → — Figure 461874A 461874A 2021-12 → —

Part groups

PNCDescription
46201 Pedal Sub-assy, Parking Brake
46201A Cushion(FOR PARKING BRAKE PEDAL)
46201E Lever Sub-assy, Parking Brake
46216 Cushion, Parking Pedal
46233 Support, Parking Brake Center
46243 Cover, Parking Brake Lever
46252 Pad, Parking Pedal
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46420M Clamp, NO.6(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
