Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

10 part groups · 2 illustrations

Illustrations

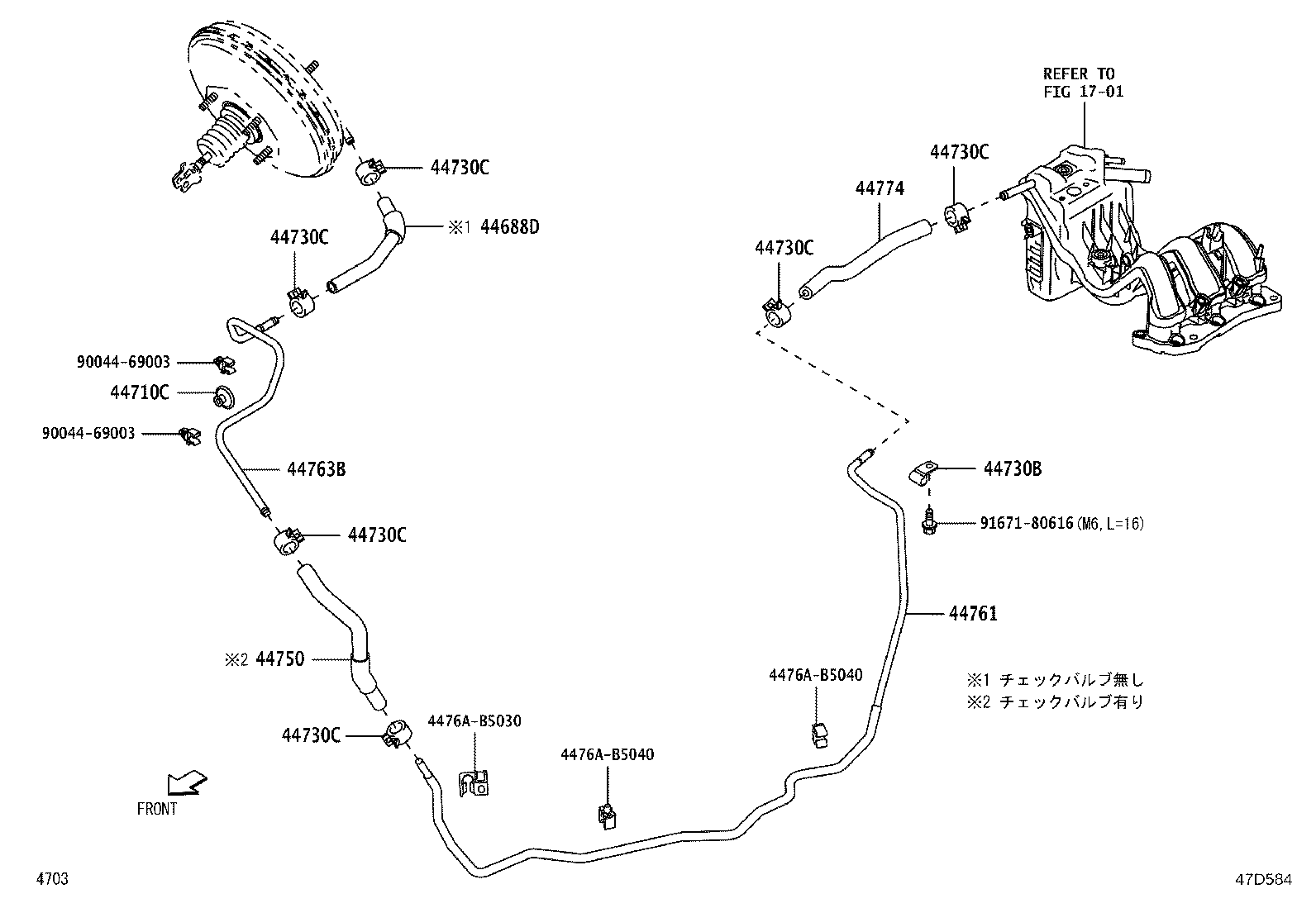

Figure 47D583 47D583 2021-12 → — Figure 47D584 47D584 2021-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44688D Hose, Booster Vacuum
44710C Grommet, Booster Air Cleaner Hose
44730B Clamp, Vacuum Hose
44730C Clip(FOR VACUUM HOSE)
44750 Hose Assy, Vacuum
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763B Tube, Tube Connector TO Tube Connector
44774 Hose, Union TO Connector Tube
44976 Seal, Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
