Toyota Pixis Van
2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan
Supported model
Data version 2024-11
Hood & Front Fender
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |

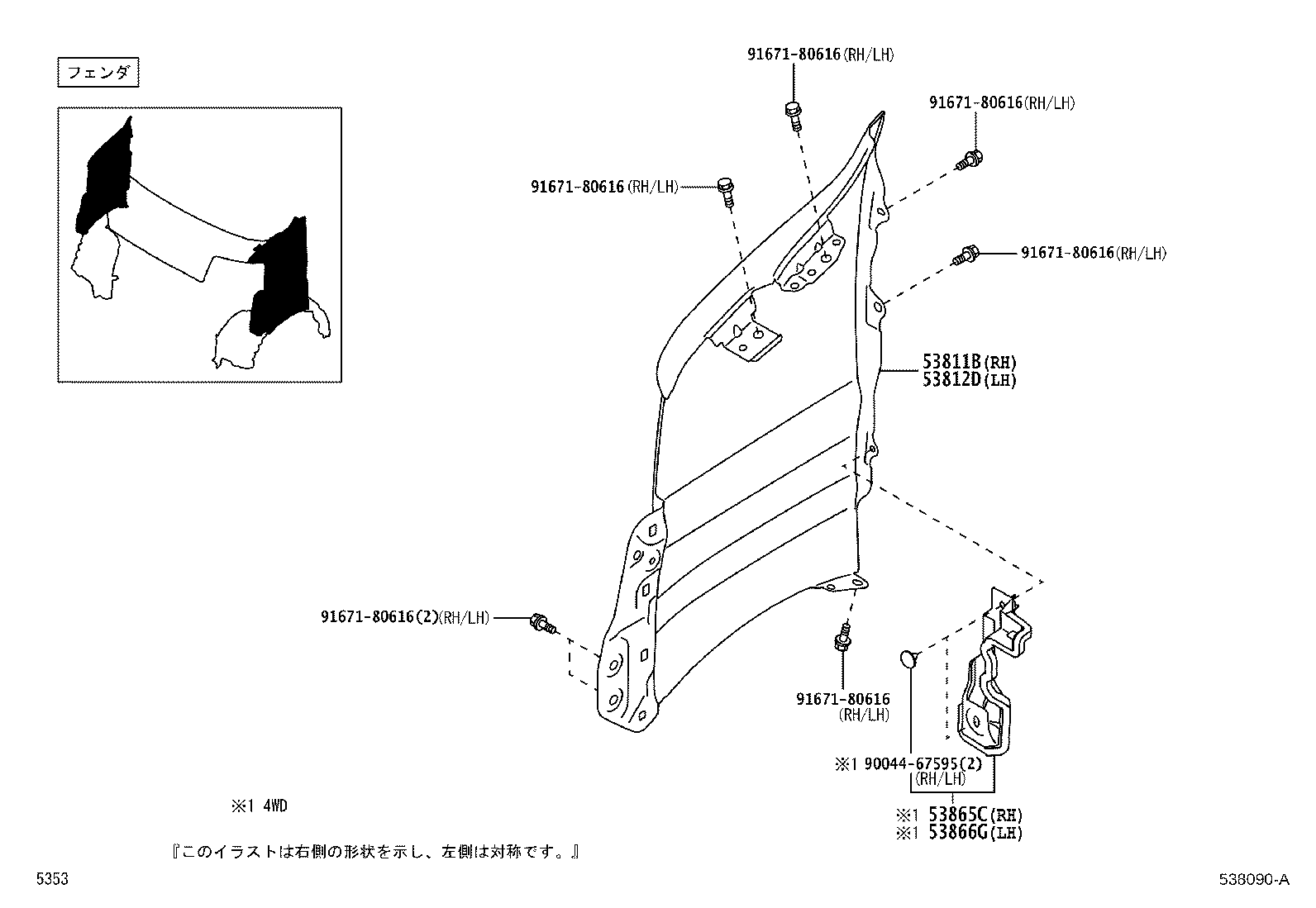

| 53811B | Panel, Front Fender, RH |
| 53812D | Panel, Front Fender, LH |
| 53865C | Plate, Front Fender Extension, RH |
| 53866G | Plate, Front Fender Extension, LH |

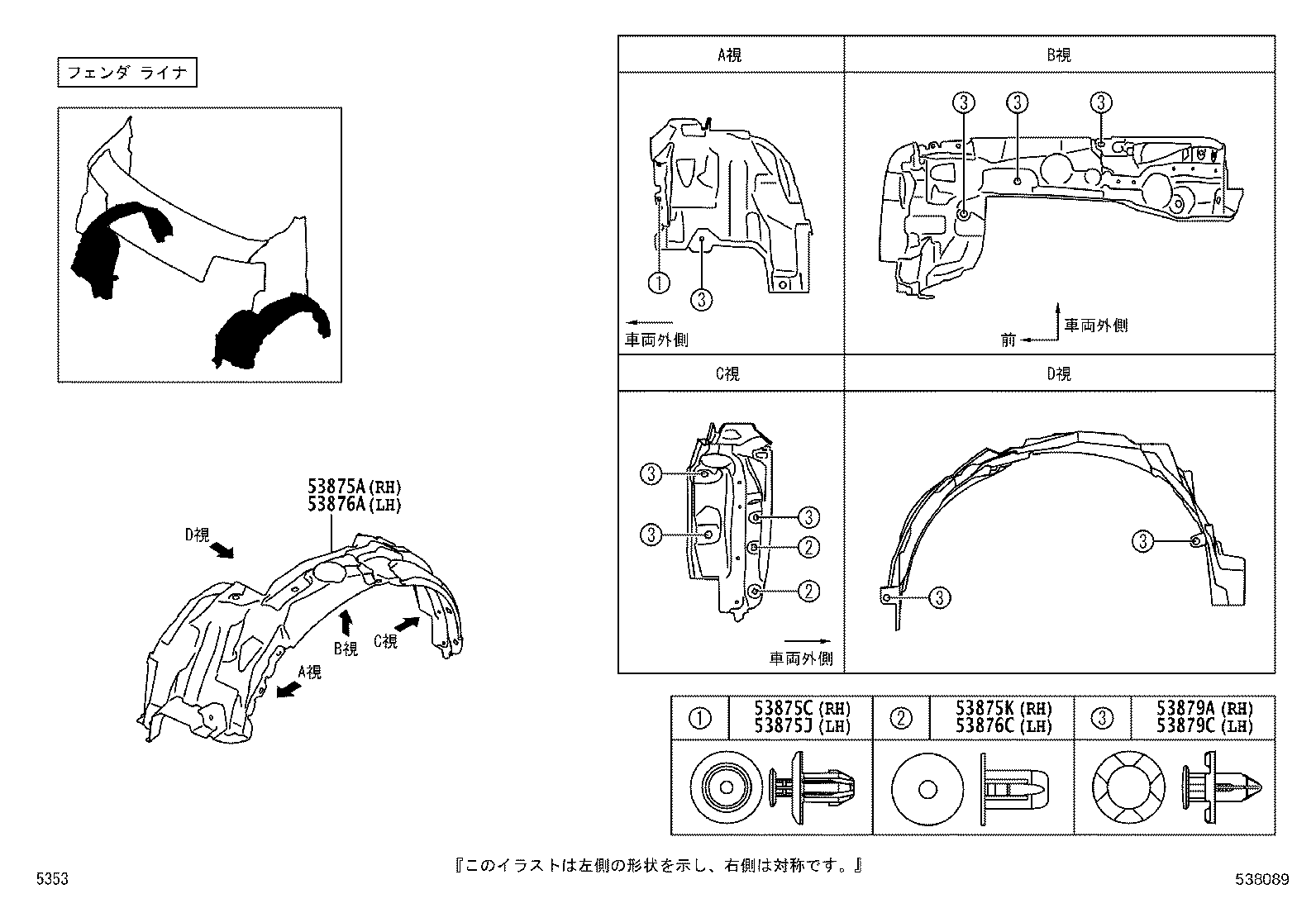

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875J | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53876A | Liner, Front Fender, LH |
| 53876C | Grommet, Screw |
| 53879A | Retainer, Front Fender Liner |
| 53879C | Retainer, Front Fender Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
