Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11

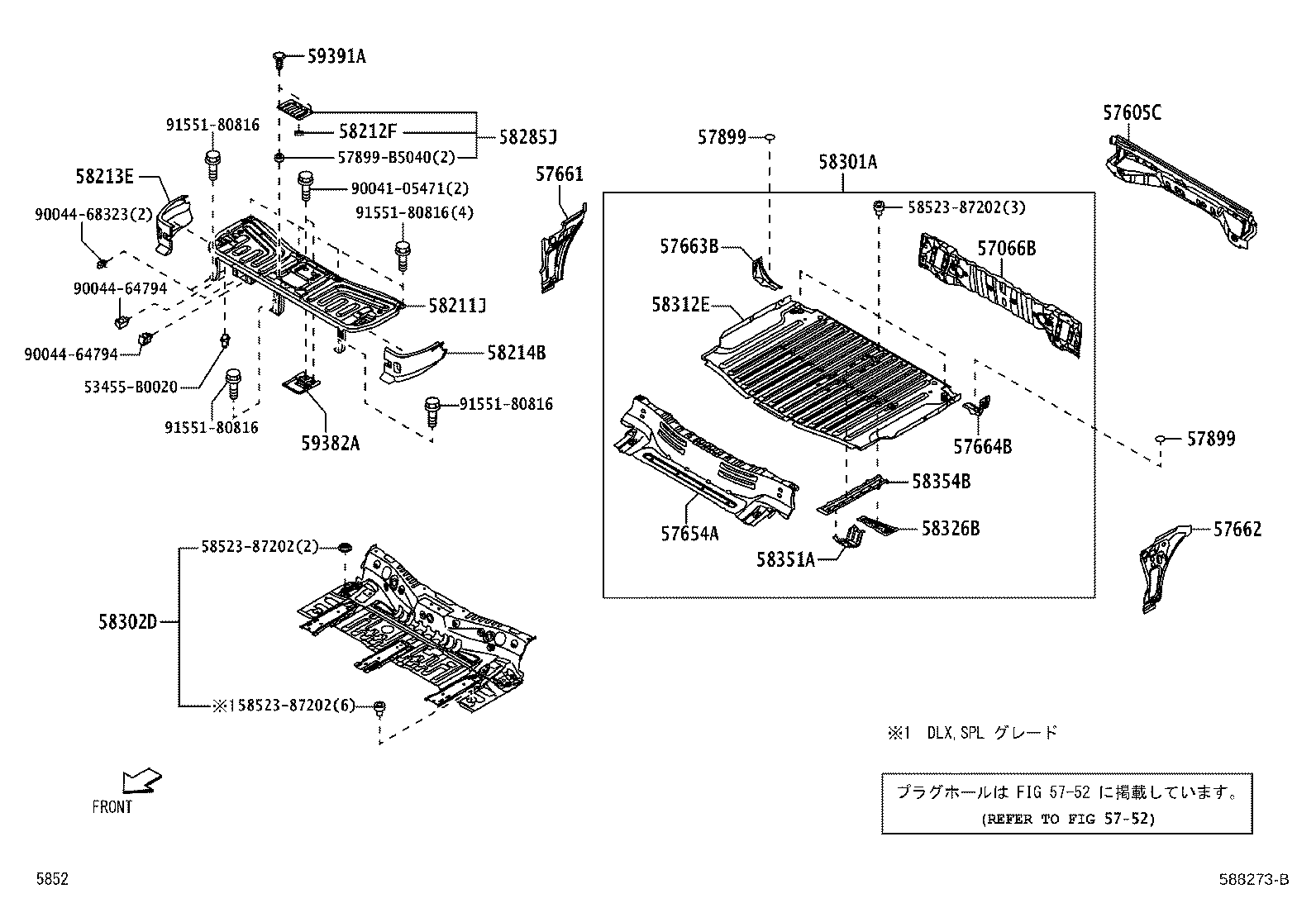

Rear Floor Panel & Rear Floor Member

39 part groups · 2 illustrations

PNC	Description
51096B	Hook Sub-assy, Transport, Rear LH
57066B	Member Sub-assy, Rear Floor Cross, NO.6
57337	Outrigger, Rear RH
57338	Outrigger, Rear LH
57601A	Member Sub-assy, Rear Floor Side, RH
57602A	Member Sub-assy, Rear Floor Side, LH
57603E	Extension Sub-assy, Rear Side Member, RH
57604C	Extension Sub-assy, Rear Side Member, LH
57605C	Member Sub-assy, Rear Floor Cross
57607C	Member Sub-assy, Rear Floor Cross, NO.3
57608B	Member Sub-assy, Rear Floor Cross, NO.4
57609C	Member Sub-assy, Rear Floor Cross, NO.5
57635A	Reinforcement, Rear Floor Side Member, Rear RH
57636A	Reinforcement, Rear Floor Side Member, Rear LH
57654A	Member, Rear Floor Cross, NO.3
57661	Panel, Rear Floor Side, Front RH
57662	Panel, Rear Floor Side, Front LH
57663B	Panel, Rear Floor Side, Rear RH
57664B	Panel, Rear Floor Side, Rear LH
57703A	Bracket Sub-assy, Rear Suspension Arm, Front RH
57708A	Plate Sub-assy, Rear Spring, LH
57771	Plate, Rear Spring, RH
57772	Plate, Rear Spring, LH
57805B	Reinforcement Sub-assy, Belt Anchor, RH
57806	Reinforcement Sub-assy, Belt Anchor, LH
57899	Seal, Rear Floor, Rear
58211J	Pan, Center Floor
58212F	Seal, Center Floor
58213E	Panel, Seat Floor Side, RH
58214B	Panel, Seat Floor Side, LH
58285J	Cover, Center Floor Hole
58301A	Panel Sub-assy, Rear Floor
58302D	Panel Sub-assy, Rear Floor, Front
58312E	Panel, Rear Floor, Rear
58326B	Bracket, Flexible Hose Mounting
58351A	Bracket, Spare Wheel Carrier
58354B	Reinforcement, Rear Floor Panel, NO.4
59382A	Striker, Rear Seat Leg Lock
59391A	Retainer, Rear Floor, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
