Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

15 part groups · 2 illustrations

Illustrations

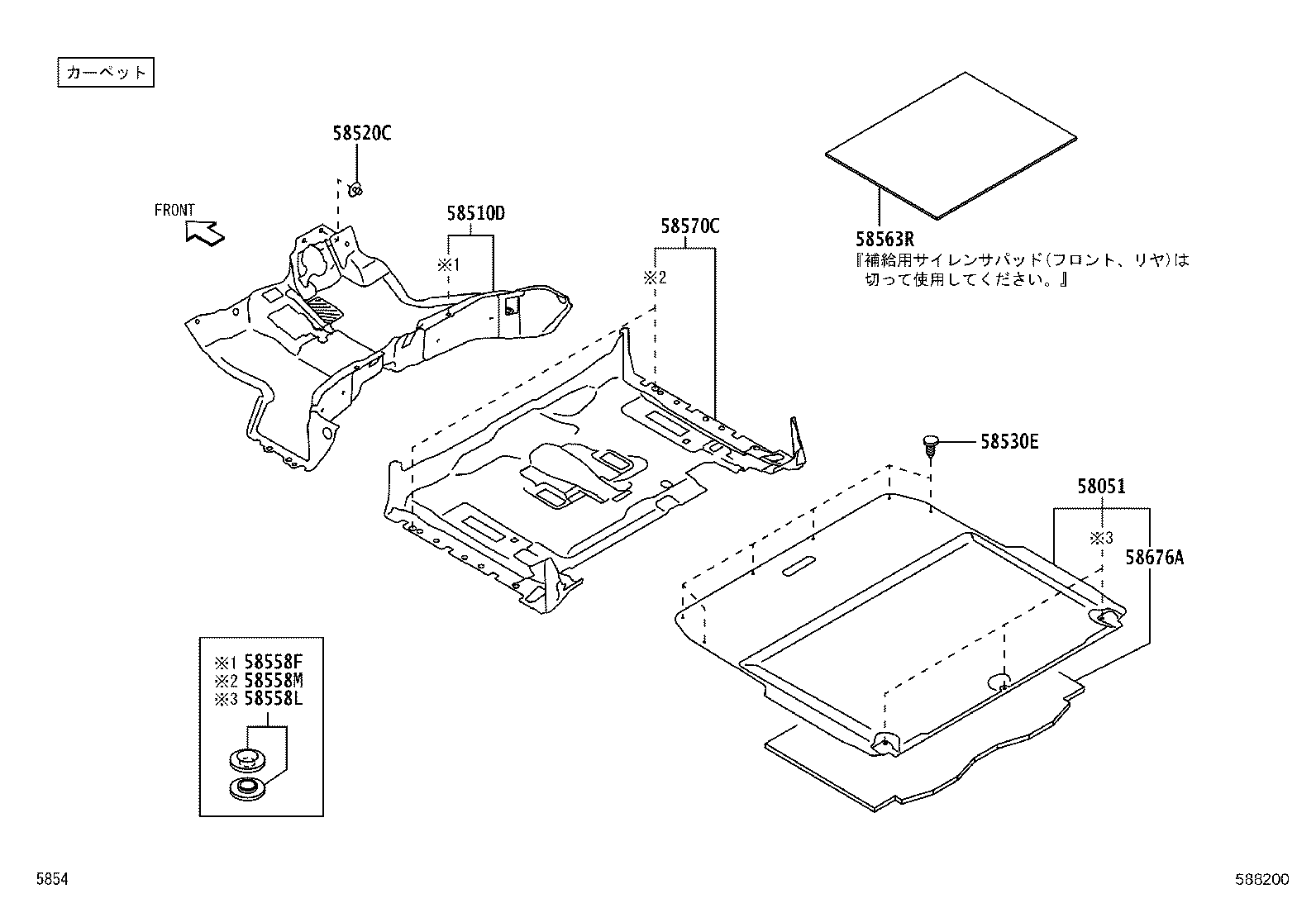

Figure 588198 588198 2021-12 → — Figure 588200 588200 2021-12 → —

Part groups

PNCDescription
58051 Mat Set, Floor
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58520F Mat Assy, Engine Cover
58530E Clip(FOR FRONT FLOOR REAR CARPET)
58540C Mat Assy, Floor, Rear
58558E Fastener, Pile
58558F Fastener, Pile, Upr
58558K Fastener, Pile
58558L Fastener, Pile
58558M Fastener, Pile
58563R Silencer, Front Floor, NO.3
58570C Carpet Assy, Rear Floor
58676A Pad, Rear Floor Silencer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
