Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

35 part groups · 3 illustrations

Illustrations

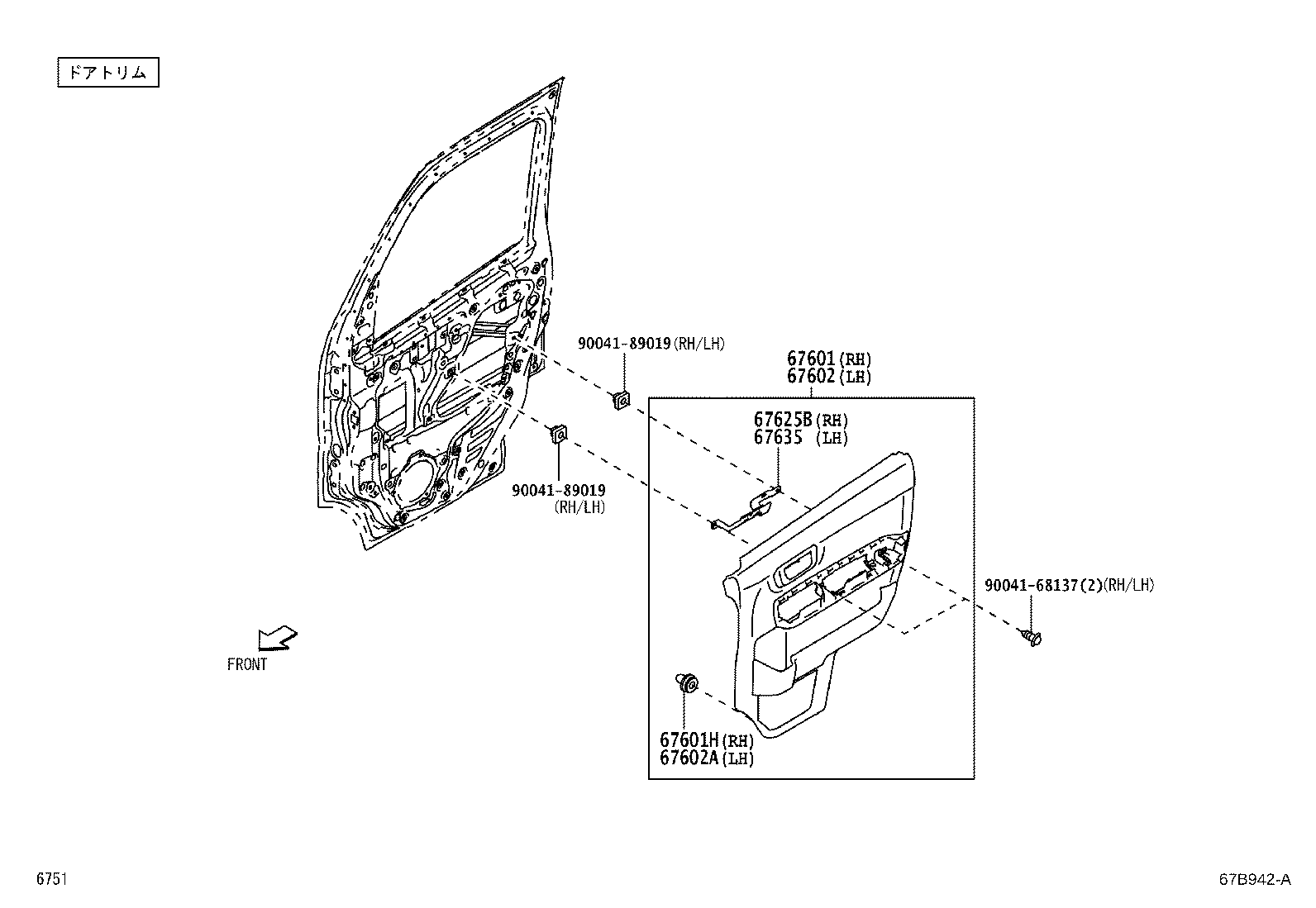

Figure 67C099B 67C099B 2021-12 → — Figure 67B942A 67B942A 2021-12 → — Figure 67B943 67B943 2021-12 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601H Retainer, Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67602A Retainer, Door Trim, LH
67625B Bracket, Door Trim, NO.1 RH
67635 Bracket, Door Trim, NO.1 LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867 Clip, Door Weatherstrip
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
67869E Clip, Front Door Weatherstrip
67869J Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141E Run, Front Door Glass, RH
68143 Run, Front Door Glass, Lower
68151D Run, Front Door Glass, LH
68151E Run, Front Door Glass, LH
68161 Weatherstrip, Front Door Glass, Outer
68162B Weatherstrip, Front Door Glass, Outer LH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
