Toyota Pixis Van
2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan
Supported model
Data version 2024-11

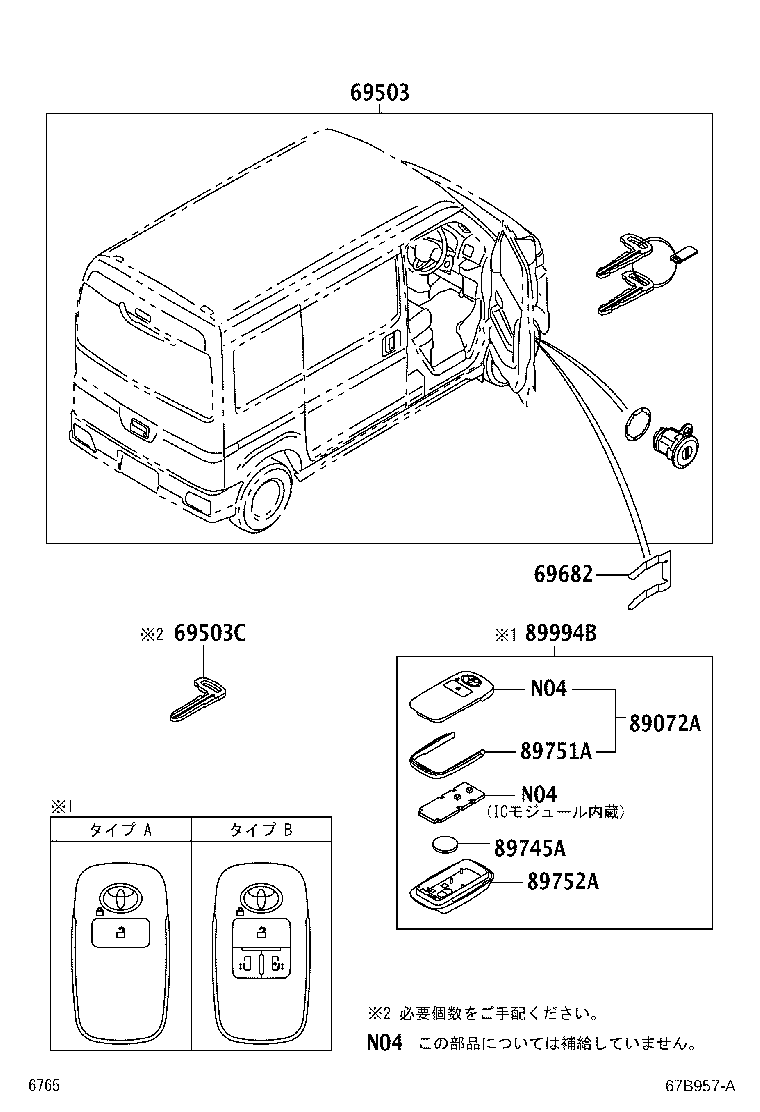

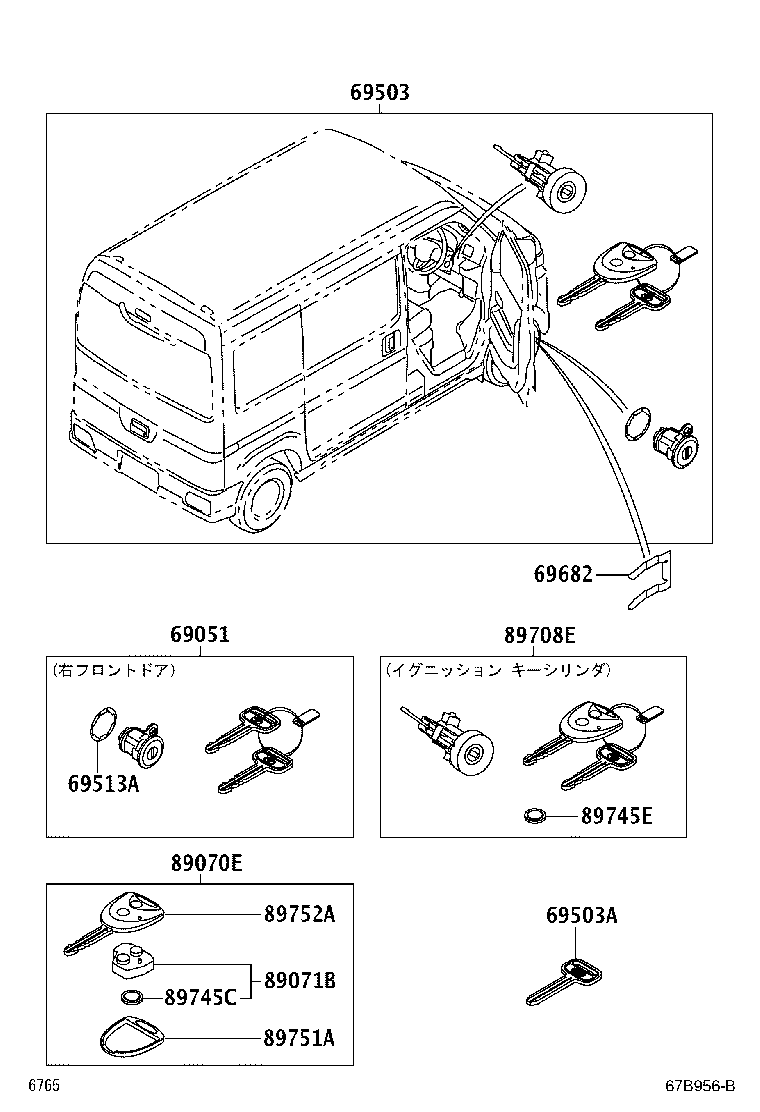

Lock Cylinder Set
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69503C | Key, Sub |
| 69513A | Pad, Door Cylinder |
| 69682 | Retainer, Lock Cylinder |
| 89070E | Transmitter Assy, Door Control |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89072A | Housing Set, Door Control Transmitter |
| 89708E | Cylinder Set, Lock W/Transmitter |
| 89745A | Battery, Transmitter |
| 89745C | Battery, Transmitter |
| 89745E | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89752A | Case, Transmitter Housing |
| 89994B | Transmitter, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
