Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

147 part groups · 8 illustrations

Illustrations

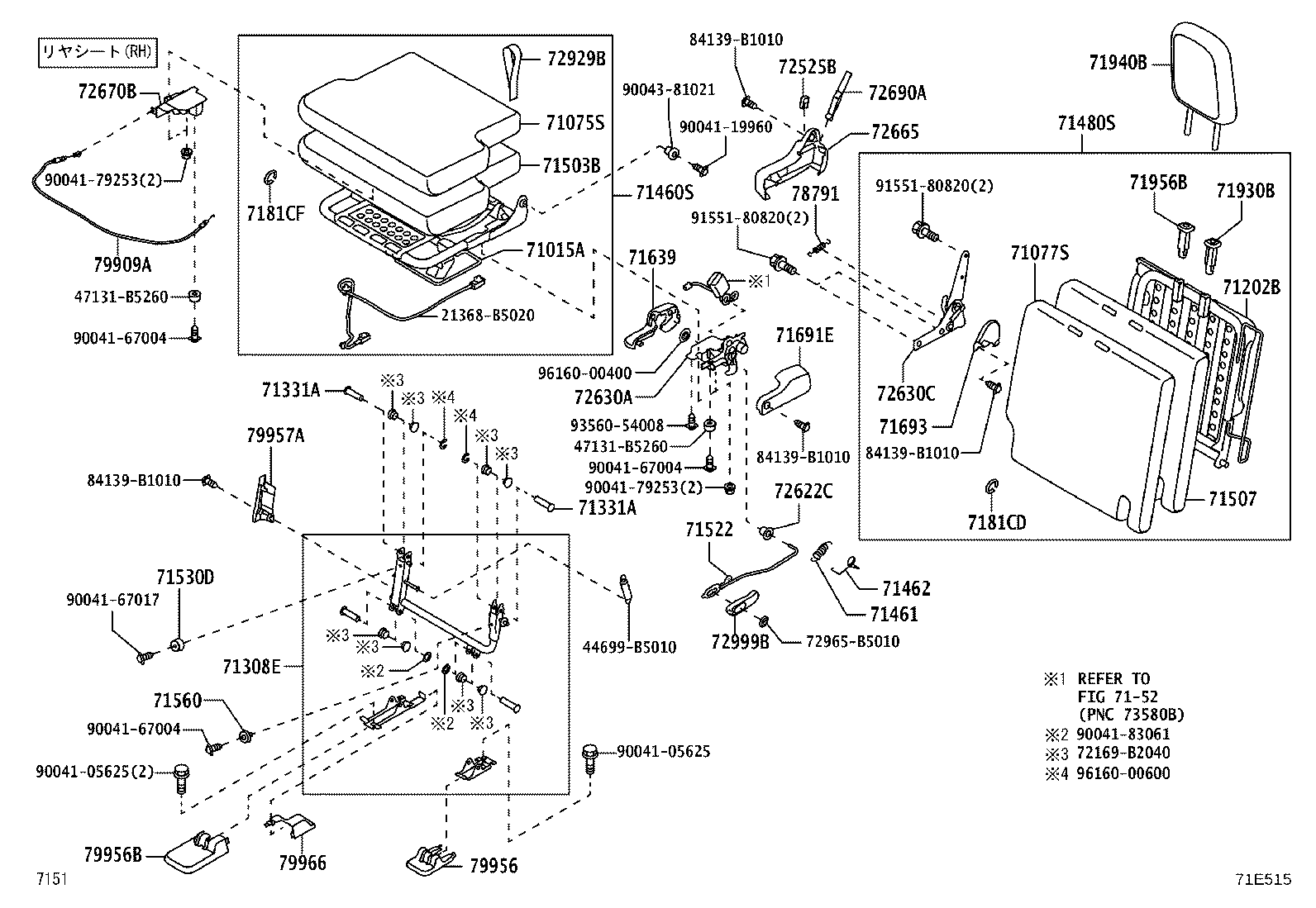

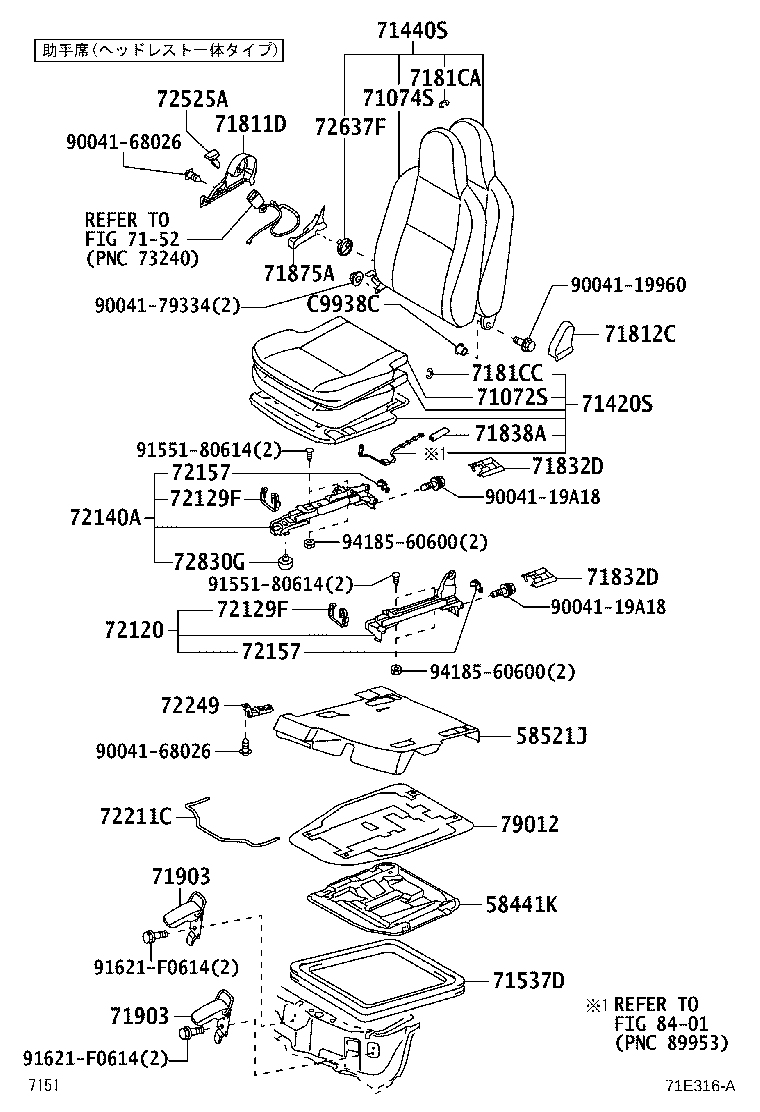

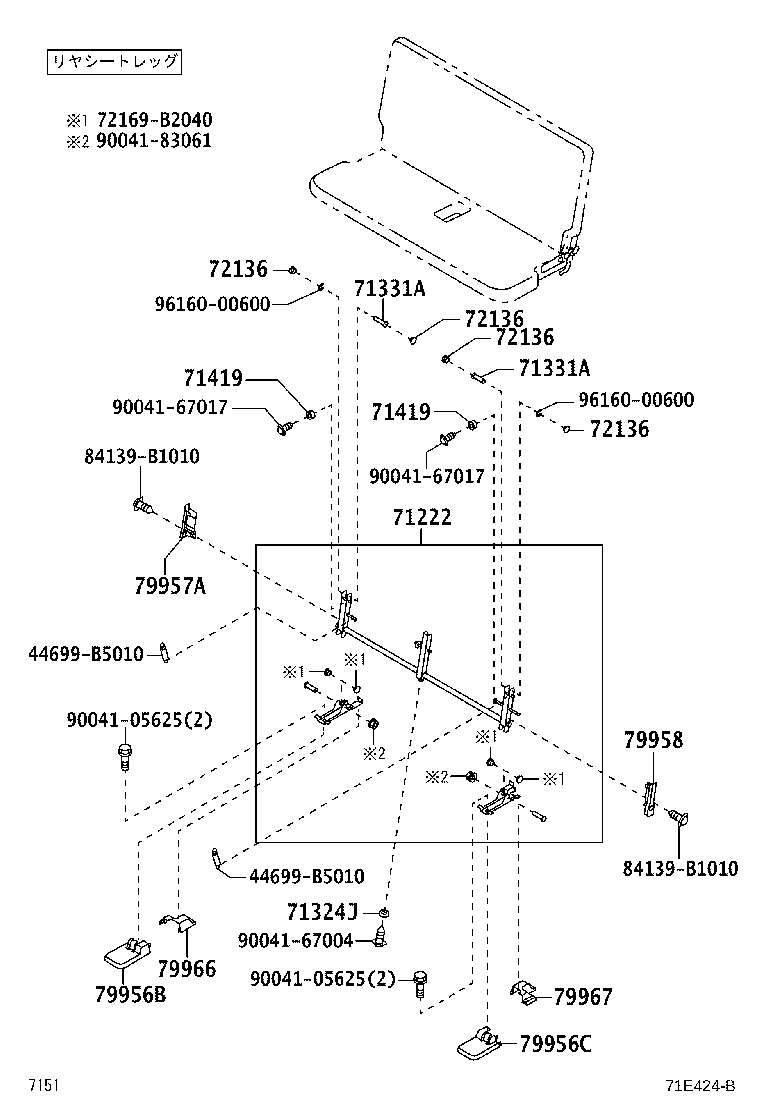

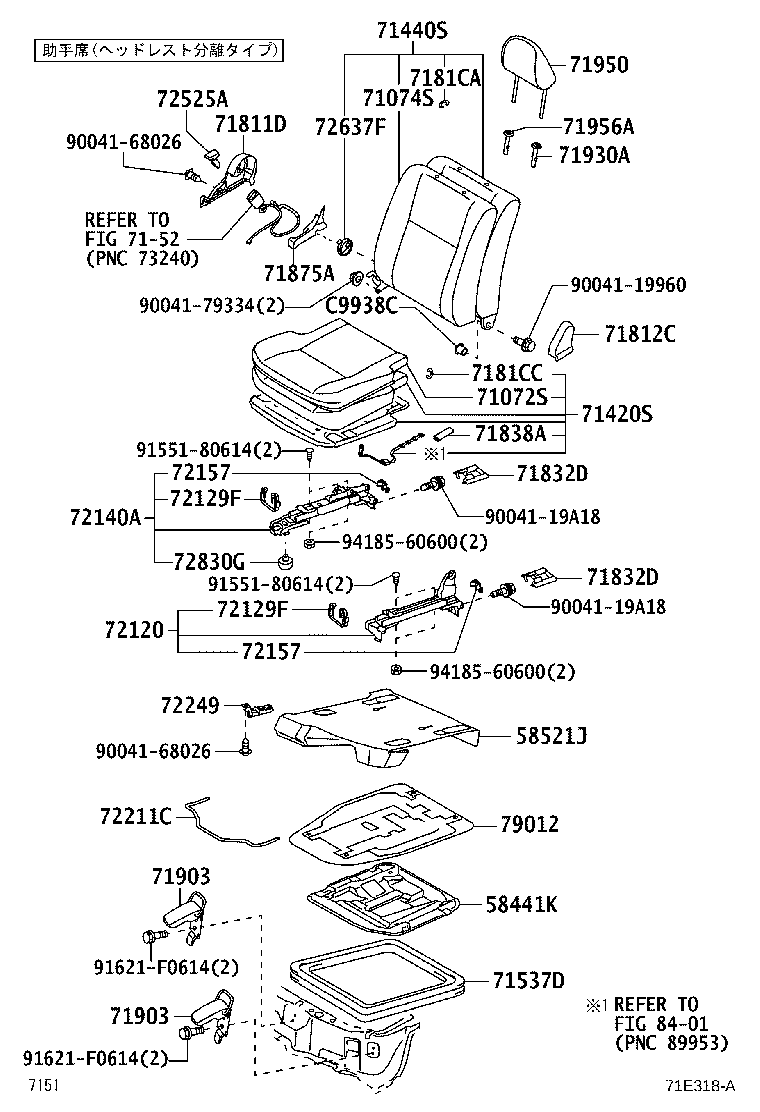

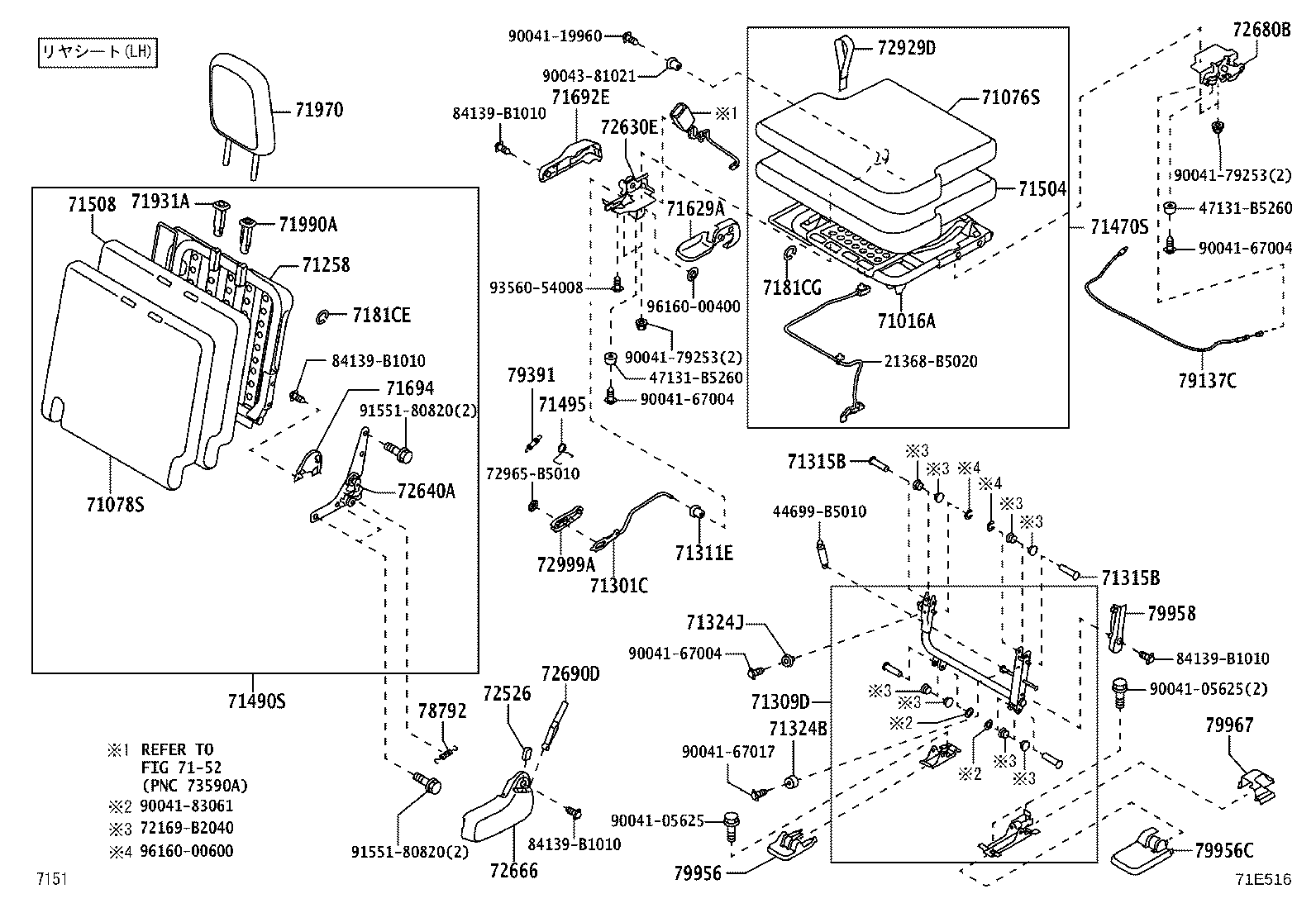

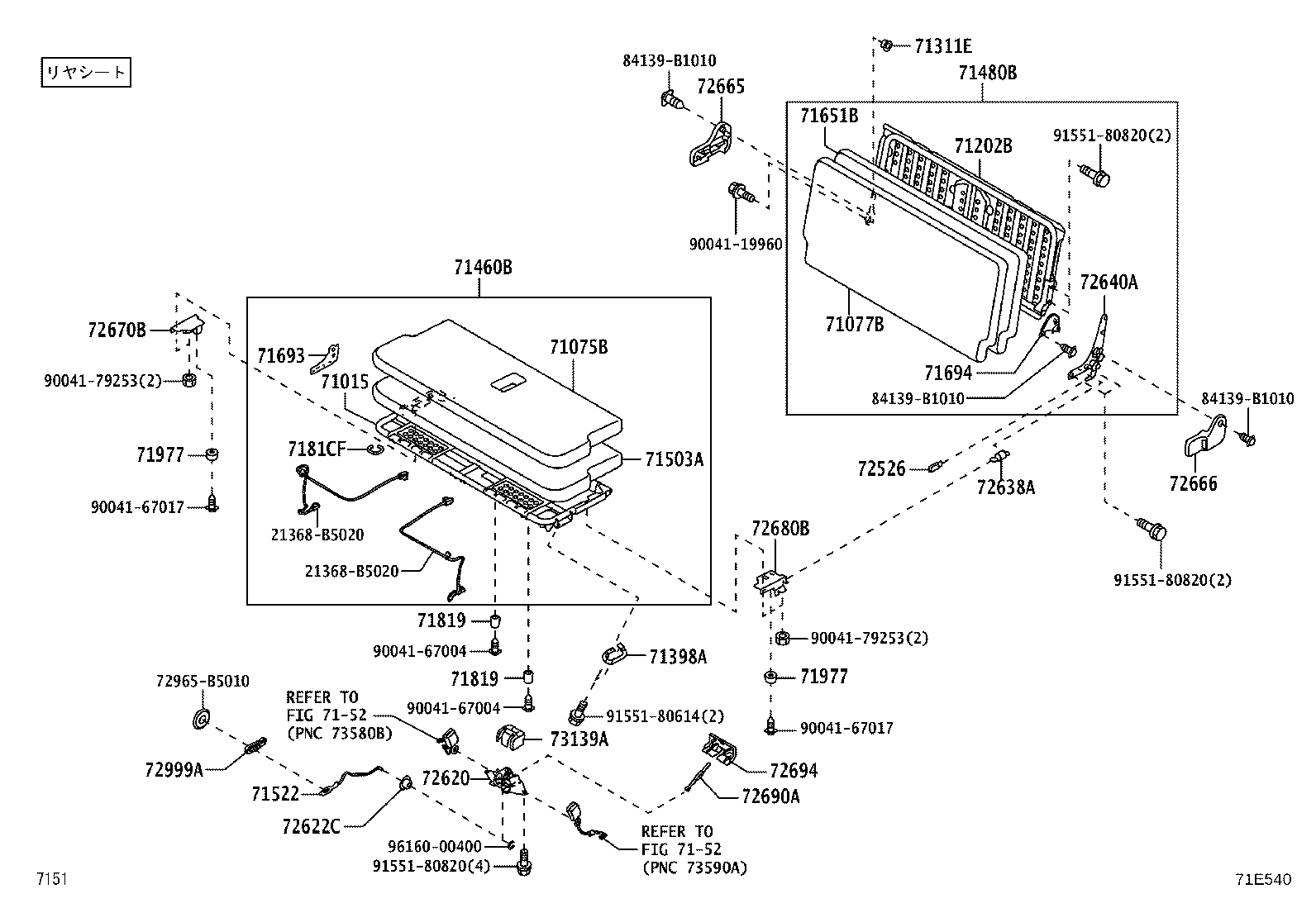

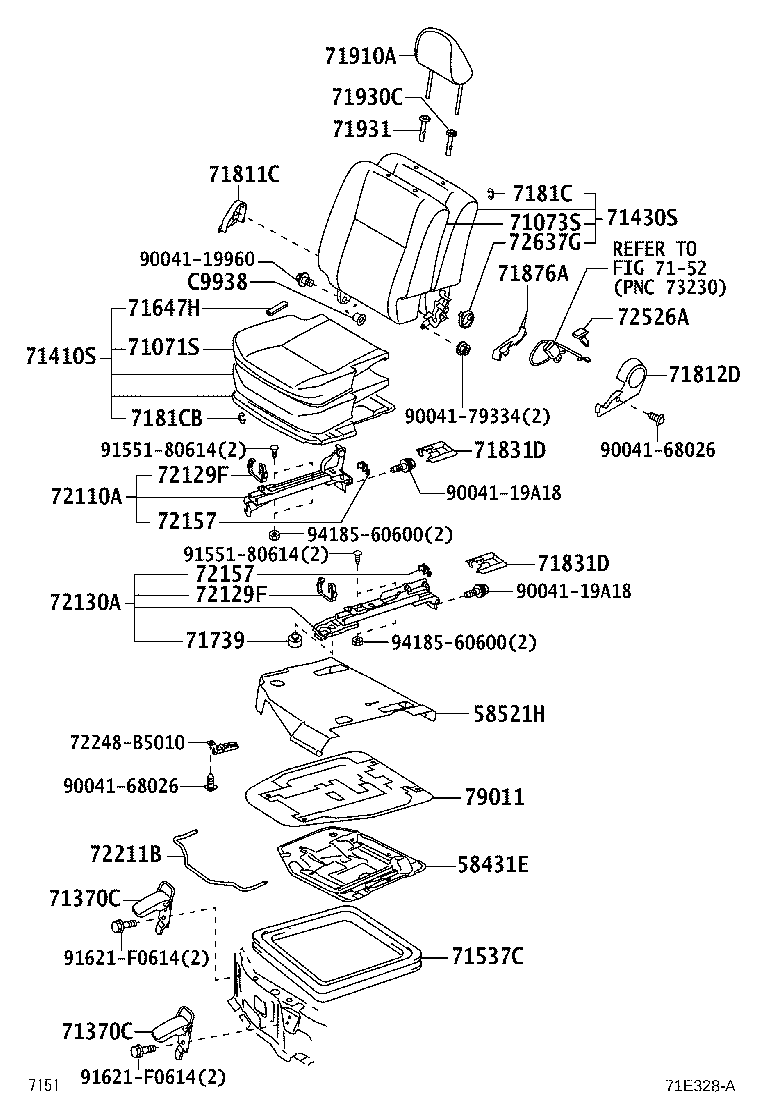

Figure 71E315A 71E315A 2021-12 → — Figure 71E316A 71E316A 2021-12 → — Figure 71E328A 71E328A 2021-12 → — Figure 71E318A 71E318A 2021-12 → — Figure 71E540 71E540 2021-12 → — Figure 71E424B 71E424B 2021-12 → — Figure 71E515 71E515 2021-12 → — Figure 71E516 71E516 2021-12 → —

Part groups

PNCDescription
58431E Silencer, Engine Room Side, Front RH
58441K Silencer, Engine Room Side, Front LH
58521H Carpet, Engine Service Hole Cover
58521J Carpet, Engine Service Hole Cover LH
71015 Frame Sub-assy, Rear Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71202B Panel, Rear Seatback
71222 Leg, Rear Seat
71258 Panel Sub-assy, Rear Seatback
71301C Link Sub-assy, Rear Seat Cushion
71308E Leg Sub-assy, Rear Seat, RH
71309D Leg Sub-assy, Rear Seat, LH
71311E Bush(FOR REAR SEAT HINGE PIN)
71315B Pin, Rear Seat Hinge
71324B Cushion, Rear Seat
71324J Cushion, Rear Seat
71331A Pin, Rear Seat Hinge
71370C Catch Assy, FR Seat Cushion
71398A Holder, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71419 Cushion (FOR REAR SEAT LEG)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71461 Spring, Rear Seat Cushion
71462 Spring, Rear Seat Cushion, NO.2
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71495 Spring, Rear Seat Cusion
71503A Pad Sub-assy, Rear Seat Cushion
71503B Pad Sub-assy, Rear Seat Cushion, RH
71504 Pad Sub-assy, Rear Seat Cushion, LH
71507 Pad Sub-assy, Rear Seatback, RH
71508 Pad Sub-assy, Rear Seatback, LH
71522 Link, Rear Seat
71530D Cushion Assy, Rear Side Seat, RH
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71560 Cushion Assy, Rear Side Seat, LH
71629A Cover, Rear Seat Cushion Hinge, RH
71639 Cover, Rear Seat Cushion Hinge, LH
71647H Protector, Front Seat Cushion Edge
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71691E Cover, Rear Seat Cushion Hinge, NO.1
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71739 Cushion, Seat Support
71811C Cover, Reclining Adjuster, RH
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71819 Cushion (FOR REAR SEAT CUSHION)
7181C Ring, Hog, Small (FOR FRONT SEATBACK)
7181CA Ring, Hog, Small (FOR FRONT SEATBACK)
7181CB Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CC Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CD Ring, Hog, Small (FOR REAR SEATBACK)
7181CE Ring, Hog, Small (FOR REAR SEATBACK)
7181CF Ring, Hog, Small (FOR REAR SEAT CUSHION)
7181CG Ring, Hog, Small (FOR REAR SEAT CUSHION)
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71838A Protector, Front Seat Cushion Edge
71875A Cover, Reclining Adjuster Inside, RH
71876A Cover, Reclining Adjuster Inside, LH
71903 Catch Sub-assy, Seat Cushion, Front
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71930B Support Assy, Rear Seat Headrest
71930C Support, Front Seat Headrest, LH
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940B Headrest Assy, Rear Seat, RH
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
71977 Cushion
71990A Support Assy, Rear Seat Headrest, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72129F Protector, Seat Track Lower Rail, NO.5
72130A Track Assy, Front Seat, Inner RH
72136 Spacer, Seat Track, Lower NO.1
72140A Track Assy, Front Seat,Inner LH
72157 Cover, Seat Track Bracket, Inner
72211B Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72249 Guide, Seat Track Locking
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72620 Lock Assy, Rear Seatback
72622C Bush, Rear Seatback Protector Shaft
72630A Lock Assy, Rear NO.1 Seat
72630C Lock Assy, Rear Seatback, RH
72630E Lock Assy, Rear NO.1 Seat
72637F Spring, Seatback, RH
72637G Spring, Seatback, LH
72638A Spring, Rear Seatback Lock, LH
72640A Lock Assy, Rear Seatback, LH
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72690A Strap Assy, Rear Seat Lock Release
72690D Lever Assy, Seat Cushion Lock Release, NO.1
72694 Cover, Rear Seat Cushion Lock
72830G Cushion
72929B Holder, Rear Seat Cushion Band
72929D Holder, Rear Seat Cushion Band
72999A Cover, Rear Seat Cushion Side, RH
72999B Cover, Rear Seat Cushion Side, LH
73139A Cover, Seat Belt Anchor
78791 Spring, Sub Seat Link, NO.1
78792 Spring, Sub Seat Link, NO.2
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79137C Wire, NO.1 Seat Cushion
79391 Spring, Rear Seat Cushion
79909A Wire Sub-assy, Seat Cushion
79956 Cover, Rear Seat Leg Bracket
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79957A Cover, Rear Seat Rear Bracket, RH
79958 Cover, Rear Seat Rear Bracket, LH
79966 Cover, Rear Seat Leg Side, NO.3
79967 Cover, Rear Seat Leg Side, NO.4
C9938 Bush
C9938C Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
