Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

9 part groups · 2 illustrations

Illustrations

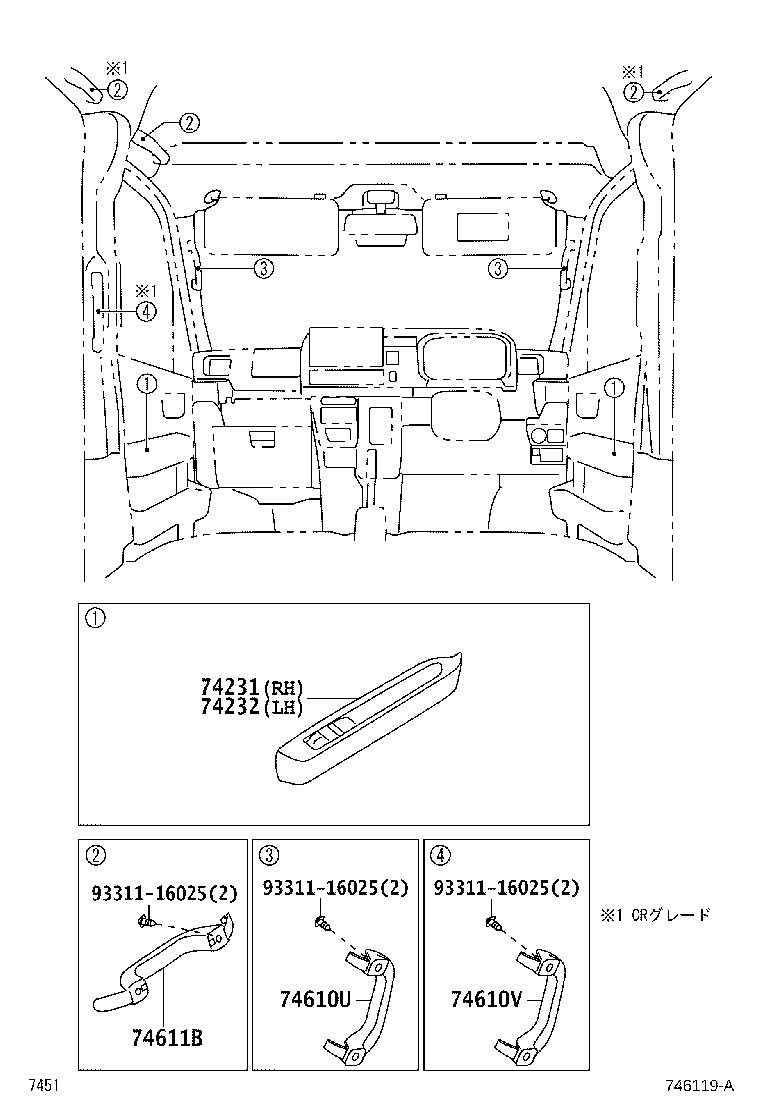

Figure 746116 746116 2021-12 → — Figure 746119A 746119A 2021-12 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74349 Spacer, Visor Holder
74610U Grip Assy, Assist
74610V Grip Assy, Assist
74611B Grip, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
