Toyota Pixis Van
2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan
Supported model
Data version 2024-11
Fuel Tank & Tube

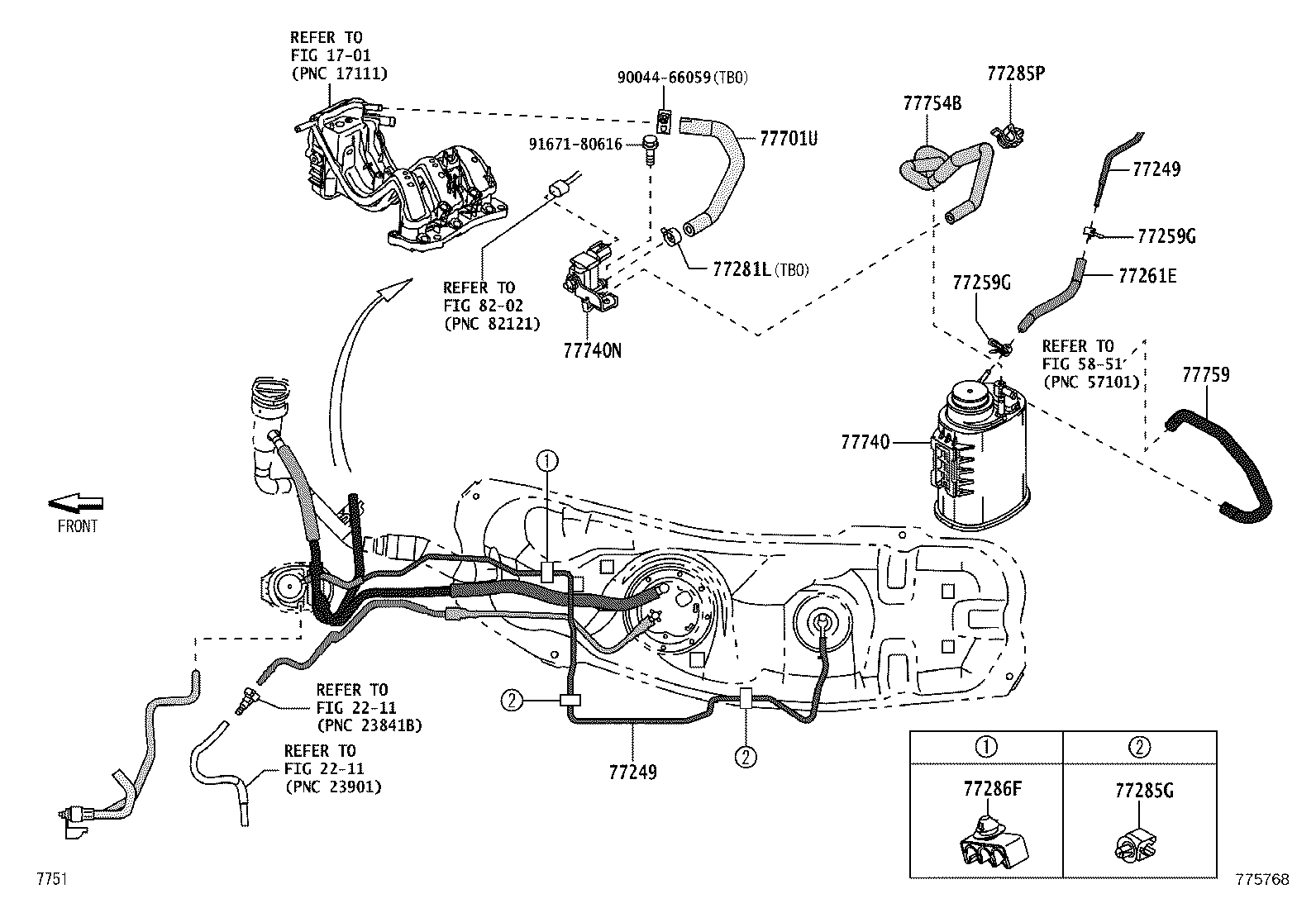

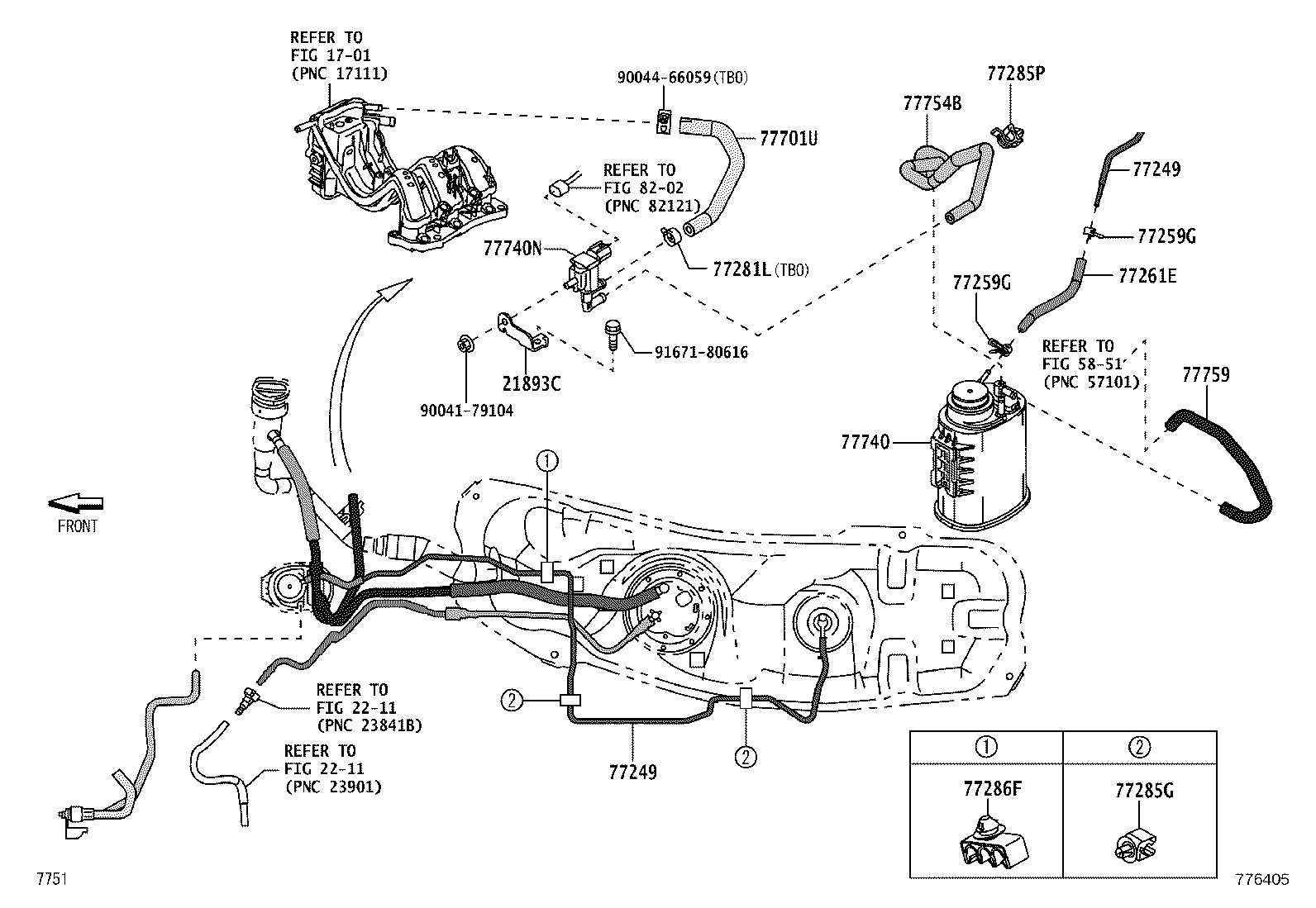

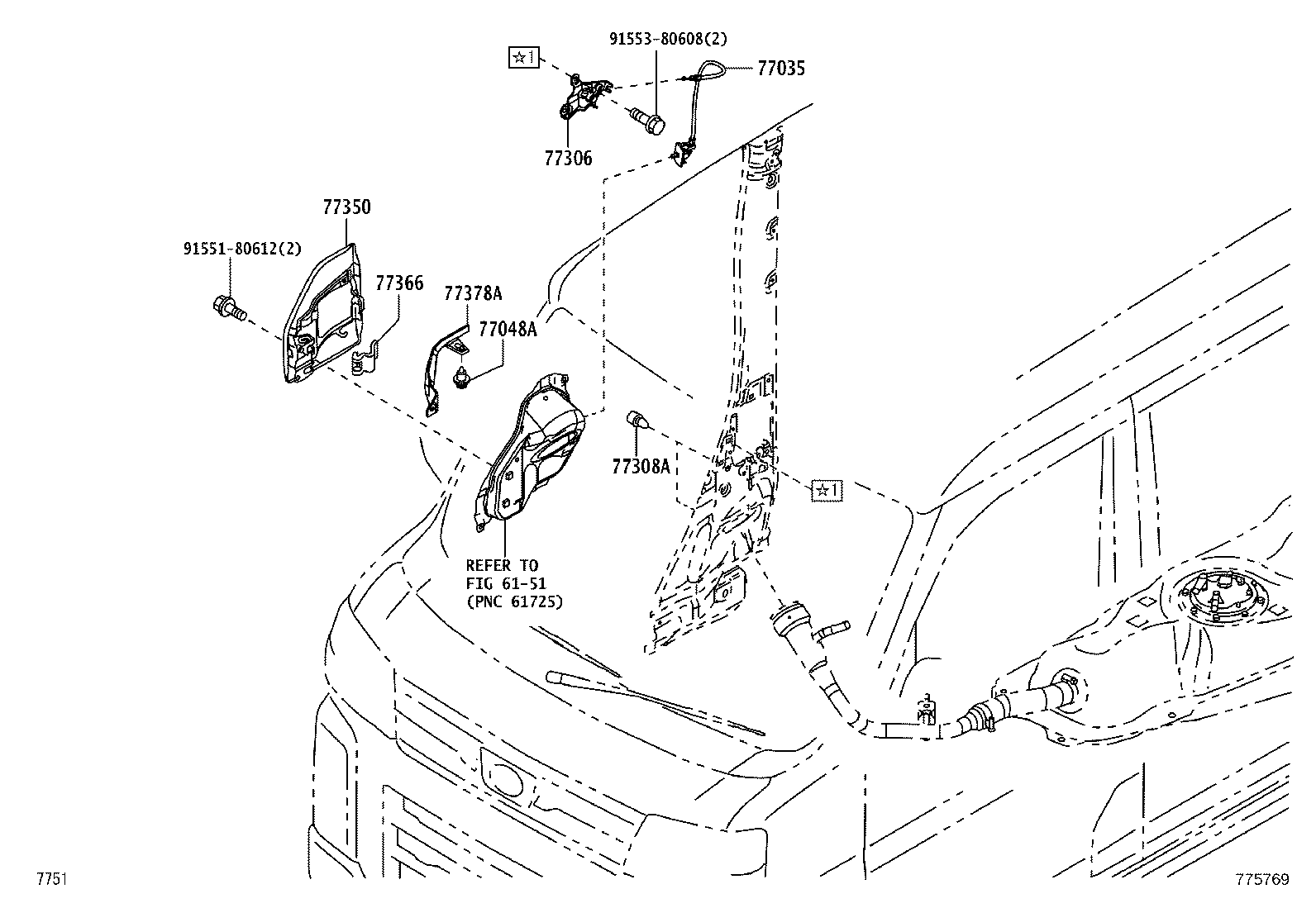

56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 21893C | Bracket |
| 23210A | Pump Assy, Fuel W/Motor & Bracket |
| 23217D | Filter, Fuel Pump |
| 23220A | Pump Assy, Fuel W/Filter |
| 23226 | Ring, O(FOR FUEL PUMP) |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23232A | Gasket, Fuel Pump |
| 23239C | Seal, Fuel Pump Filter |
| 23243A | Wire, Fuel Pump Motor |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23280J | Regulator Assy, Fuel Pressure |
| 23285 | Ring, O |
| 23300J | Filter Assy, Fuel |
| 23401B | Bolt |
| 77014B | Hose, Fuel (FOR FUEL TANK BREATHER TUBE) |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77048A | Clip (FOR FUEL INLET PIPE SEAL) |
| 77100U | Tank Sub-assy, Fuel |
| 77141B | Reinforcement, Fuel Tank Flange, NO.1 |
| 77174 | Support, Fuel Suction, NO.1 |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77203C | Bracket, Fuel Pump |
| 77208 | Clamp Sub-assy, Fuel Hose |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77221B | Clamp, Breathr Tube |
| 77222B | Tube, Fuel Tank Breather, NO.2 |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77259D | Hose, Fuel, NO.1 |
| 77259G | Clip, Fuel Hose |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77269A | Hose, Fuel Tank Breather |
| 77281L | Clamp, Fuel Hose |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285P | Clamp, NO.1(FOR CHARCOAL CANISTER PIPE) |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310A | Cap Assy, Fuel Tank |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77378A | Cover, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77644 | Bolt, Fuel Tank |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77740N | Valve, Vacuum Switching(FOR CHARCOAL CANISTER) |
| 77754B | Hose, Charcoal Canister Outlet |
| 77759 | Hose, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
