Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

20 part groups · 2 illustrations

Illustrations

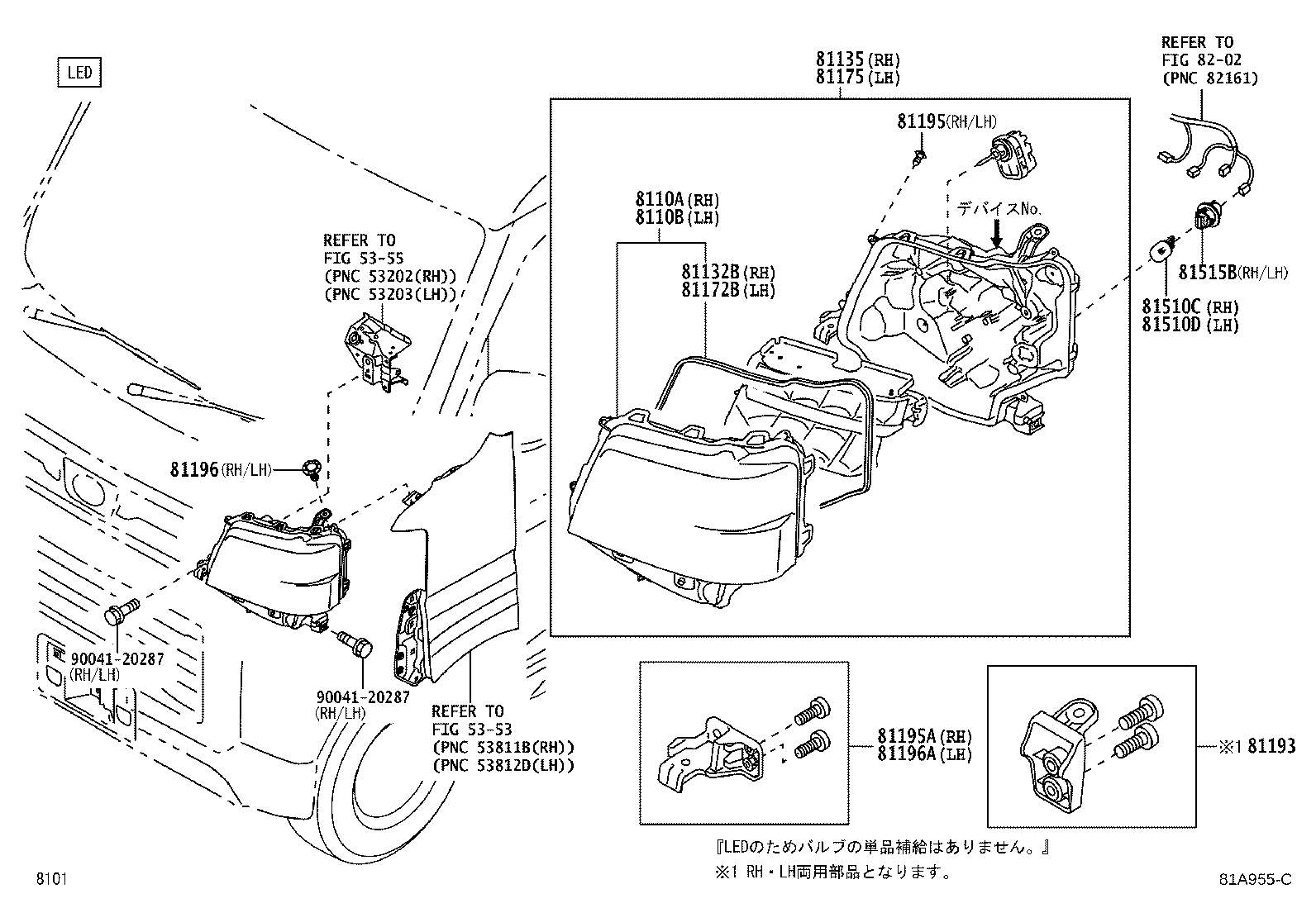

Figure 81A954C 81A954C 2021-12 → — Figure 81A955C 81A955C 2021-12 → —

Part groups

PNCDescription
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81172B Gasket, Headlamp Lens
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81195 Screw, Headlamp
81195A Retainer, Headlamp Protector, Lower RH
81196 Retainer, Headlamp
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615H Socket, Clearance Lamp, RH
81615J Socket, Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
