Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 9 illustrations

Illustrations

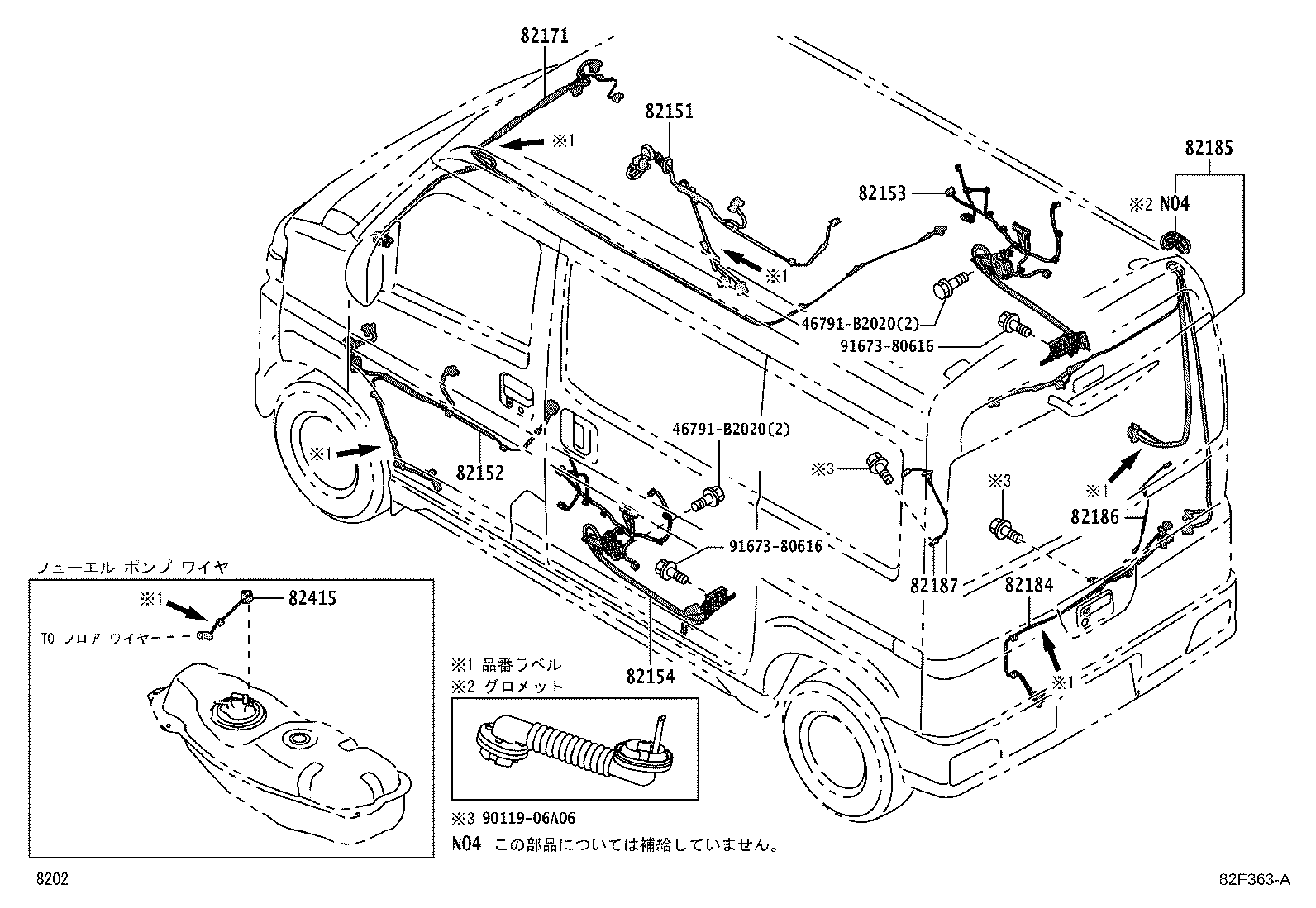

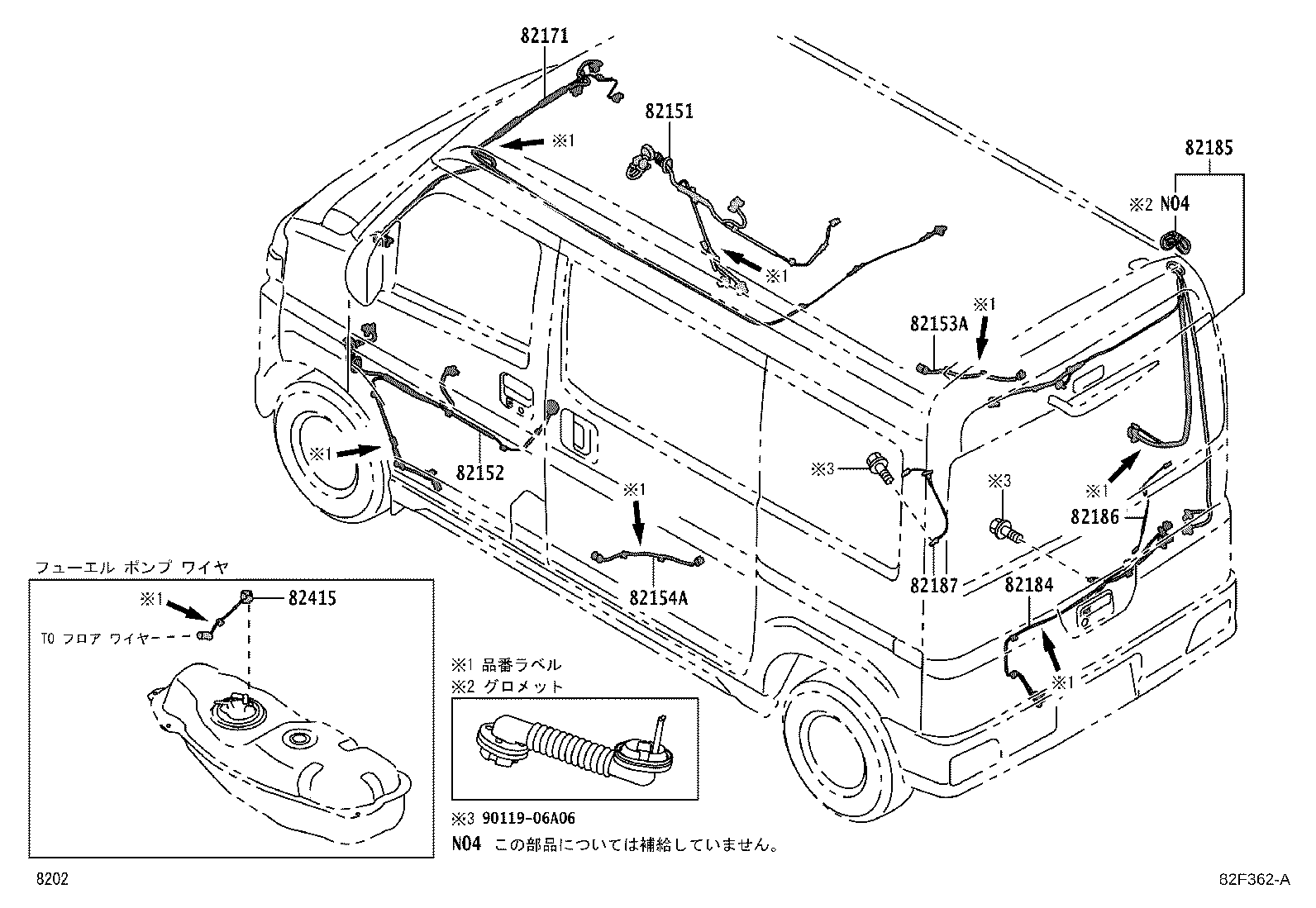

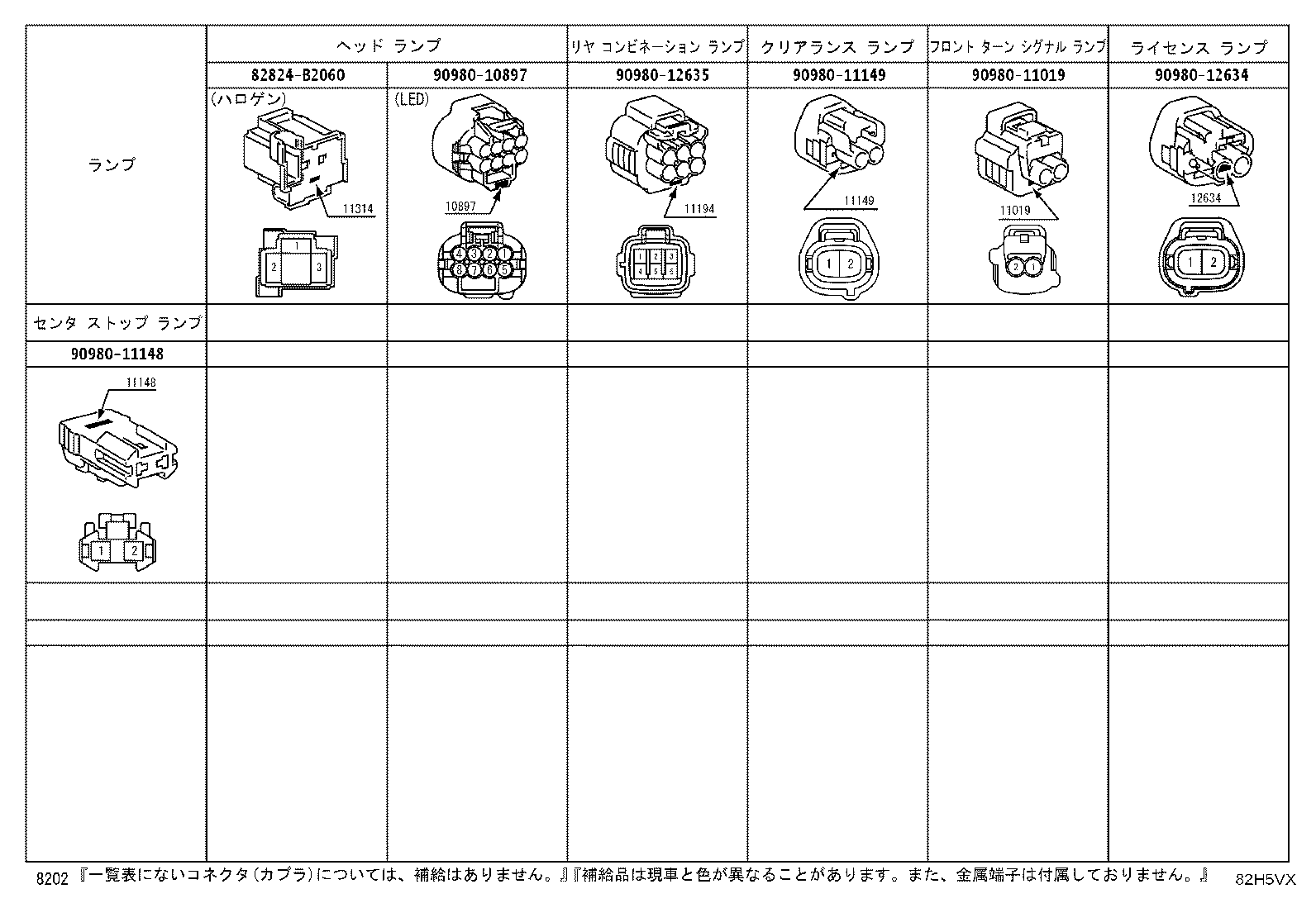

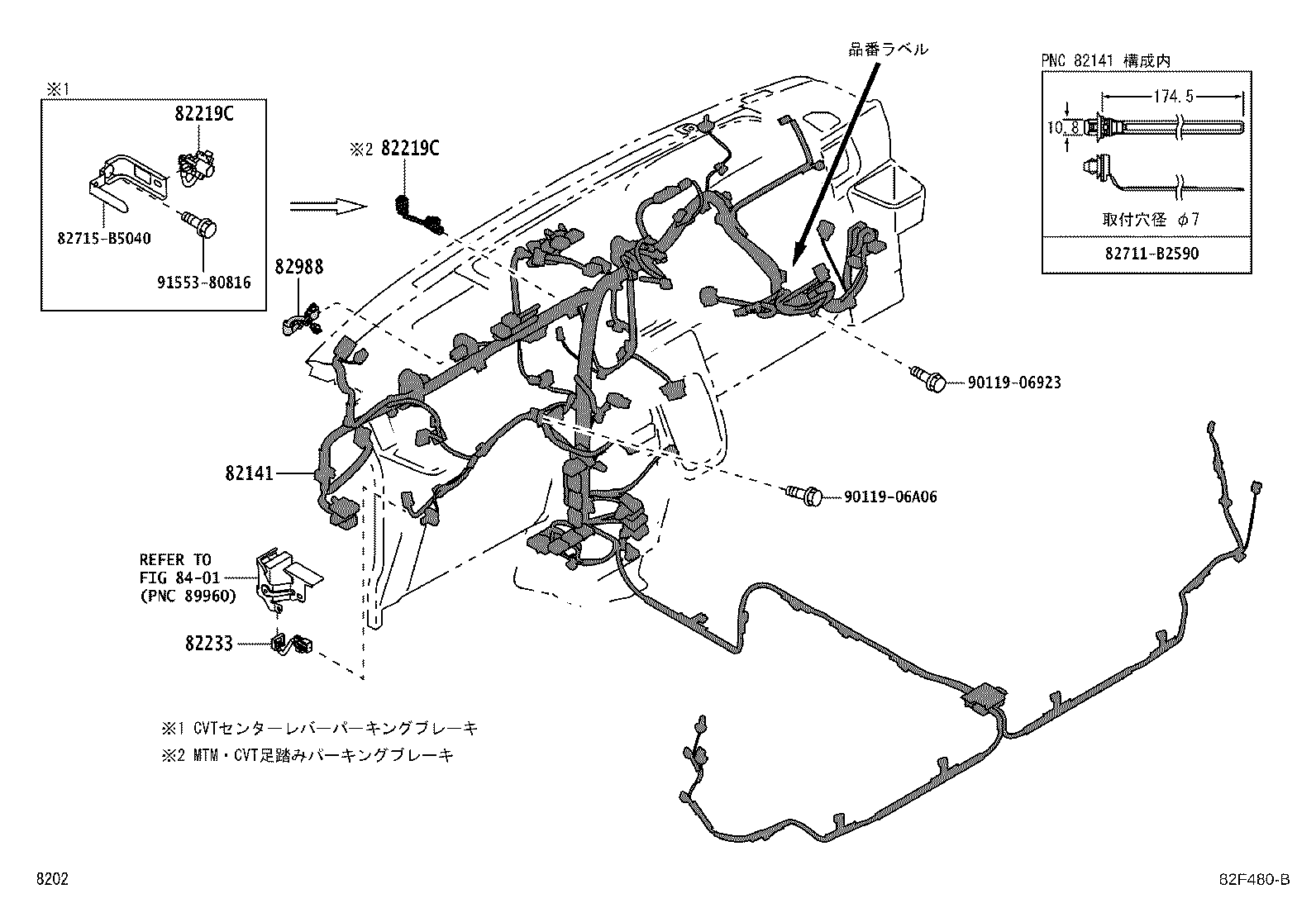

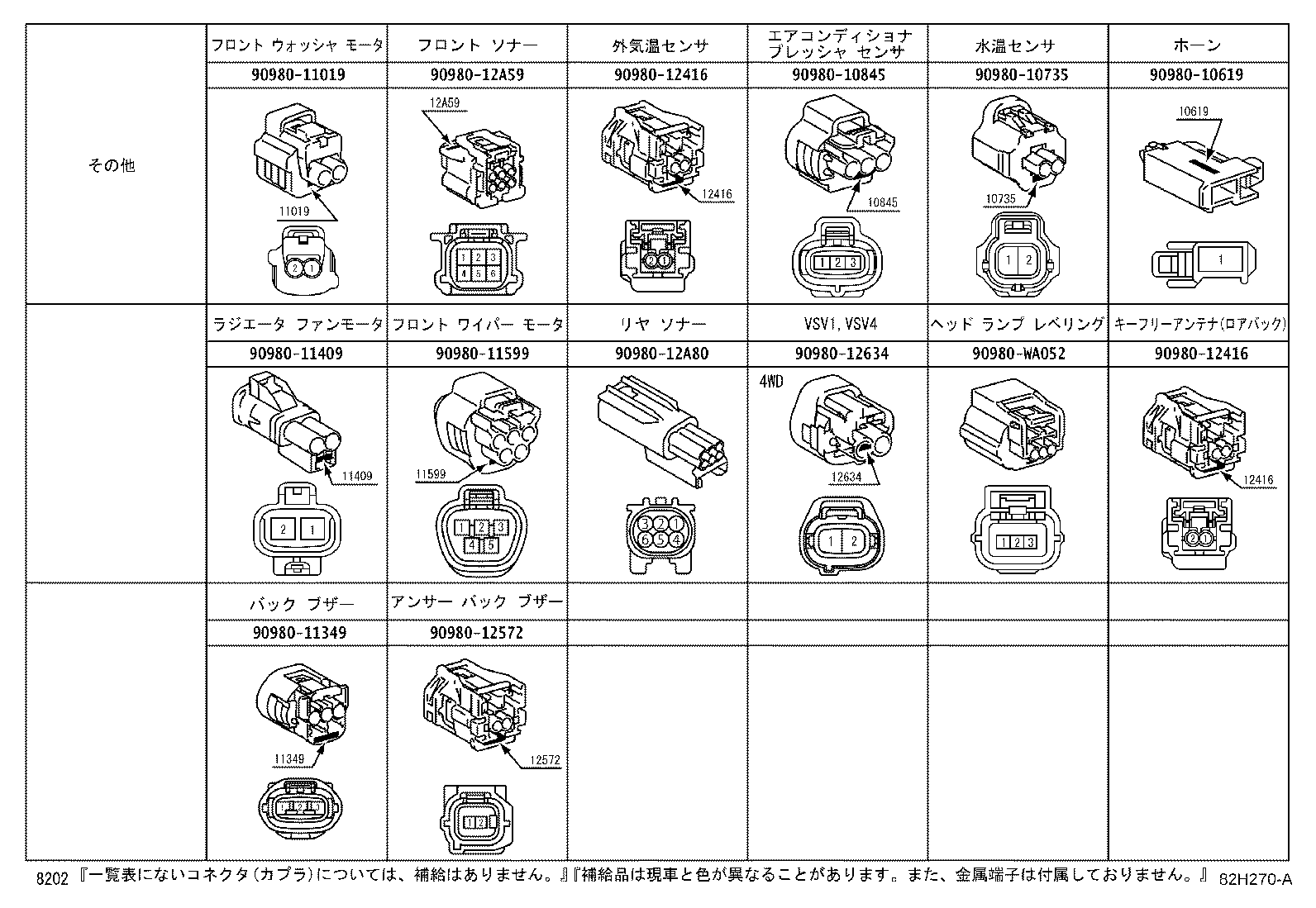

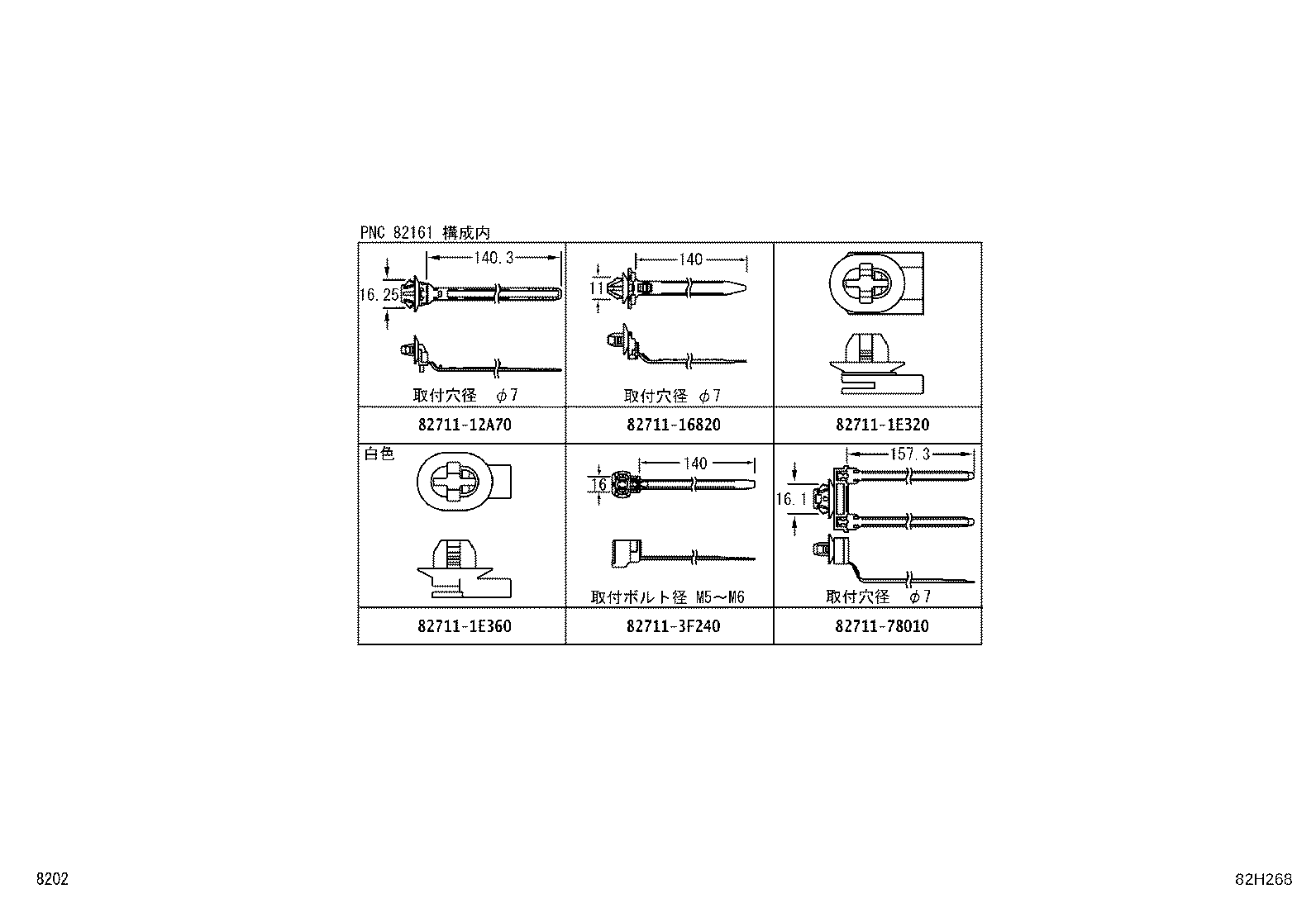

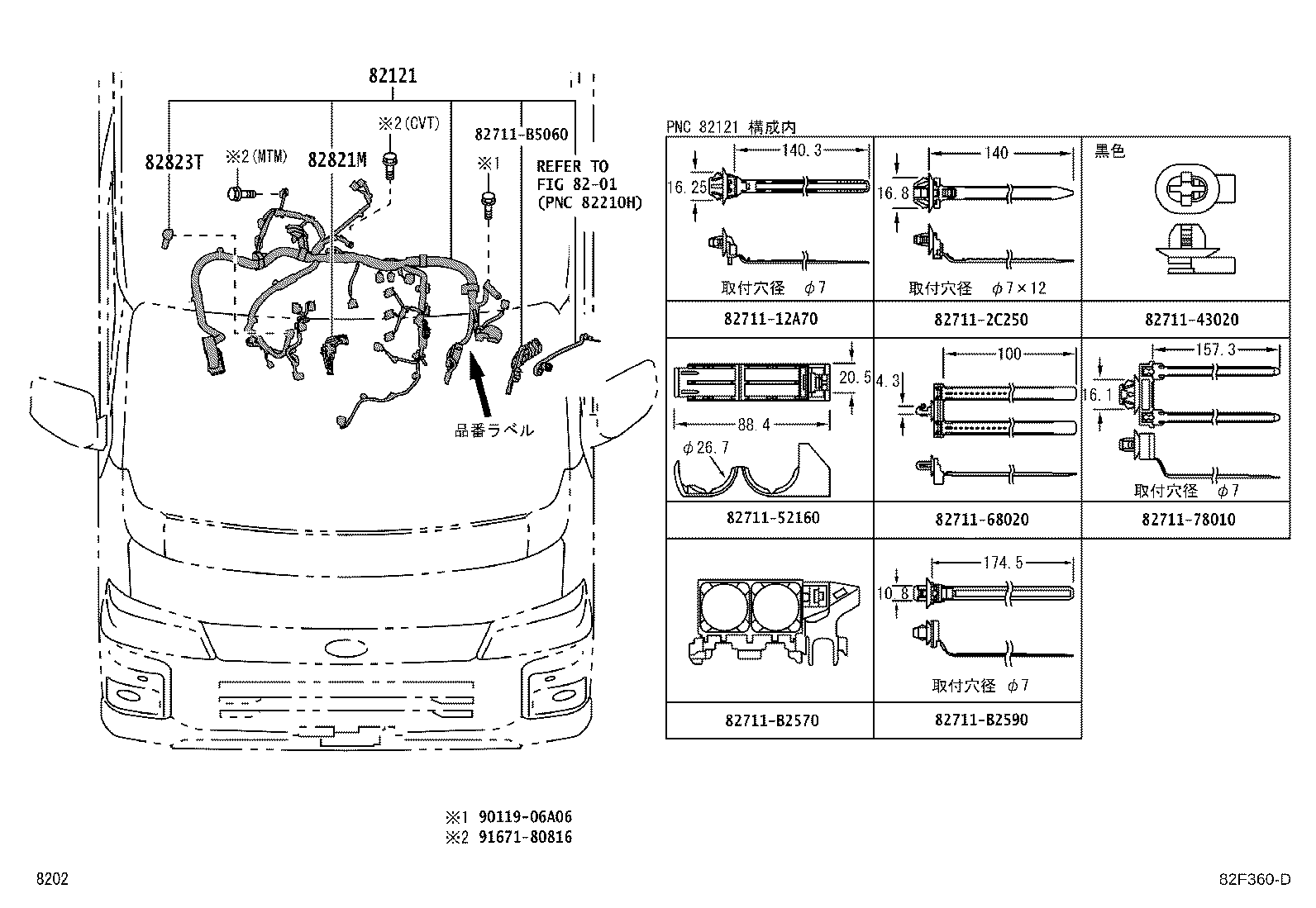

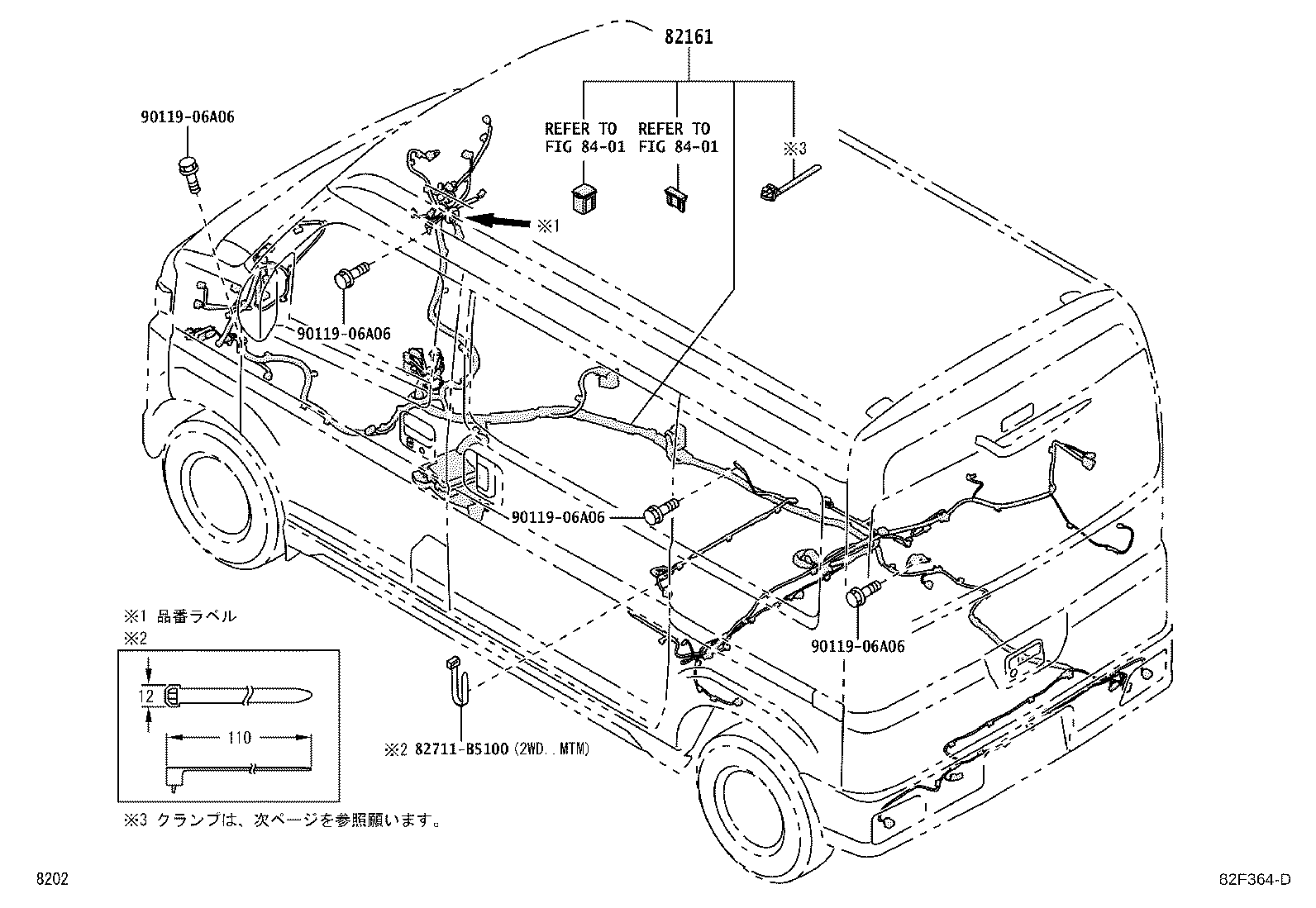

Figure 82F359 82F359 2021-12 → — Figure 82F360D 82F360D 2021-12 → — Figure 82F480B 82F480B 2021-12 → — Figure 82F362A 82F362A 2021-12 → — Figure 82F363A 82F363A 2021-12 → — Figure 82F364D 82F364D 2021-12 → — Figure 82H268 82H268 2021-12 → — Figure 82H5VX 82H5VX 2021-12 → — Figure 82H270A 82H270A 2021-12 → —

Part groups

PNCDescription
82121 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82219C Wire, Sensor
82233 Wire, Computer
82415 Wire, Fuel Pump
82821M Cover, Connector
82823T Cap, Alternator Terminal
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
