Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

60 part groups · 9 illustrations

Illustrations

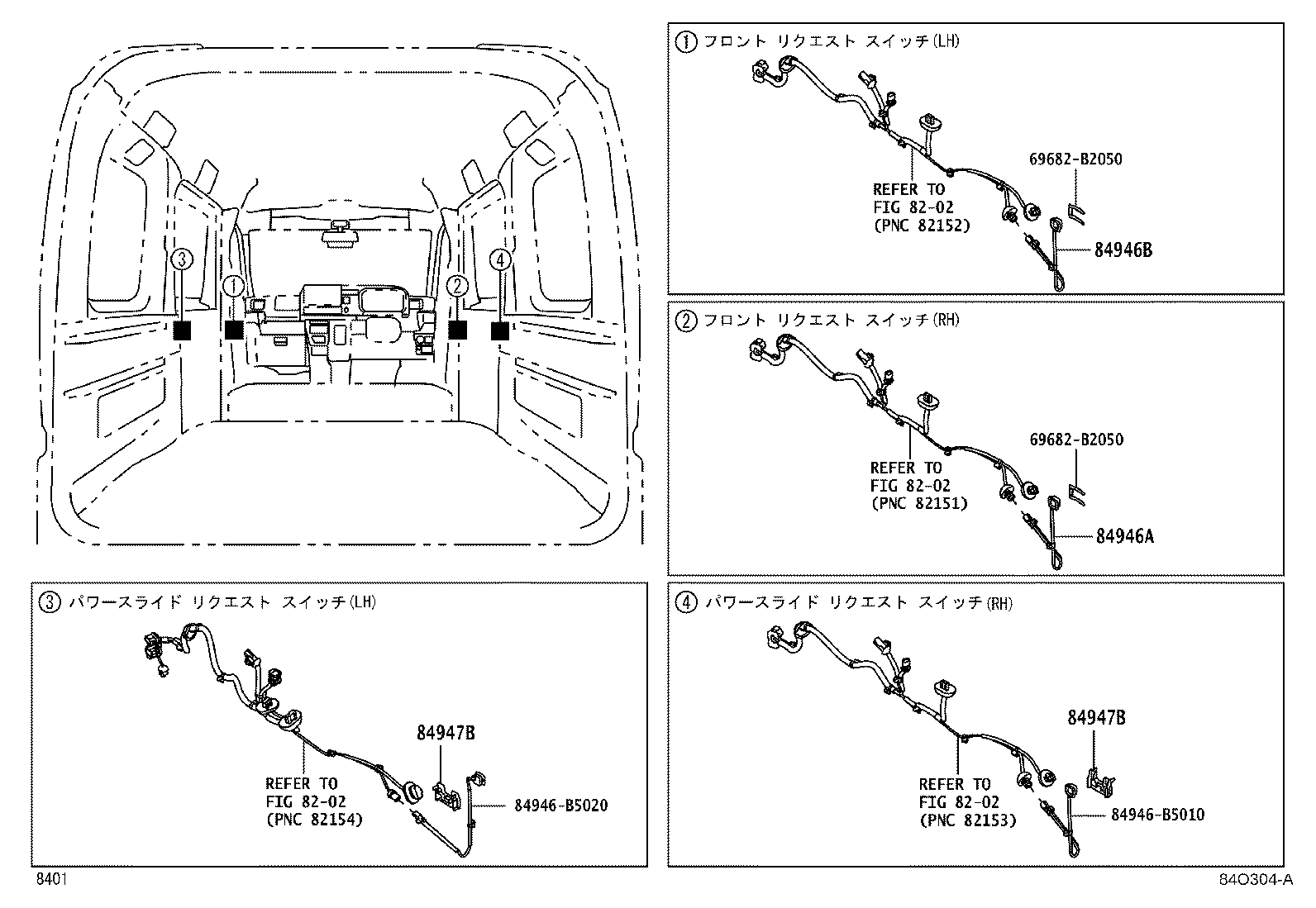

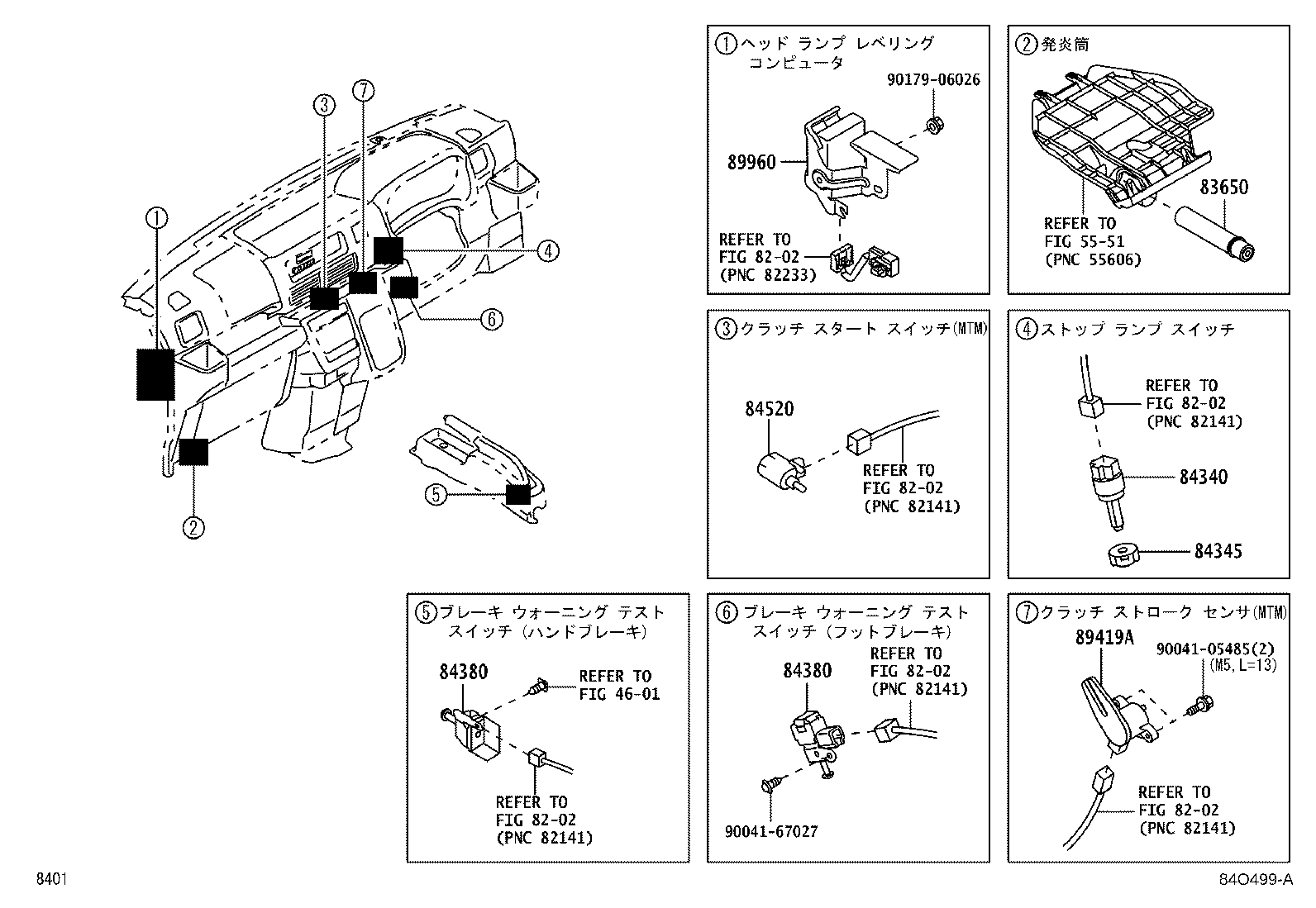

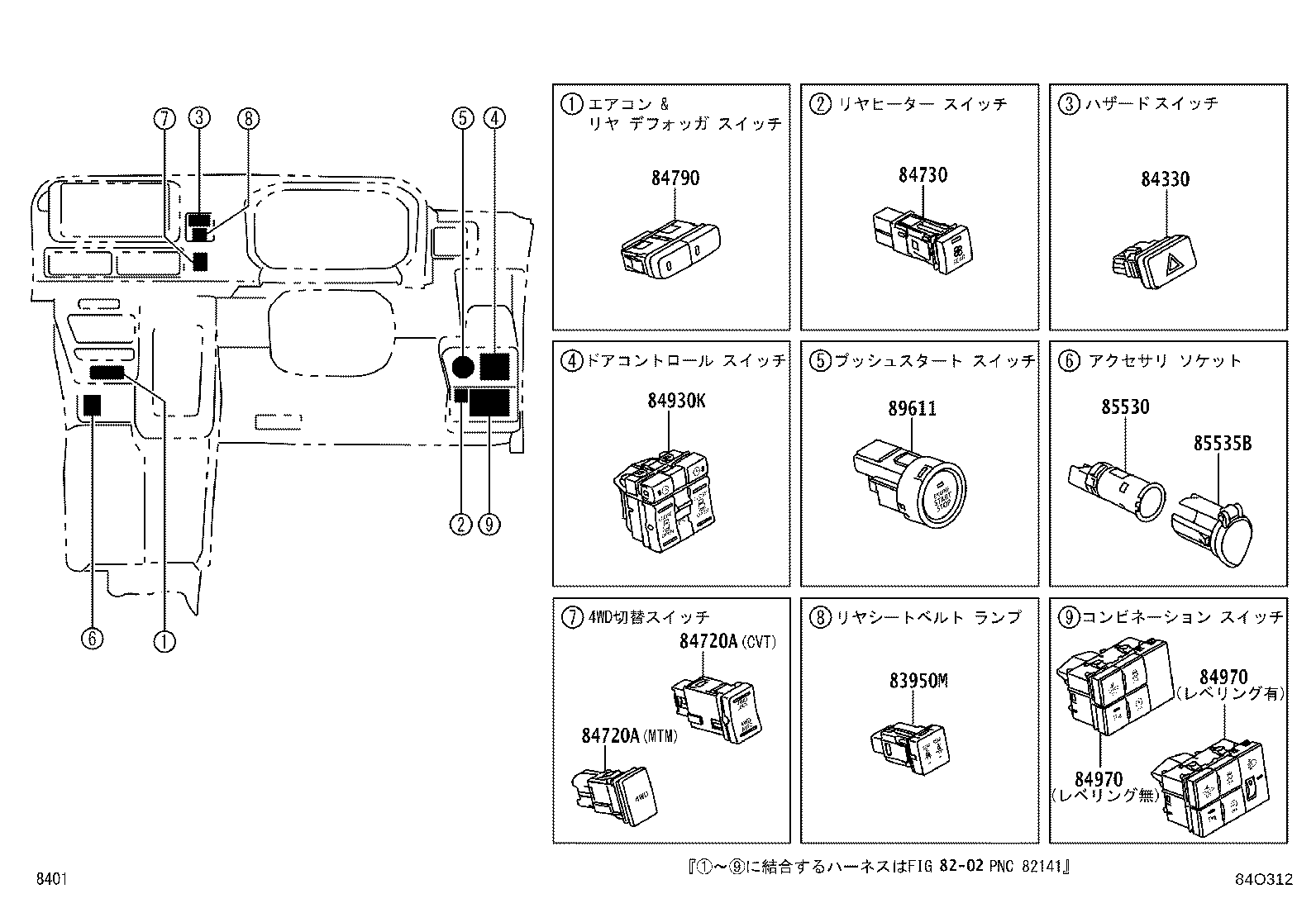

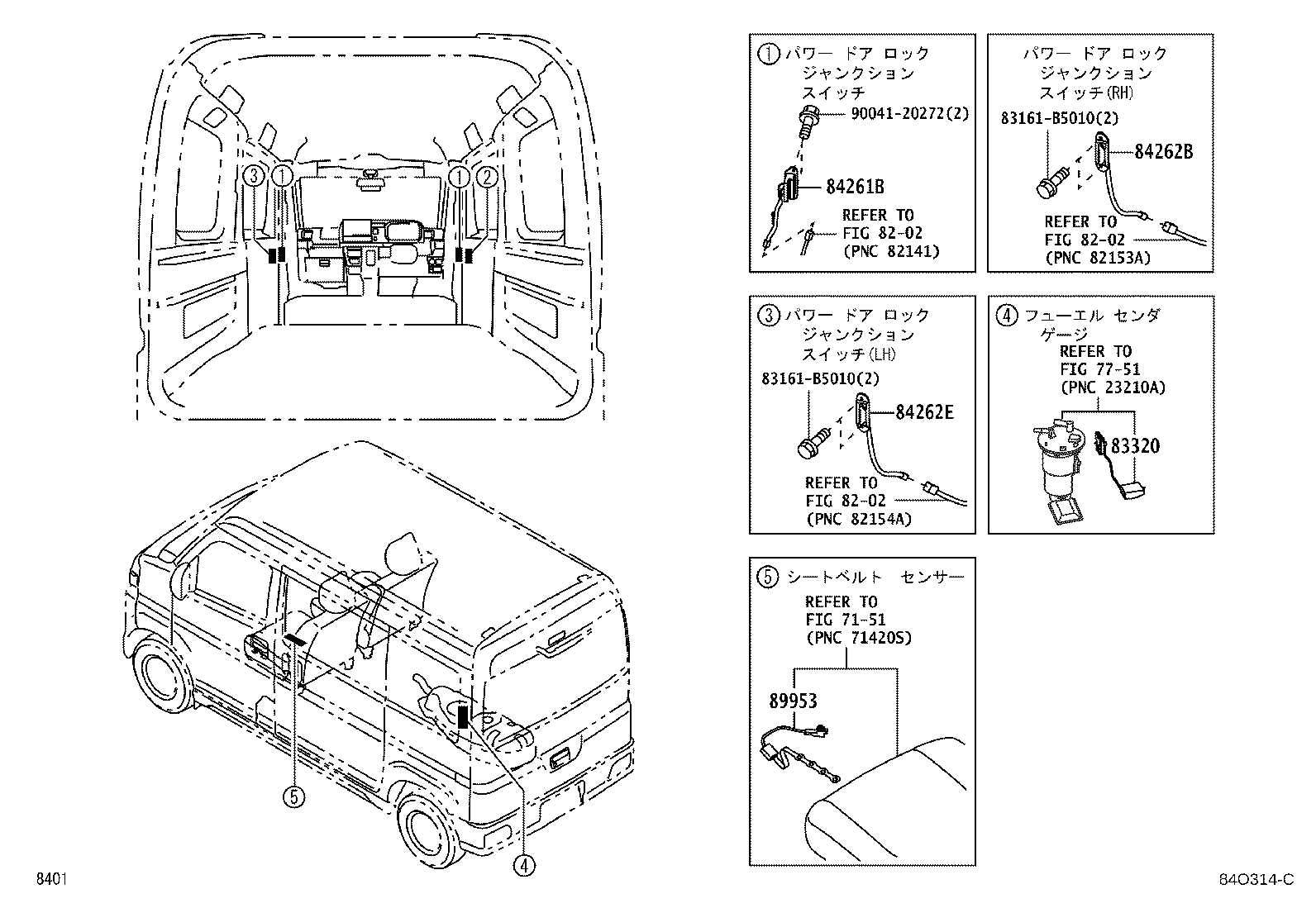

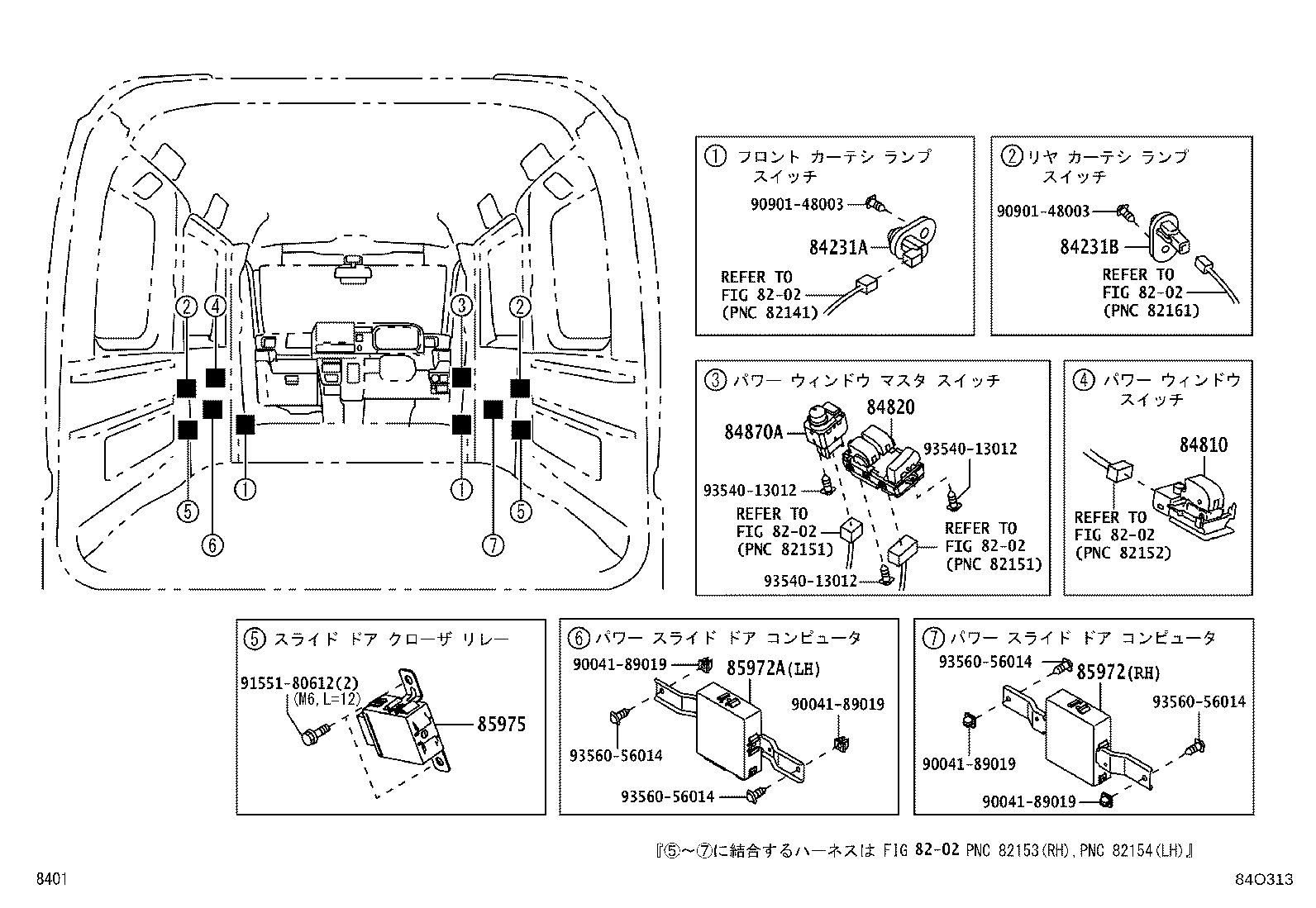

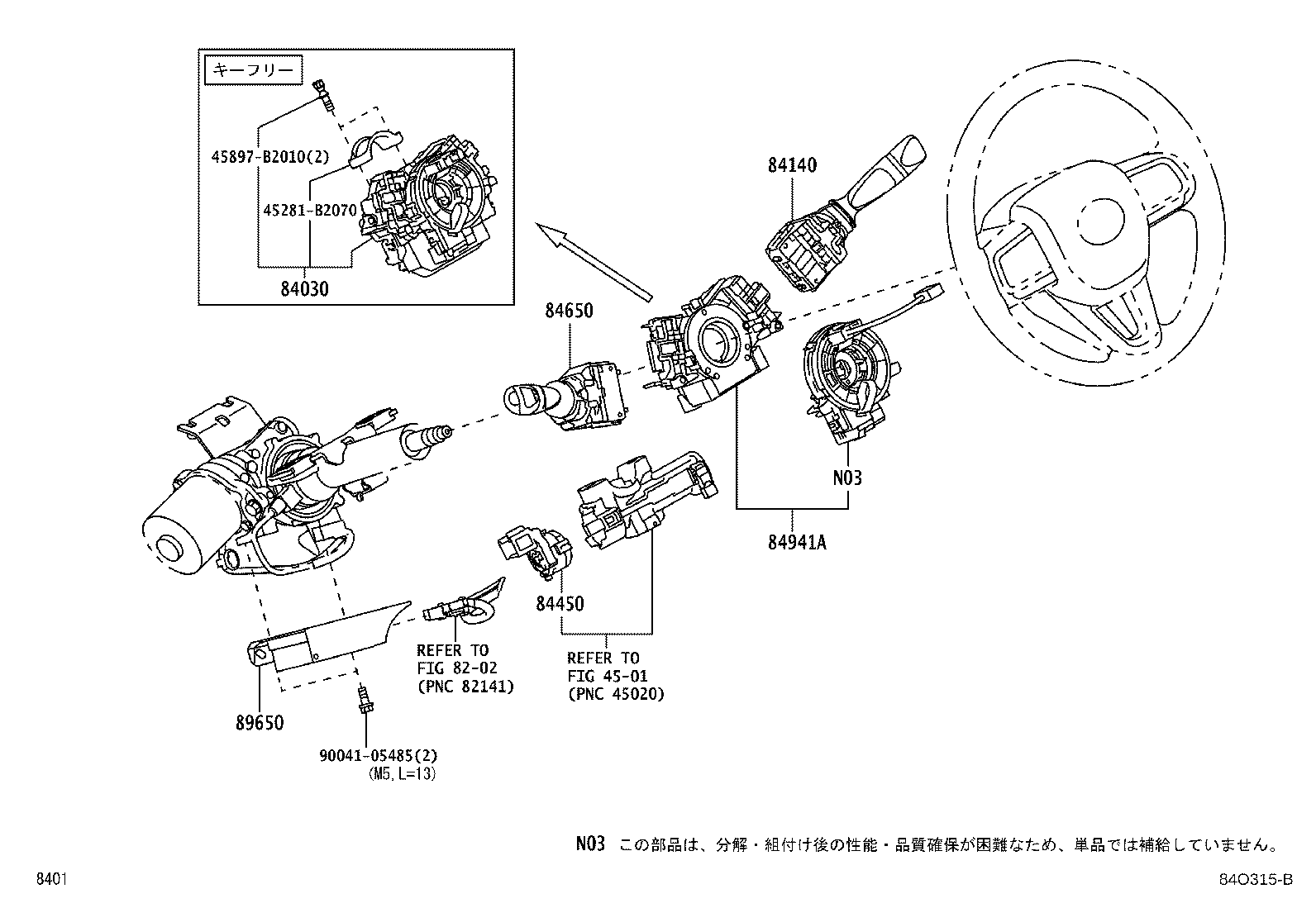

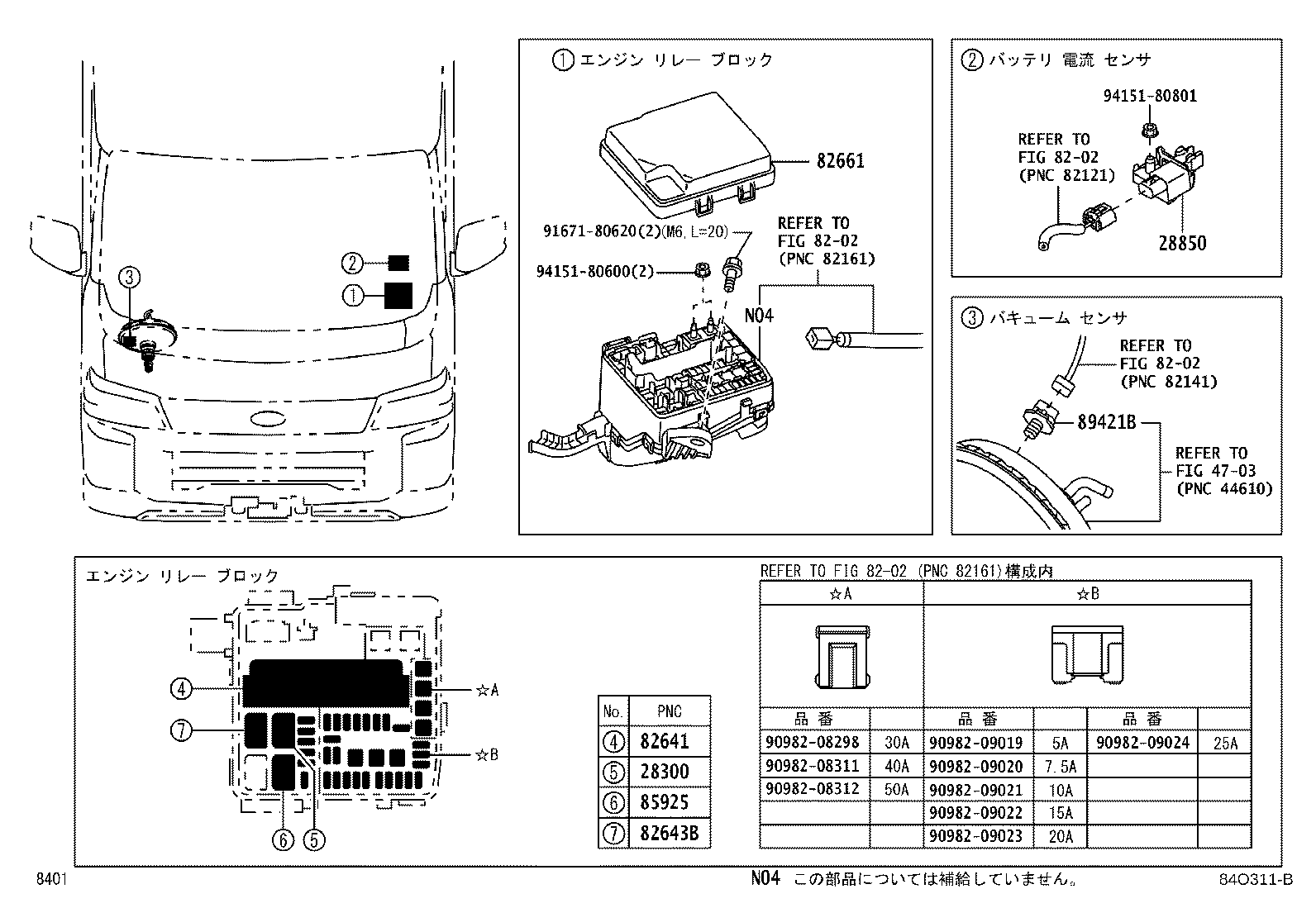

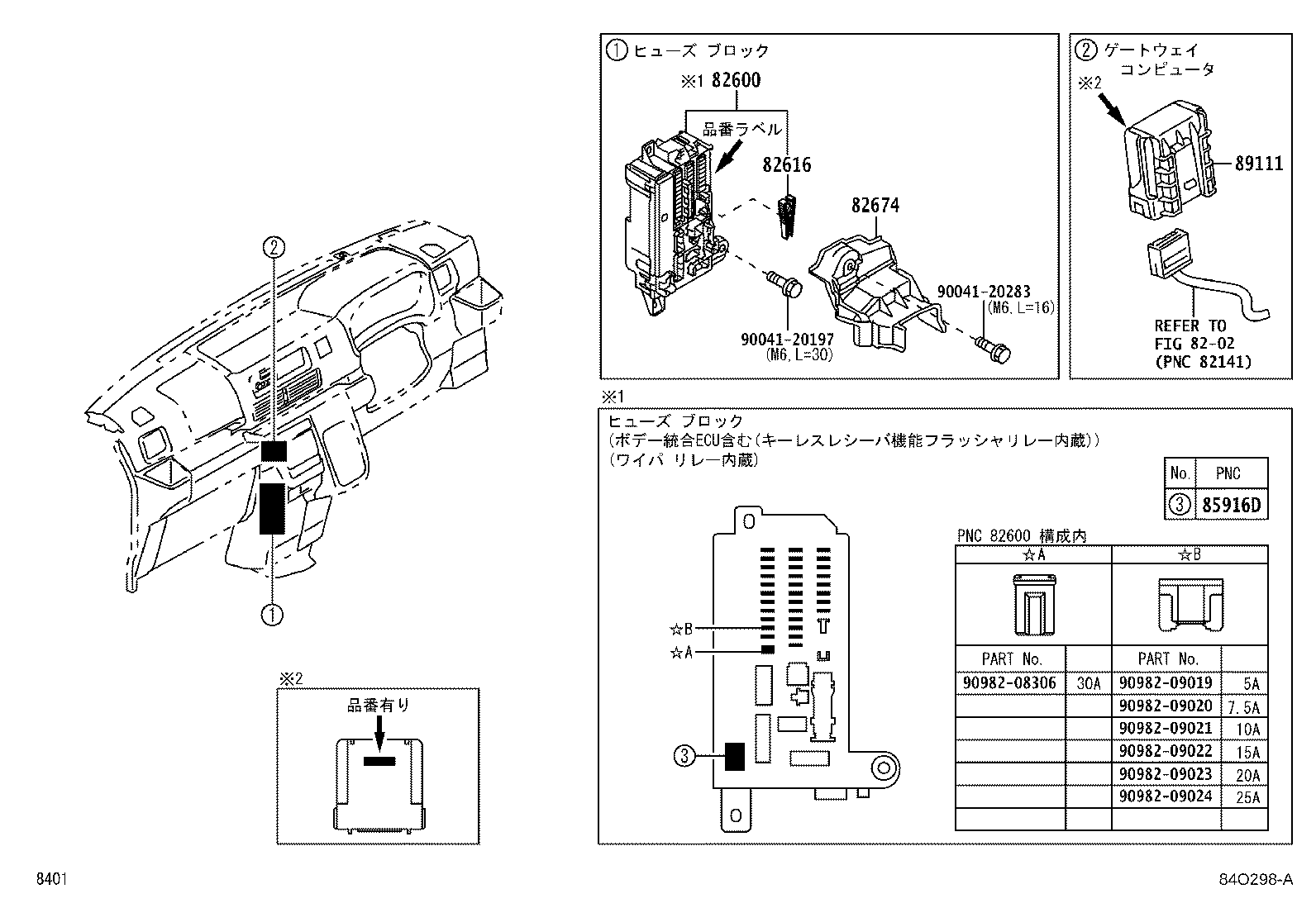

Figure 84O498A 84O498A 2021-12 → — Figure 84O311B 84O311B 2021-12 → — Figure 84O298A 84O298A 2021-12 → — Figure 84O499A 84O499A 2021-12 → — Figure 84O312 84O312 2021-12 → — Figure 84O313 84O313 2021-12 → — Figure 84O304A 84O304A 2021-12 → — Figure 84O314C 84O314C 2021-12 → — Figure 84O315B 84O315B 2021-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82643B Relay, Dim
82661 Cover, Relay Block, NO.1
82674 Cover, Junction Block Lower
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83950M Lamp Assy, Telltale
84030 Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84262E Junction, Slide Door Control Female, NO.2
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84720A Switch Assy, Pattern Select, NO.1
84730 Switch Assy, Heater Blower
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930K Switch Assy, Auto Slide Door Control
84941A Base, Switch
84946A Switch, Door Electrical Key RH
84946B Switch, Door Electrical Key LH
84947B Cover, Switch
84970 Switch Assy, Combination
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85916D Relay, Fog Lamp
85925 Relay, Radiator Fan
85972 Computer, Slide Door Control, RH
85972A Computer, Slide Door Control
85975 Relay, Slide Door Closer
89111 Computer, Network Gateway
89419A Sensor, Clutch Stroke
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
