Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 2 illustrations

Illustrations

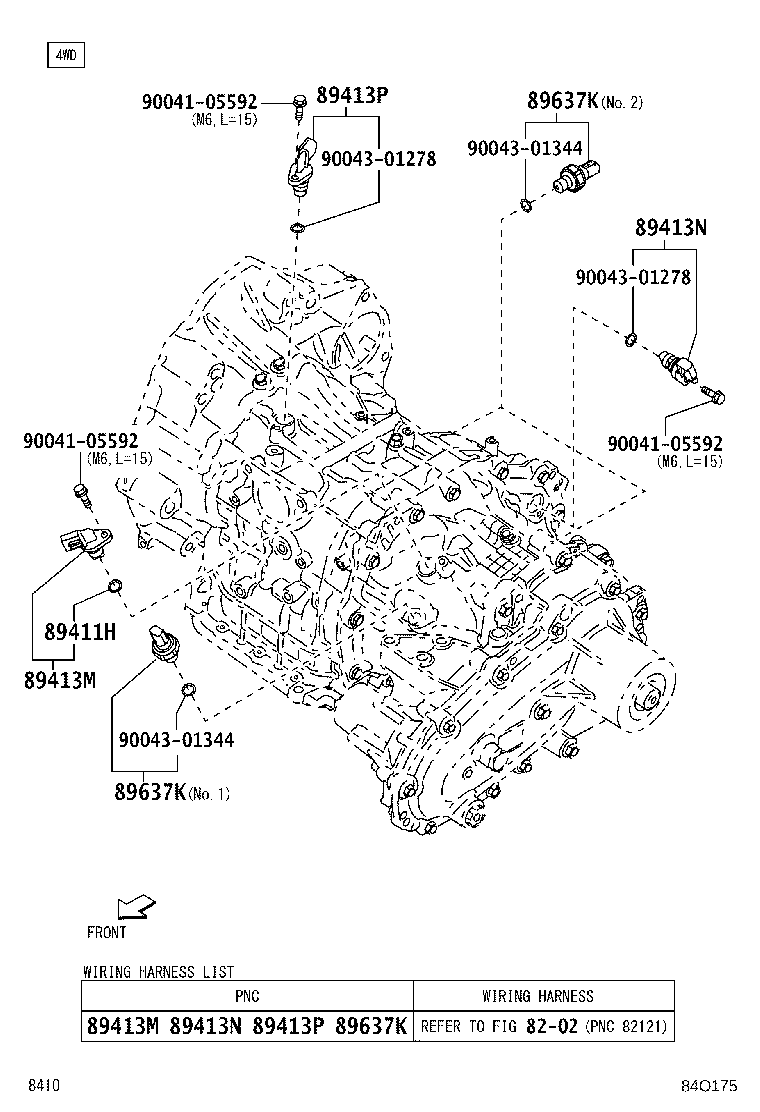

Figure 84O174 84O174 2021-12 → — Figure 84O175 84O175 2021-12 → —

Part groups

PNCDescription
89411H Ring, O
89413M Sensor, Transmission Revolution, (NOUT)
89413N Sensor, Transmission Revolution, (NT)
89413P Sensor, Transmission Revolution, (NIN)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
