Toyota Pixis Van

2021-12 → present · chassis S700M,S710M · catalogue 894120 · Japan

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

27 part groups · 2 illustrations

Illustrations

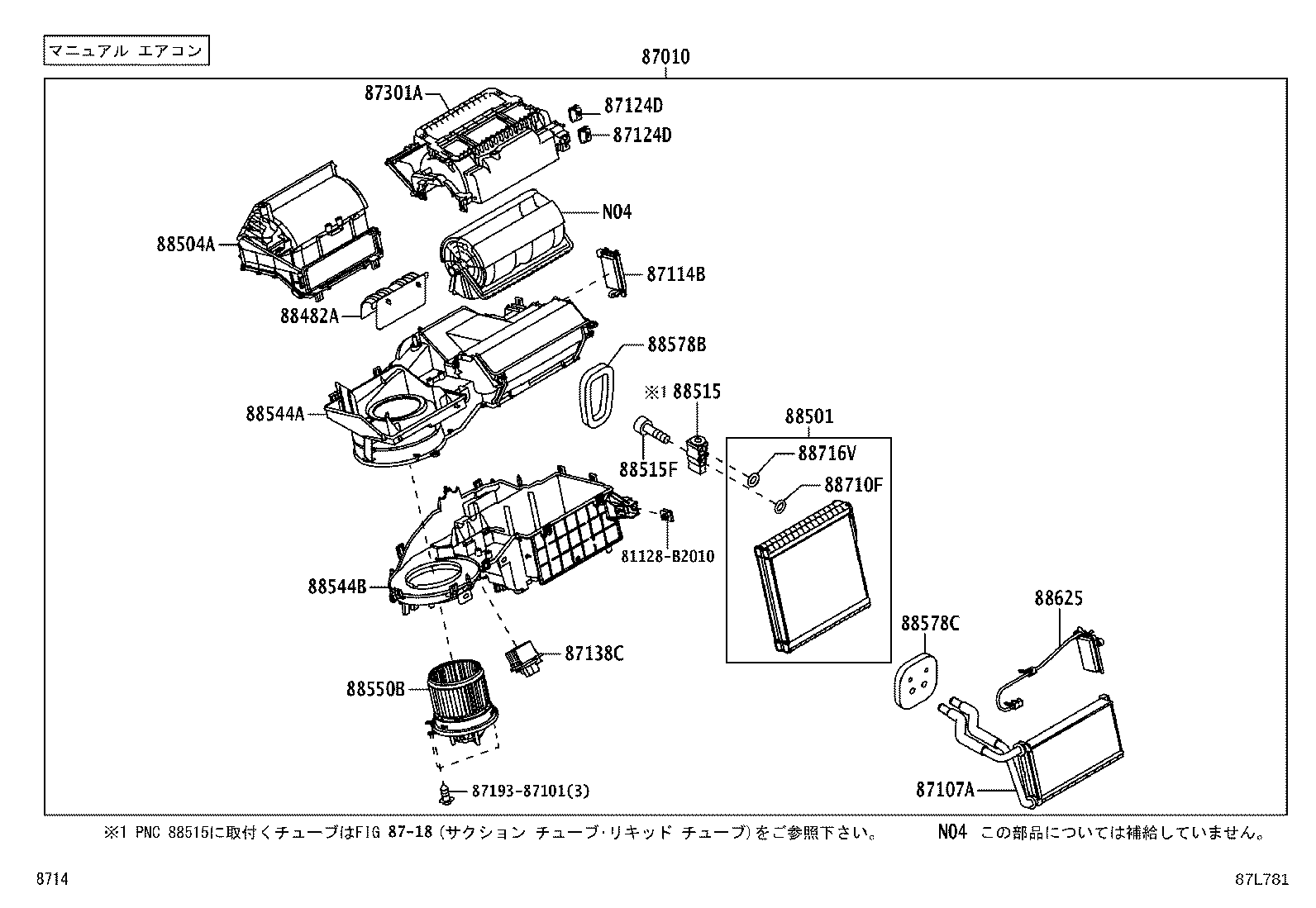

Figure 87K553 87K553 2021-12 → — Figure 87L781 87L781 2021-12 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87114L Cover, Heater, NO.2
87121K Bracket, Heater
87124D Clamp, Heater, NO.3
87138C Resistor, Blower
87301A Case Sub-assy, Heater
88482A Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88504A Case Sub-assy, Blower
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88544A Case, Cooler Blower, Upper
88544B Case, Cooler Blower, Lower
88550B Motor Assy, Blower
88568B Filter, Air
88569F Clamp
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88688T Bracket (FOR COOL BOX)
88710F Ring, O
88716V Ring, O(FOR COOLER UNIT)
88892N Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
